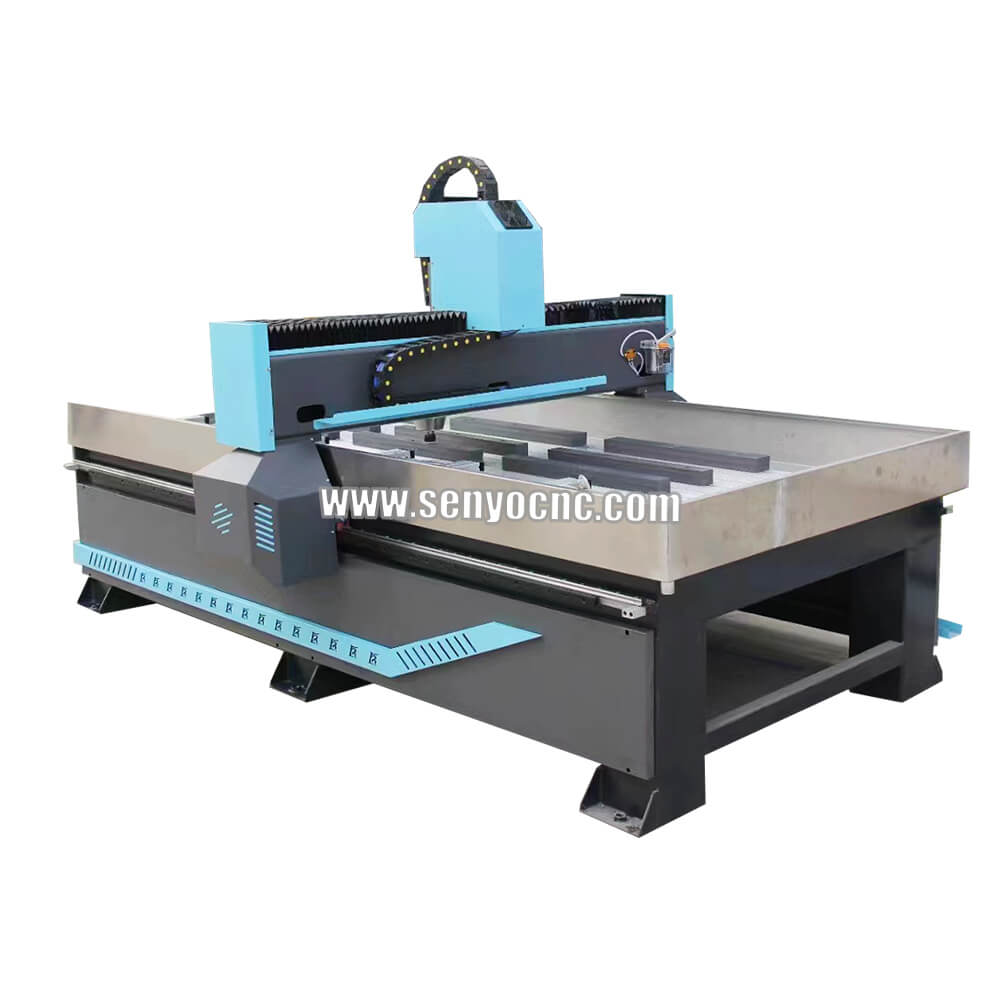

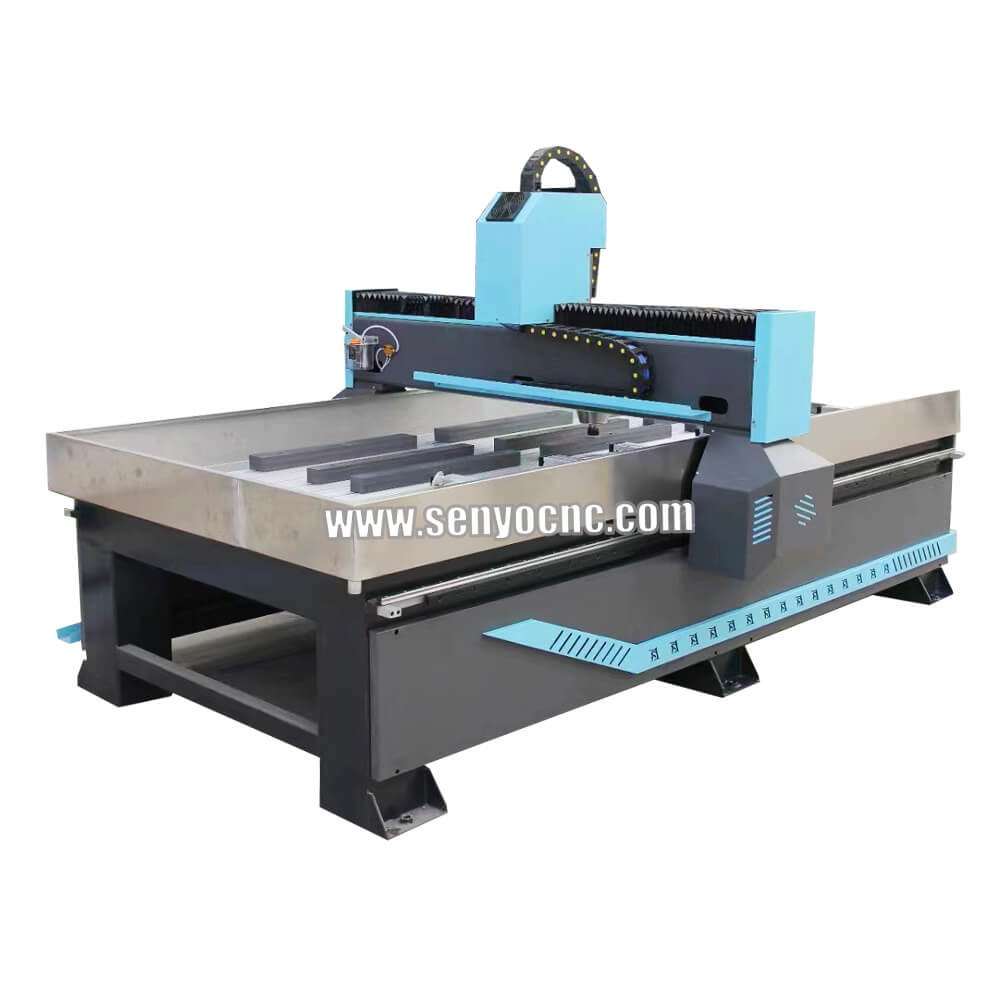

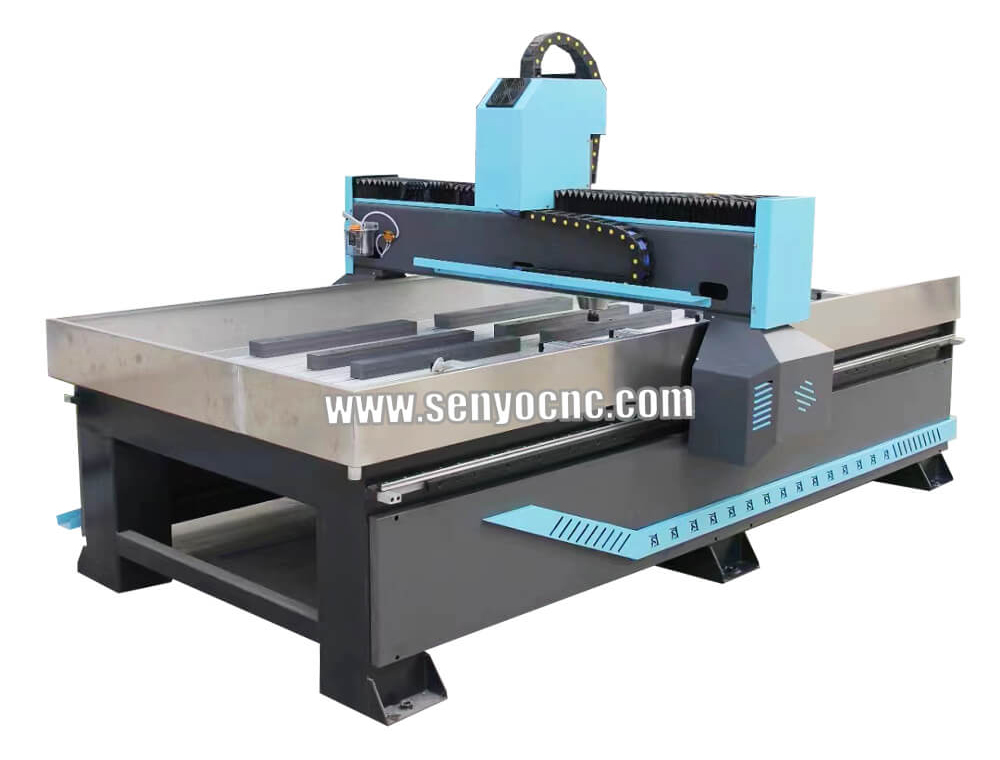

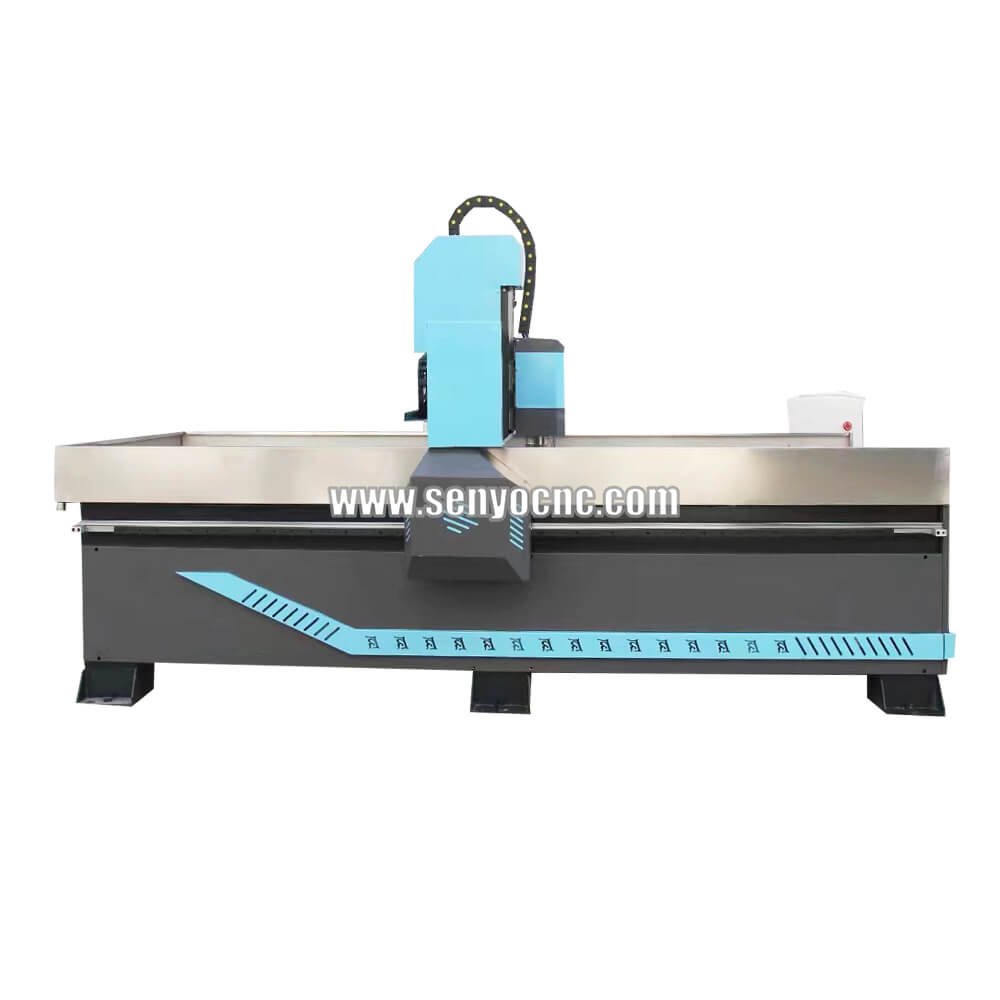

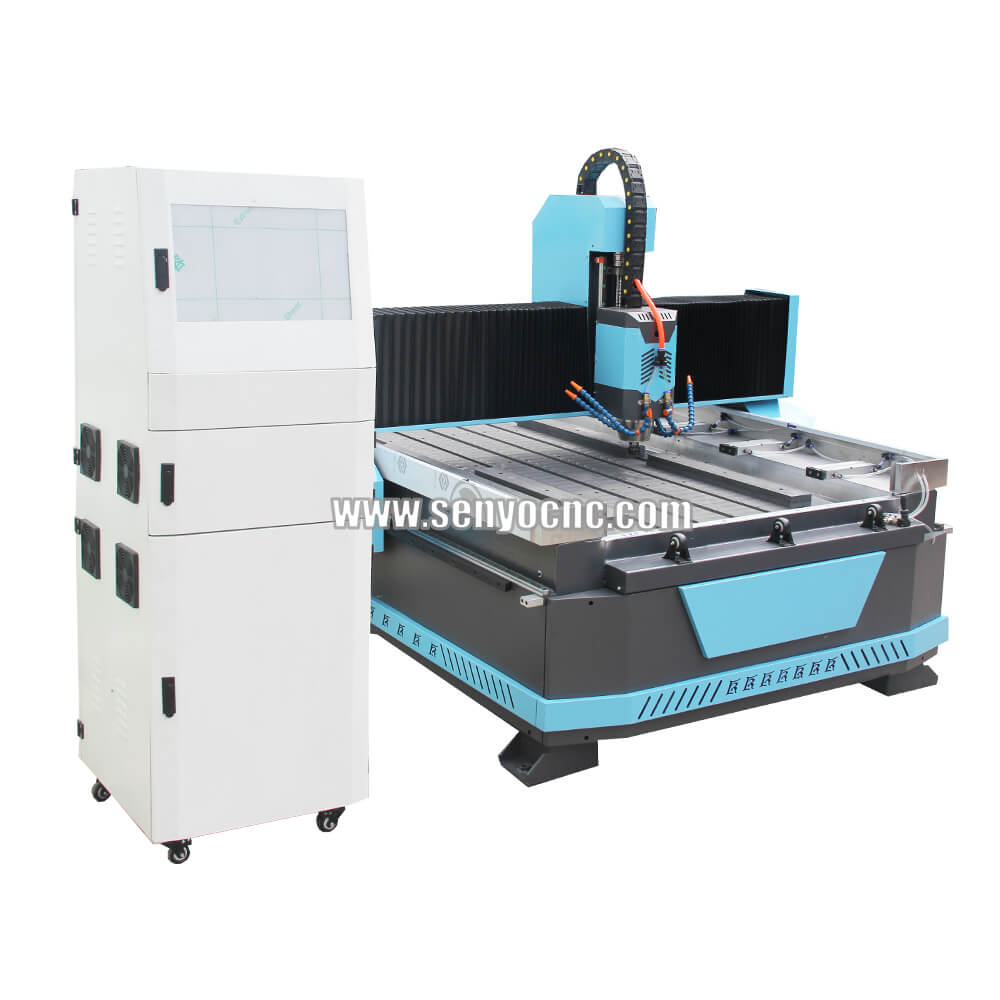

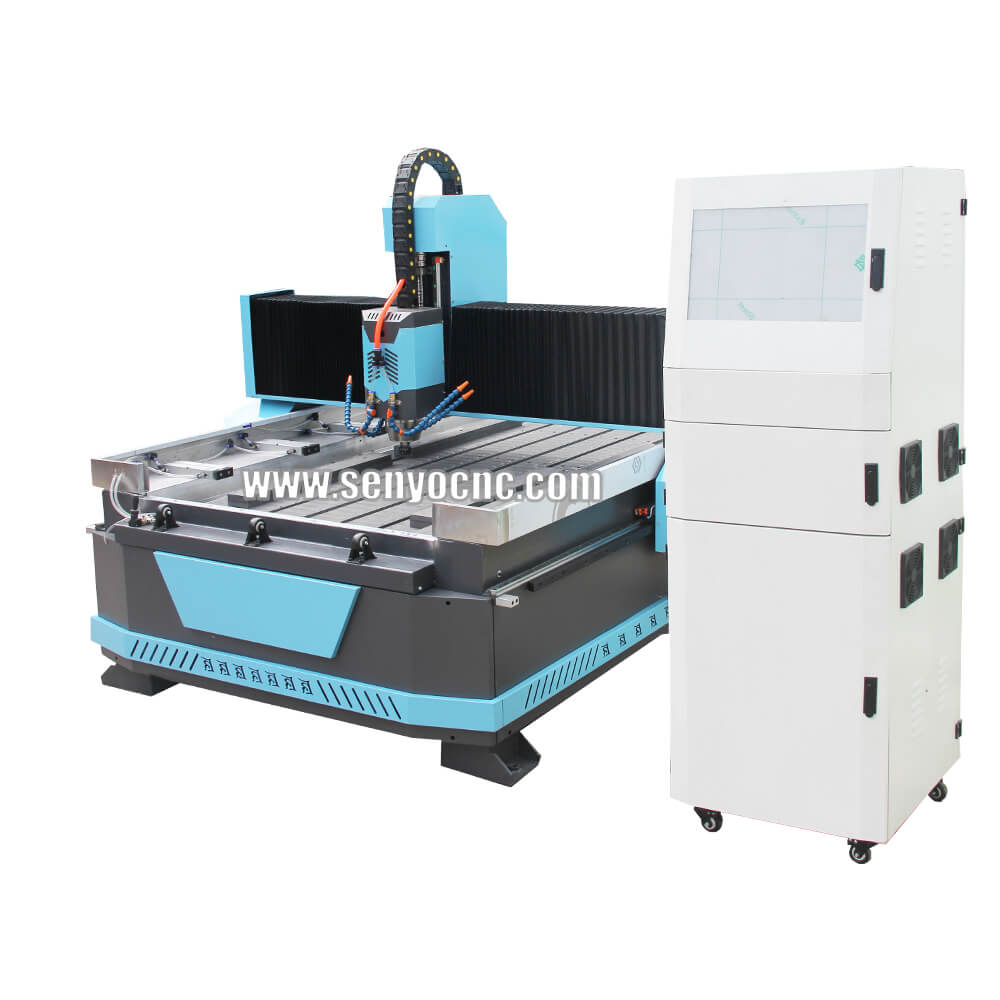

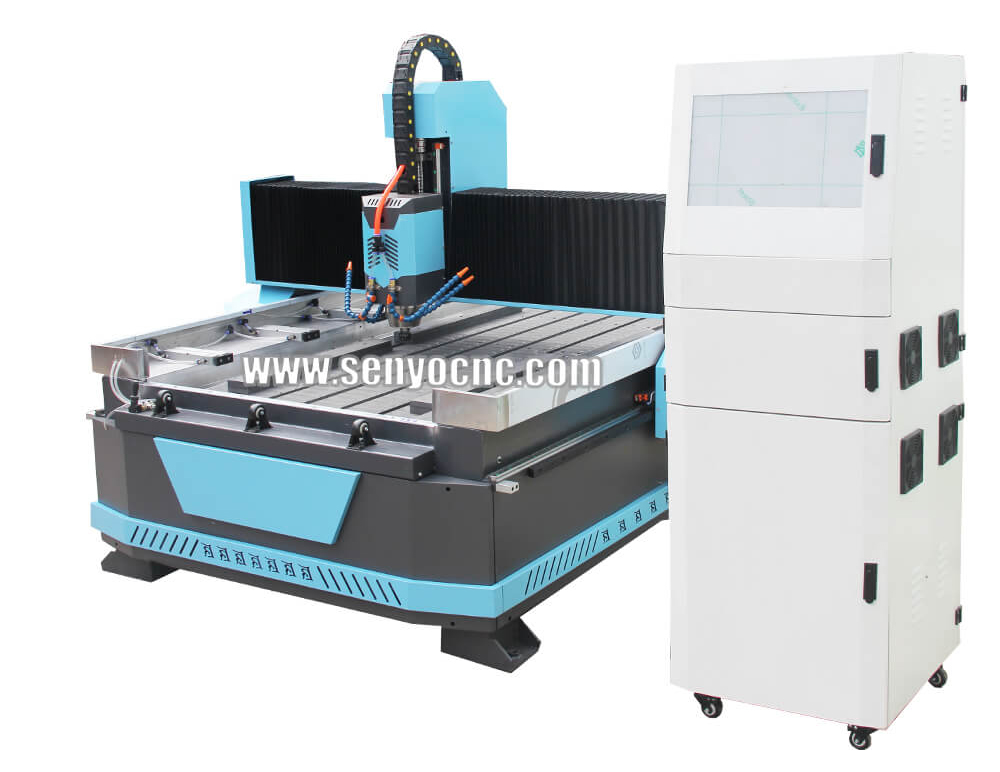

Features and Advantages of Stone CNC Machine
1. The stone CNC machine bed is welded by the thick wall steel seamless tube, high temperature tempering treatment, high rigidity, bearing strength better .
2. Dual stepper motor drive for Y-axis, moving stably.
3. DSP control with good software compatibility, suitable for Type3, Artcam, Castmate, Ucanam.
4. Constant spindle motor 5.5 KW power, strong cutting strength, high efficiency.
5. High precision rack transmission, high speed
6. Imported linear square guide way, double row four row slider, high precision, long life time.
7. Well selected electrical accessory, let the failure rate to the minimum.
8. With water and automatic water supply and cooling system.
9. Dustproof and waterproof design, better to protect the machine driving part.
What is the advantage?
1.Economy cnc router machine with heavy duty welded structure.
2.Powerful 5.5kw water cooling spindle with 24000r/min.
3.NC-studio/Mach3/DSP Controller ;easy operation ;convenient and intuitive.
4. Professional Fix parts with T slot table could fixable different size materials closely.
5.HIWIN linear rail from Taiwan Precision and stable.
Technical Parameters of Stone CNC Machine
| Model | SYS1325-A2 |
Working area | 900*2500mm(Fix part 400mm) |
Repositioning accuracy | 0.03mm |
Max.Travelling speed | 30000mm/min |
Max.working speed | 25000mm/min |
Spindle power | 5.5KW |
Drive&Motor | Leadshine Stepper Motor Driver |
Working voltage | AC220V 1PH/380V PH |
Operating system | NC Studio |
Spindle rotating speed | 24000RPM |
Spindle | Water cooled spindle |
Control system | NC studio/DSP |
Transmission XY axis | Rack and Pinion Drive, Hiwin Rail Linear Bearings |
Transmission Z axis | Hiwin Rail Linear Bearings and Ball Screw |
Guide rail | Twiwan Hiwin Square rail |
Drive system | Stepper motor and driver |
Inverter | Best inverter 5.5kw |
Table surface | Aluminum T-slot table |
| Collect | ER25 |
Compatibility software | Type3/UcancameV9 Software, (Option: Artcam Software) |
| Relative Humidity | 30% - 75% |
| Running Environment Temperature | 0 - 45 Centigrade |
NPacking Size | 3550X2300X1900mm |
| G.W. | 1300KG |
Machine Parts Pictures

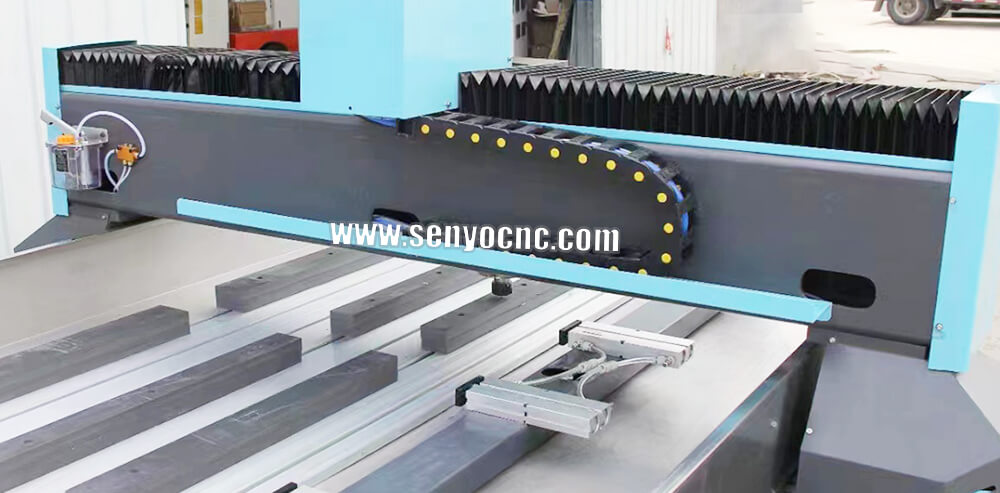

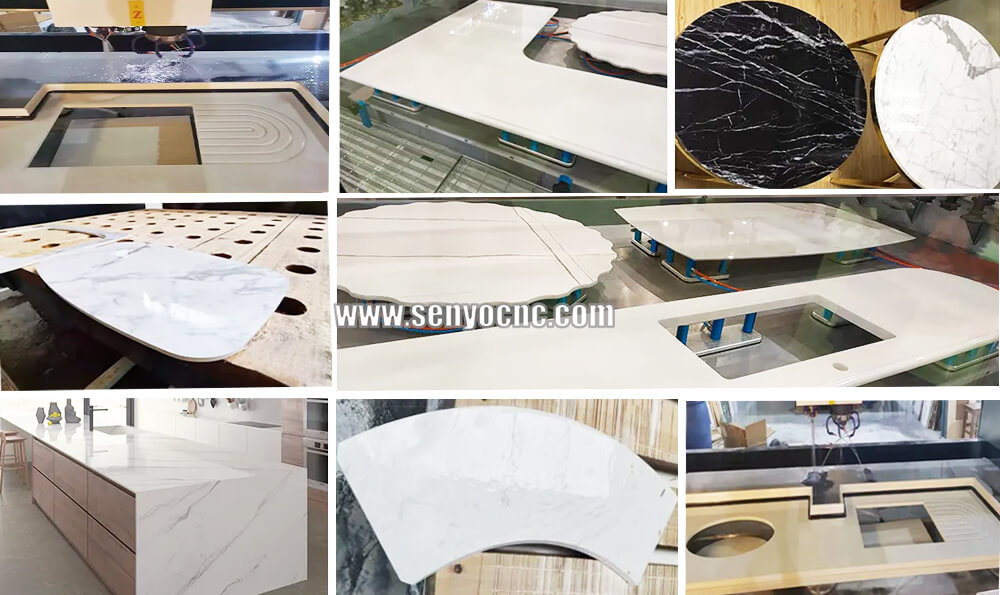

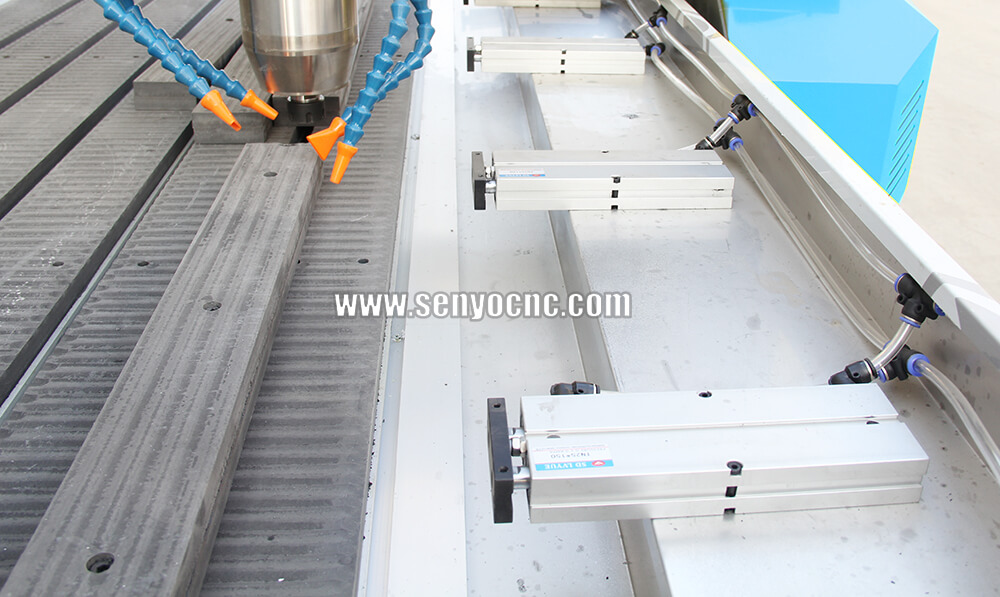

Professional Fixable Parts for Kitchen sink tile carving and cutting Marble, Granite and Quartz.

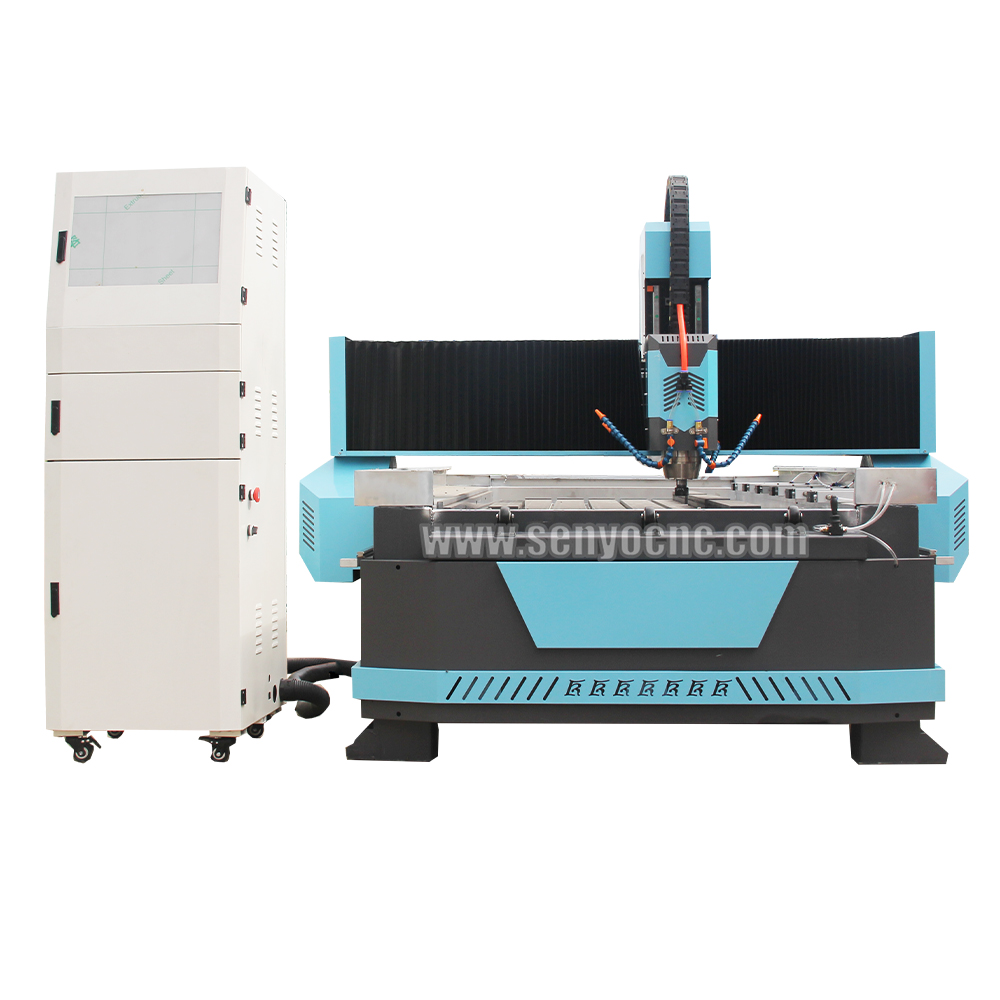

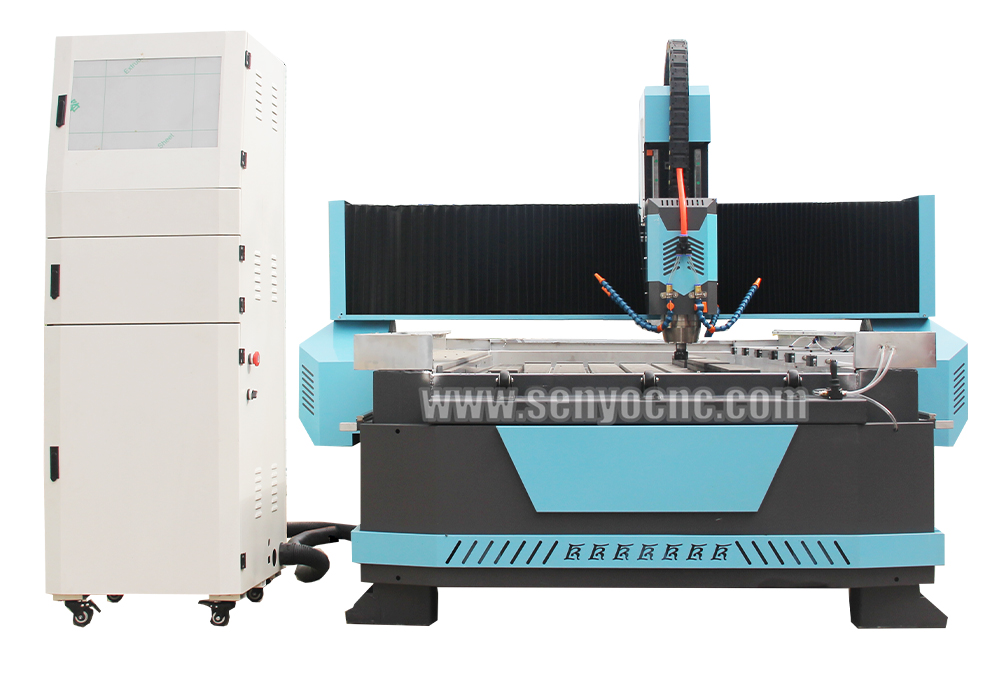

The cnc router machines’ body is strong, reliable and durable. Gantry with collect hood , Protect rail guide working condition

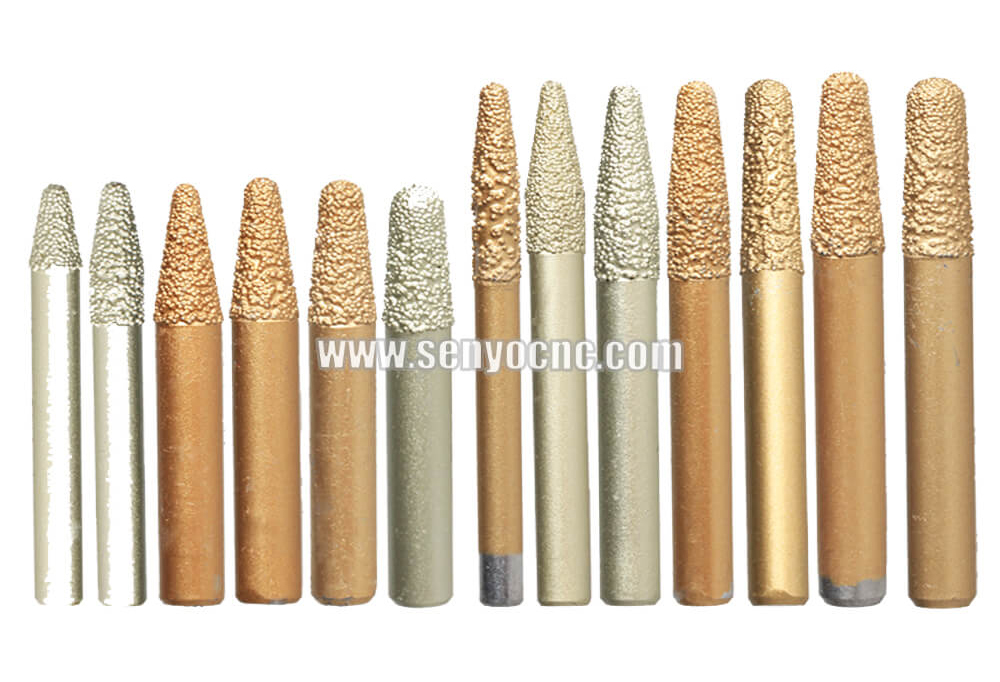

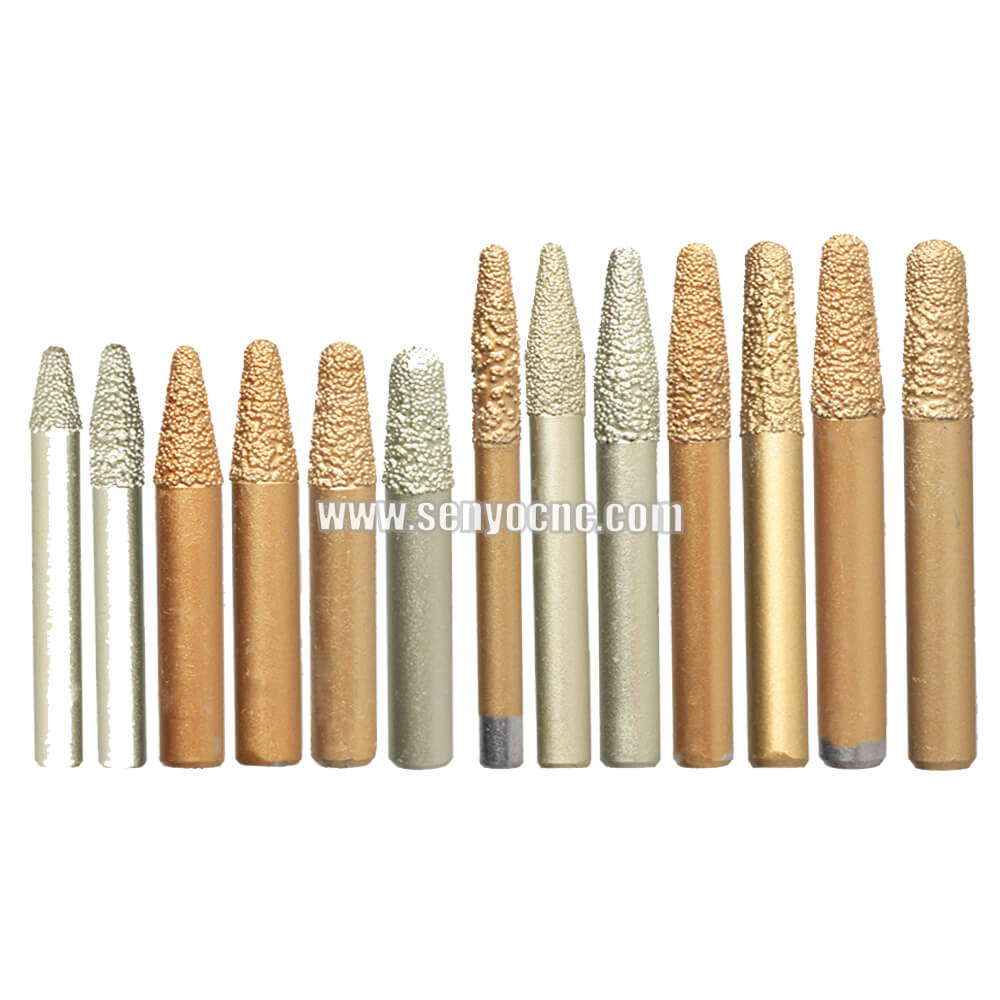

Professional Stone working tools in different size
Applications of Stone CNC Machine

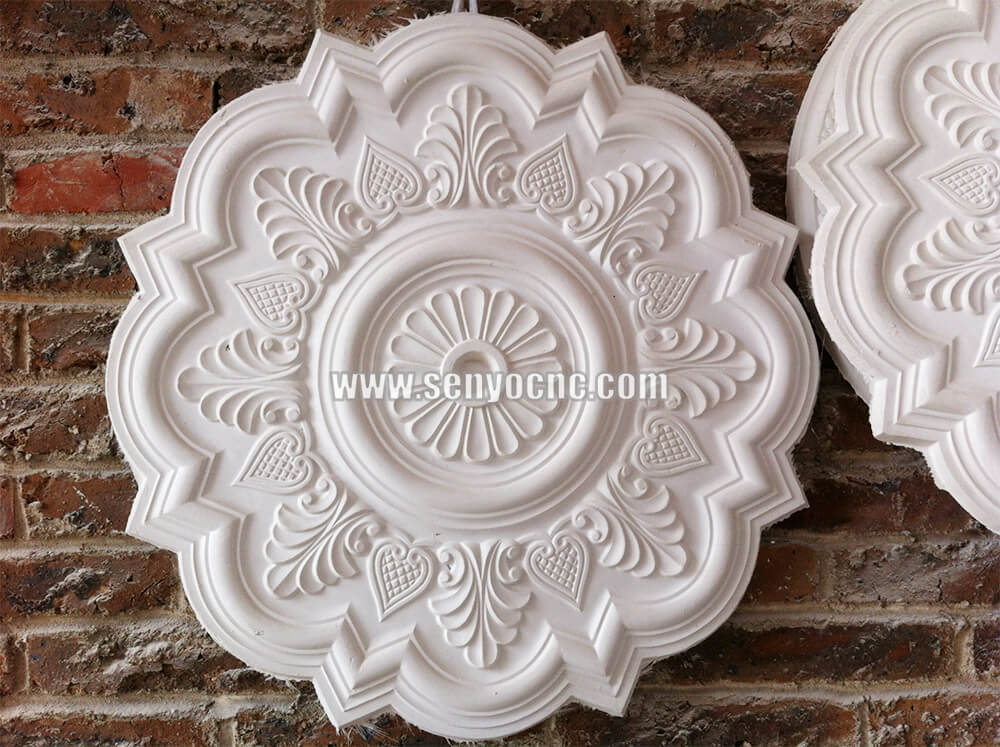

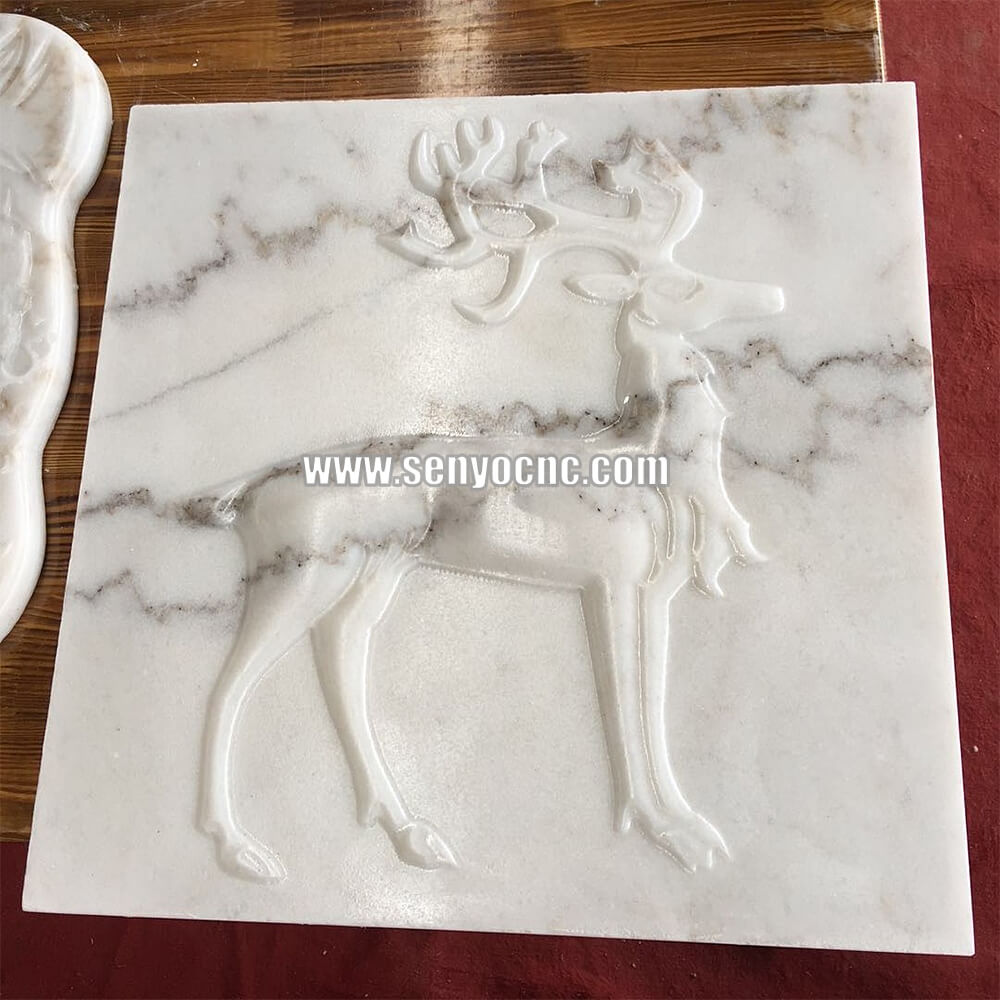

The stone CNC machine can make line carving, 2D carving, 3D carving, 3D relief, cutting, drilling, etc.
Applicable Materials
Stone, marble, granite, black stone, bluestone, jade stone, crystal, glass, organic glass floor tile and ceramic tile, plastic, chemical synthesis board, PVC board, bamboo ware, aluminum plastic panel, metals, etc.
Applicable Industry Representative Products
Stone Industry: Stone, ink-stone cutting, tomb stone, jade and marble products.

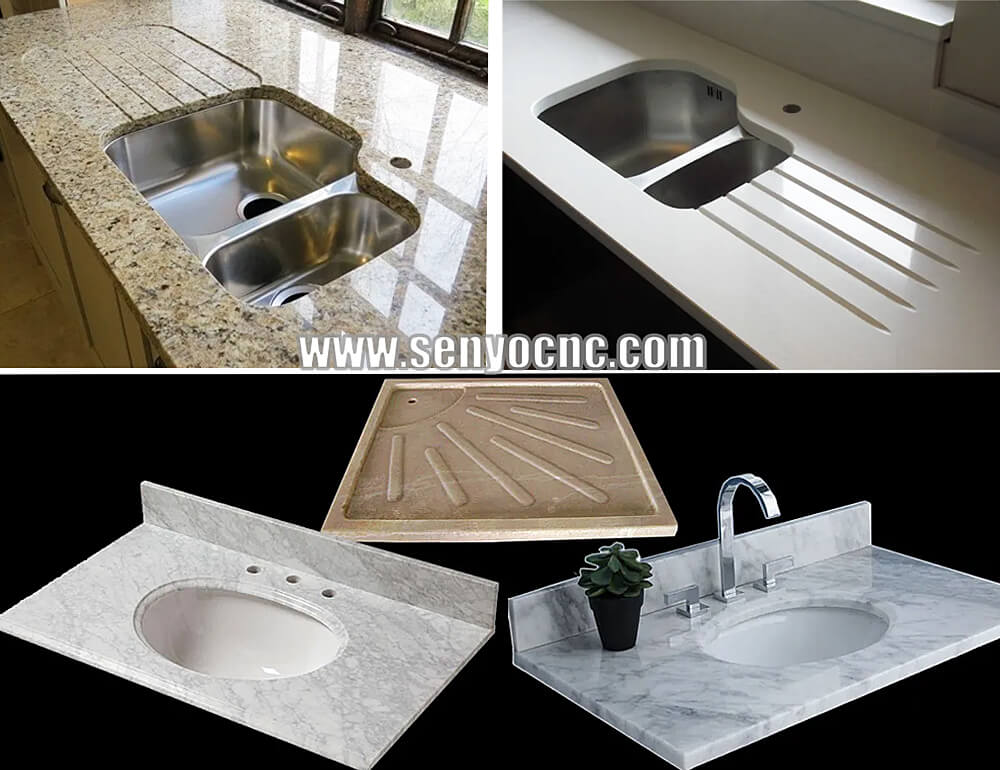

Kitchen Ware Industry: Man-made marble cabinet table surface. Artwork Decoration Industry: Wood crafts, gift box, jewelry box and other exquisite art crafts.
Woodworking industry: Chair, door, window, bed, cabinet, kitchen wares, redwood classical and antique furniture, exquisite european furniture, decorative products sculpture.
Mold Industry: Engraving copper, aluminum, and other metal molds;Building models, shoes, badge, embossed mould, biscuit, candy, chocolate mould, artificial marble, plastic sheeting, PVC, wood, foam and other non-metallic mold.
Advertising Industry: Billboard, signage, badges, logo, company plate, signs, emblem, badge, display panels, fair signs, building numbers, signs of decoration, literal hole cutting, 3D character cutting, acrylic cutting, LED/Neon channel, light box.
Working Project

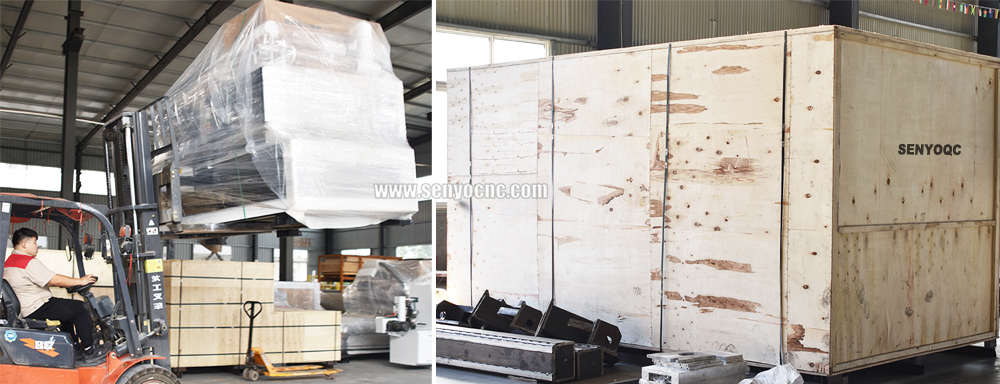

Package & Shipping
1.Outside package: Standard marine export plywood case.
2. Inner package: Stretch film and plastic film for humidity.
3. We can package according to your requests.
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS.
You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements,
we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
