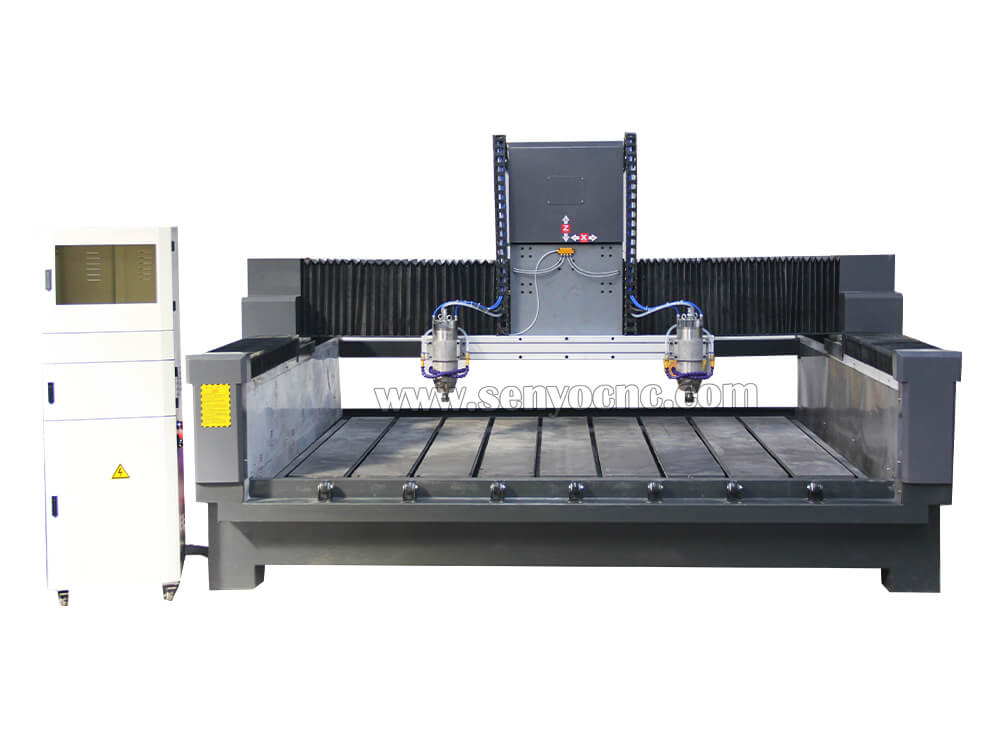

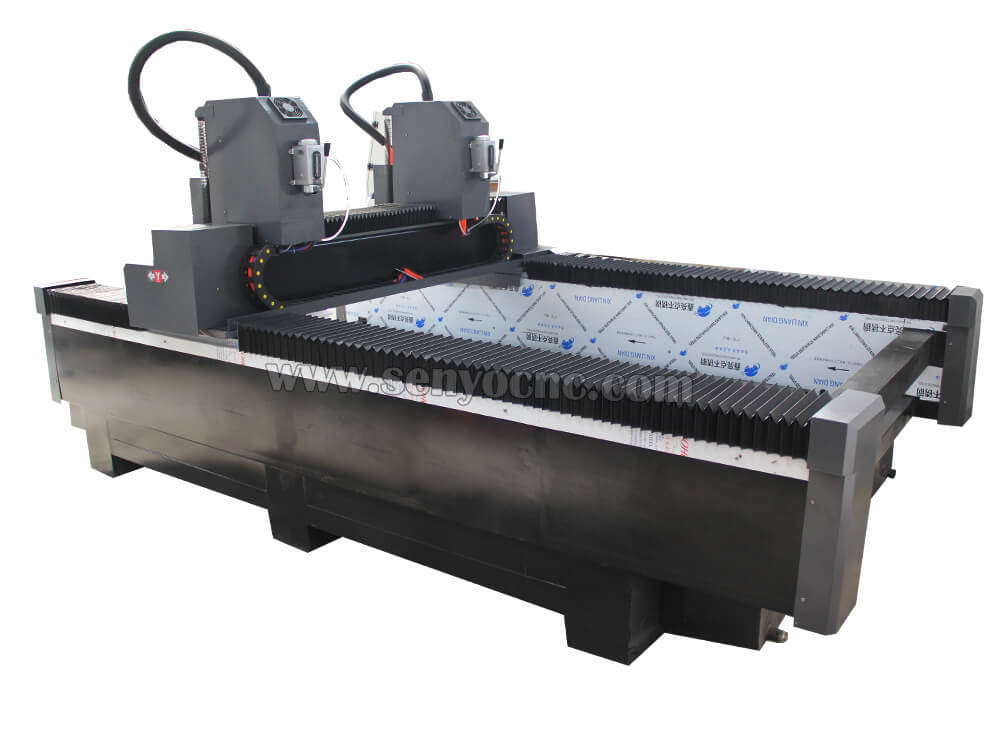

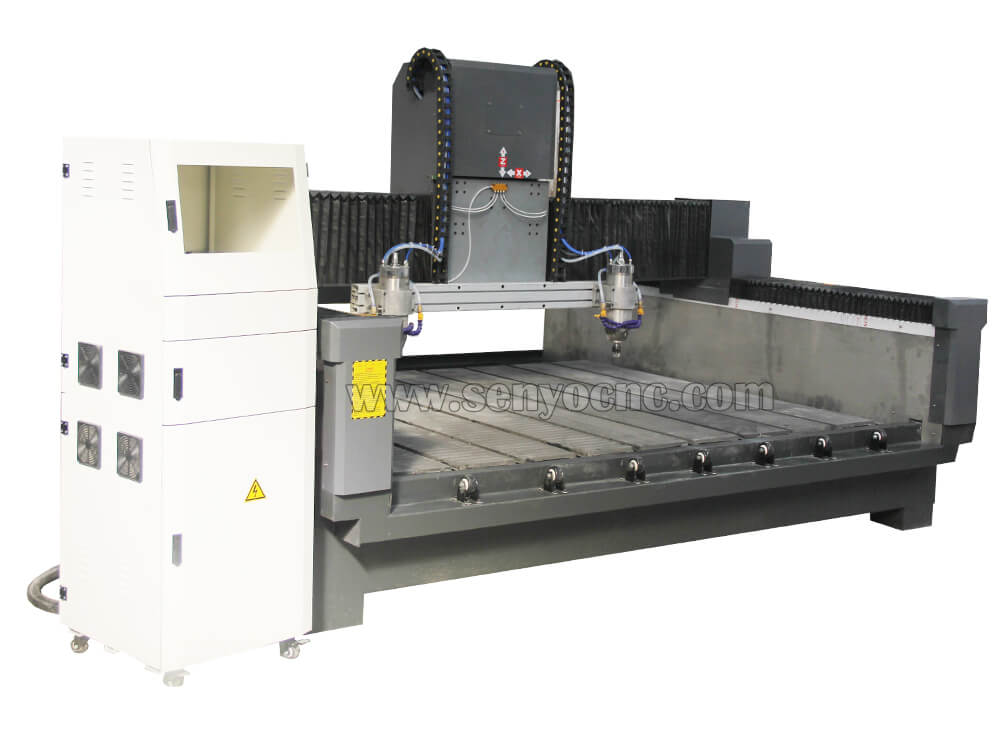

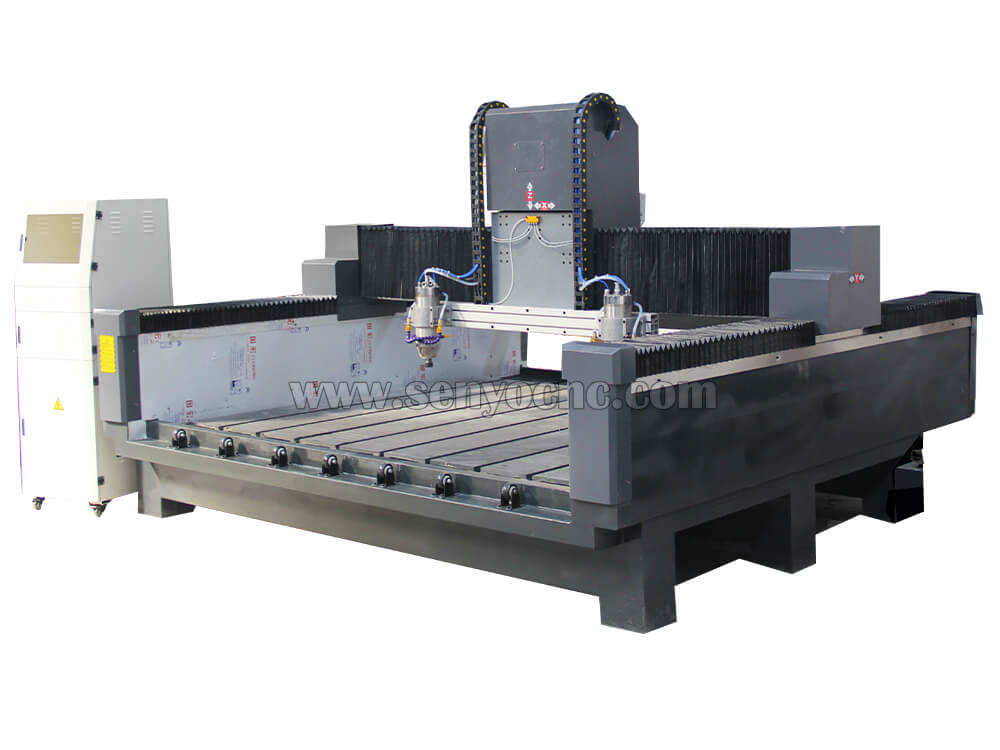

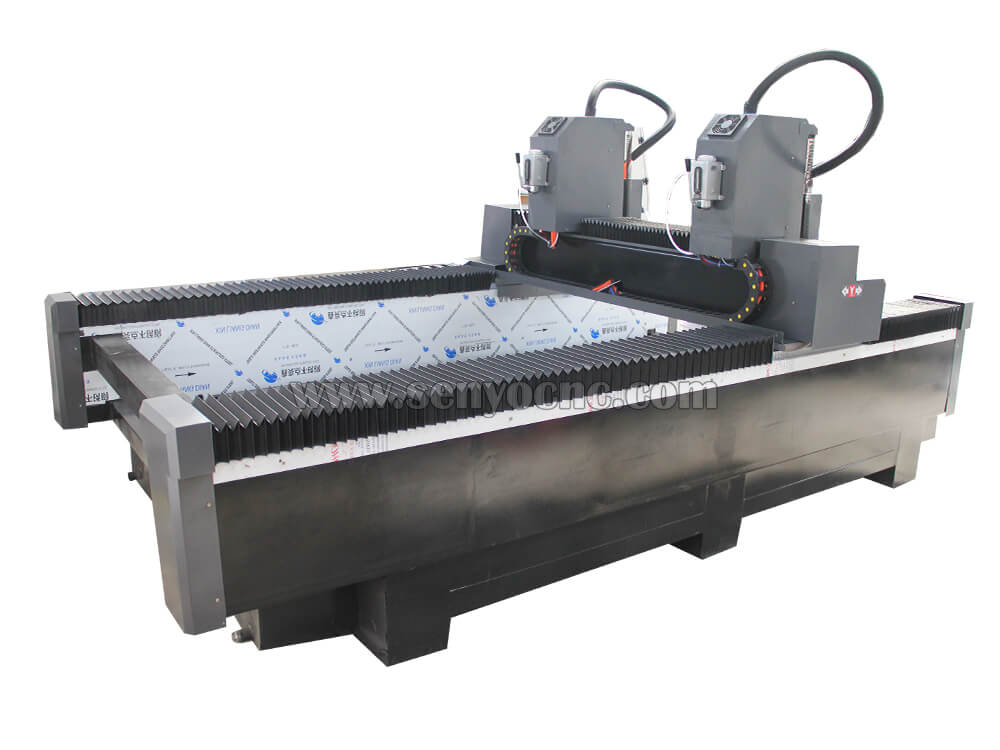

It is a cnc router machine with double heads. A spindle with water nozzle for a head.
The stone engraving machine is designed for customers with stone engraving needs.
The overall structure of the machine is most solid, with a large load-bearing capacity, and stone CNC router is equipped with a knife cooling system, three-axis waterproof and dustproof, which will help to extend the lifespan of cnc router.
Two-motor drive system ensures quick, even, stable operation
The subdivision, Powerful motor, and the high power main shaft make the machine more efficient
USB ensures high speed and efficiency.The unique calculating system realizes speedy, accurate, curvy operation.
Paramaters
Working area: | 1500x3000x200mm |
Spindle type: | water cooled spindle/air cooled spindle optional |
Spindle power | 5.5 kw |
Spindle rotating speed | 24000rmp |
Power (except spindle power) | 6.8KW |
Power supply: | 3phase 380v/220v, 50 Hz 60Hz |
Worktable: | T slot table with water tank |
Locating precision: | 0.03mm |
Operating temperature: | 5°C-40°C |
Working humidity | 30%-75%(without condensed water) |
Working precision | ±0.03mm |
System resolution | ±0.001mm |
Control configuration: | NC-studio/ Mach3/ DSP/ control system optional |
Data transfer interface: | USB/PC |
System environment: | Via computer/ its own panel |
Spindle cooling way: | Water cooling by water pump/ Air cooling by fan inside spindle |
Graphic format supported: | G code: *.u00, * mmg, * plt, *.nc |
Compatible software: | ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares…. |
Cutting thickness: | 0-40mm also (depends on different material) |
Z tool sensor: | yes |
Positioning pins: | Optional |
packing | Plywood case (veneer wood case for export) |
Optional parts | 1 Rotary device model professional for cylinder stone colomn 3. One-heads or more heads |
Detials Parts

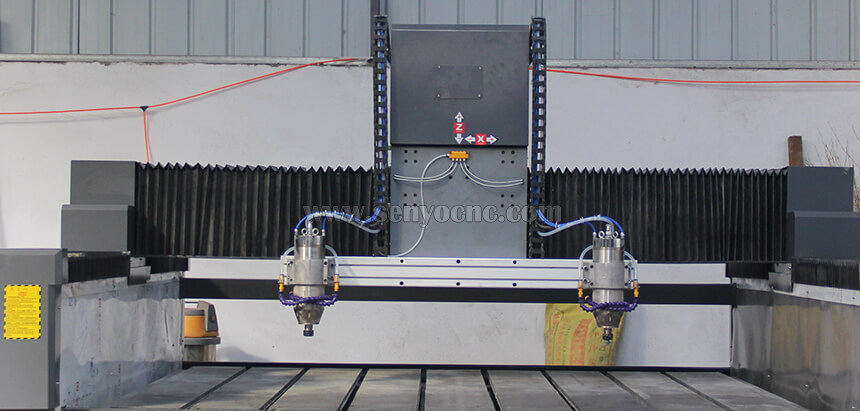

2pcs* High Frequency Water Cooling Spindle
The professional stone CNC router machine has double heads,This 2 heads granite CNC machine come standard with 5.5kw high frequency water cooled spindle, this spindle has many advantages
such as high cutting precision, long service life, no noise, high work efficiency and so on.
both
of which are equipped with advanced 5.5kw high frequency water cooling
spindles. The distance between the two spindles can be adjusted
arbitrarily, and the two spindles can work together or Work
independently. So the working efficiency of this CNC Granite carving
machine is twice that of other ordinary stone machines.
The base frame of the CNC granite machine is made of heavy-duty tubular steel.
So it is enough strong to process the hard stone material.While ensuring the base frame is firm, it can withstand the pressure through precision machining and welding. Evenly
dividing , not only improves the stability of the chassis but also extends the service life of the granite stone CNC router
machine. It is worth noting that This stone design machine is with high wall on the 2 sides to prevent stone particles to fly

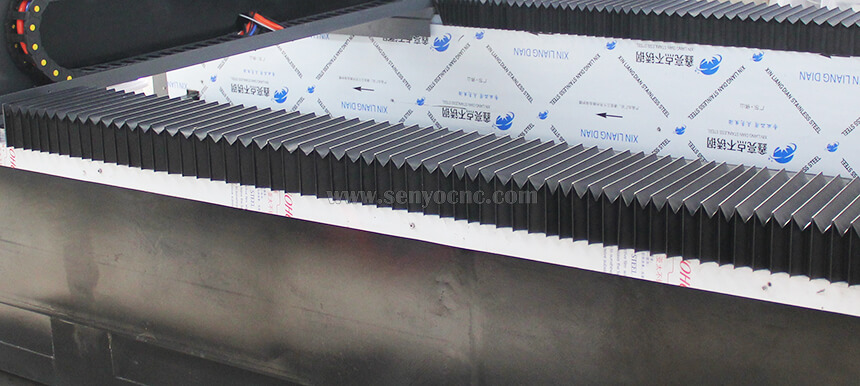

away. And On Rail Guide Machine With Dust Cover Hood protect rail guide for transmission in good precision.
The water proof and dust proof system for X Y Zaxis, can protect all the parts, reduce the machine fault, enlarge the life time.
The gantry
of CNC granite carving machine is constructed of tubular steel, and
reinforcement ribs are welded to each column of the
gantry. In this way, Our granite CNC machine not only can ensure the stability of the gantry, but also can load a variety of
driver components, such as belts, and wiring harnesses, motors, bearings, etc.
High Quality Motors And Spindles Of Granite CNC Machine
The Stepper motor and drive has a low failure rate, does not require regular maintenance, and can continue to work for a long time, so this stone CNC router machine is very efficient.

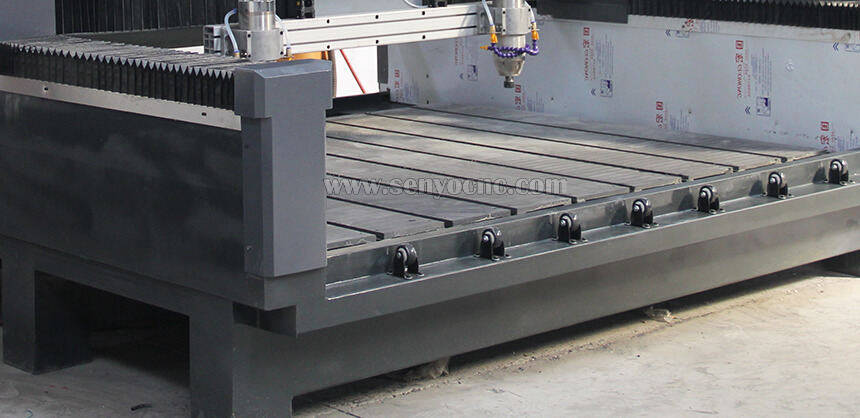

Loading roller Easier to load the material .

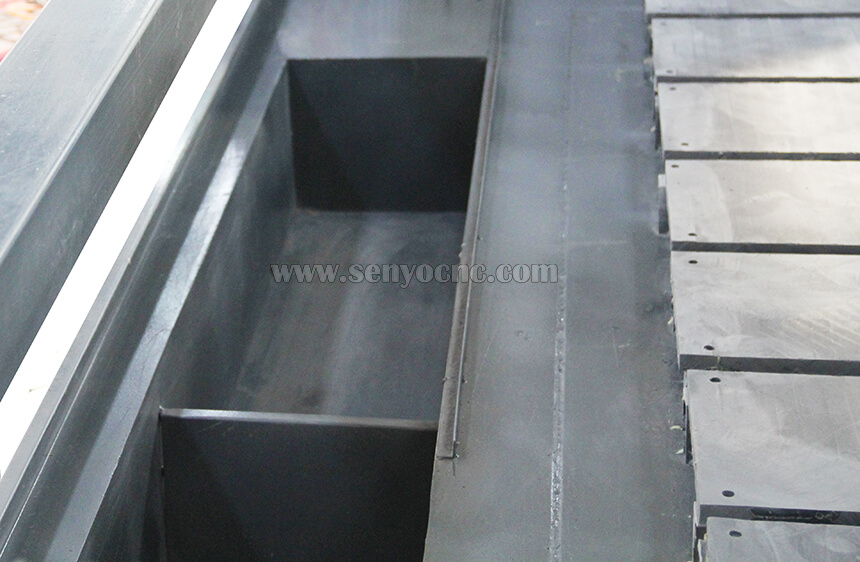

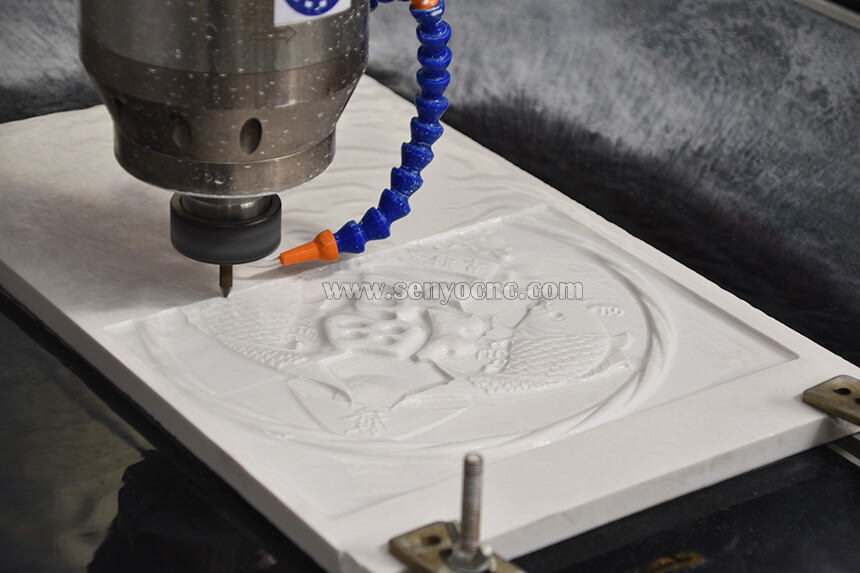

Machine with water tank and auto water cooling system

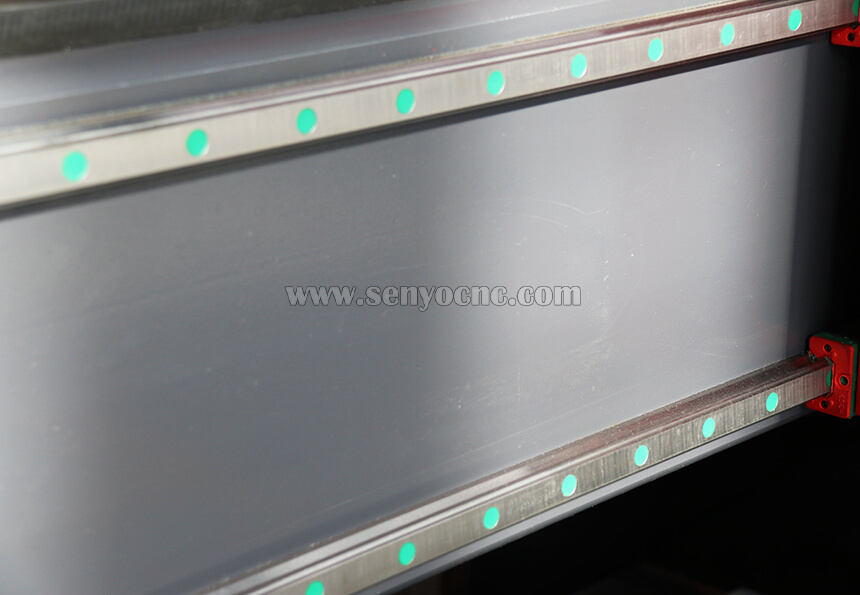

High Quality Hiwin Square Rail
The CNC Granite carving machine adopts high quality Taiwan Hiwin square rail, which is more than twice durable. And this machine
use of high quality TBI ball screw,which make the stonc CNC router machine has high precision.
This is NC-Studio Controller. It is easily operate and learned, especially for the freshman.
It Support G code, PLT, DXF format files generated by various CAD/CAM software, Support remote maintenance and system
upgrade,Multilingual display, can be switched freely and many other functions.

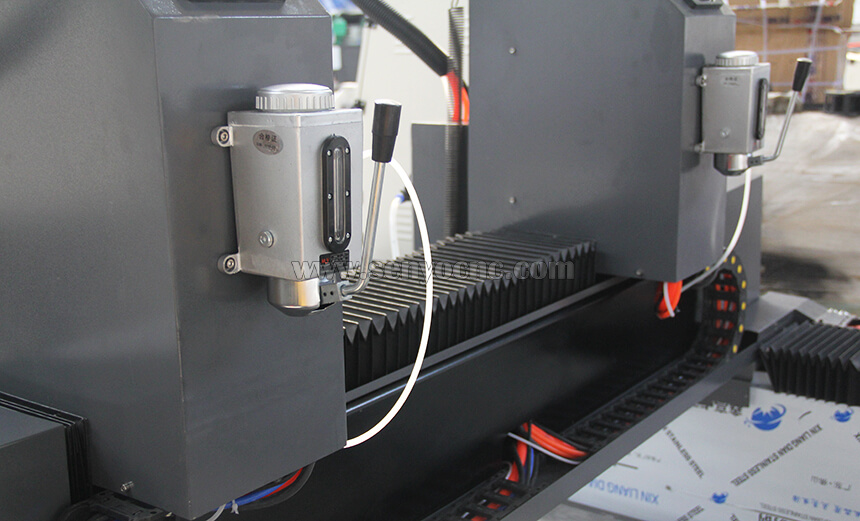

Automatic Centralized Lubrication
our lubrication Configuration high quality. we use samme centralized lubrication as for expensive laser machine used one.

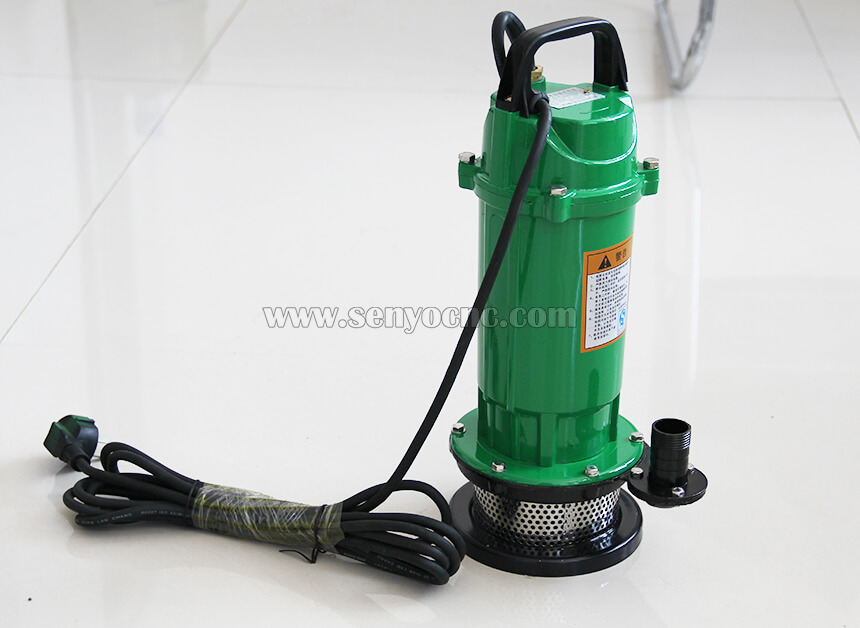

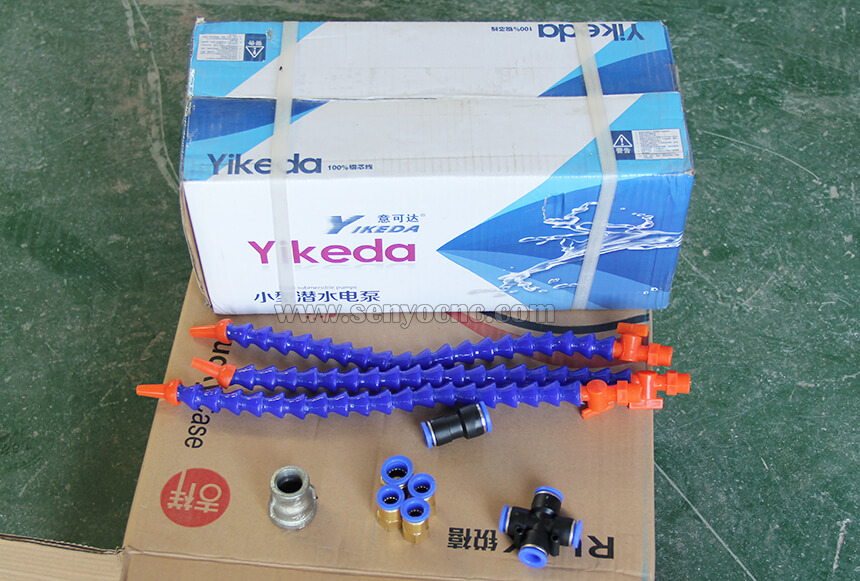

Powerful Water Pump For Cooling Spindle and Tool Bits
Machine With Complately Parts

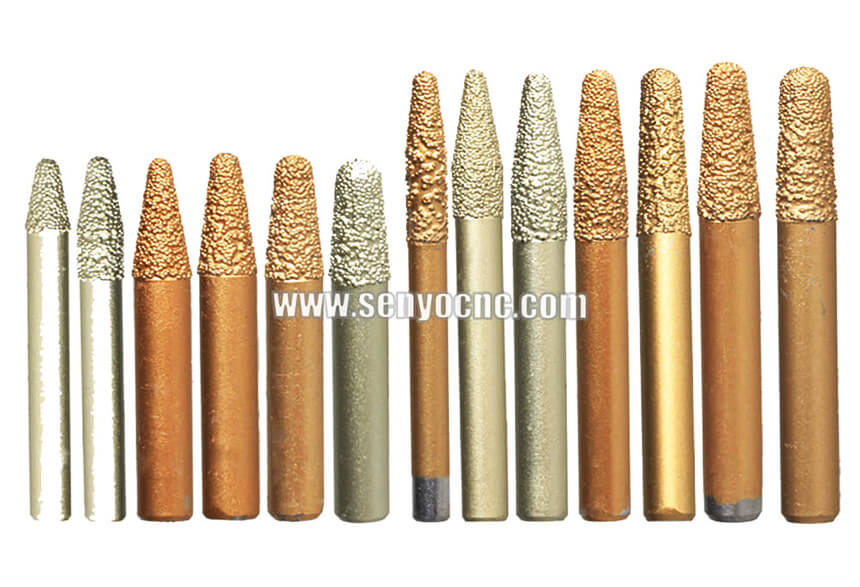

Machine With different size and shape working tools
Application

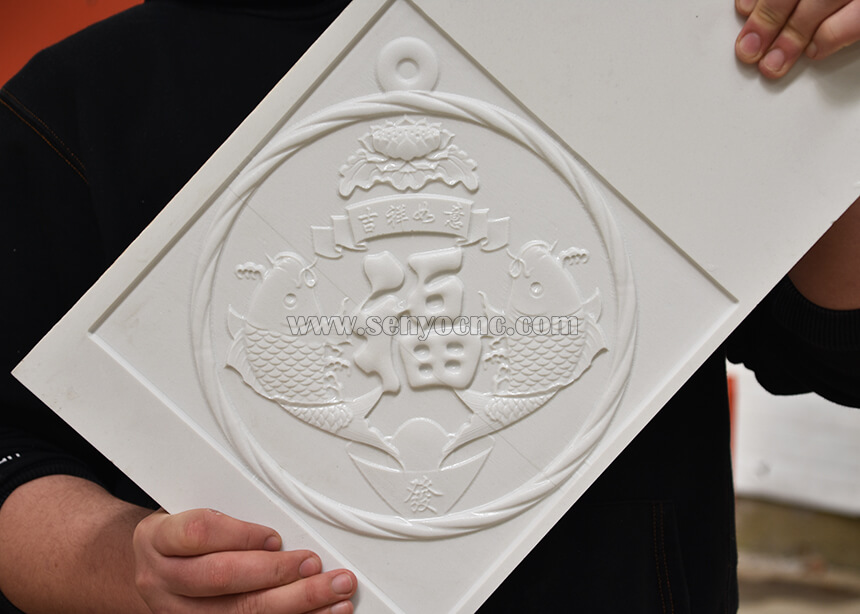

Three-dimensional relief engraving for natural marbles, granites, artificial stones, tombstones, tea tables, ink stones, milestones, ceramic tiles, glass and other materials, as well as two-dimensional engraving for line engraving, cutting, beveling and drilling.
3D engraving, line engraving, cutting, edge inversing, drilling on natural marble
granite, artificial stone, tombstone, milestone, ceramic tiles, glass and so on.
Stone working: engraving or cutting various marble, granite, bluestone, gritstone, soapstone and etc. Metal working: nonferrous metals like aluminum, brass and etc. Glass working: various glass.
Other materials: wood,acrylic,MDF etc.
Package & Shipping
1. Whole film packaging with the stone cnc cutting machine
2. Anti-collision package edge

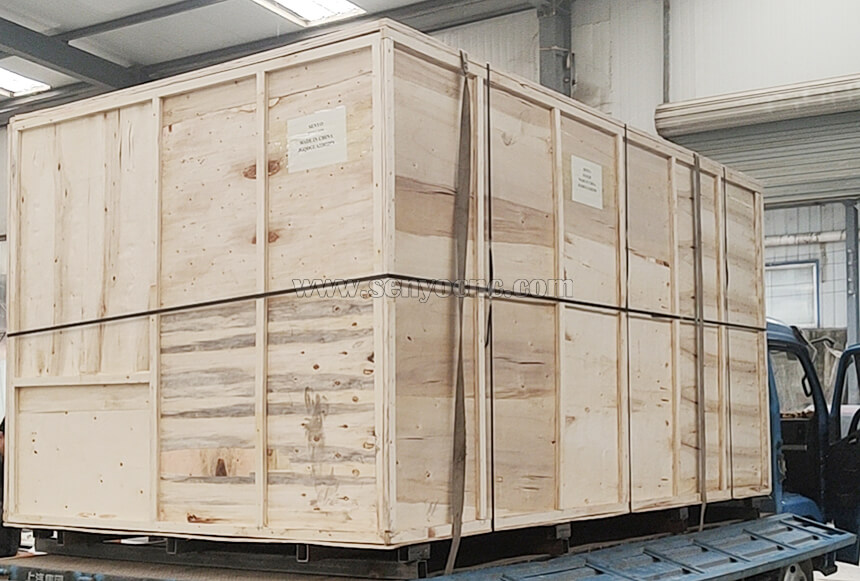

3. Fumigation-free plywood wooden box and pallets with iron binding belt
International Shipping Around the World
All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
