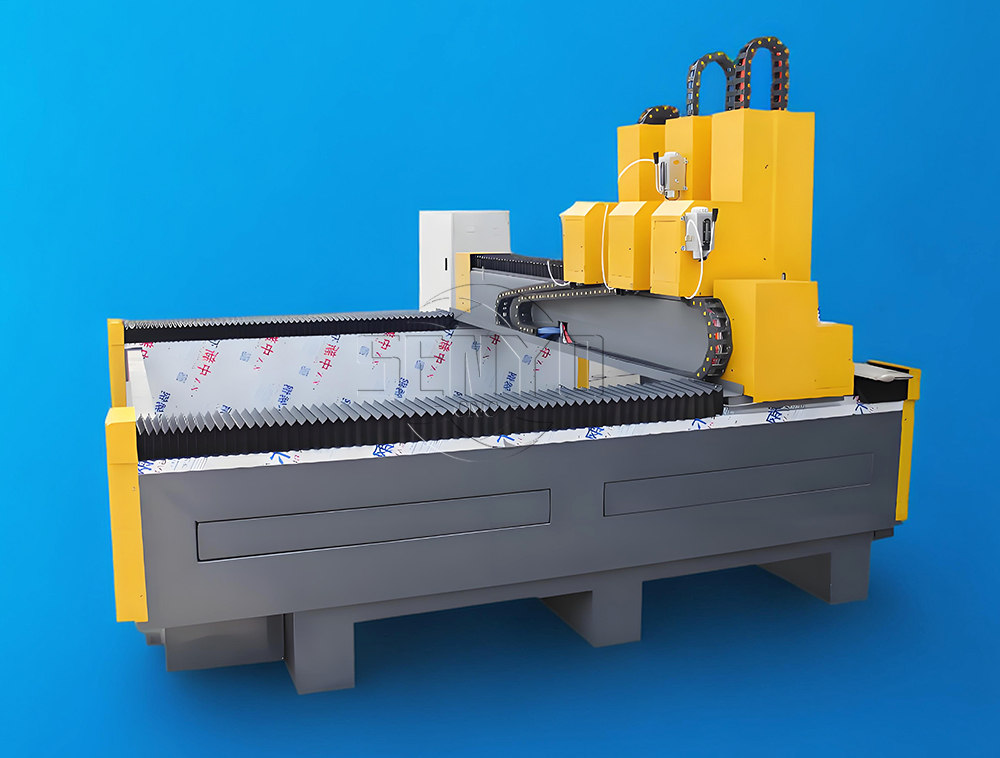

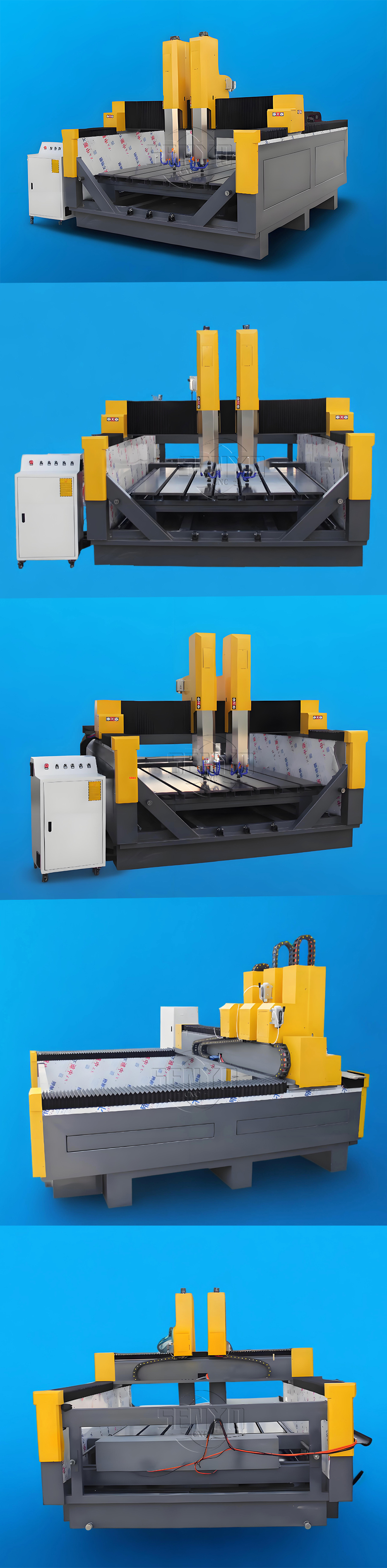

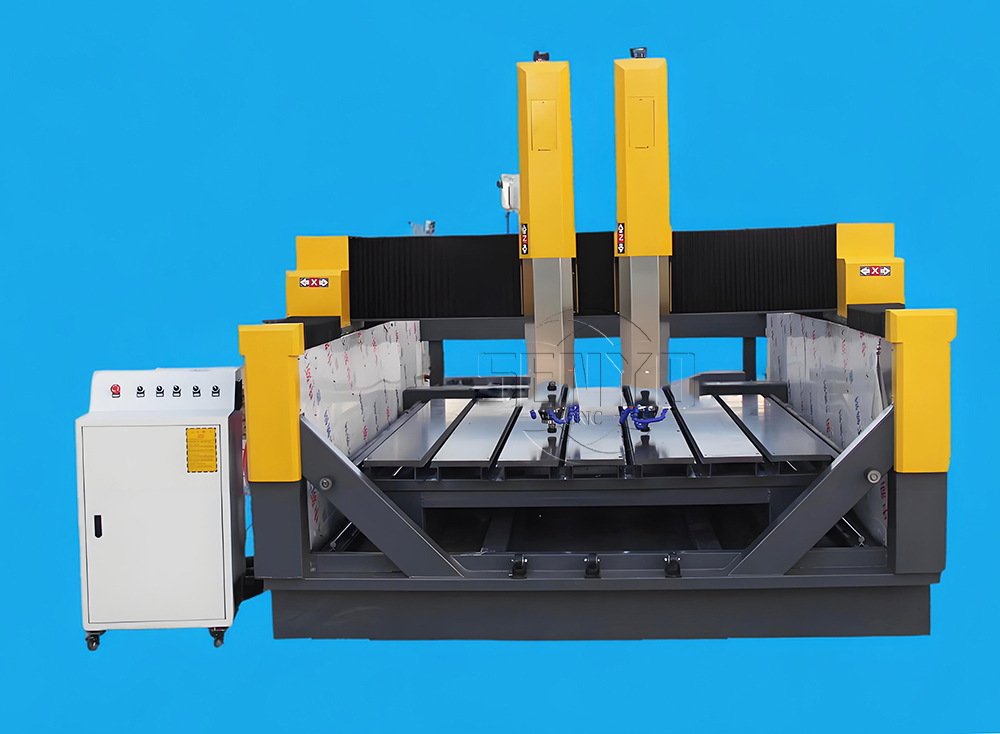

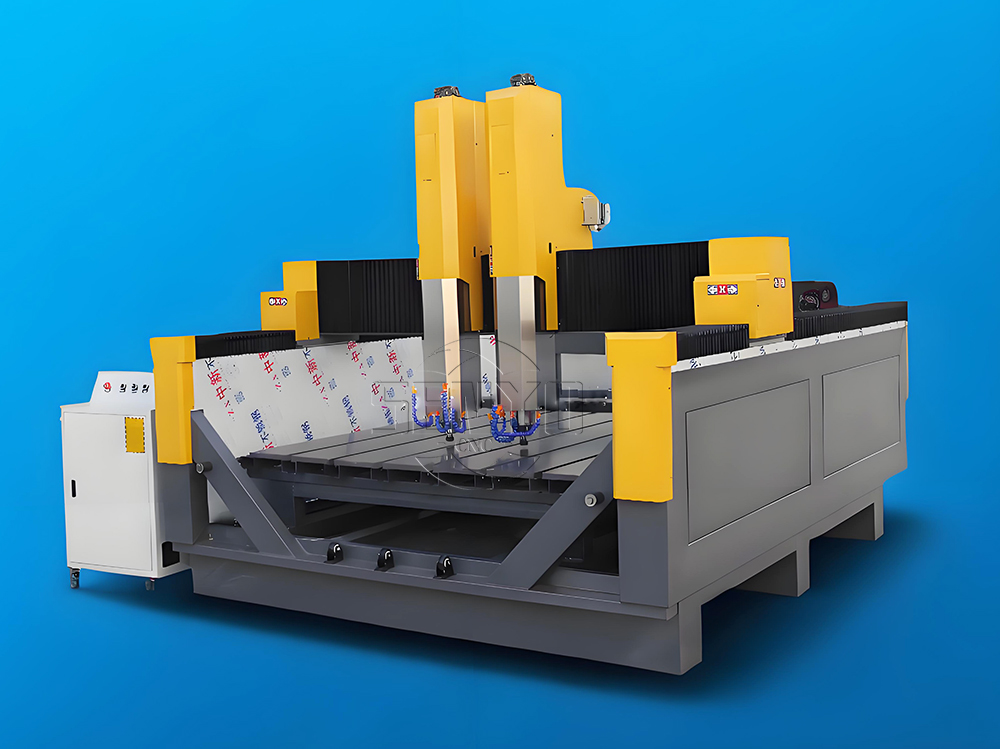

SYS1530-2 CNC Stone Carving Machine equipped is a reliable and versatile machine for engraving, drilling, lettering,
Cutting all kind of stones, such as marble, granite, quartize, sandstone or artifical stone or ceramics, glass.
It's also workable for die industry: copper sculpture, aluminum engrave, metal molds, plastic sheeting, PVC , etc.

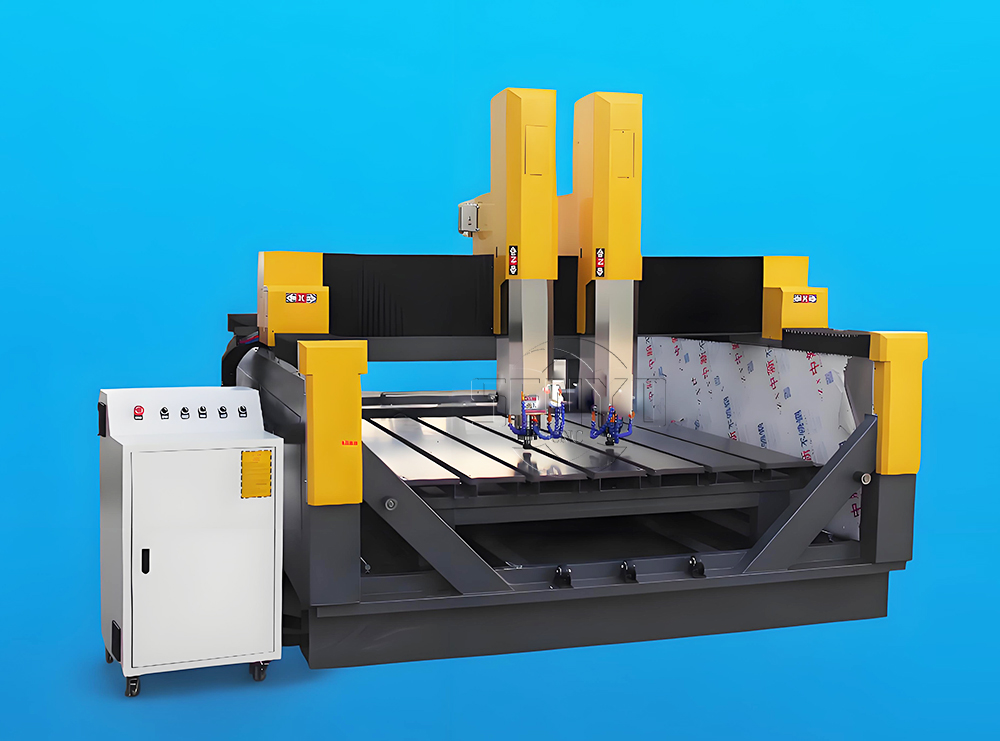

2 Spindle CNC Marble Granite Router Features :
This is a two-in-one CNC stone cutting and laser engraving machine, using a common work area 1300*2500mm, it can saving factory space.
The spindle adopt high speed 5.5kw/7.5kw water cooling spindle high performance for long time.

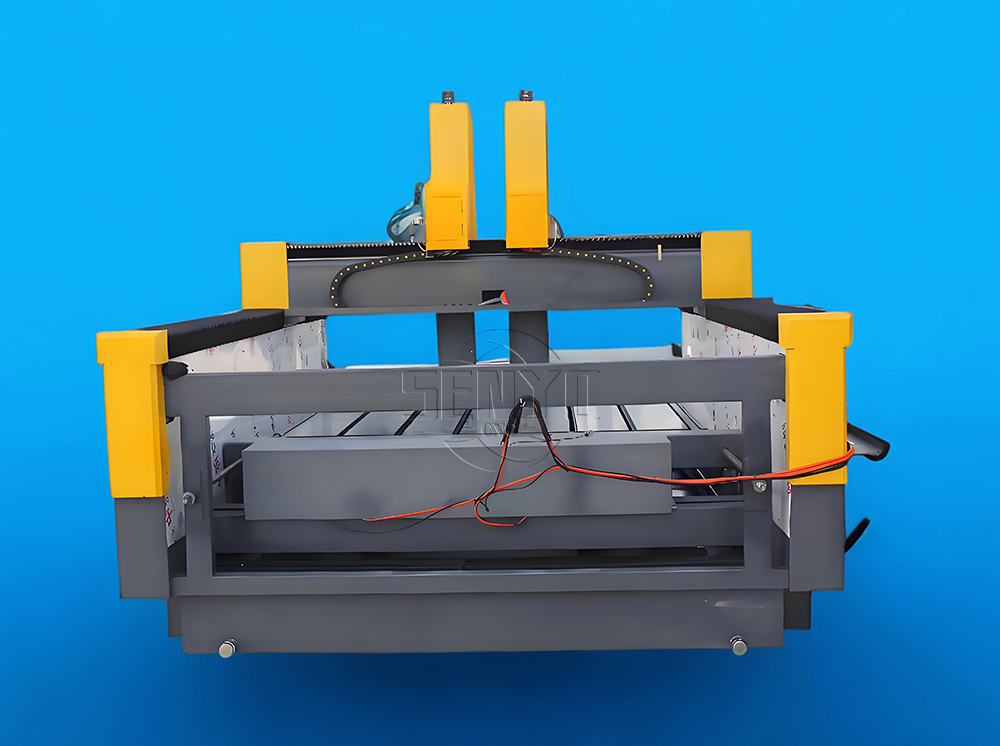

Under the dust cover, you will see: X axis and Y axis adopt good quality rack and pinion, Z axis adopt Taiwan TBI ball screw.
High-precision screws and guide rails: All screws and guide rails are imported.
The X and Y axis adopt oil-immersed lubrication method. In addition
The effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
This is T slot table with steel water tank, you can easy to fix the material and water tank will not rust.
2 Spindle CNC Marble Granite Router Advantage
1) Adopt DSP CNC control system large color screen display, easy and simple to operate.
2) Break to rusume function. Continue carving from break point after power resuming from failure.
3) Compatible with Artcam JD Paint CAM software and other software programs.
4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy.
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Aircraft-quality surface oxidized aluminum profile table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
2 Spindle CNC Marble Granite Router Machine Detials Parts Introduce
DSP CNC system

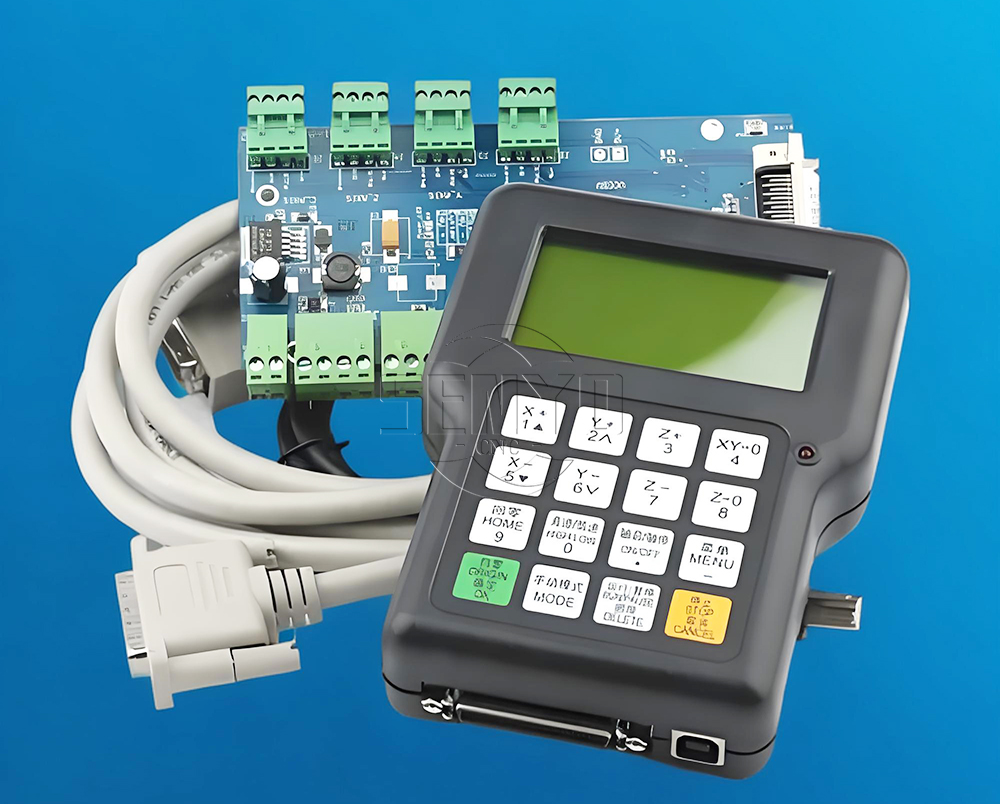

This machine adopts a DSP A18 control system,with handle controller , which is more convenient and easy to operate.

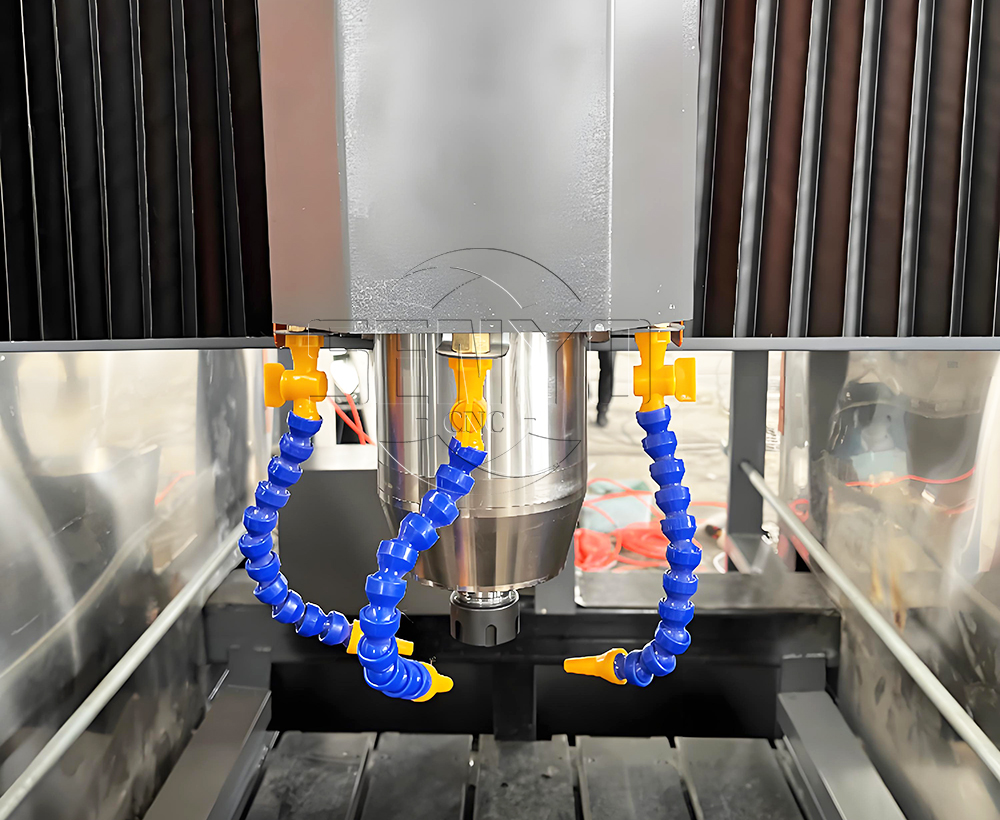

Water-cooling Spindle 4.5/5.5 kw (customizable) Rotating Speed: 6000-24000 rpm/min
Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed
and safeguard stability for longtime work

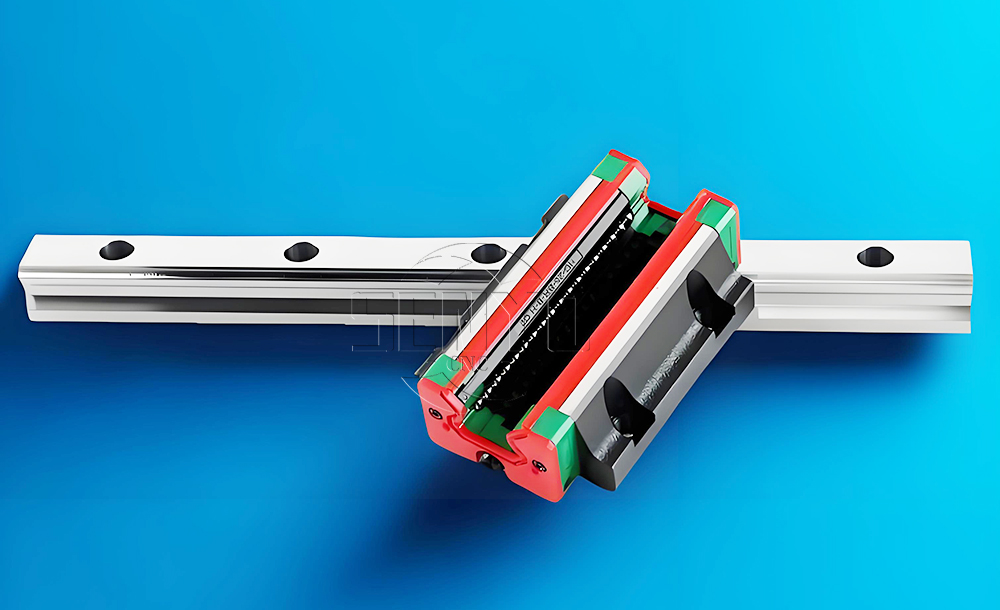

High quality guide rail, ballscrew, rack used on X, Y and Z axises provide smooth motion and tight control for precise and quality
engraving.
Machine use best parts, this is hard limit switch on each axis. To protect your machine working always in safe .

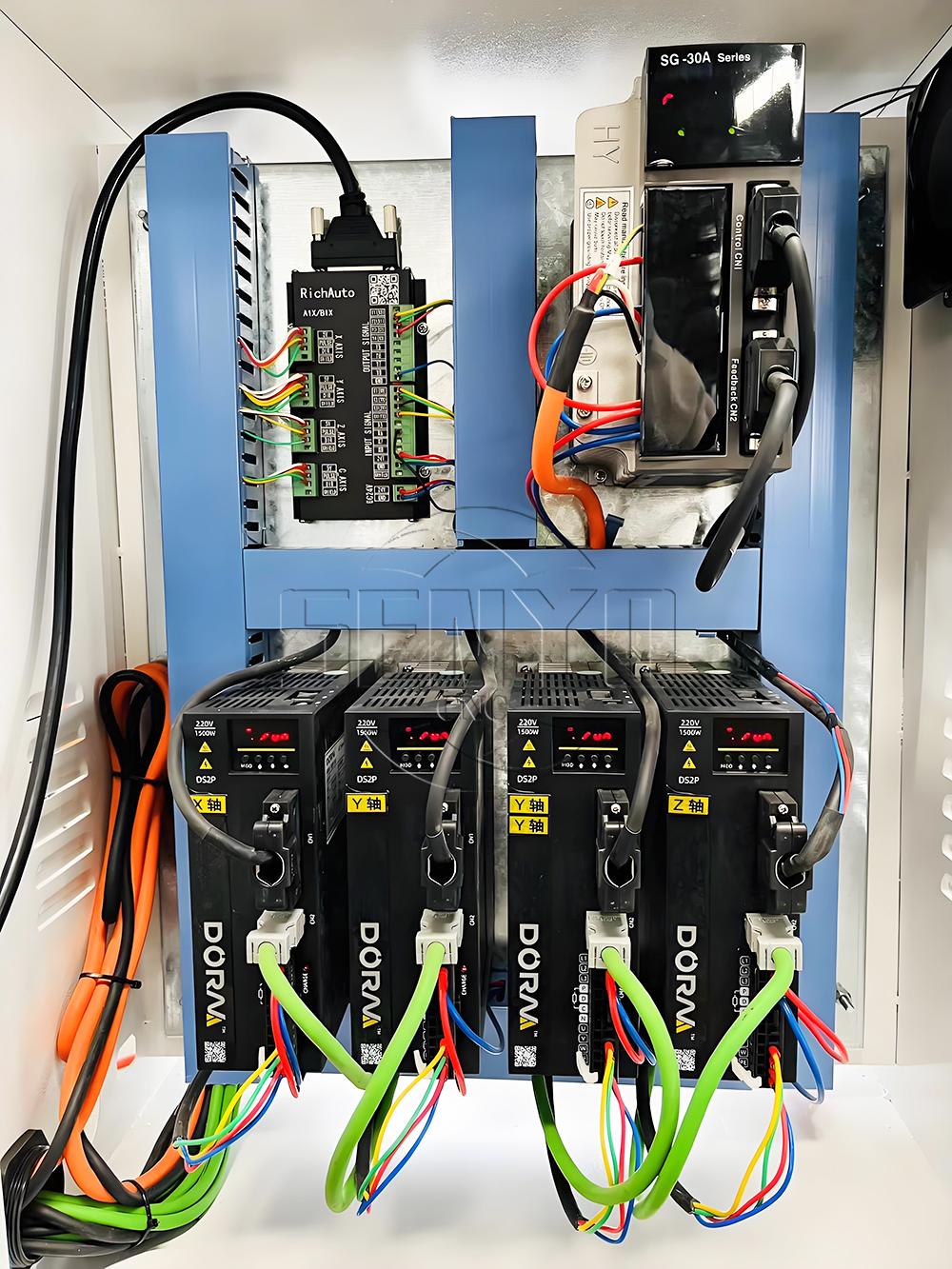

This machine use independent control box ,Inside with good wire connection .We have electric enginner professional for this work.
Also The wires and all parts accessories with best quality in china.

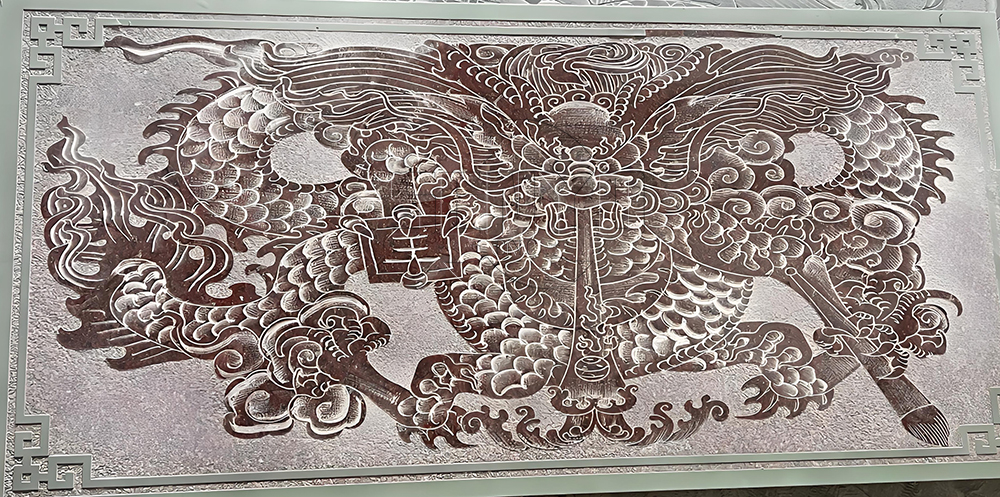

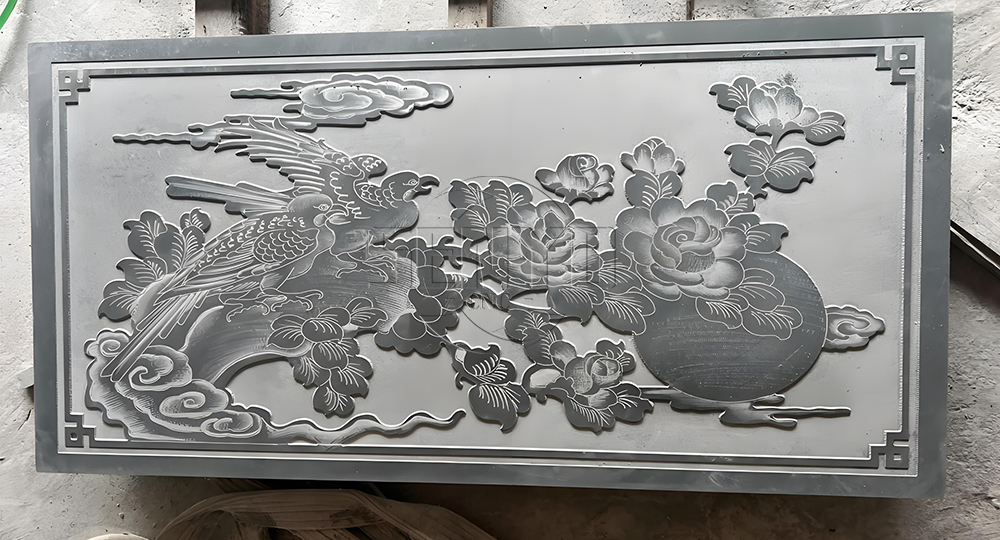

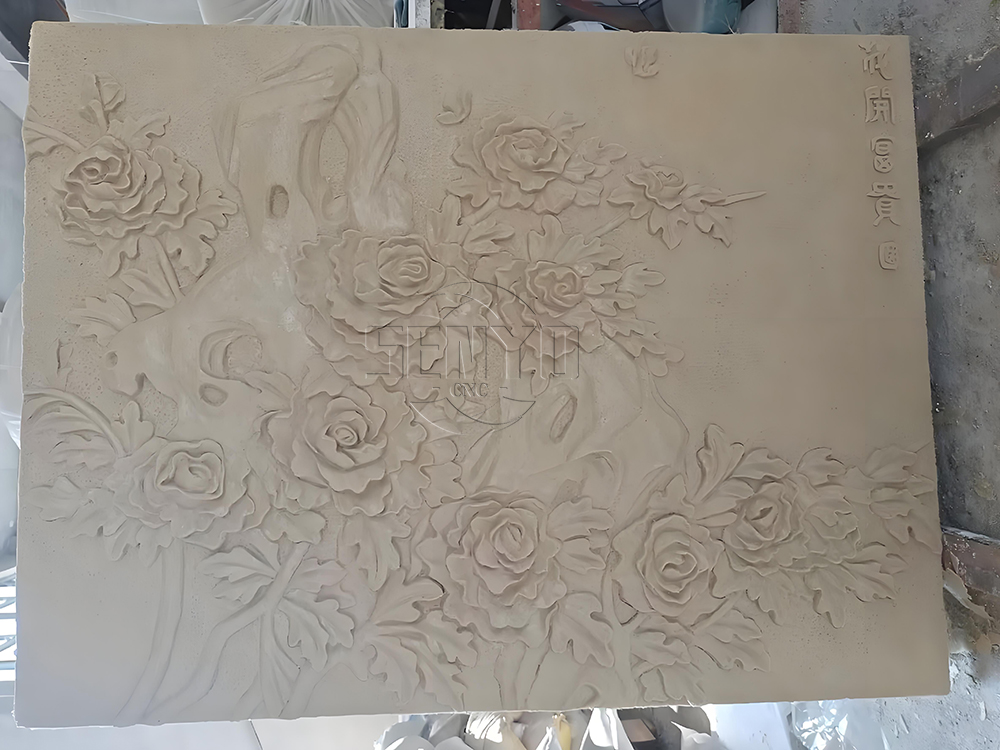

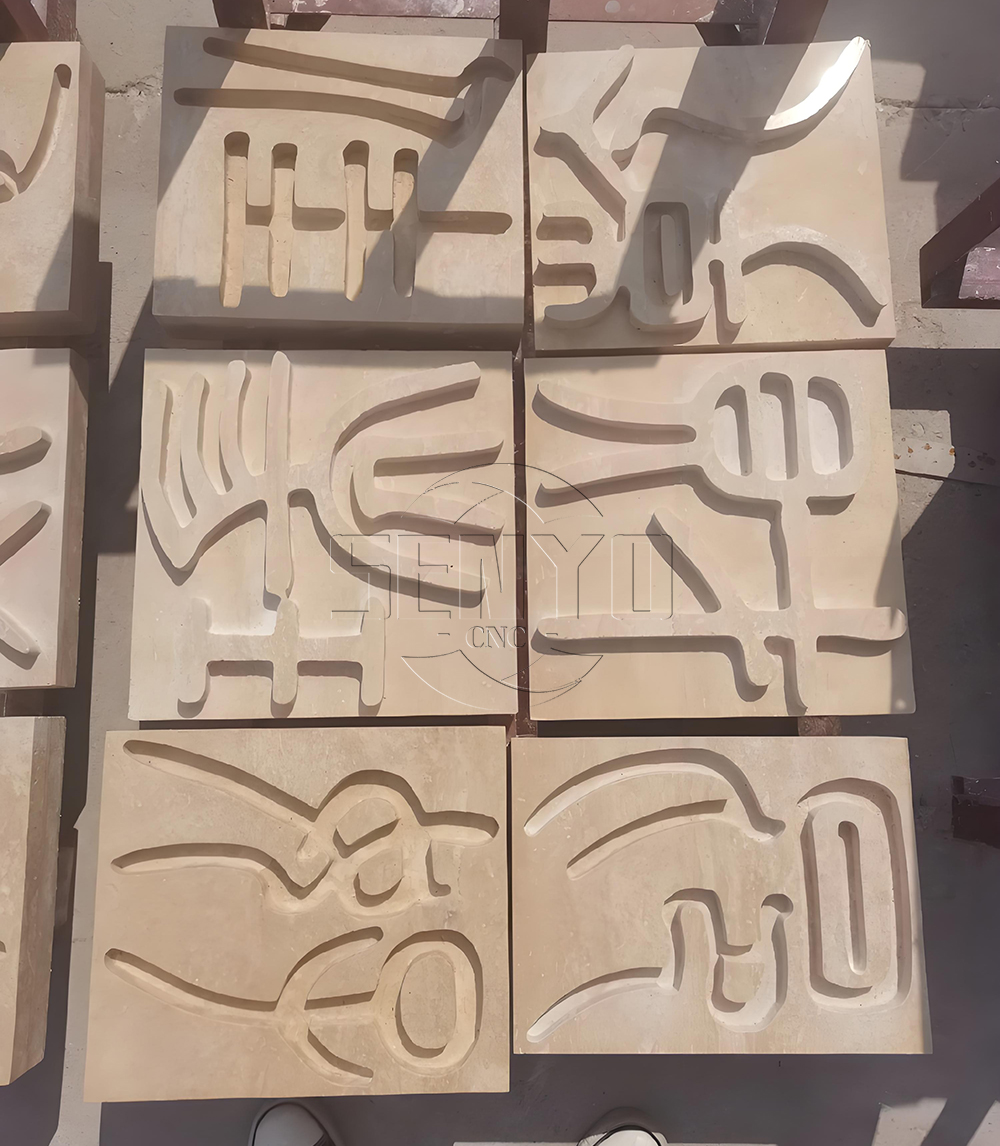

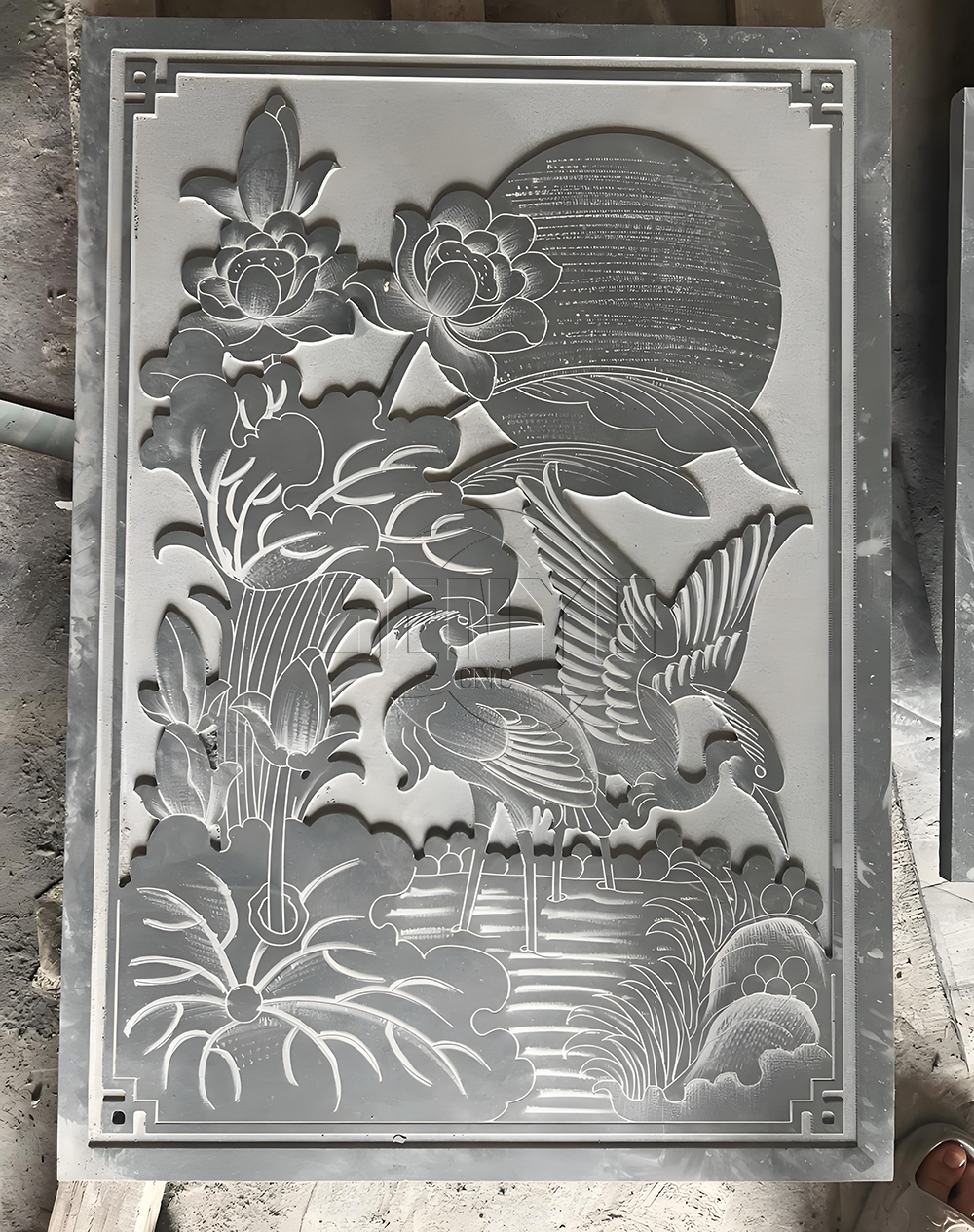

Applied materials
The stone engraving machine is suitable for three-dimensional relief, pointed bottom engraving,
flat bottom engraving, line engraving, chamfering, drilling, etc. of various stones such as marble,
granite, jade, blue stone, black stone, etc. It is specifically used for stone engraving, stone relief,
stone positive engraving, stone negative engraving, stone line engraving,stone cutting, stone hollowing.
Applied Industry
①. Stone Industry: It is suitable for stone industry, stone tablet processing industry, artistic relief,
Advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.
②. Woodworking Industry: Chair, door, window, bed, cabinet, kitchen ware and other furniture;
Redwood classical and antique furniture, Exquisite European furniture, decorative products sculpture.
③. Metal Industry: Engraving and cutting of soft metals such as aluminum and copper.
2 Spindle CNC Marble Granite Router Technical Parameters
Model | SYS1530-2 |
Working Area | 1500*3000*400mm |
CNC Control System | DSP Controller (Mach3/ NC-Studio For Option) |
Spindle | China HQD 5.5kw ATC Water Cooling Spindle ( 0-24000rpm ) |
Motor and Driver | China Leadshine Stepper Motor and Driver |
Inverter | China Fuling Lnverter |
Table Surface | T-Slot with PVC table + Water Tank |
Bed Structure | Heavy Duty 10mm Steel Machine Bed; 10-12mm Moving Steel Gantry |
Lubrication System | Manual Lubrication System |
Transmission | X,Y axis: rack and pinion transmission; Z axis: Taiwan TBI ball screw |
Electric Parts | French Schneider Electrical Components |
Others Parts | Japan Omron Llimited Switch, Automatic Tools Sensor |
Software | Artcam / Ucancam / Aspire / Fushion360 etc |
Working Voltage | 380V or 220V /3 Phase/1 Phase |
Optional | Mach3 PC Control System |
Leadshine / Delta / Yaskawa Servo Motor and Driver | |
4th Axis Rotary device Diameter 100mm/200mm/300mm |
For Our Work Steps
1.Before-sale,we will try to know your requirement about our cnc finer laser specification and what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.
Packing & Shipping
1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For
standard machines, 7-15 working days after payment.
For LCL Shipping (Less than Container Load),it is recommended to use export standard fumigation-free wooden boxes, which are
stronger and suitable for long-distance transportation.For FCL Shipping (Full Container Load).
it can be loaded directly at the factory without wooden boxes, and the maximum number of machines can be loaded to reduce costs.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
