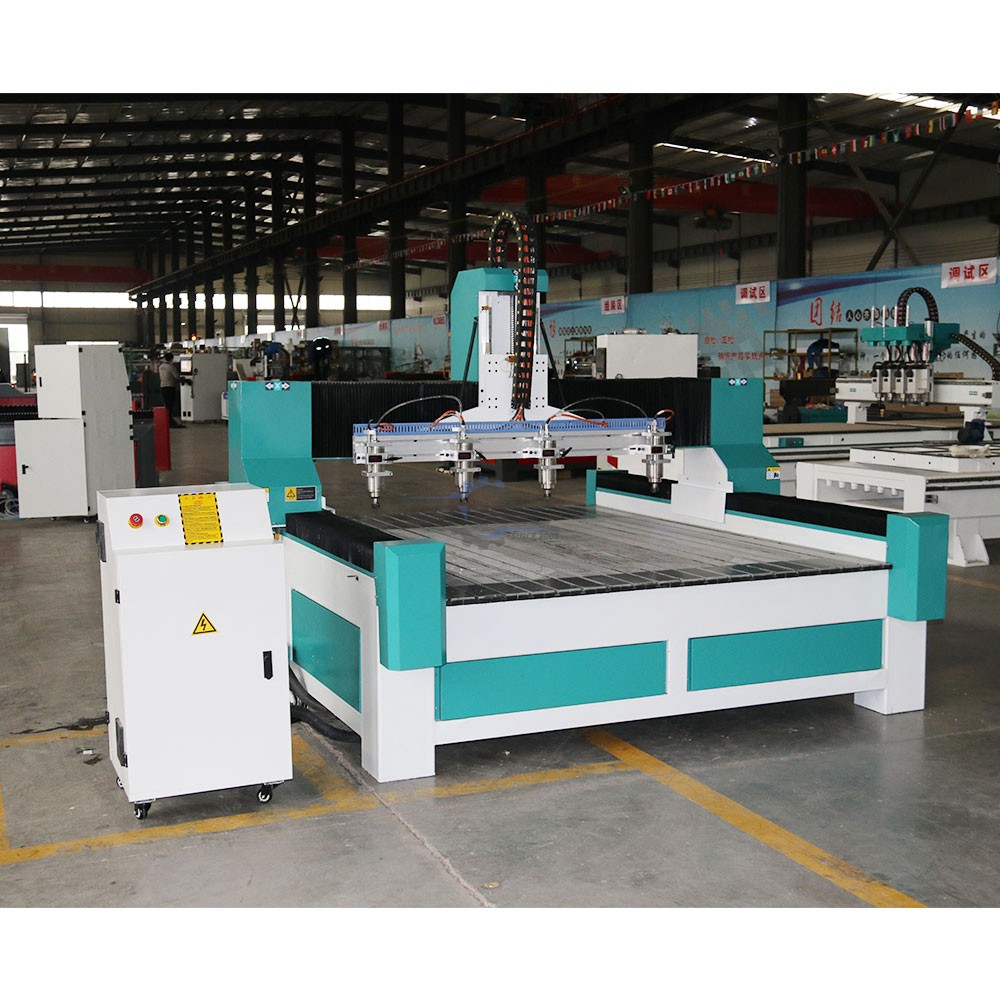

Product Features
1.4 spindles working at same time, do the same work,Greatly improved the working efficiency. Each spindle can be switched off /on seperately
2.Y-axis adopts dual motor drive to ensure the machine runs smoothly and evenly
3.Good software compatibility, compatible with various CAD/CAM design software such as typd/Artcam/Wentai/JD carving
4.Has a breakpoint memory function, can continue processing in the event of an accidental power outage or the next day, continuing the trajectory.
5.Taiwan TBI Ball screw,high presicion
6.High-density helical teeth,smooth transmission, low noise
Machine Parameter
Descriptions | Parameters |
Model | LZ-1325-6H |
Working area | 1300*2500*200mm |
Control system | Richauto DSP control system/Shanlong |
Working Voltage | 220V 3Phase, 50Hz (380V for Optional) |
Spindle | 6 Sets 3KW Water Cooling Spindles, with CW3000 industrial chiller |
Spindle speed | 0-24000rpm/min |
Inverter | 6 sets 3kw Fuling inverter |
Motor and Driver | Yaskawa Servo Motor,Yaskawa drivers |
Table surface | T-slot and vacuum working table |
Structure | Heavy duty machine frame |
Lubrication system | Manual lubrication system (Automatic optional) |
Transmission | Z axis: Taiwan TBI ball screw |
X,Y axis: rack and pinion drive, Taiwan PMI linear square rail #20 | |
Software | Artcam, Type3, Ucancam V9,etc |
Vacuum Pump (Optional) | 5.5kw Water cycle vacuum pump (400V, 3Phase, 50Hz) |
Dust collector (Optional) | 2 sets 3kw double bag vacuum cleaner (400V, 3Phase, 50Hz) |
Machine Application
Application:It is mainly used in furniture industry, decoration industry, musical instrument industry, wooden craft industry, etc. It is suitable for large-area flat plate engraving, solid wood engraving, lettering, hollow engraving, pocket edge, milling surface, etc.
Advertising industry: cutting of advertising characters, sign making, engraving, punching, hand-board, advertising light box production, etc.
Mold industry: architectural model, physical model, hot stamping mold, high frequency mold, shoe mold, badge, embossed mold biscuit, chocolate, Candy moulds, etc.
Musical Instrument Industry: Engraveable Instrument 3D Surface, Shape Cutting
Packaging industry: Suspected printing rubber sheet, plastic sheet, double sheet, etc.
