Overview

CNC flame cutting machine is a type of CNC metal cutting system that uses fuel gas with oxygen or gasoline with oxygen to cut metal materials, and CNC plasma cutting machine is a type of CNC metal cutting system that uses the heat of a high-temperature plasma arc to melt and evaporate the metal part or part of the incision of the workpiece, and uses the momentum of the high-speed plasma to remove the molten metal to form the incision.

The CNC plasma flame cutting machine is to ionize the material to produce a high temperature of 6000 degrees Celsius to 8000 degrees Celsius to quickly melt the object. In the energy center of the plasma arc, the gas can completely form an ion state to reach a high temperature of 15,000 to 30,000 degrees Celsius, and quickly merge metals to achieve rapid cutting.

The purpose is to melt the metal through the plasma arc when working, and then use the attached airflow to blow the melted metal away to achieve the purpose of cutting.CNC flame cutting machine with plasma torch is a type of portable plasma cutter with CNC controller, which can cut metals up to 200mm. It's also known as CNC oxy-fuel gas and plasma cutting machine, CNC plasma and flame cutting machine, CNC oxy fuel cutting machine, CNC plasma & oxy-fuel cutting machine.

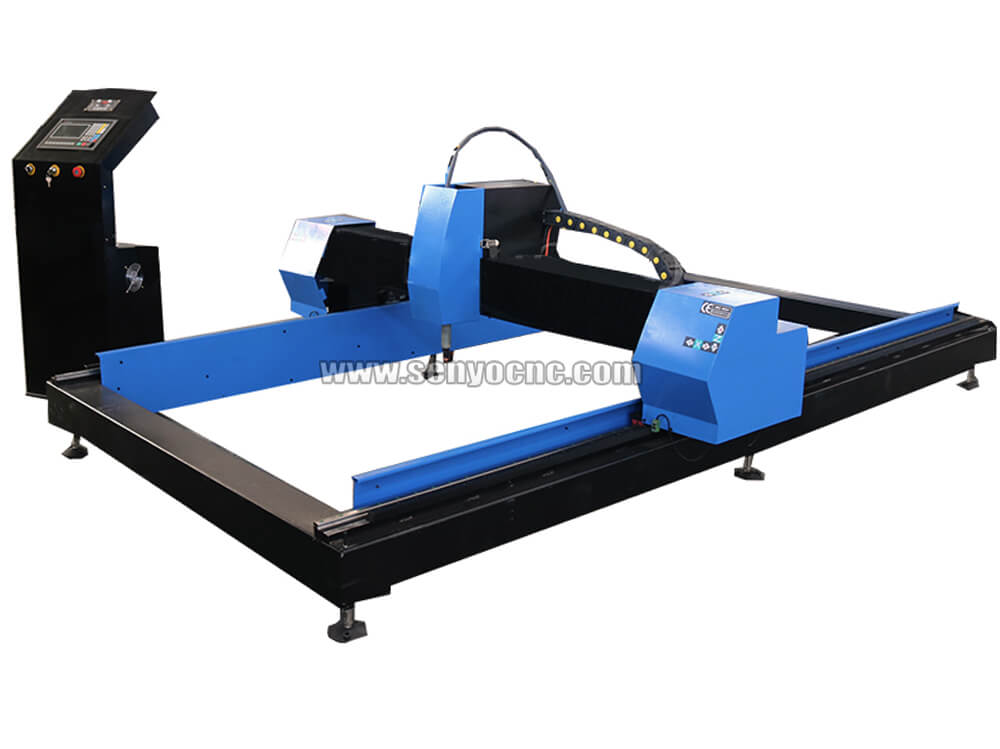

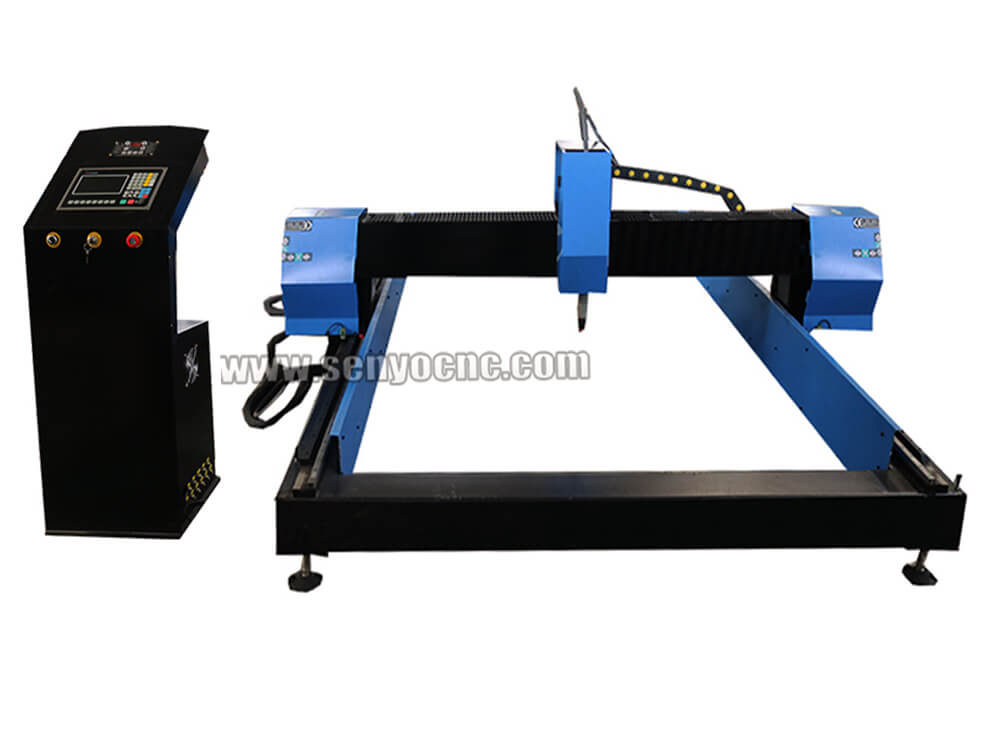

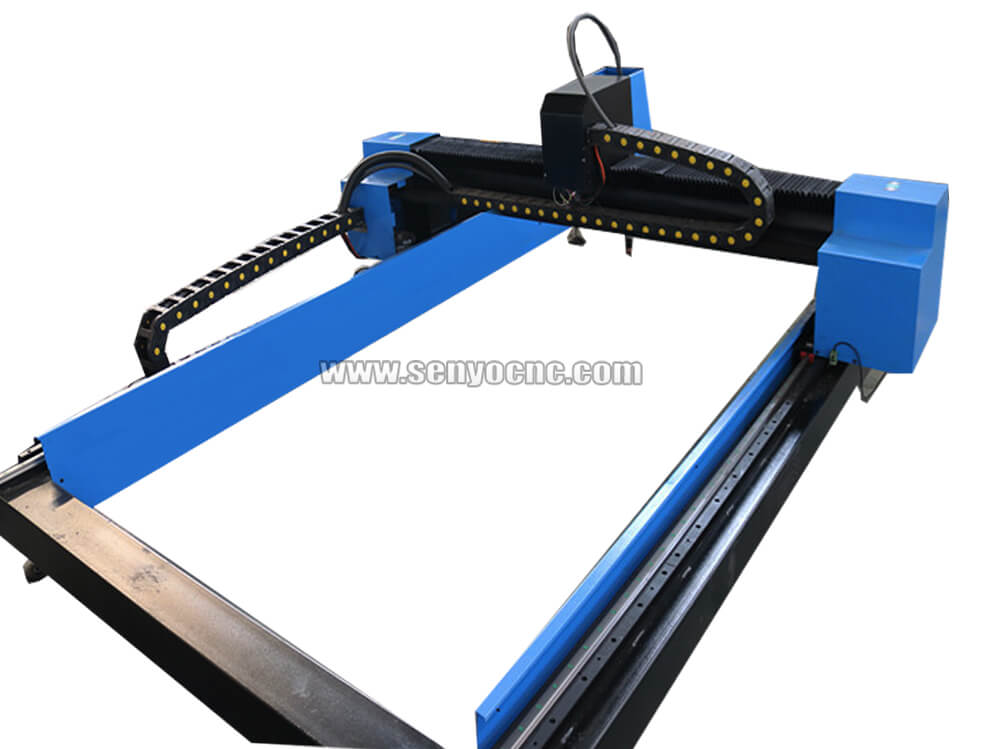

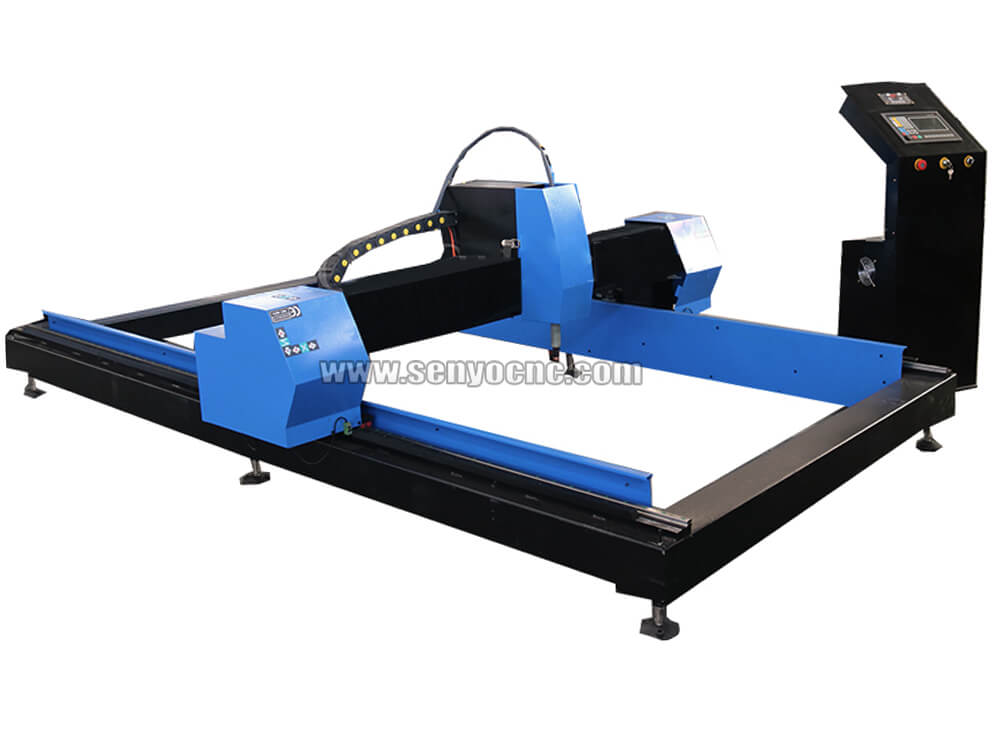

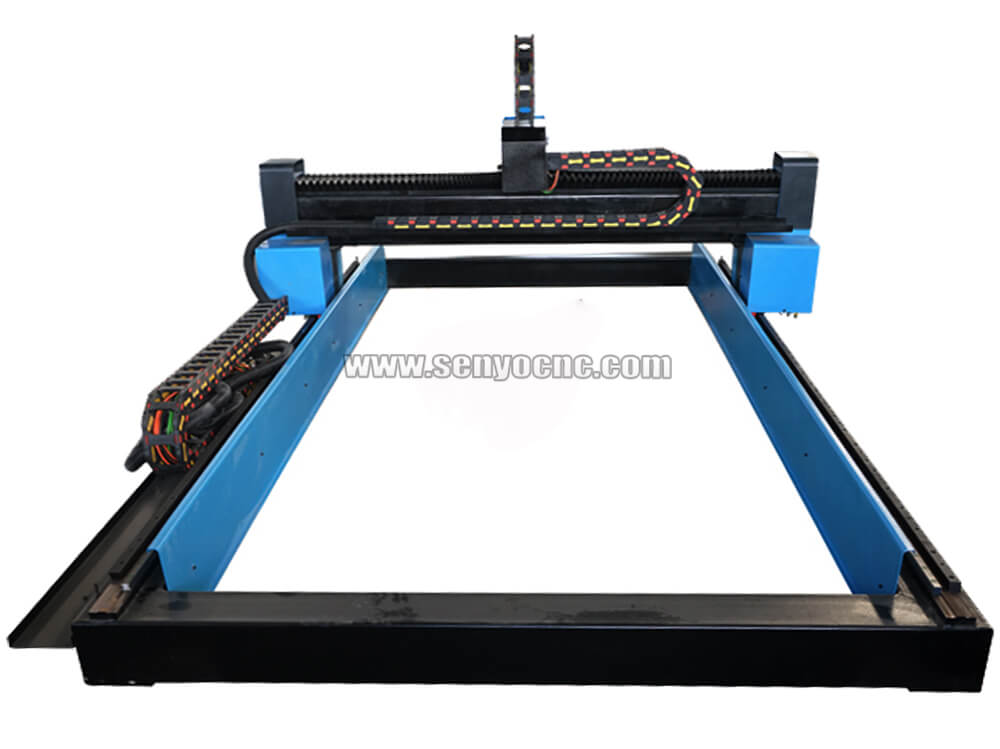

Portable CNC Flame Plasma Cutting Machine Features

1. The portable plasma cutter can cut large and small metal parts. The working size is 1300*2500mm and we also can customize the working size according to your requirements, like the Y axis, we can make it up to 8-10m.

2. The portable CNC plasma cutter has two cutting head, one of them is Hypertherm plasma cutting head and other is independent lift flame cutting head can cutting around 150-200mm metal.

3. Hypertherm power supply can provide a high and stable power when the portable CNC plasma & oxy-fuel cutting machine working.

4. STARFIRE control system and with ARC voltage automatic height adjusting device, arcing can protect plasma torch from damage, improve the cutting quality, the success rate is over 99%.

5. Double guide and square rails can keep the portable CNC oxy-fuel gas and plasma cutting table stability.

6. Ultra big torque stepper motor and driver with features of function detecting, high running precision, wide speed range and short speed up time.

7. High-precision HIWIN rail linear guide, smooth movement to ensure that the CNC oxy fuel cutting machine tools with high precision, small cutting gap, no residua.

8. Excellent performance on cutting illuminated letters for advertising and channel letters on sheet metal.

9. Perfectly design, equipped with the best machine accessories to minimize the failure rate preferred.

10. The portable CNC flame cutting machine supports G-code files of ARTCAM, Type3 software. It also supports DXF files of AUTOCAD by transfer software. The control system supports U disk file transfer. Details of Portable CNC Flame Cutting Machine with Plasma Torch

Portable CNC Flame Plasma Cutting Machine specification

Portable CNC Flame Plasma Cutting Machine detials

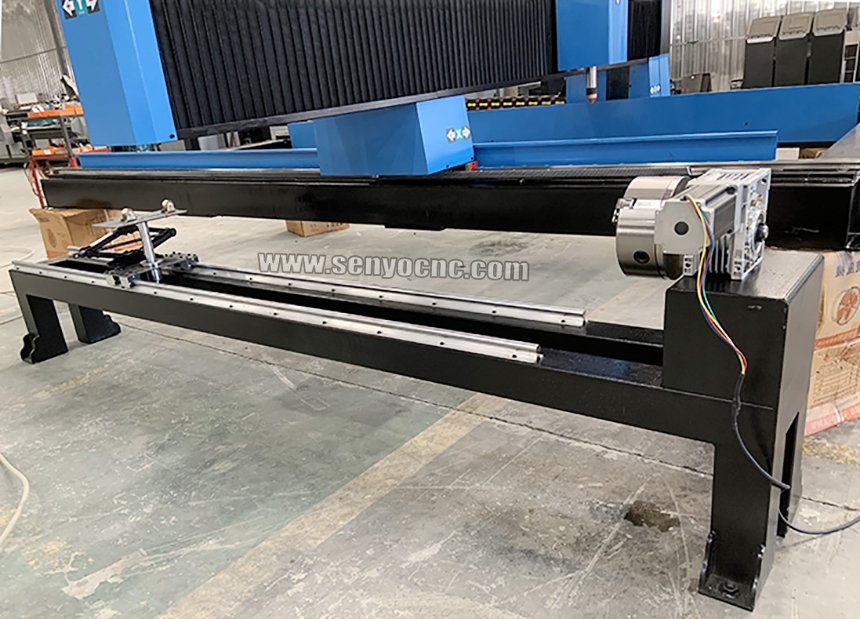

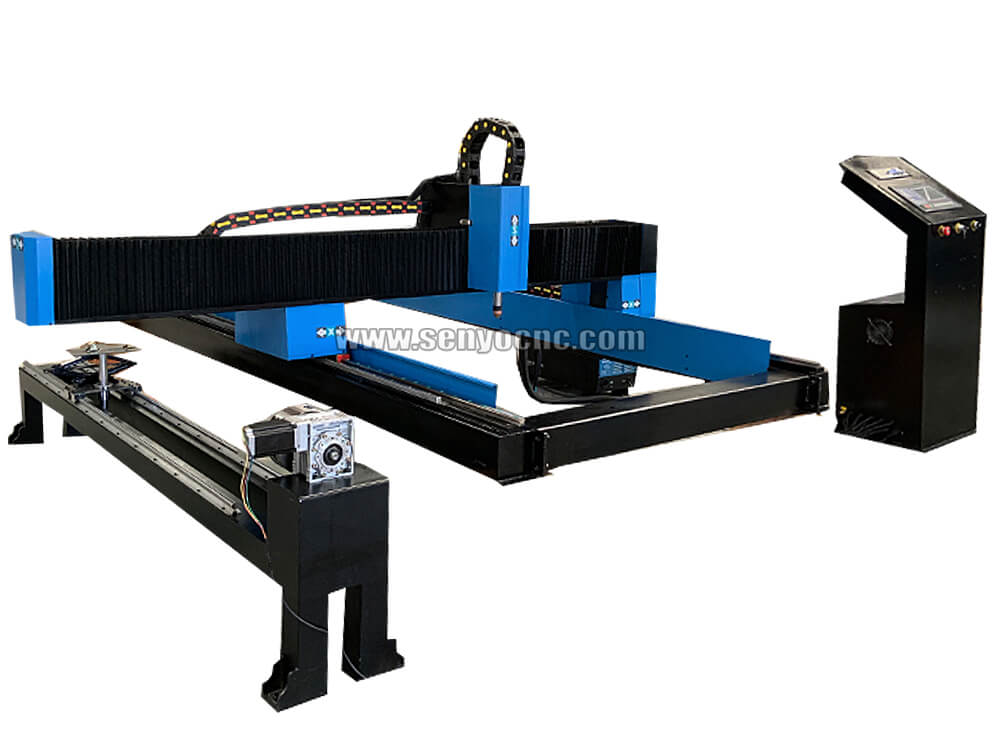

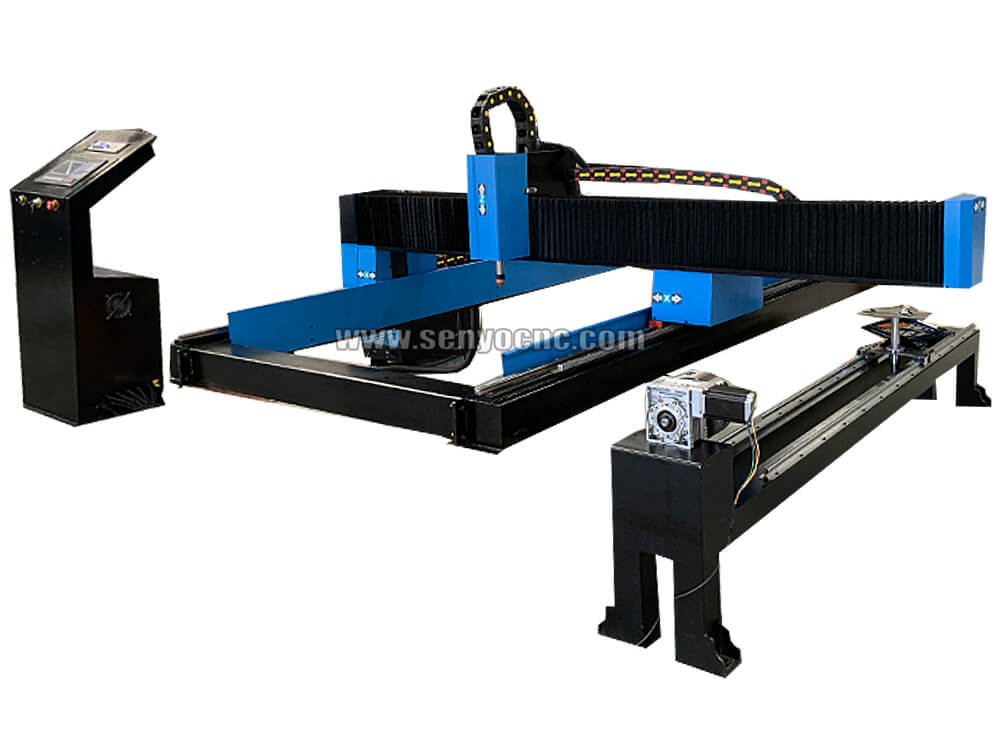

Rotary device

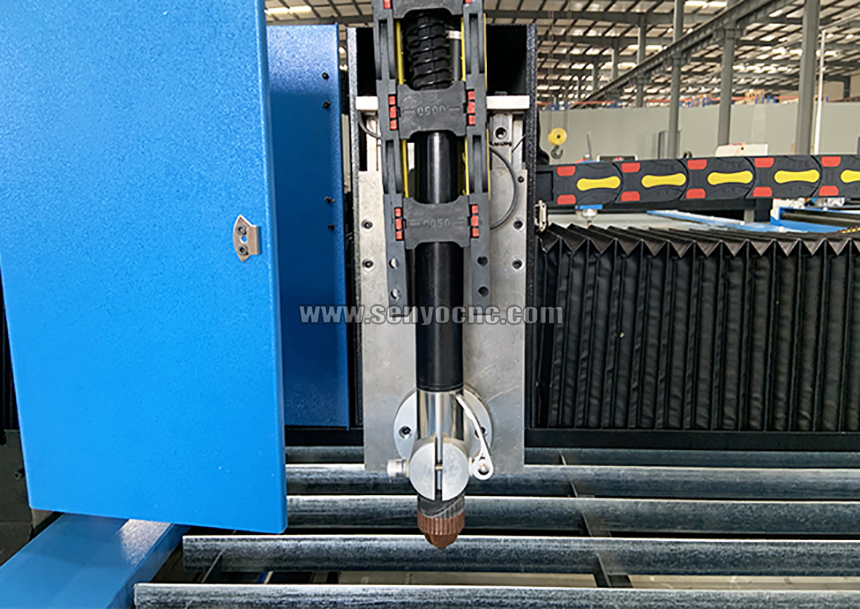

Plasma Torch for Portable Plasma Cutter

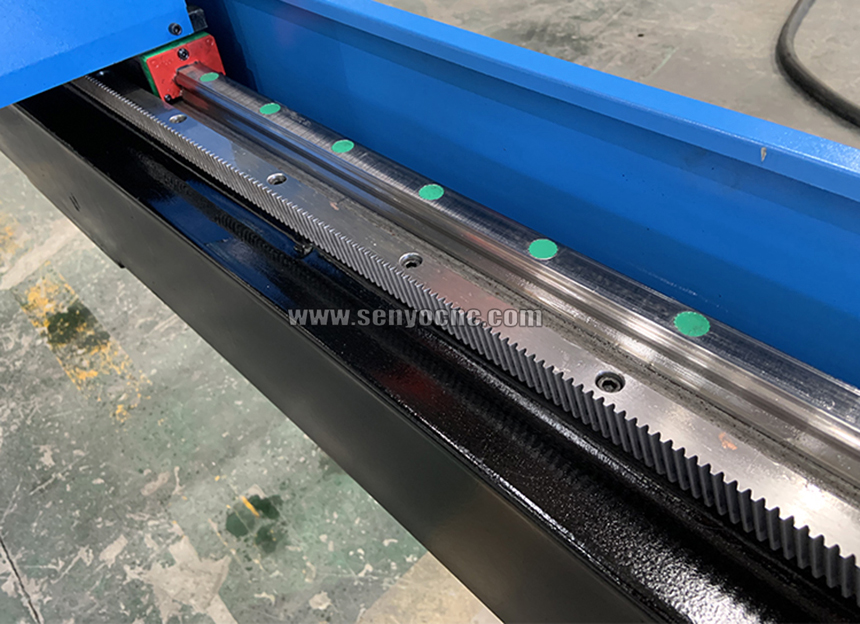

Gear transmission and all axis with dust cover

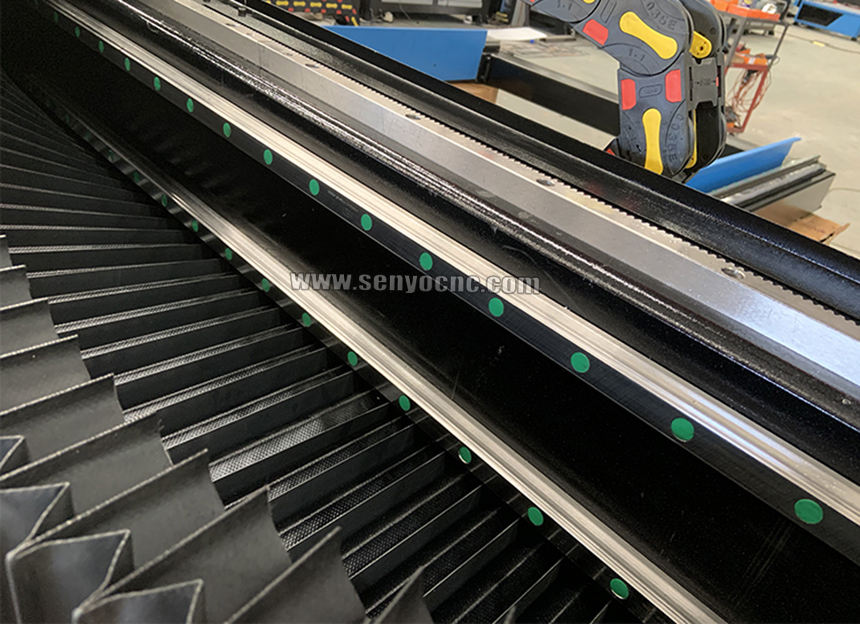

Hiwin Guide rail

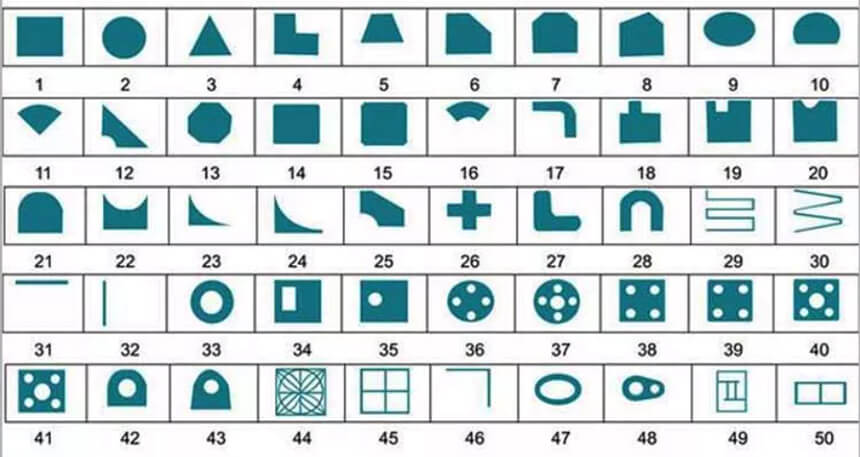

Software

Advertising industry

Advertising signs, logo making, decorative products, production of advertising and a

variety of metal materials.

Metal industry
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,

gold, silver, Titanium and other metal plate and tube.

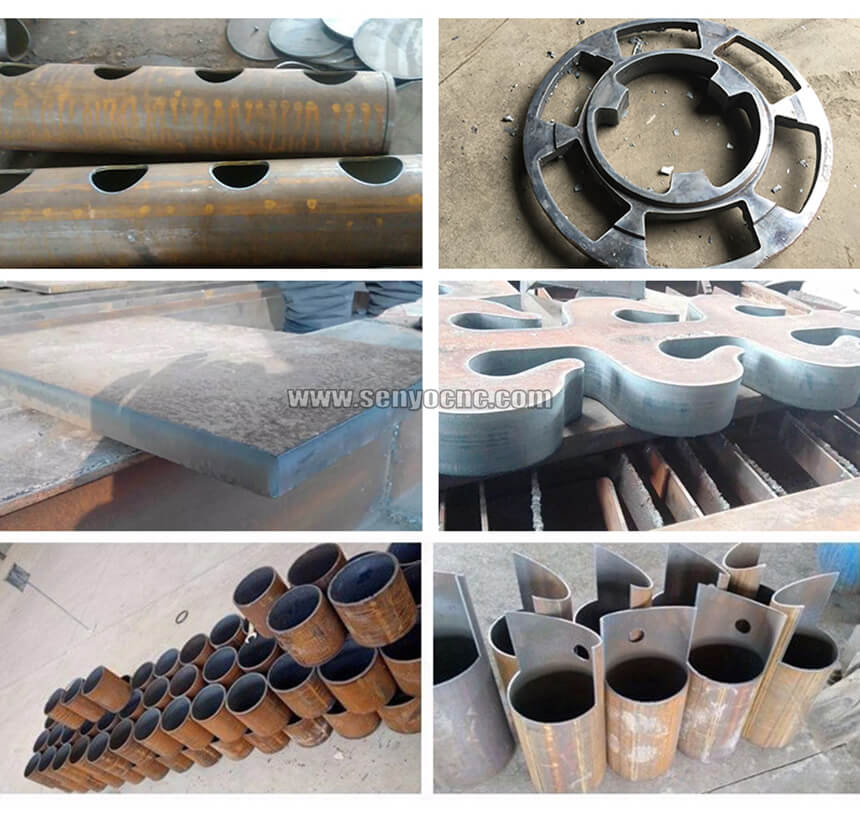

Portable CNC Flame Plasma Cutting Machine Samples

Technical Performance Specification

Machinery parts

In order to cater to customers requirements of high speed and high accuracy,our company takes into

account the machinery structures which may affect the performance of the machine when designing ,

processing and manufacturing,including friction, backlash,rigidity,inertia and so on in a comprehensive way.

 And we also use the computer to analyze dynamic characteristics of machine.

1.Machine body adopts industrial aluminum , which possesses  high intensity and rigidity.

2.Horizontal guide adopts high precision linear guide to ensure the horizontal guide precision.

3.It adopts high precision stepper motor with biaxial core guide vertically and horizontally. The gear is of high precision ,

and the whole transmission is realized through the action of gear and gear rack.

4.The gear rack is made of special alloy steel which meet the standard of 7grades after high finishing,thermal treatment,

and re-finishing. All these process ensure the transmission of high precision and long life.

Electric torch hanger:It is driven by DC reduction motor,the cutting torch makes linear lifting movement by means of crew rod and precision guide.

Electrical control parts

Electrical control parts of the CNC cutting machine consists of CNC system,electrical control system and step-by-step motor system. The CNC cutting system adopts modular structure which is reasonable,formal and with easy maintenance.

It widely adopts integrated circuit which has the advantage of small size, stable performance.

The CNC cutting system can show the fault history, and have the function of fault alarm, self diagnosis,

which can effectively protect the safety of personnel and equipment.Meanwhile it also has a variety of language menu (including Chinese)

which is very convenient for the manmachine dialogue, it possesses a variety of input methods with convenient operation and can

realize the automatic programming with PC communication function.

All these are of great convenience to the users and saves a lot of time while guarantees a stable and reliable operation.

Operational Reliability

Shipping detail

1) CNC Router machine has been adjusted and test 48 hours before delivery.

2) English software, User manual and detailed installation & training video in USB

3) Some extra spare parts (Pipe,limit switches etc)

Service & Support

1.Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
