Its advantages are simple operation, welding seam beautiful, fast welding speed and no consumables. Welding in thin stainless steel plate, iron plate, aluminum plate and other metal materials can perfectly replace the traditional argon arc welding and electric welding technology.

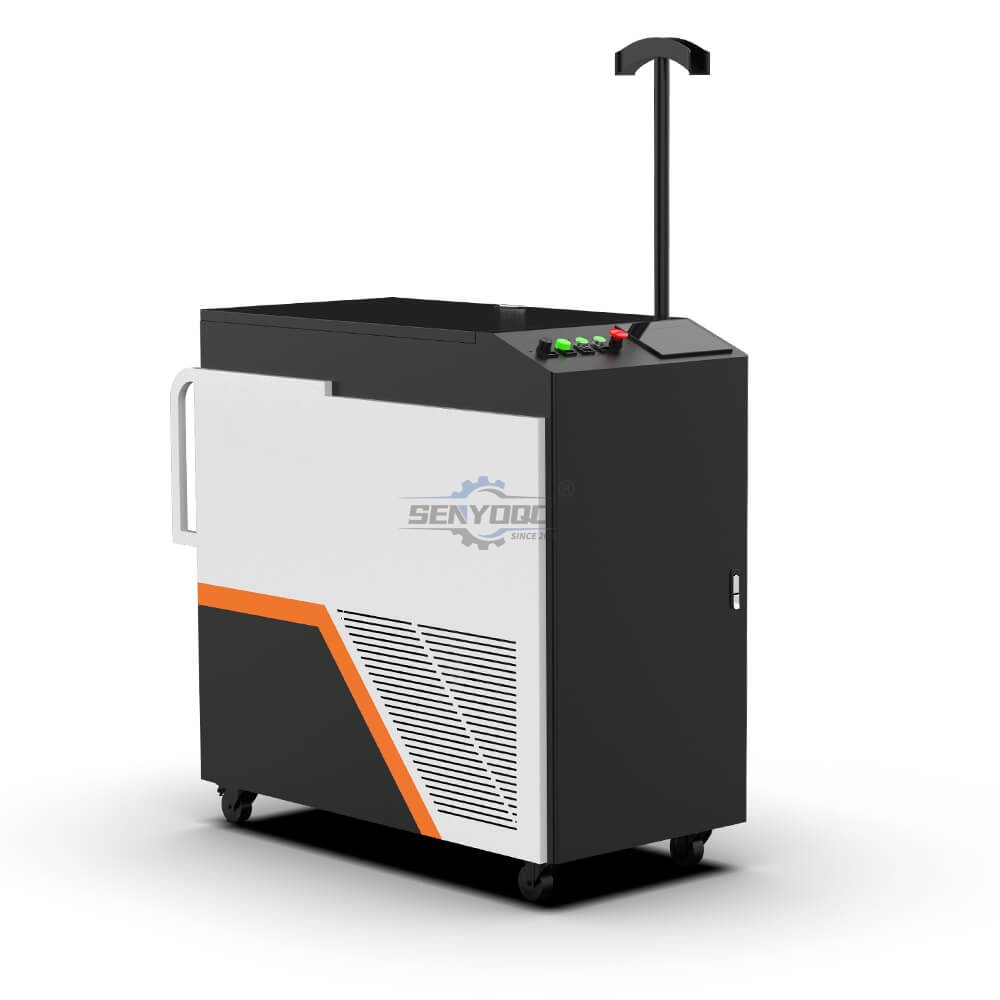

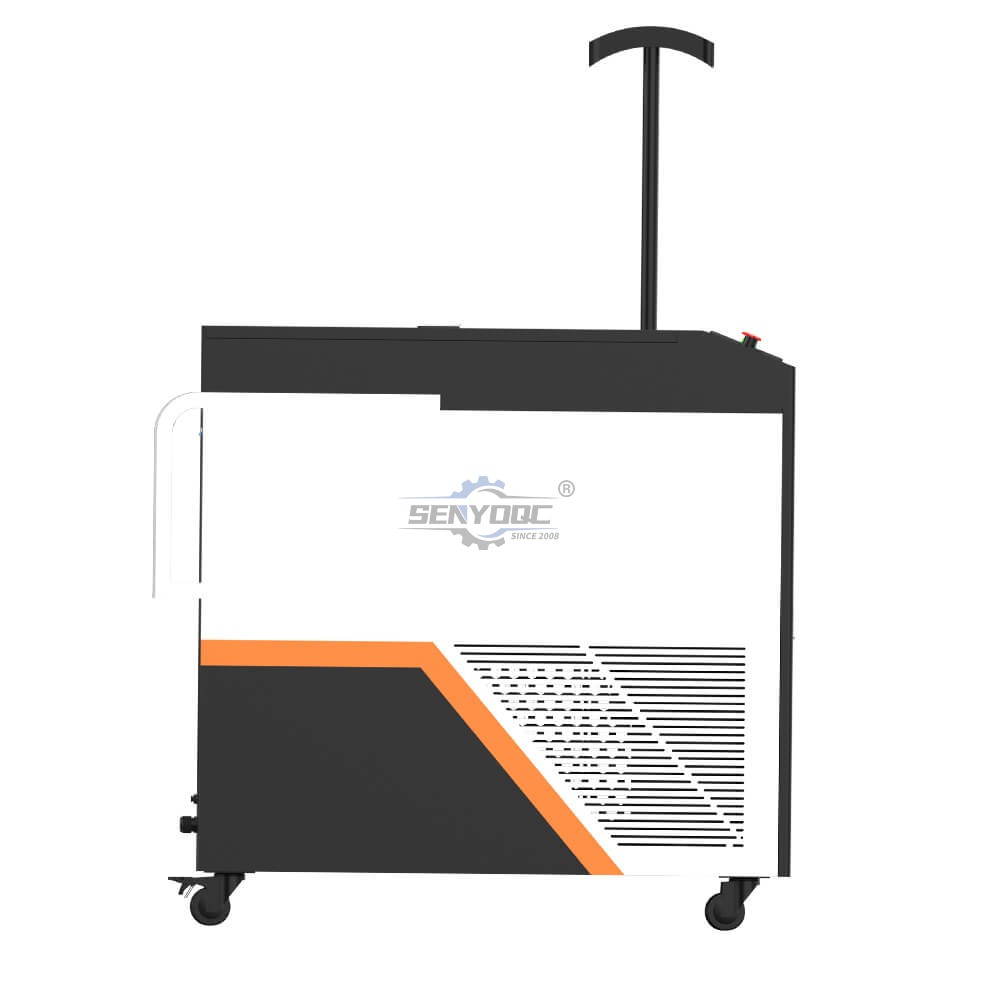

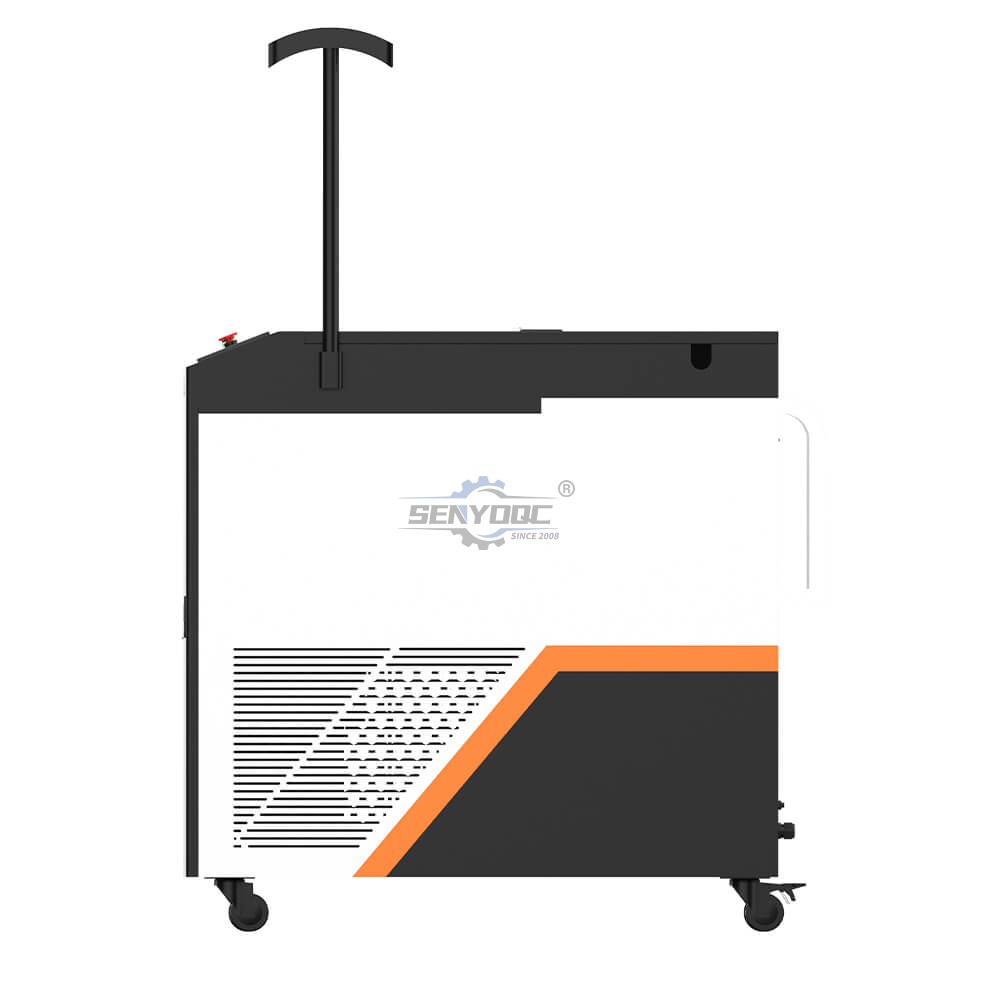

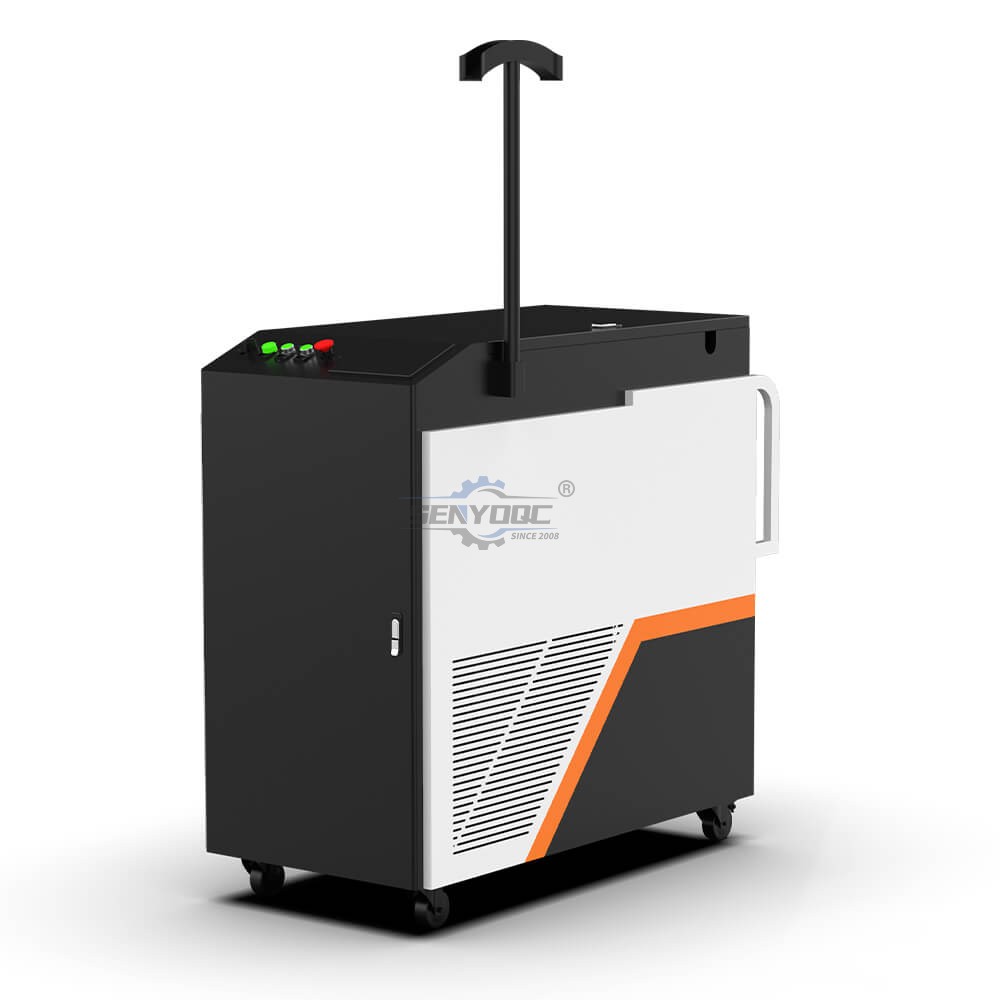

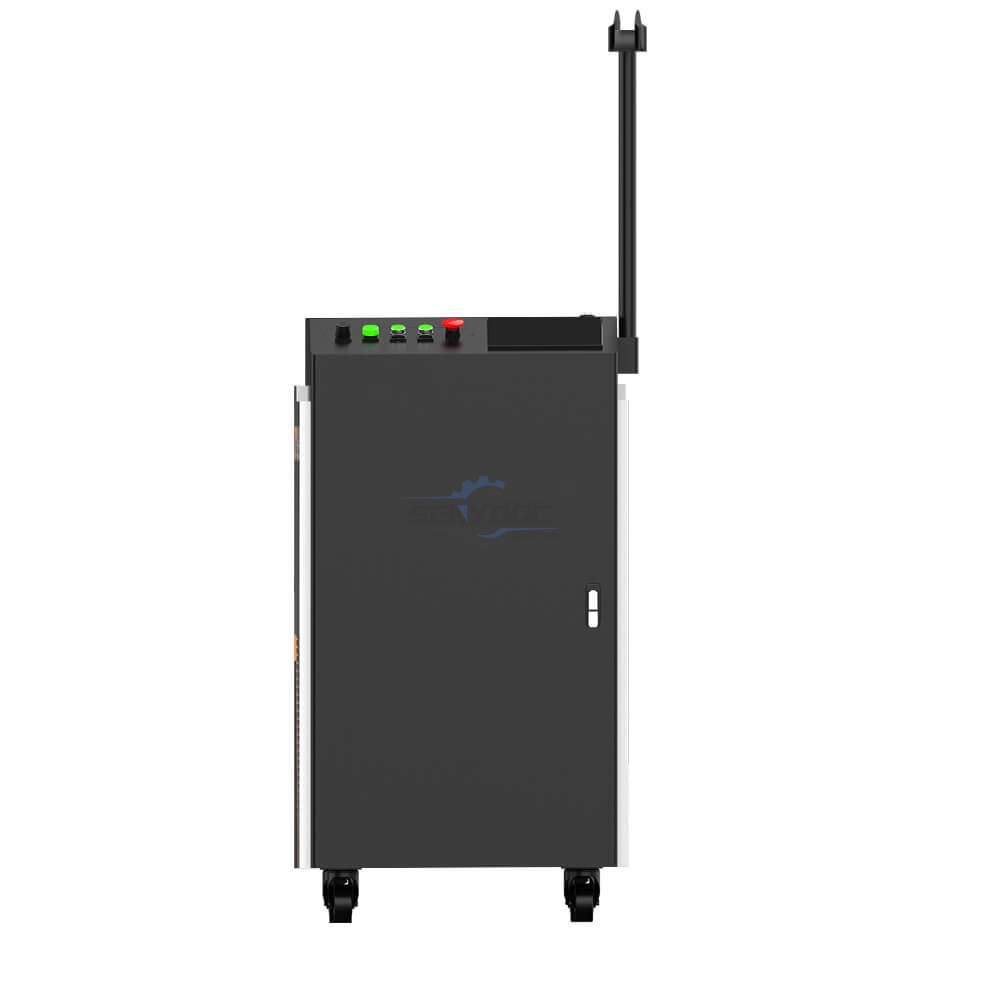

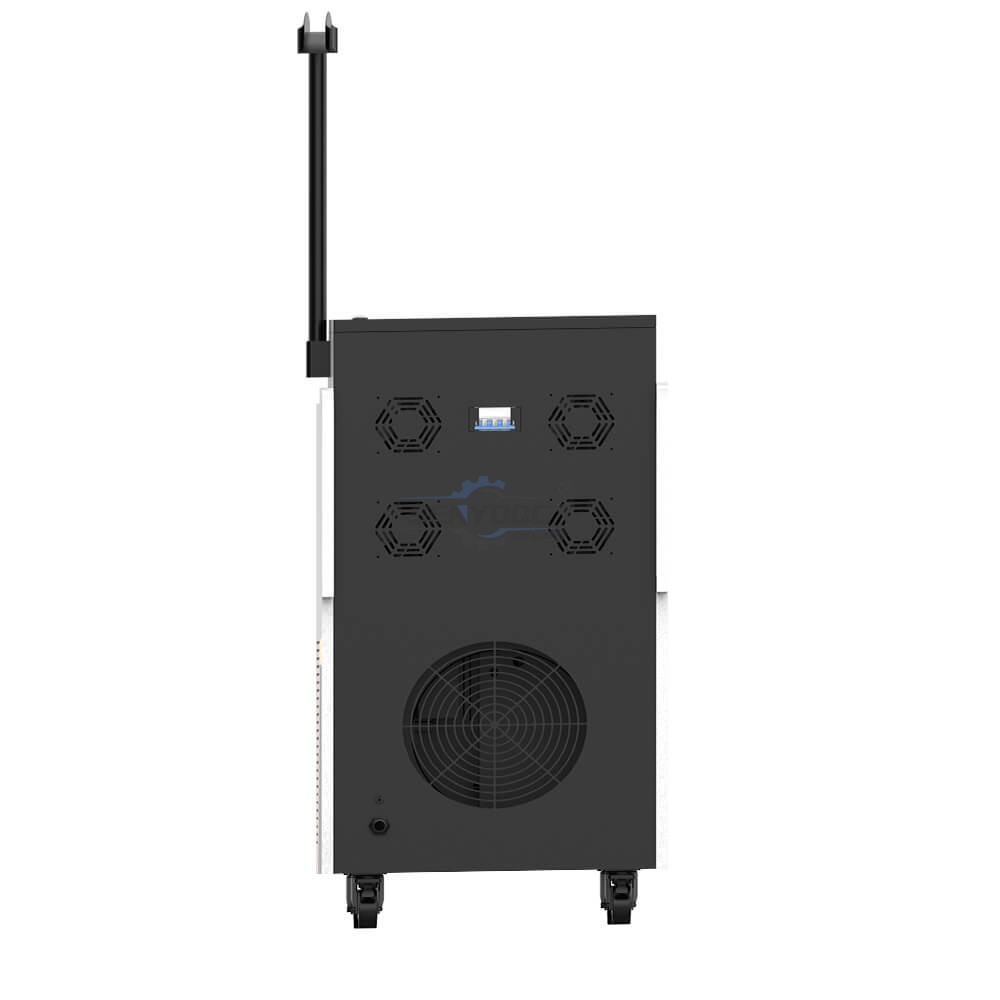

Features of Handheld Laser Welder For Welding Steel Aluminium Brass
1. Small, beautiful and smooth weld seam, no pores, high weld depth ratio and high welding quality, the toughness after welding is comparable to that of the parent material.
2. Simple operation, large laser power, high efficiency, no consumables, long-term processing is possible;
3. Spot welding, butt welding and precision welding can be realized for thin-walled materials and precision parts;
4. Obvious advantages in special-shaped welding, splicing welding and spot welding, large laser power is sufficient to weld metals that is not easily to be melted such as gold, silver and copper. It can weld small and delicate geometric areas.
Specification of Laser Welding Machine
Model | SYJW-1000/1500/2000W |
Laser power | 1000/1500/2000W |
Center wavelength | 1070+-5nm |
Laser frequency | 50Hz-5KHz |
Work patterns | Continuous |
Electricity demand | AC220V |
Output fiber length | 5/10/15m (Optional) |
Cooling method | Water Cooling |
Dimensions | 1150*760*1370mm |
Weight | 275kg(About) |
Cooling water temperature | 5-45℃ |
Average consumed power | 2500/2800/3500/4000W |
Laser Energy Stability | <2% |
Air humidity | 10-90% |

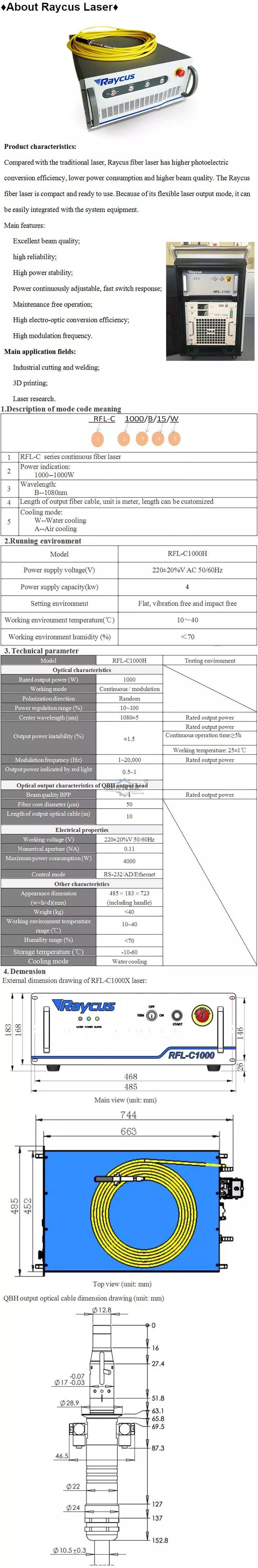

Raycus Fiber Laser Source
Tongfei Industrial Water Chiller
• Automatically adjust the temperature according to different working environment, no need to change settings parameters;
• Intelligent dual temperature dual control mode to satisfy different needs of a fiber laser device and the optics; • Multiple alarm protection; • CE certification; RoHS certification; REACH certification.
WSX ND18 Hand-held Wobble Laser Welding Head+System Solution
1.This welding head could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf, gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It is a perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other metal materials.
2.Smart internal design and interactive control system expand the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
3.Light shape, Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation.
4.Nice welding seam, fast welding speed, no consumables, no welding marks, no discoloration, no later polish.

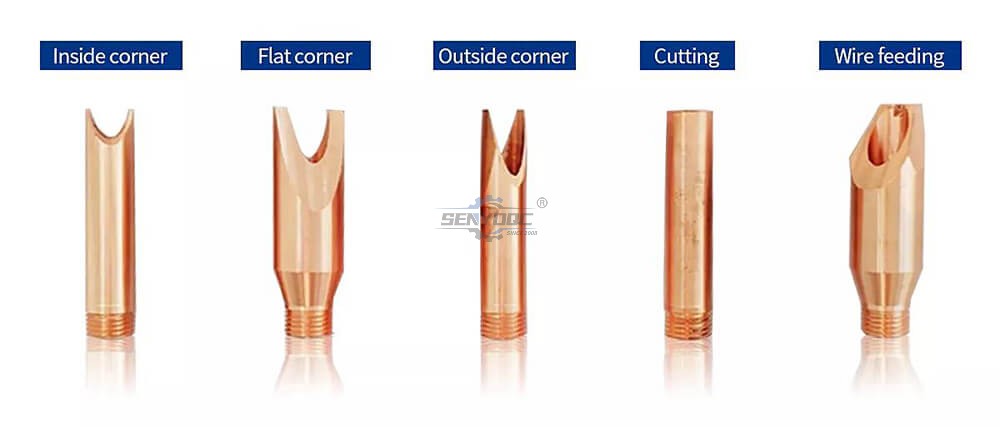

5.This head could be equipped with a variety of angular nozzles to meet the welding needs of different products.
| Handheld laser welder | Depth of penetration | Depth of fusion | sample |
| 1000W | Stainless steel: 3mm | 4mm |  |
| Galvanized sheet:2mm | 3mm | ||
| lron:3mm | 4mm | ||
| Mild steel : 3mm | 4mm | ||
| Aluminum: 1mm | 2mm | ||
| 1500W | Stainless steel: 4mm | 5mm | |
| Galvanized sheet: 3mm | 4mm | ||
| lron:4mm | 5mm | ||
| Mild steel: 4mm | 5mm |  | |
| Aluminum: 2mm | 3mm | ||
| 2000W | Stainless steel : 5mm | 6mm | |
| Galvanized sheet: 4mm | 5mm | ||
| lron:5mm | 6mm | ||
| Mild steel: 5mm | 6mm | ||
| Aluminum: 3mm | 4mm |
Advantages of laser welding machine
1. It can weld some other components that are easy to be damaged or cracked during welding without contact and will not cause mechanical stress to the welding object
2. It can irradiate the narrow parts that cannot be accessed by the soldering iron head on the circuit with dense components and change the angle when there is no distance between adjacent components in dense assembly, without heating the whole circuit board
3. During welding, only the welded area is heated locally, and other non welded areas are not subject to thermal effect
4. The welding time is short, the efficiency is high, and the solder joint will not form a thick intermetallic layer, so the quality is reliable
5. High maintainability. The traditional electric soldering iron welding needs to replace the soldering iron head regularly, while the laser welding needs to replace very few accessories, so the maintenance cost can be reduced

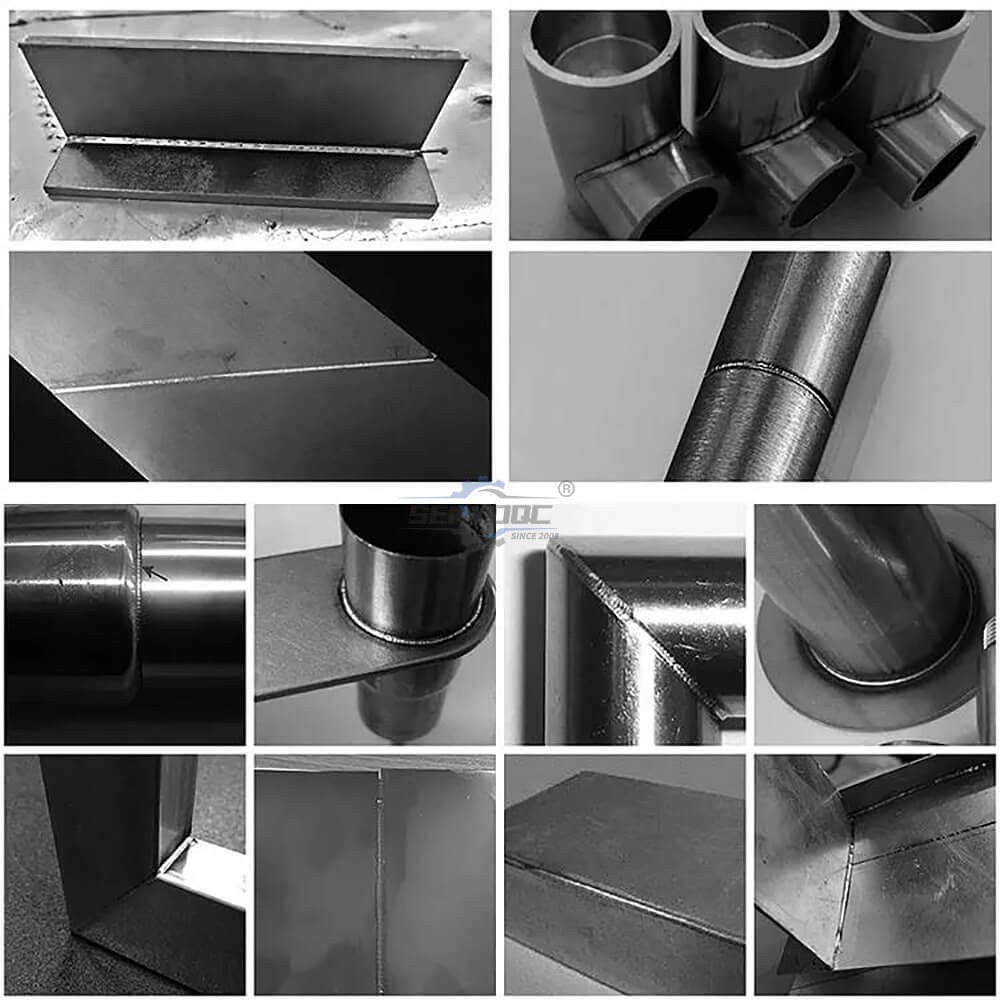

Working Samples
Hand-held fiber laser welding machine is applicable for all kinds of metals and various alloys, such as carbon steel, mold steel, stainless steel, aluminum, copper, brass, zinc, gold, silver, chromium, nickel and other metal materials.
Traditional Welding Methods | Laser Welding Machine | |
Speed | Average | Up to 4X Faster than TIG |
Quality | Depends on user experience | Consistent high-quality results |
Learning Curve | Steep | Quick and easy |
Material Flexibility | Limited with consumables changes | Wide range with no set up |
Distortion & Deformation | High | Very Low |
Heat Affected Zone | Large | Small |
Wobble Welding | No | Yes - up to 5 mm additional weld width |
International Shipping Around the World All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
