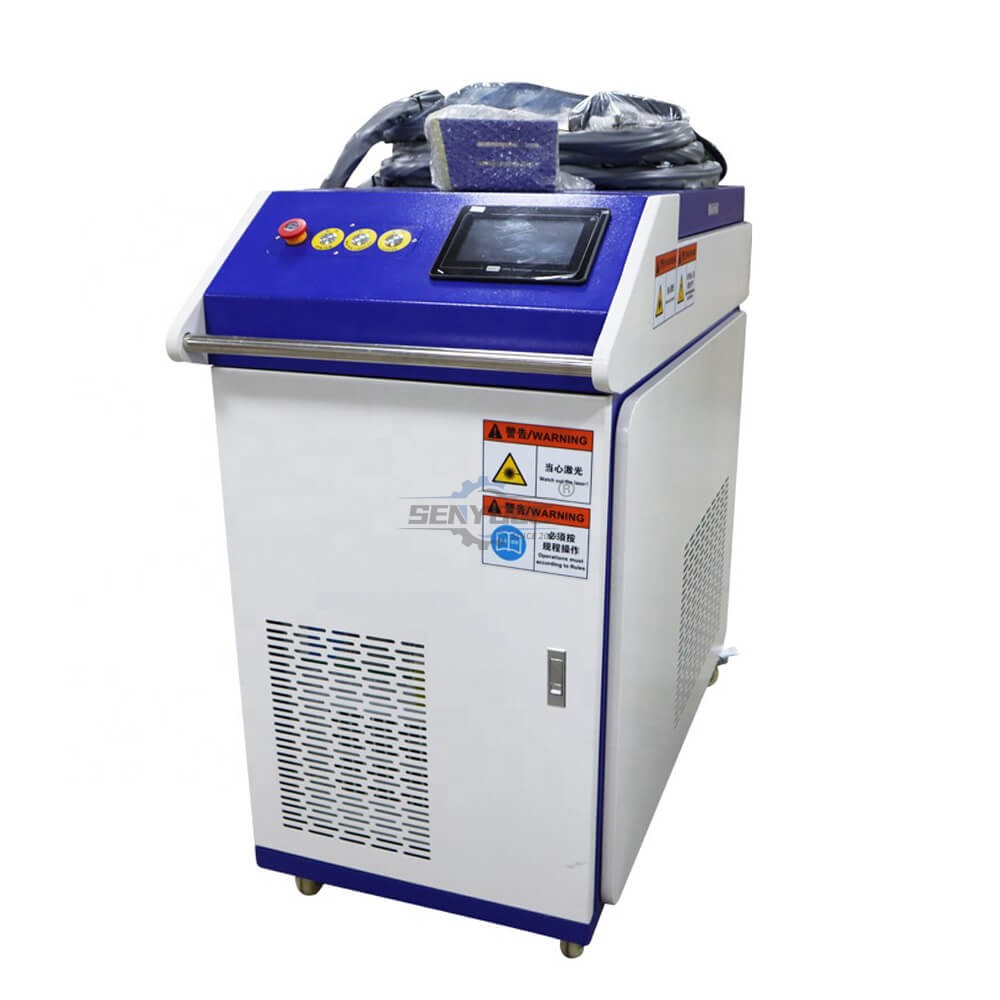

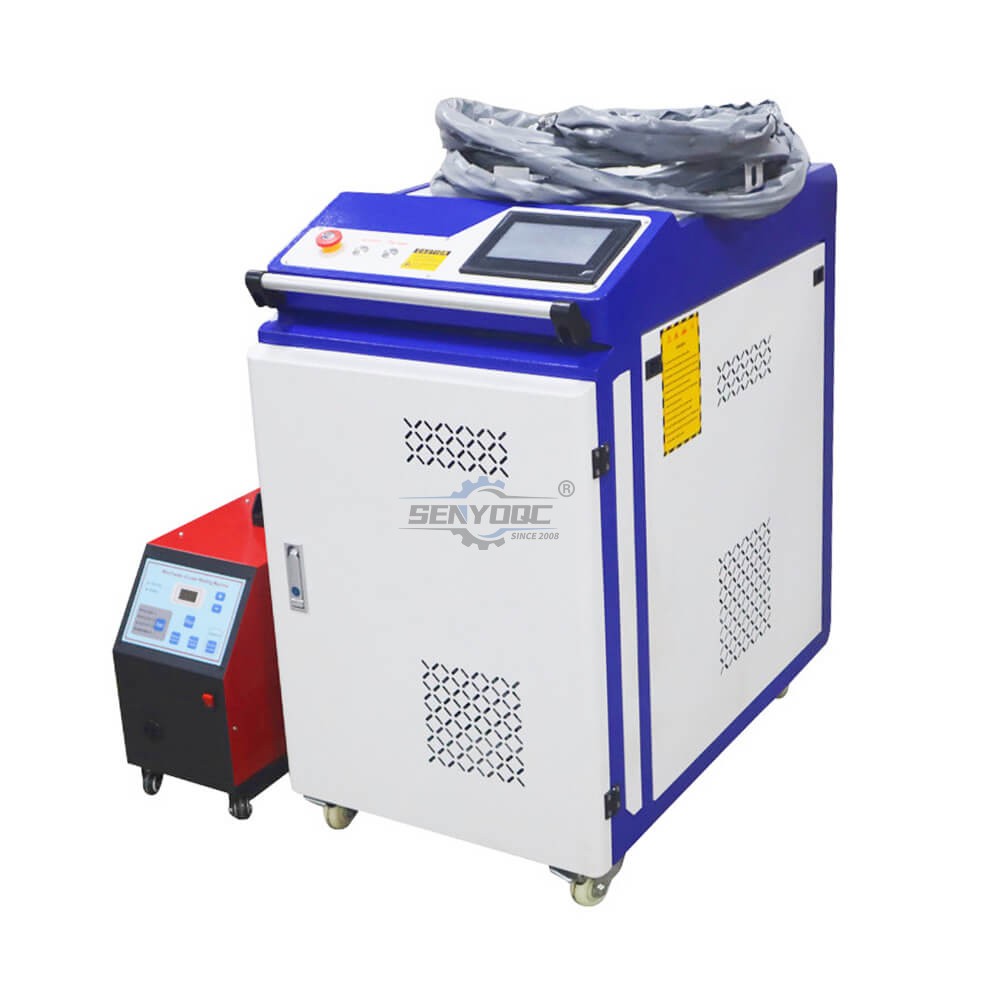

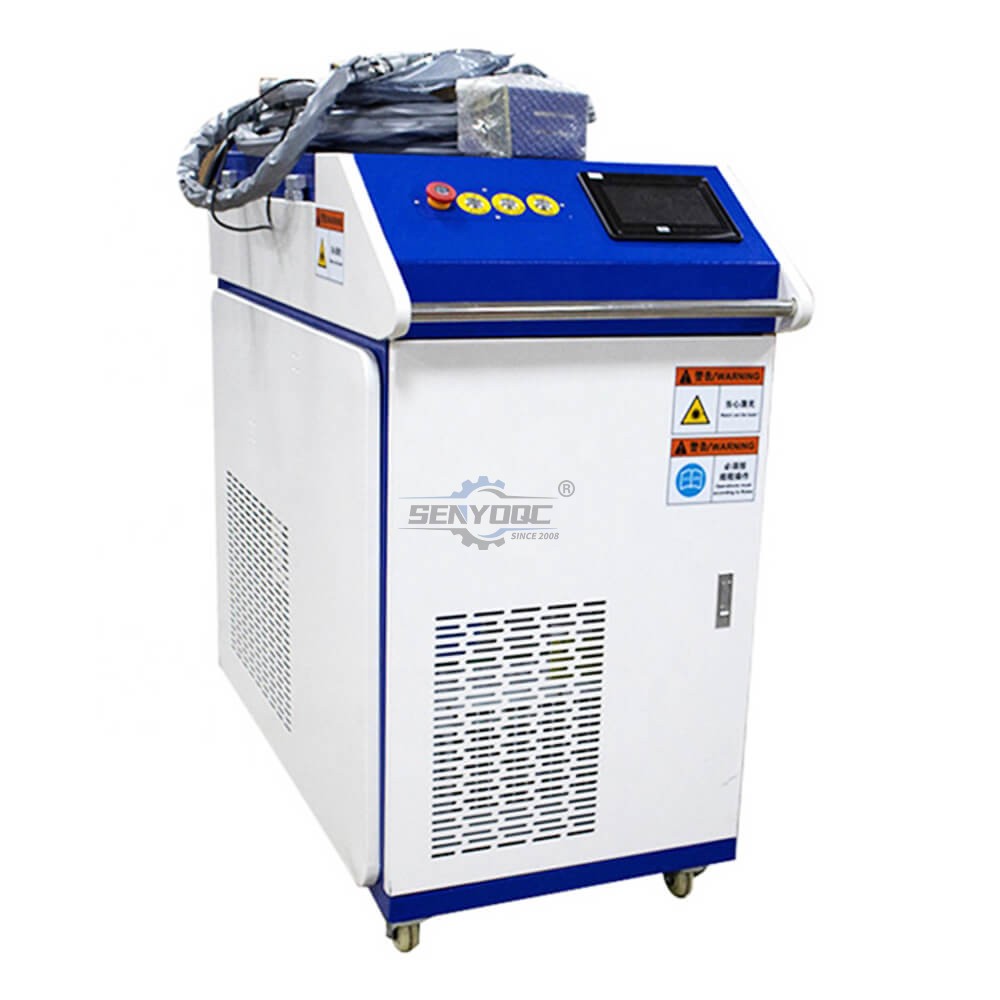

3-In-1 laser welding, cleaning, cutting machine is composed of fiber laser generator, handheld laser gun, water chiller, and 3 in 1 control system, which is used for laser welding, cleaning and handheld cutting. Each handheld laser gun is portable, convenient, and easy to use.
In actual welding, sometimes part fluctuations and fixture errors often cause various welding defects. After adding wire feed for welding, the laser beam is easy to guide and focus, which can realize welding of any complicated shape, with high degree of automation, fast welding speed, high production efficiency, and stable and reliable processing quality.
1.Swing welding head can be used for welding at any angle or shape. It can be used for 1000W/1500W/2000W power
3-In-1 Handheld Laser Welding, Cleaning, Cutting Machine Specifications
Model | SYJW1000 /SYJW1500 / SYJW2000 |
Laser Power | 1000W / 1500W / 2000W |
Laser WaveLength | 1080nm |
Fiber Length Standard | 10M/Maximum15M |
Cooling System | Water Cooling |
Cooling Chiller | Industrial Water ChillerInside |
Operating Voltage | AC220V±10% , 50/60Hz |
Machine Dimensions | 910*600*750mm |
Welding Thickness Recommendations | 0.5 - 3mm |
Welding Gap Requirements | ≤0.5mm |
Laser Source | JPT, Raycus, Max, IPG, RECI |
Laser Gun | Handheld |
Collimating focal length | 50mm |
Focus length | 150mm |
Focus adjustment range | -10mm～+10mm |
Spot adjustment range | 0～5mm |
Auxiliary gas pressure | ≤1Mpa |
Ambient Temperature | 10~40℃ |
Environmental Humidity | <70% without condensation |
Maximum Wire Core | Diameter Ø3.0mm |
Maximum Wire Weight | 25KG |
Maximum wire feed speed | 80mm/s |
Applications of 3-In-1 Handheld Laser Cleaning, Welding, Cutting Machine for Sale

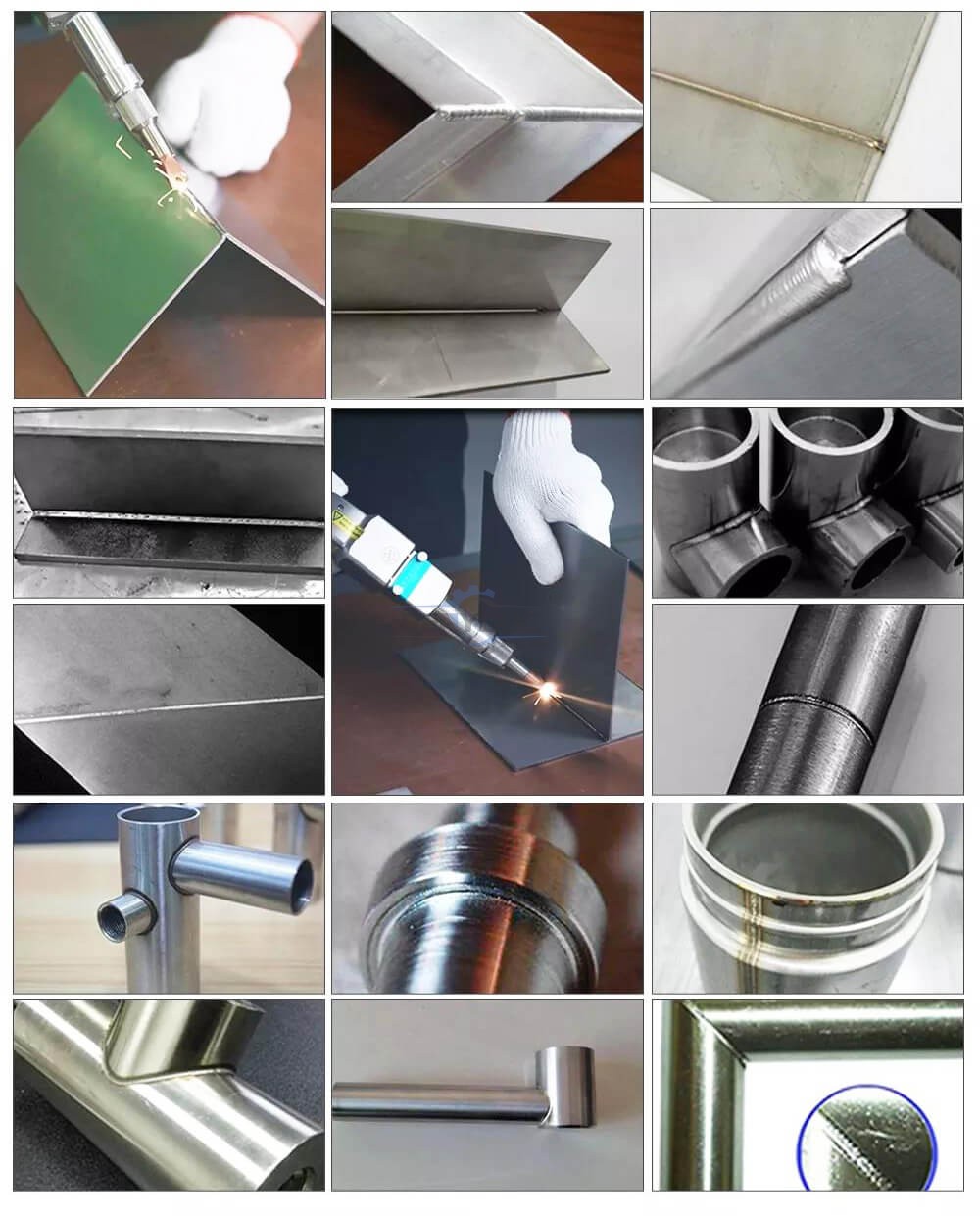

The welding of all kinds of metal materials such as Gold
Silver Platinum ,Copper Titanium Stainless steel etc. and jewelry such
as ring ,earring bracelet ,necklace ,tie bar cuff-link ,as well as metal
decorations
The main application industries of laser cleaning
machines: shipbuilding, auto parts, rubber molds, high-end machine
tools, tire molds, track, environmental protection industries.Its main
function is to be able to remove resin, oil, stains, dirt, rust,coating,
plating, and paint on the surface of objects.
Features of 3-In-1 Handheld Laser Cleaning, Welding, Cutting Machine for Sale
1.
As a laser cleaning machine, it is a "green" cleaning method. It does
not need to use any chemical agent and cleaning solution.
The
cleaned waste is basically solid powder. It is small, easy to store and
recyclable. It can easily solve the problem of environmental pollution
caused by chemical cleaning.
2.
As a laser welder, the welding seam is smooth and beautiful, no need to
polish, no deformation or welding scar, firm welding of the part.
Save time and improve efficiency.
3. As a laser cutter, it is very easy to operate to cut all types of metals.
4.The portable laser gun has a simple handheld structure and is easy to carry. It is equipped with a touch screen, which is convenient to switch parameters during work and simplify the operation. The weight is 0.75kg, which is light to use without fatigue.
5.
It adopts professional fiber laser source with lower error rate, low
power consumption, maintenance free, and easy to assemble.
6.

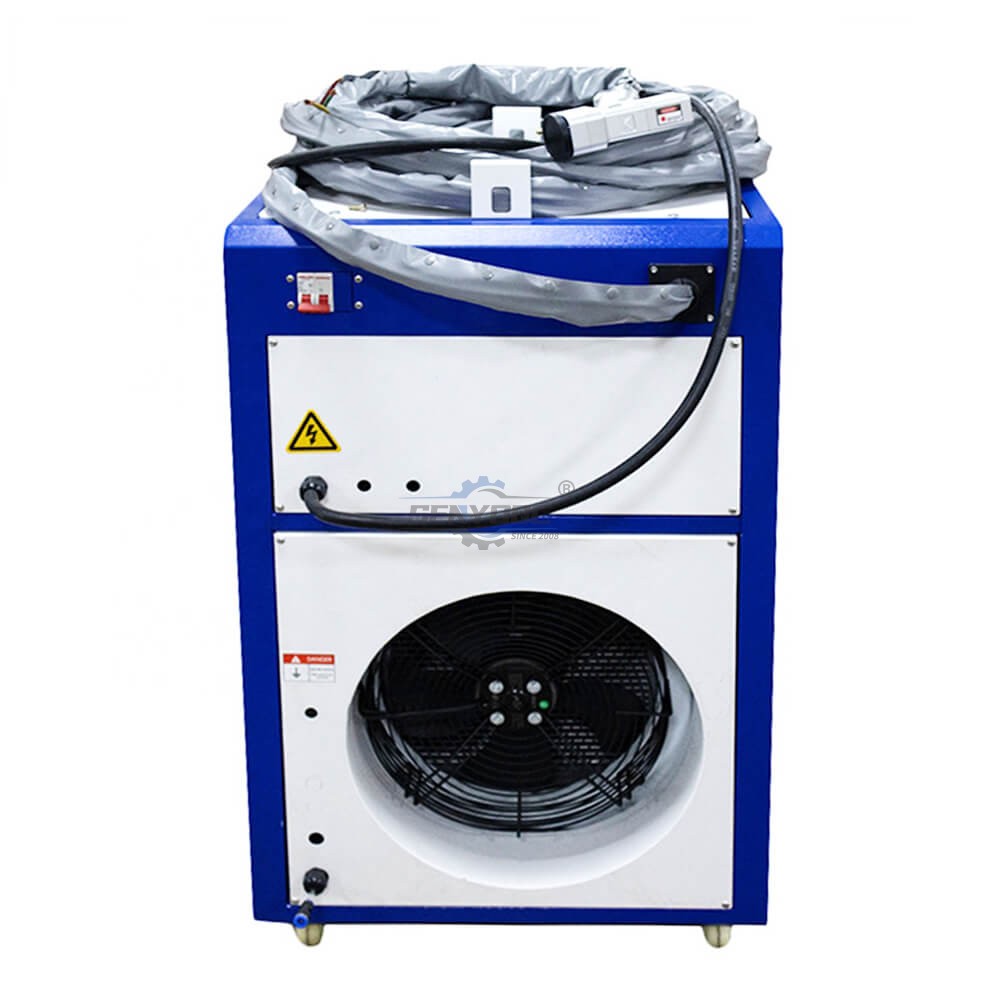

Industrial constant temperature water cooling chiller is specially
designed. The water chiller is equipped with a filter, which has safe,
durable, and stable working performance and long service life. Strong
& stable water cooling system will ensure the fiber laser source to
work perfectly.
7. Portable design: Compact, ergonomic design, with wheels to move freely.
Advantages Of 3-In-1 Handheld Laser Cleaning, Welding, Cutting Machine for Sale
1. Our machine can be used in sheet metal industry, hardware industry, new energy welding.
3. Intelligent protection system, mobile terminal APP and PC monitoring, real-time feedback of working status.
4.High threshold optics, better welding results.
5.Multiple safety locks, high safety performance.
6.The whole body is designed with water cooling, and the stability is more durable.
7.Ergonomic design, comfortable to hold, easy to grasp.

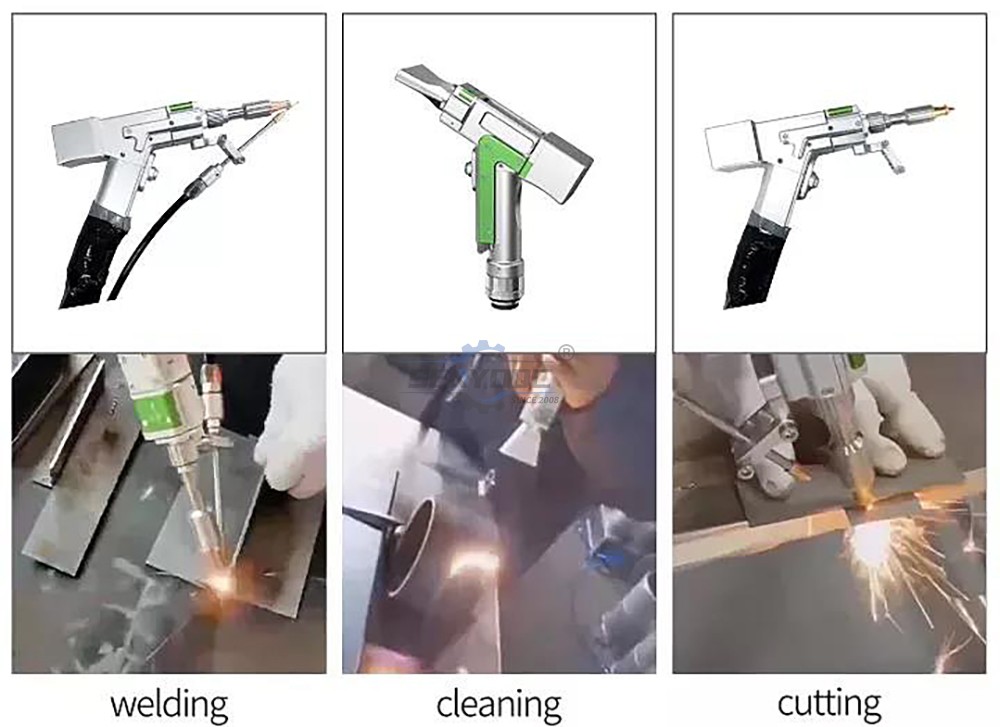

1. With laser welding gun, it is a portable laser welder to weld aluminum, stainless steel, titanium, gold, silver, copper, nickel, chromium, and more metals or alloys, it can also be applied in a variety of welds between different metals, such as titanium–gold, copper–brass, nickel-copper, titanium–molybdenum and so on.
2. With laser cleaning gun, it is a portable laser cleaner to remove rust, resin, coating, oil, stains, paint, dirt for for surface treatment with hobbyists and industrial manufacturing, it can effectively reduce the machine maintenance cost and improve the industrial cleaning effect.
3. With laser cutting gun, it is one portable handheld laser cutter for all types of metals cutting
International Shipping Around the World
All the CNC laser machines can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight
