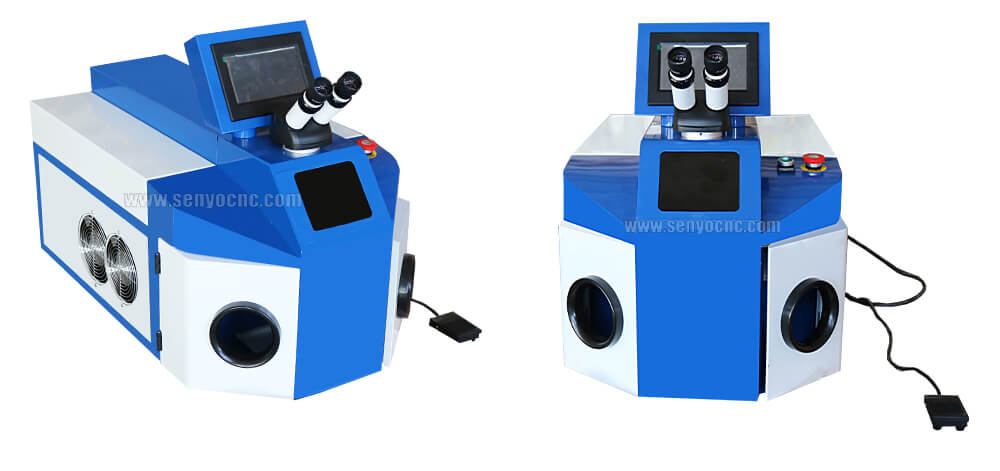

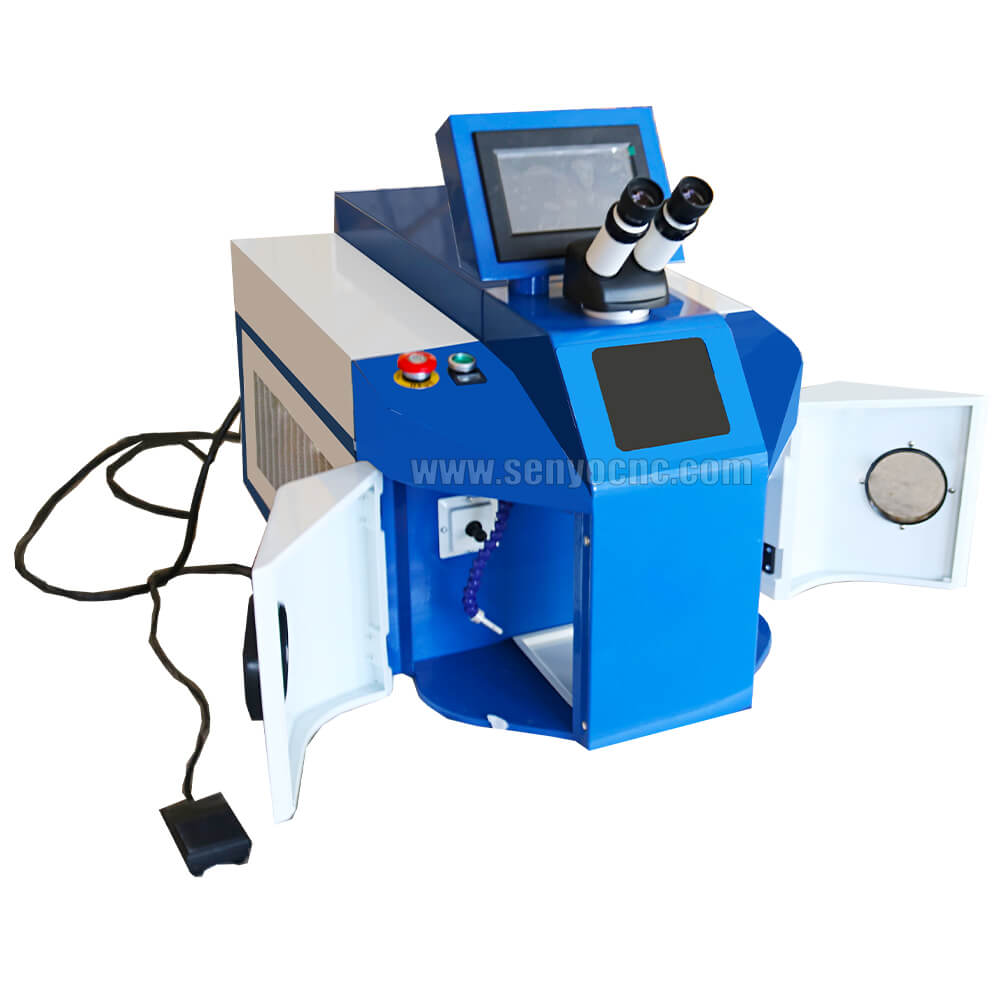

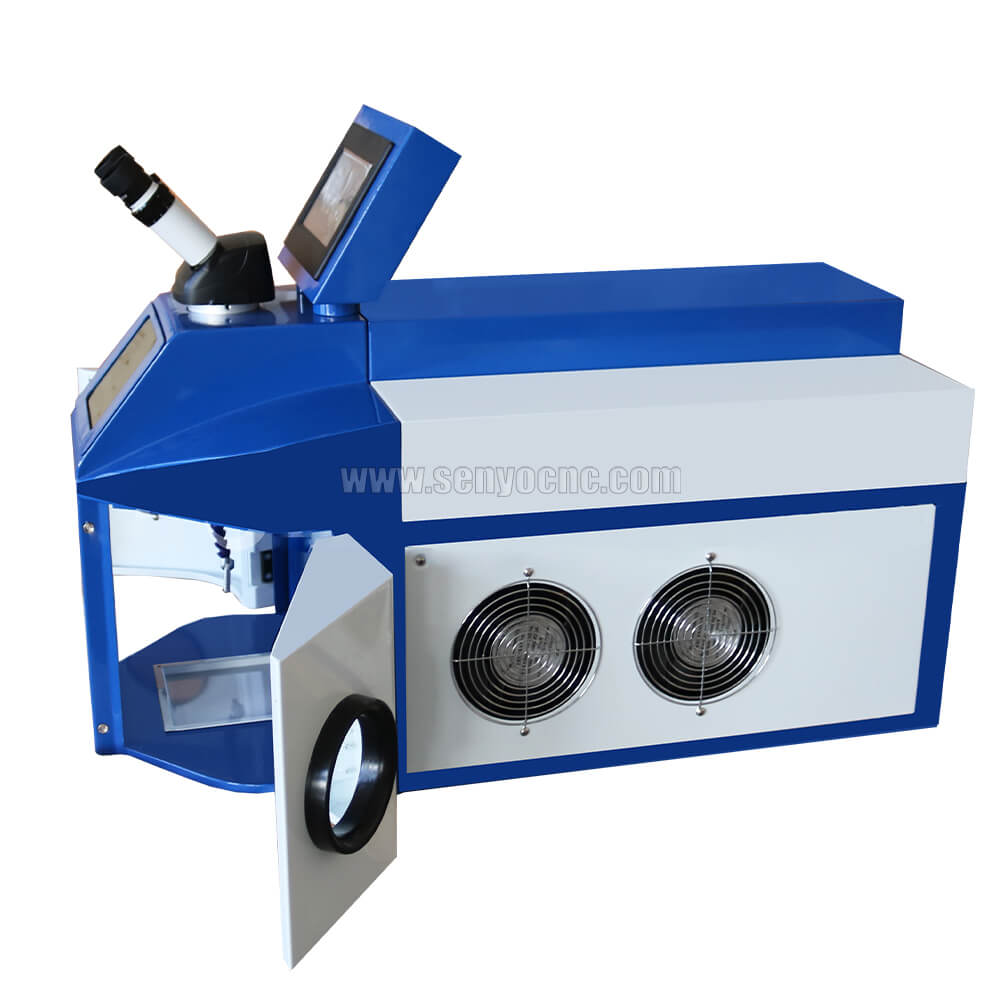

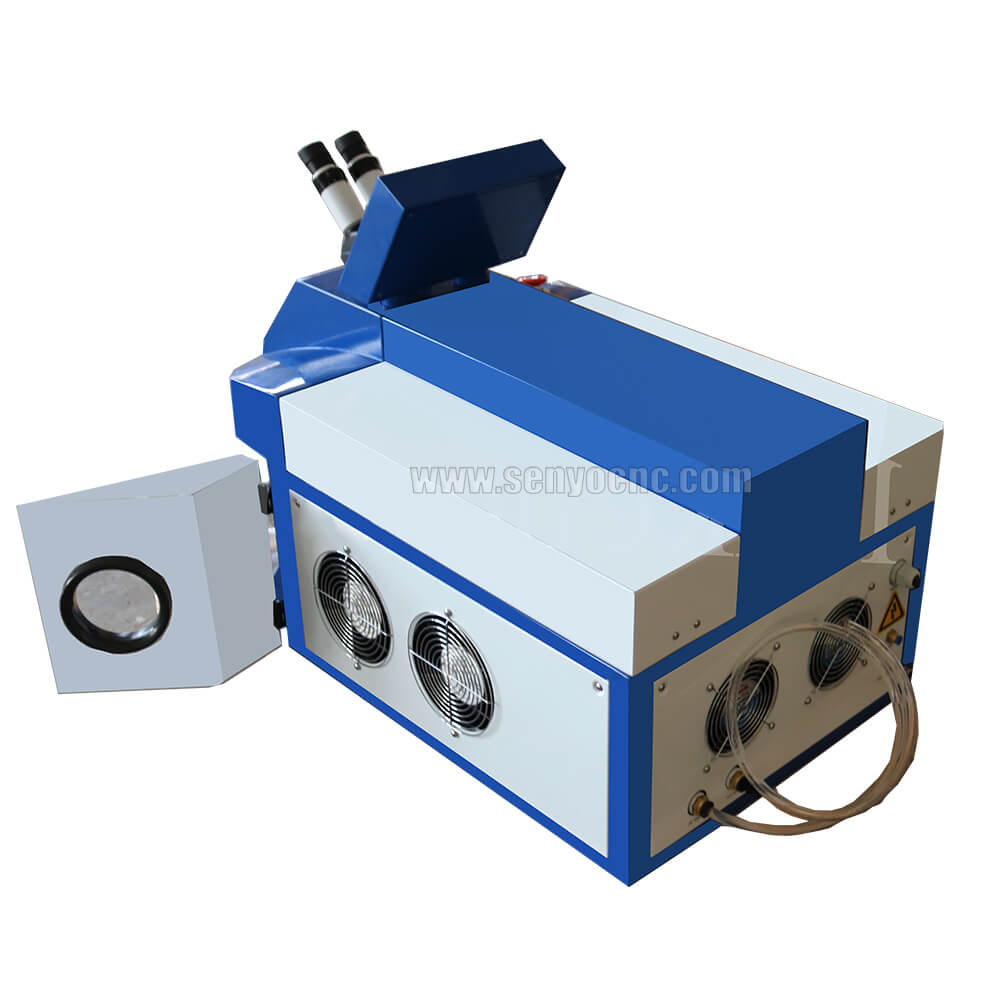

This machine is specially designed for jewelry laser welding, which is mainly used in jewelry patching holes .
Laser spot welding is one of the most important applications for material processing technology.
The procedure of spot welding belongs to heat conduction type,
that’s to say the laser radiation heat the surface of the work piece, the heat on the surface spread toward inside by heat conduction.
By controlling the parameters as width, energy, peak power and frequency, etc. of the laser pulse,
work piece will be melted and formed special molten pool. Due to the particular advantage,
it has been successfully used in processing gold and silver jewelry as well as welding tiny and small parts.
1.High peak power.
2.We use imported capacitance, energy storage is stable.
3. IGBT part is imported from Germany, it is responsive, safe and reliable.
4. Reasonable layout, easy to maintain.
5. We have signal detection function, it will help you to find out the problem easily.

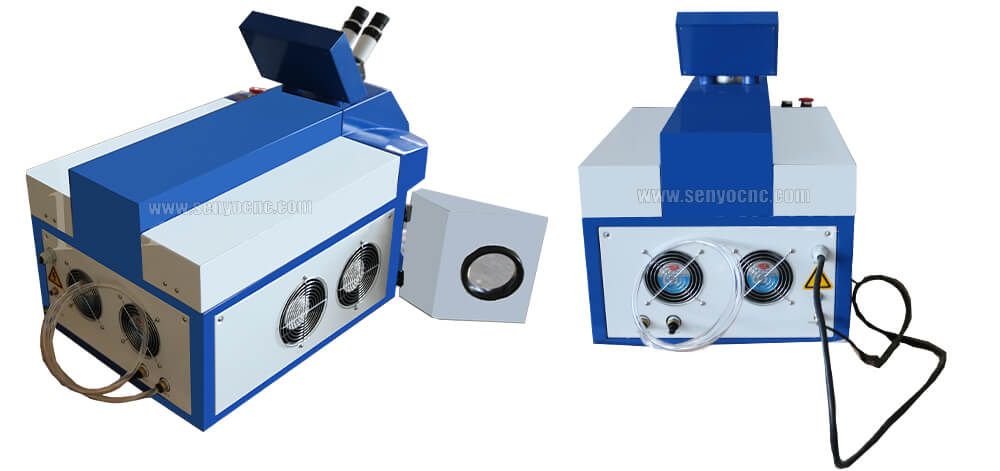

Machine advantage
1. Dedicated to the jewelry industry
2. Small size
3. Stable performance, mature industry
4. High cost performance
5. Less maintenance, cheap consumables

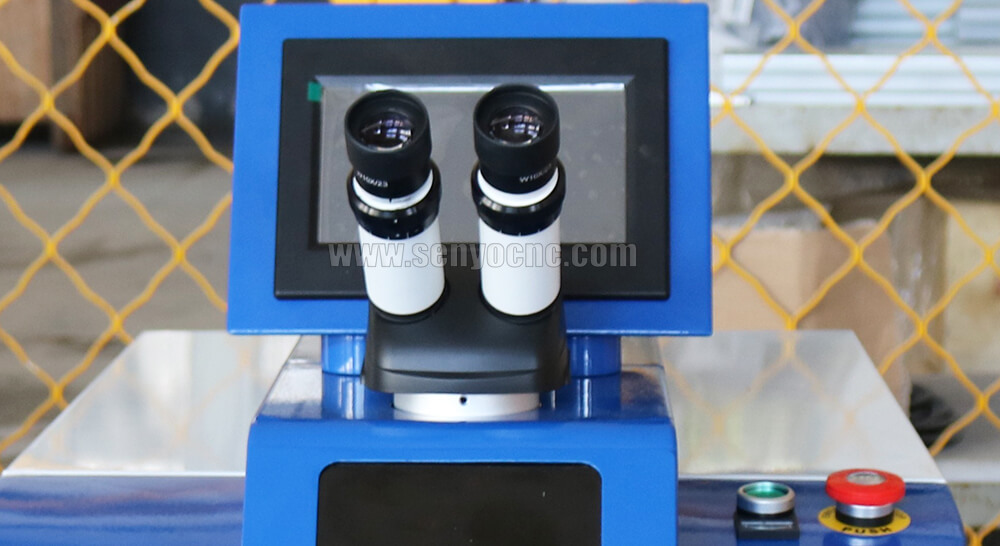

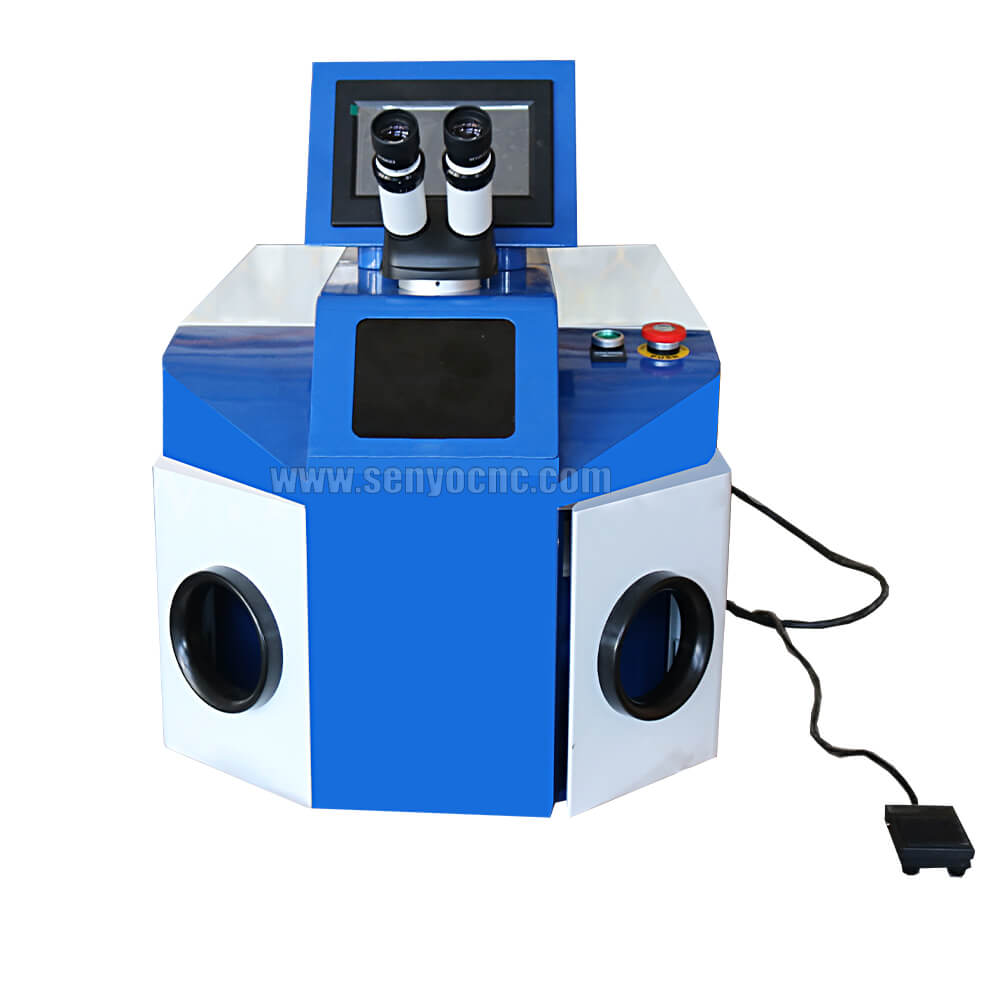

10X and 20X high quality microscope helps to observe the welding process very clearly.
Multi-language touch-screen opertion panel makes it easy to operate.
It supports many kinds of mainly used languages.

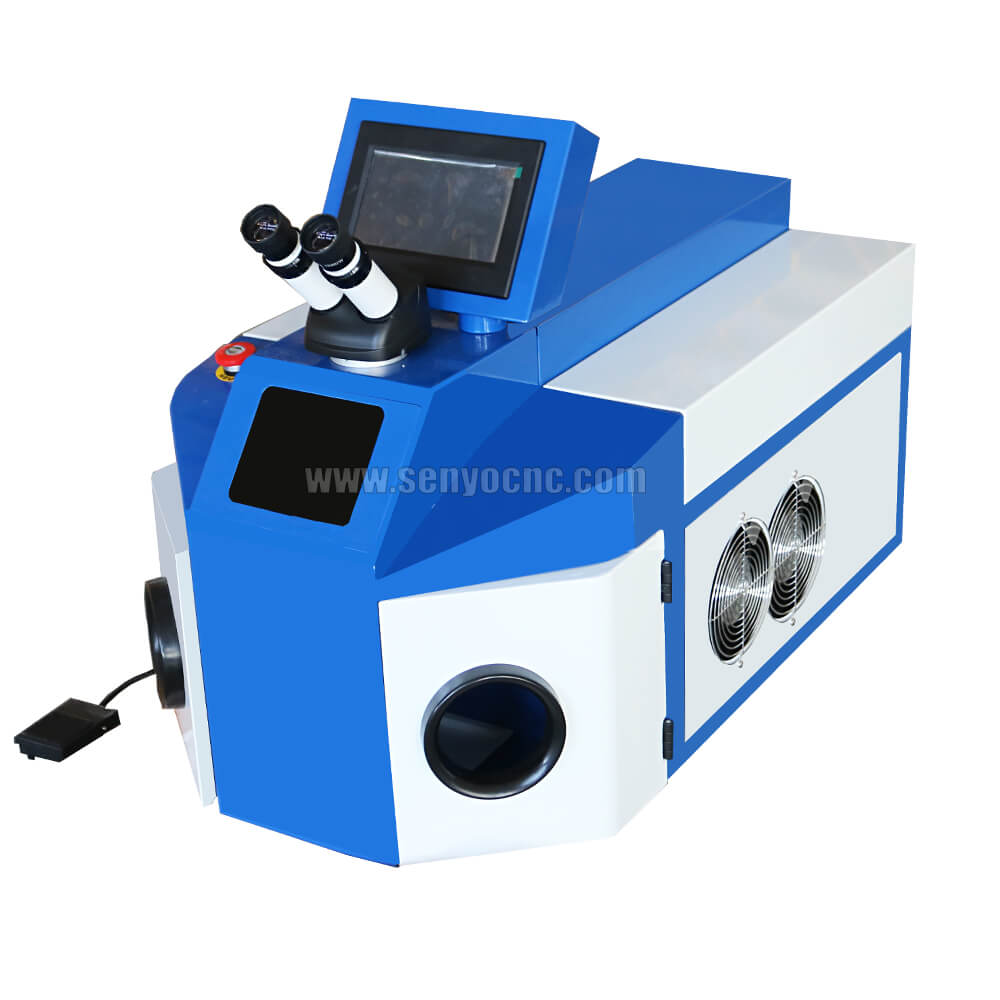

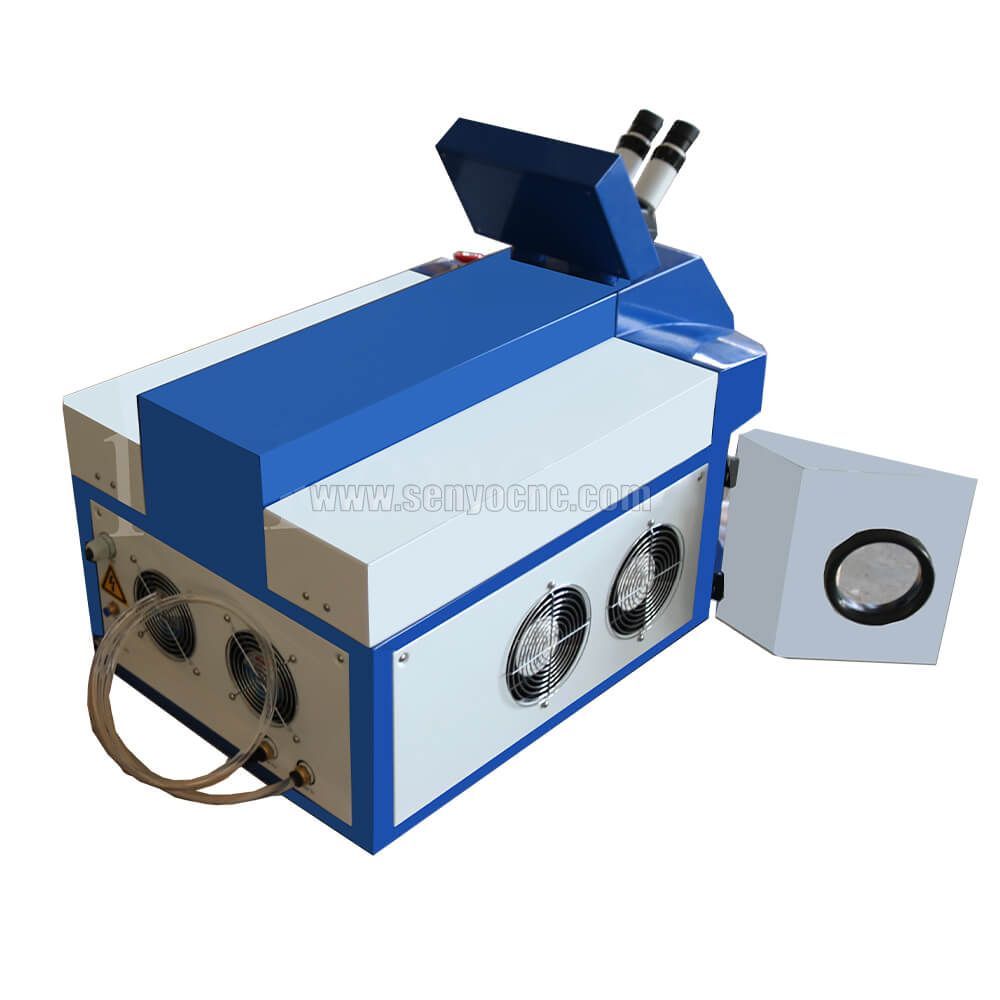

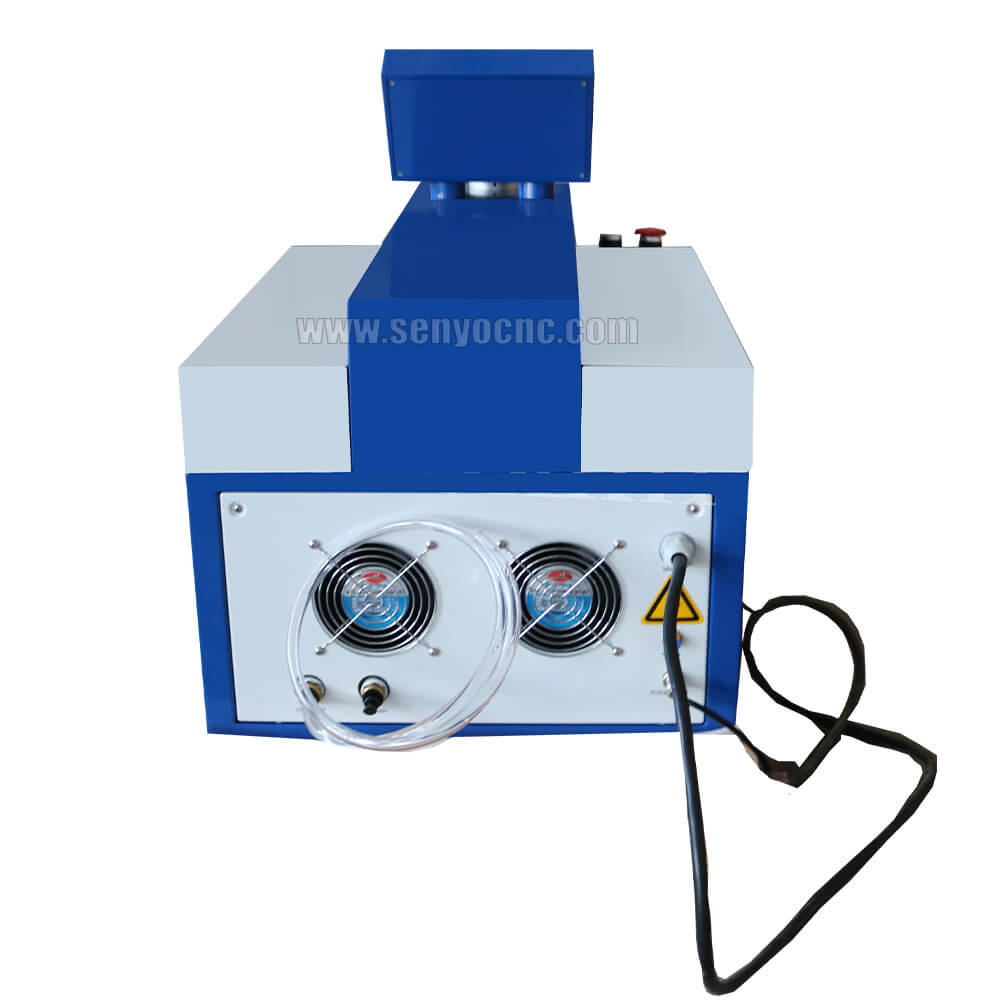

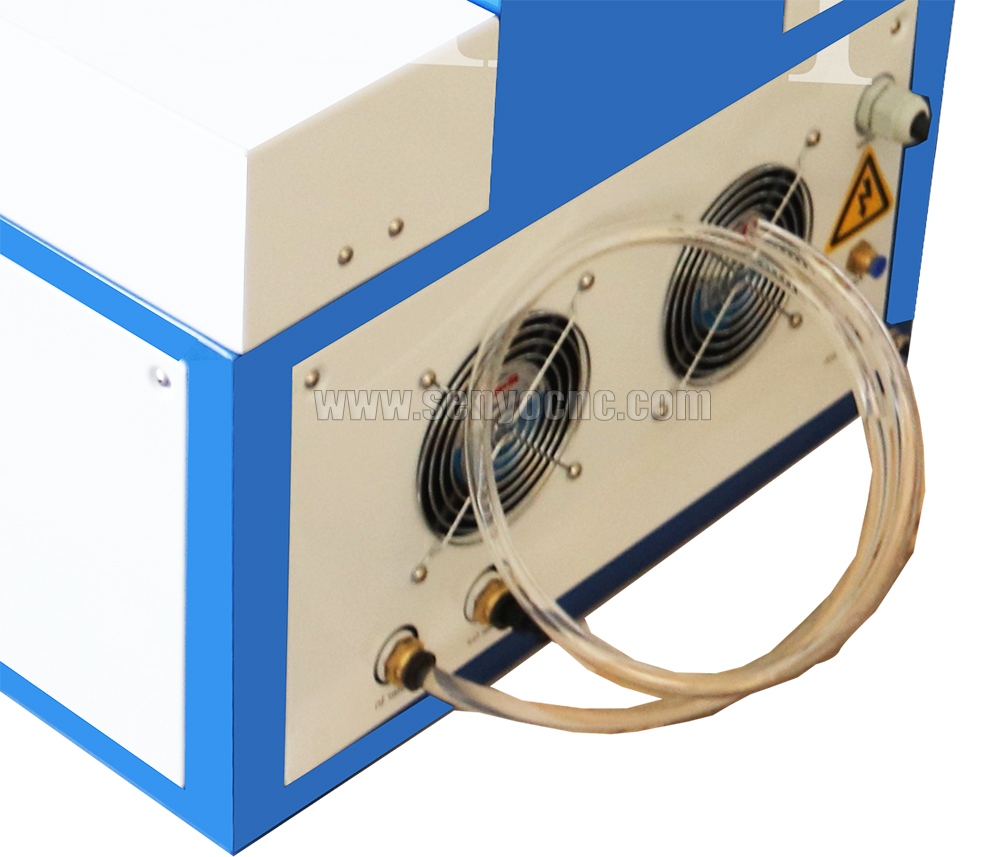

Machine best design for fan.
You can observe welding process clearly from screen except for microscope. Clear and convenient.

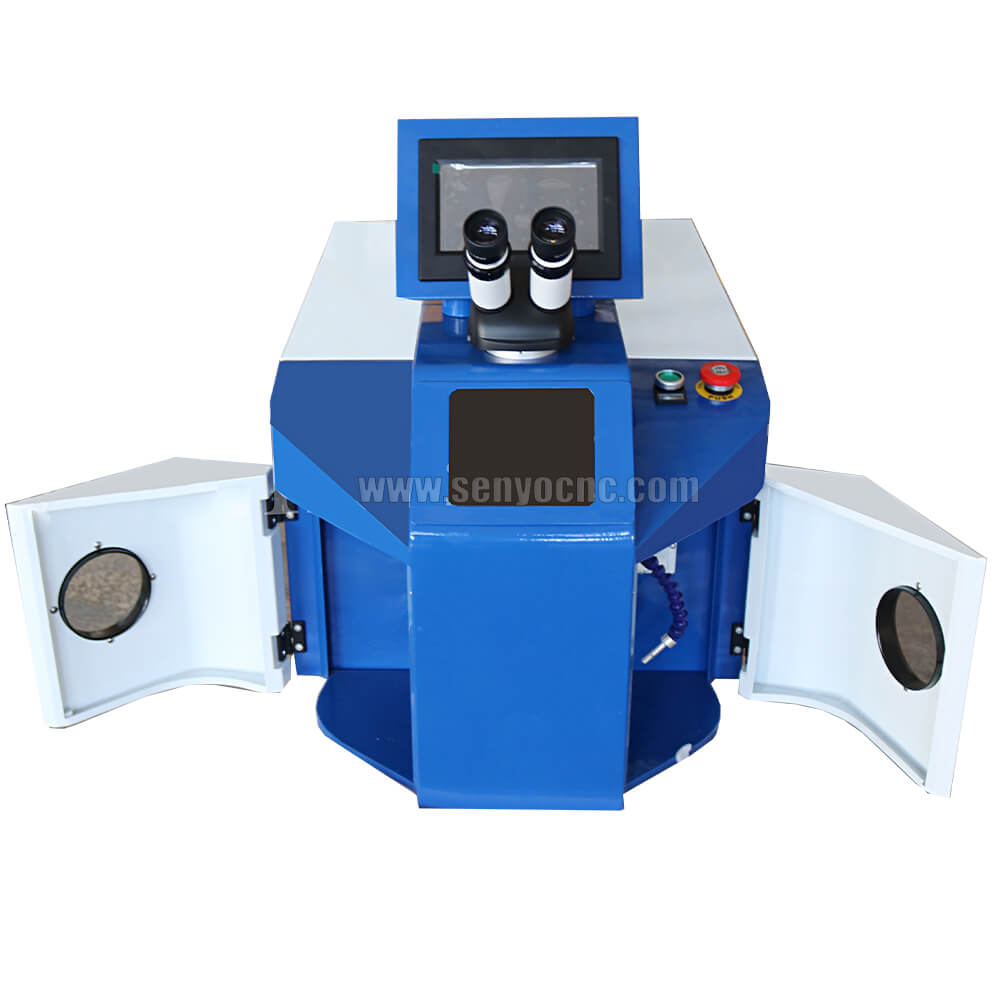

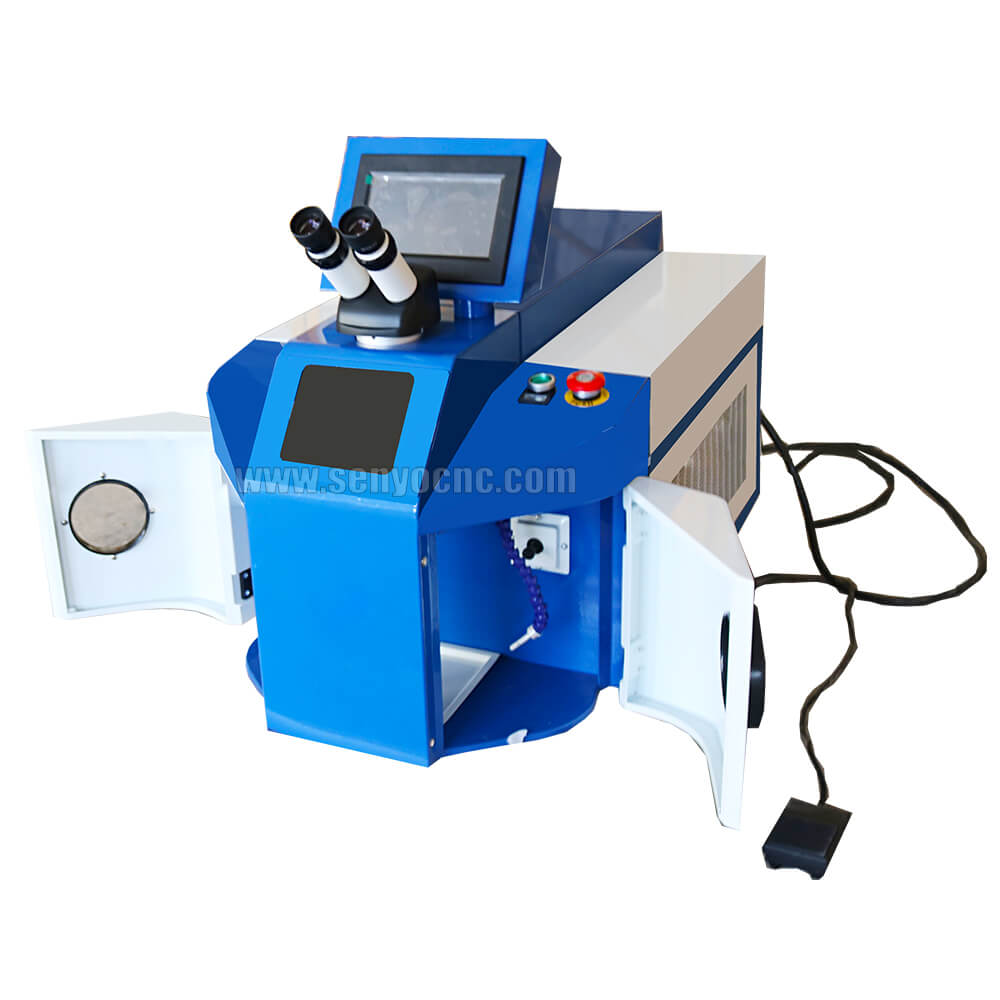

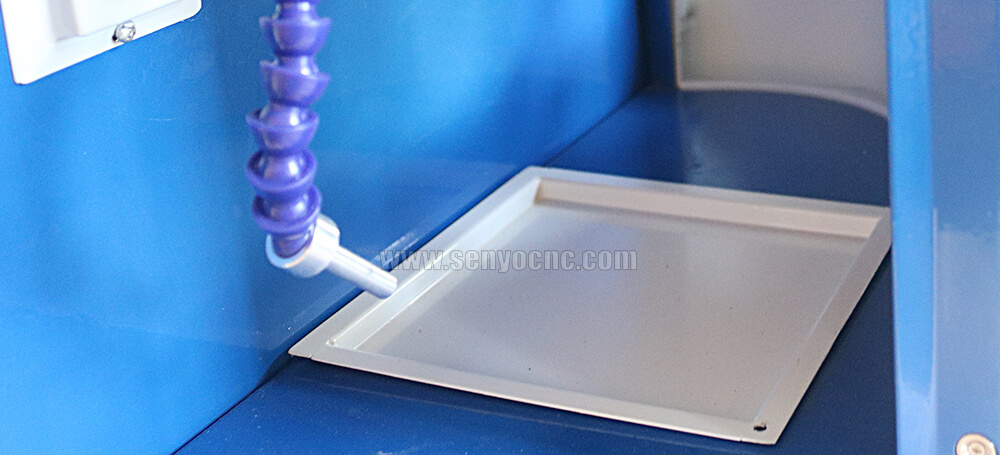

Machine worktable

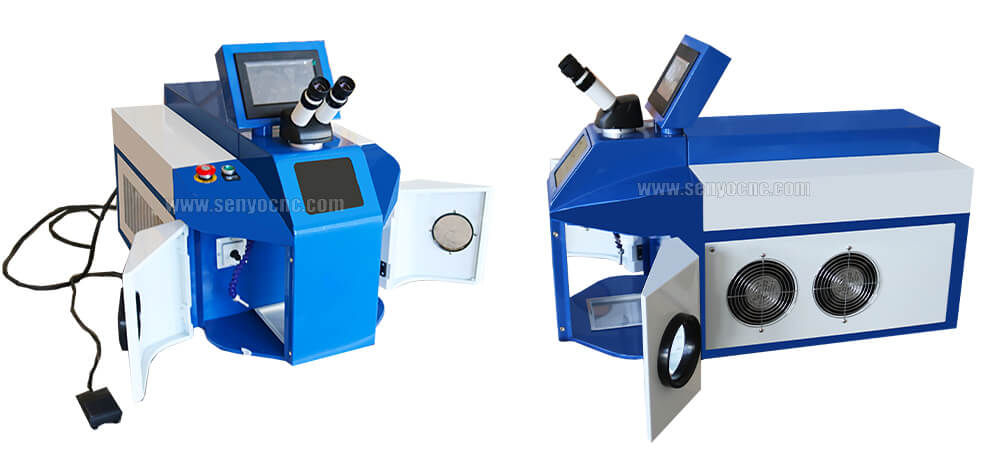

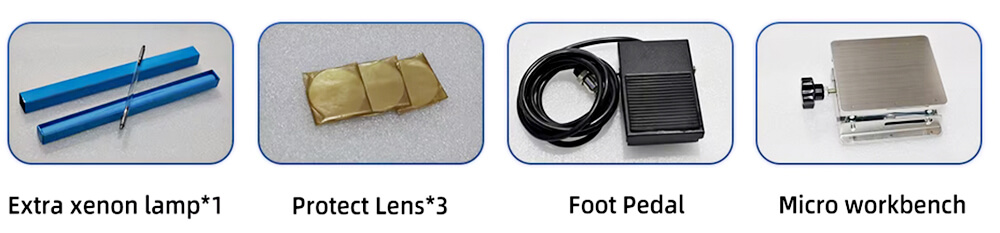

Machine will come with all accessories
Application
Jewelry welding machine is mainly used in gold and silver jewelry industry
bracelets, rings, necklaces, earrings, pendants, stainless steel jewelry
Paramaters
Product | 200W Jewelry Welding Machine |
Input Power | 3KW |
Output Power | 200W |
Max single-pulse energy | 100J |
Laser wave length | 1064nm |
Light class size | 0.3--2.5mm |
Current regulation | 10--150A |
Pulse width regulation | 0.1--15ms |
Work focal length | F=110mm |
Working voltage | AC220V 50/60HZ |
Plug | European, American, and English standards (customizable) |
language | China, Britain, South Korea and Russia (customizable) |
CCD | The 720P is Optional |
Monitor | 8 inches with crosshairs |
Microscope | 10X |
Package size and weight | 940*580*730mm 90KG |
Packing & Shipping
1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For standard machines, 7-15 working days after payment;
For non-standard machines and customized machines according to clients' specific requirements, it will be 15 to 30 working days after payment.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
laser welding machine ,jewelry welder,cnc laser welding machine,metal welding machine, laser welder.
