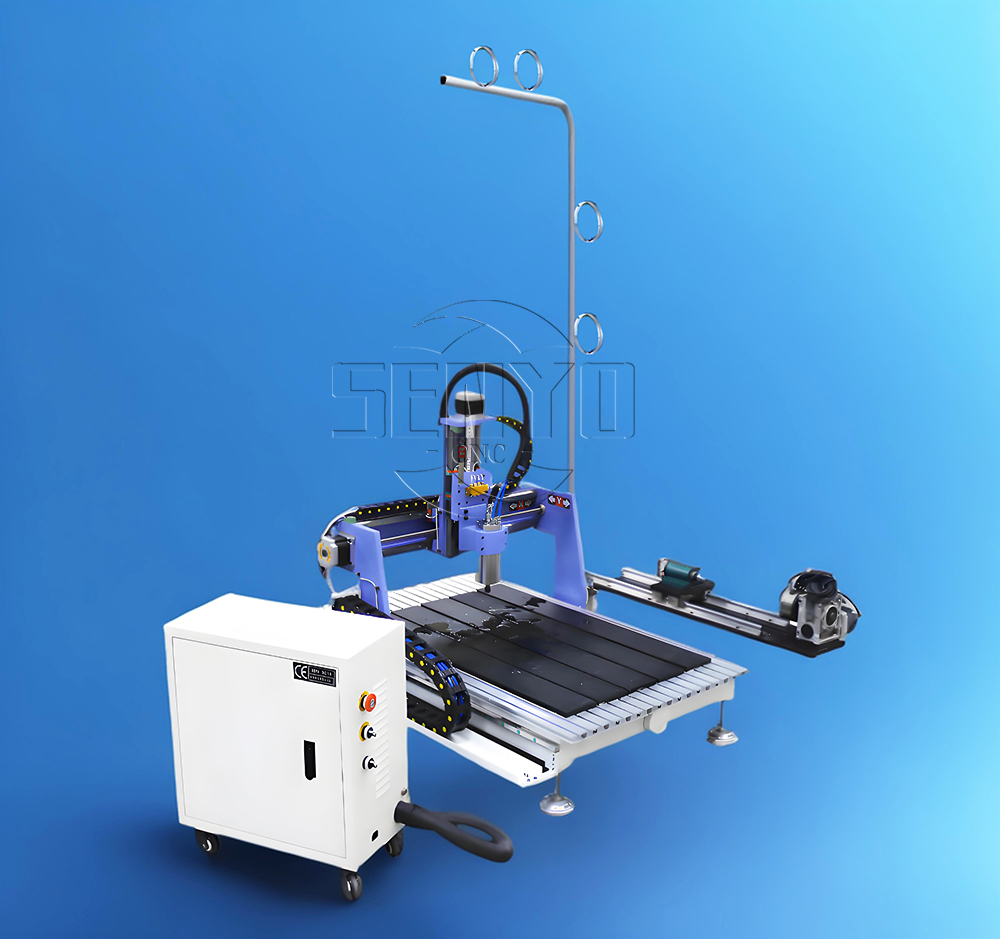

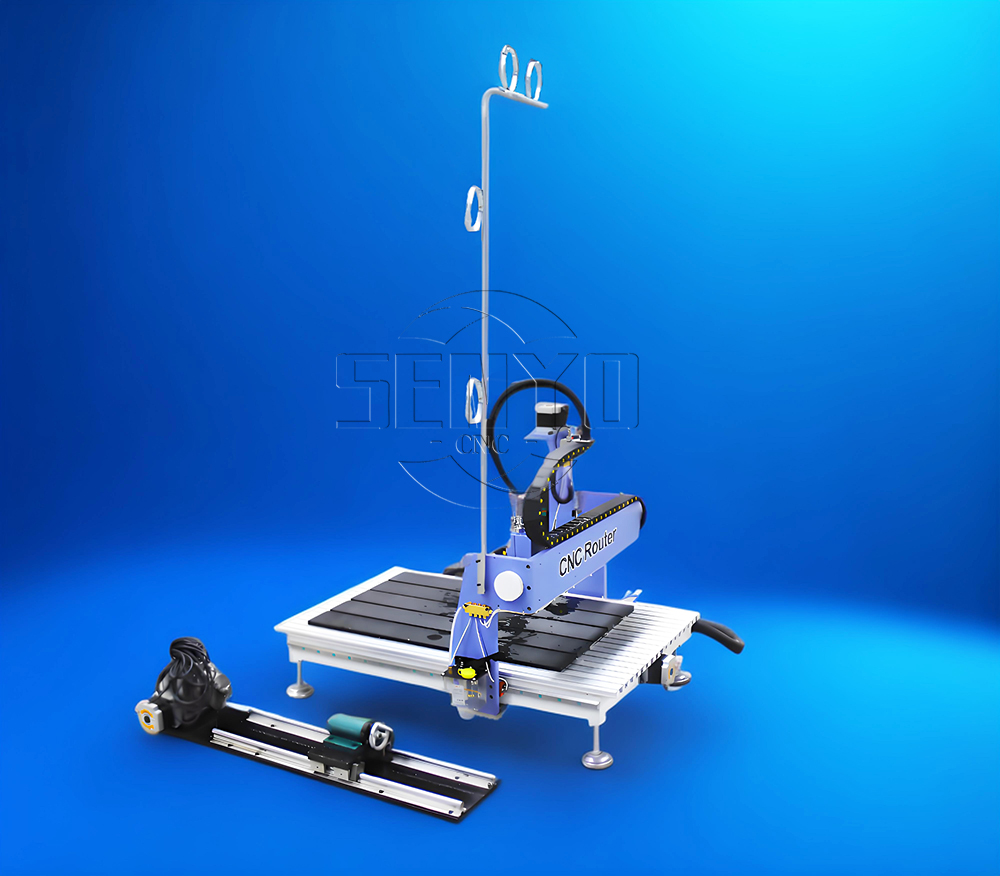

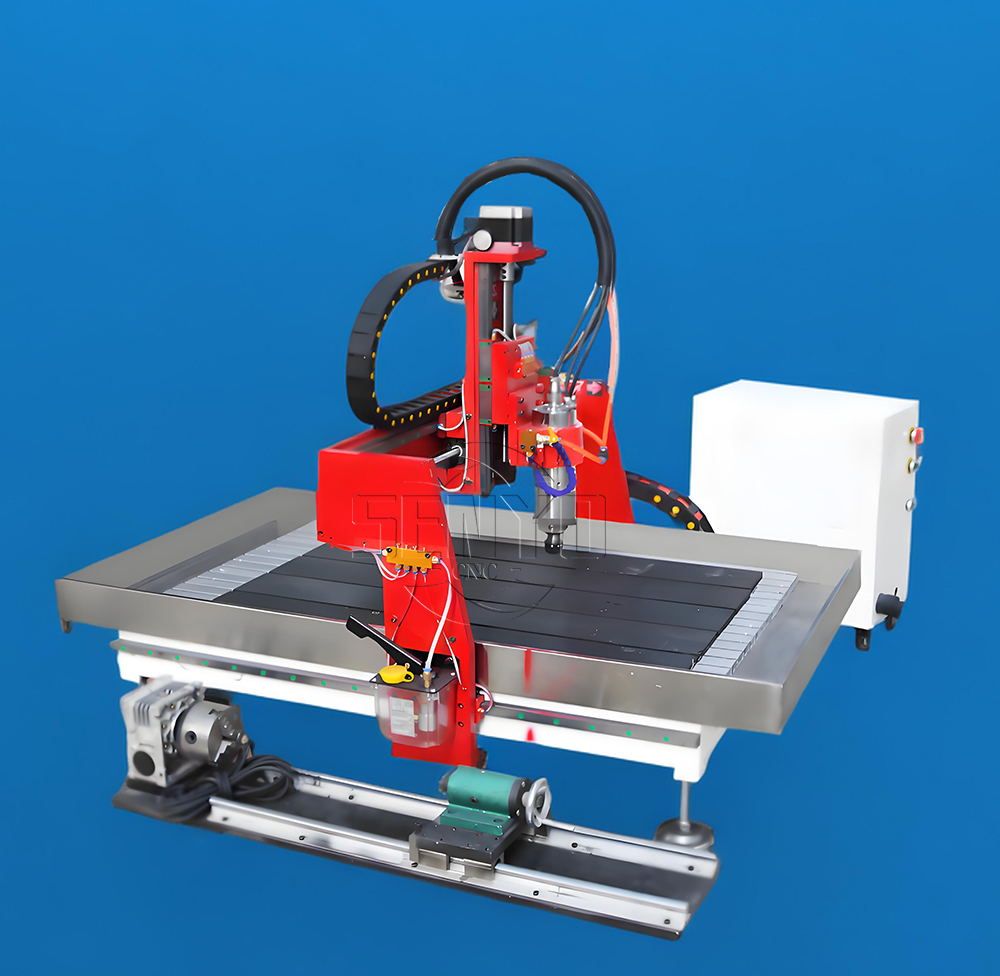

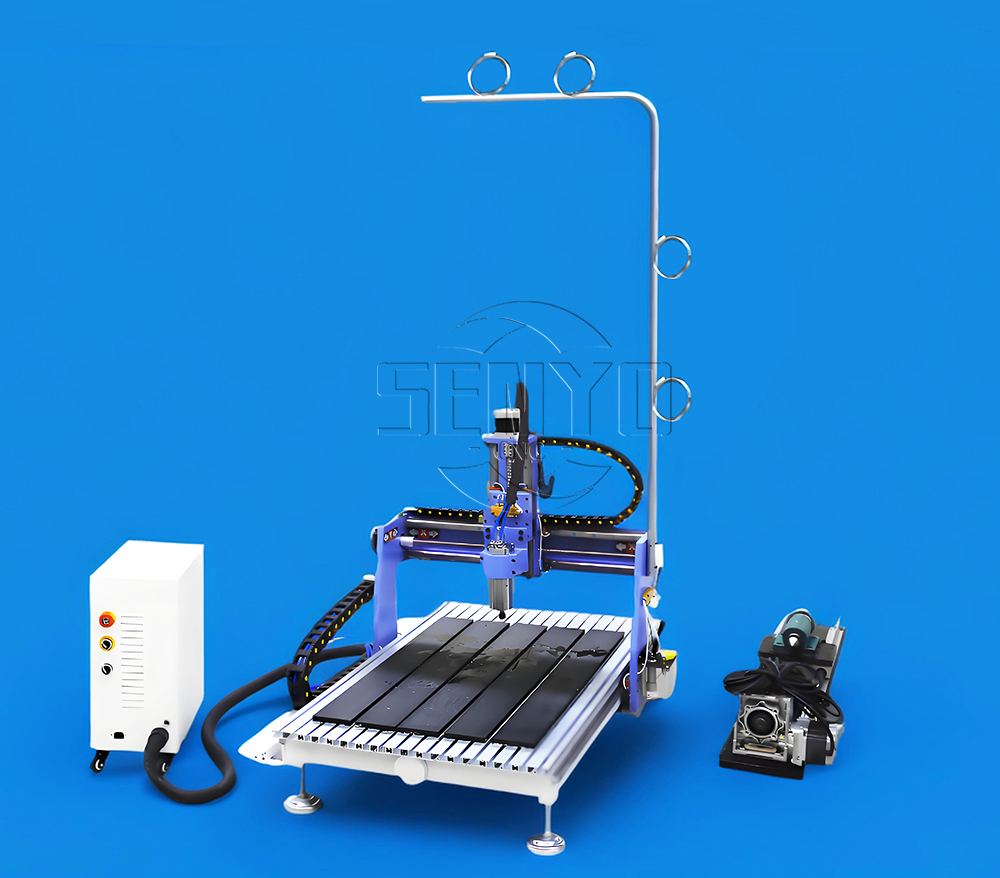

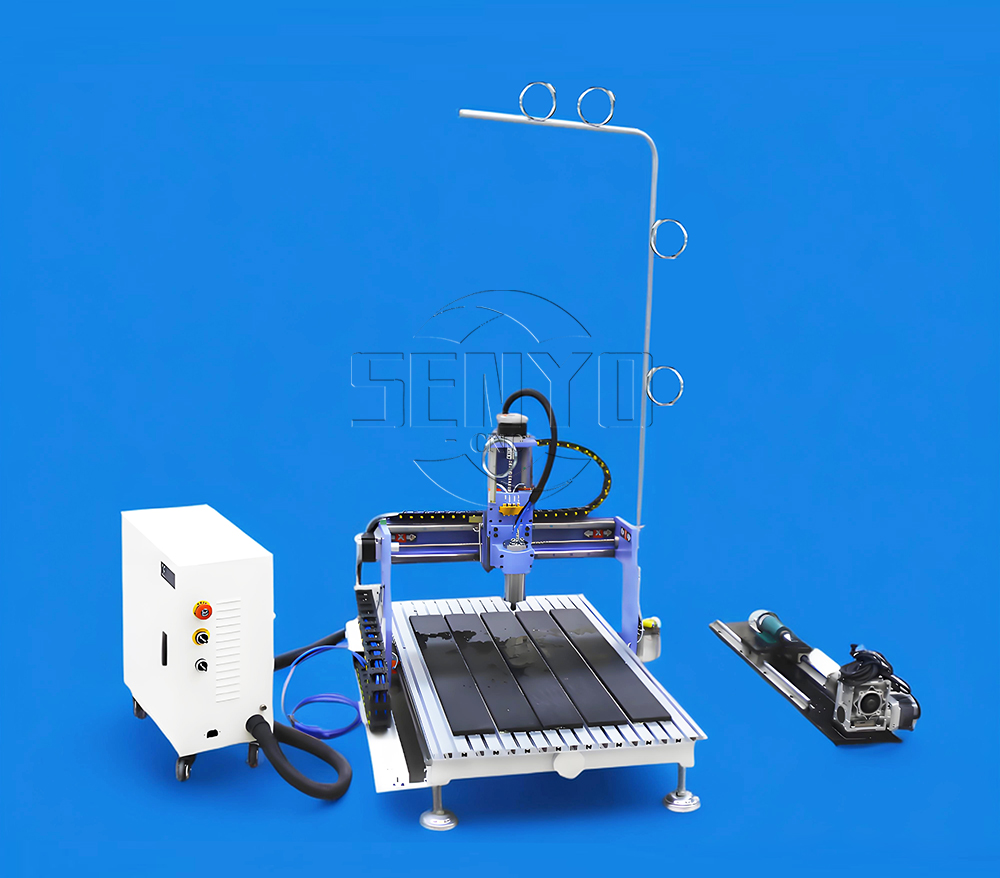

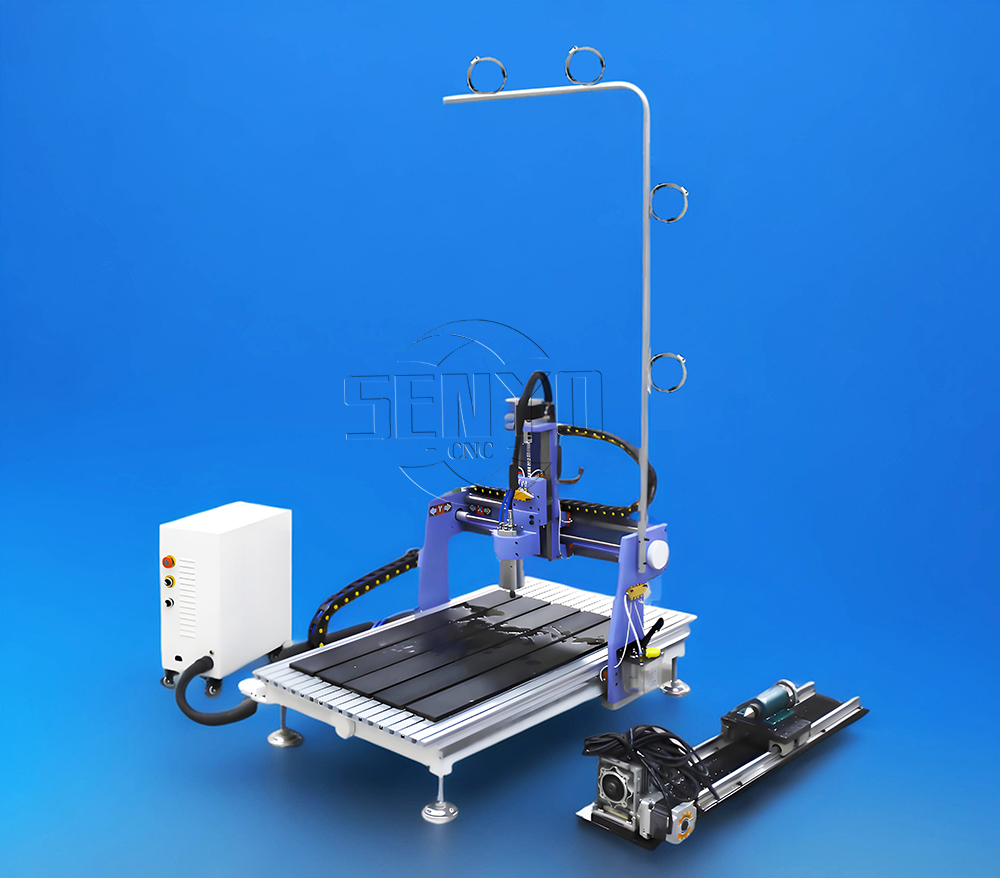

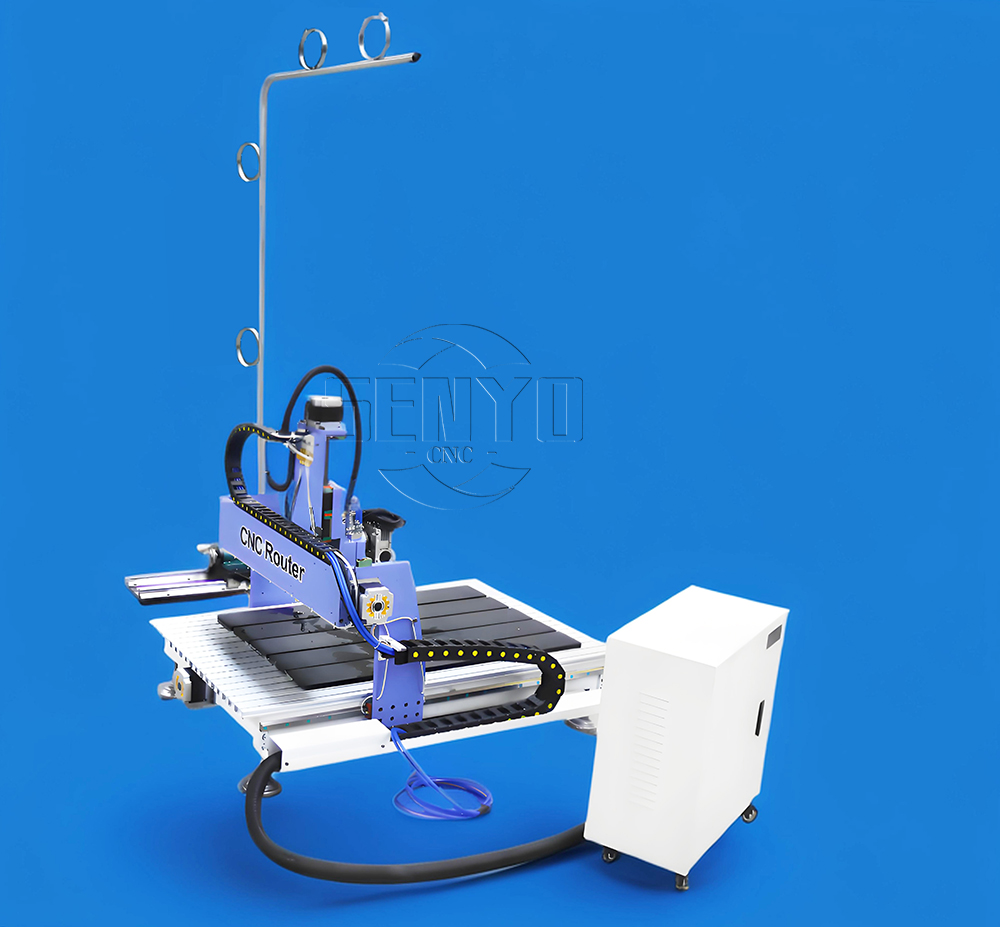

A desktop CNC router is an entry-level tabletop CNC machine kit with a mini table size, which just needs a small space to place.

Although the table top is mini, but it is still a high-quality CNC machine, the whole machine frame adopts an iron cast structure, which has strong rigidity.

The tabletop CNC router machine can do 2D or 3D cutting, carving, milling, and drilling work.

The desktop CNC router table can cut or carve many different materials.

Like wood, stone, acrylic, MDF, plywood, OSB, ABS, foam, aluminum, brass, copper, and other soft metals.

The desktop CNC router kit is widely used in sign making, mold making, arts, and crafts, gifts, decorations, and other mini CNC router projects.

No matter for the serious hobbyists, the home shop, or the small business, SYGS6090 will be your best choice.

Mini Desktop CNC Router Machine Features

• Ruggedly constructed machine structure. Material is stress relieved and annealed for deformation-free.

• The machine base is produced by a CNC milling machine,

and the machine base's five sides are produced at the same procession to make sure the machine frame geometry tolerance is standard.

• The unique reality of the 3-axis screw, the machining accuracy is more accurate.

• The spindle with high precision and water-cooled to keep the spindle at a constant temperature and maintain longevity.

• The machine frame is an integral cast iron frame construction that supports all the other parts of the machine.

• All steel linear guides with high precision to ensure the machine bed has more stability and durability.

• High-accuracy rolling ball screws from Taiwan to ensure the machine frame with higher precision.

• Advanced DSP digital control system, offline DSP controller with USB interface, continuation at stop point.

• Be compatible with various CAD/CAM software such as TYPE3, Artcam, Casmate, Artcut, and more.

Main Parts of Mini Desktop CNC Router Machine for Small Business

Machining parts are produced by high-precision CNC machines and inspected by specific measure tools in an extremely restricted standard.

The panting warehouse will do coated spray work on all our metal parts under government environment policy.

Electricity parts will be assembled together by our work in quite an amazing layout.

We will do calibration during all machining parts assembling work to ensure the machine is in the best precision and more durable.

After all producing work, our engineer will do a quality inspection of all of our machines.

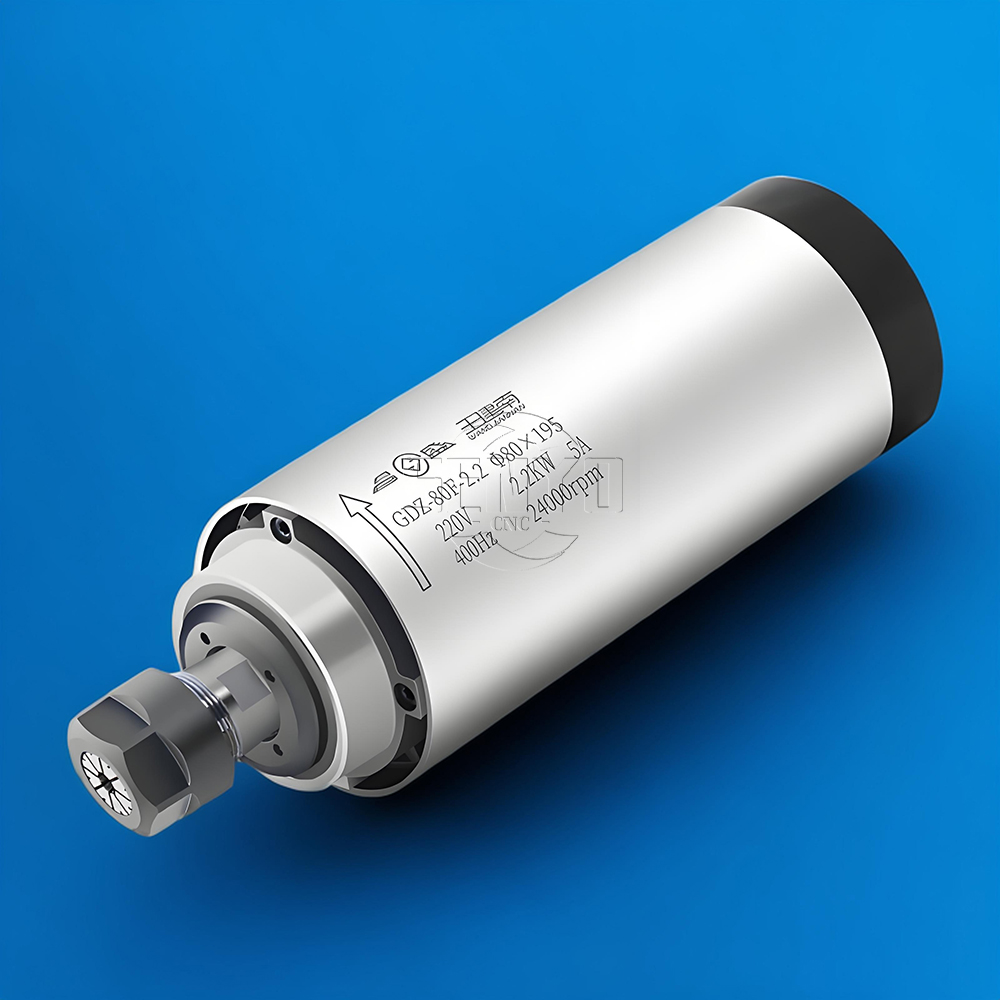

High-Frequency Spindle

The desktop CNC machine kit comes standard with a 2.2kw high precision spindle.

This high-frequency spindle does not need maintenance, which uses standard industry ER collets, and the routing speed is from 6000 to 24000 RPM.

Base Frame

The base frame of the desktop CNC machine is heavy iron cast, with strong rigidity, so the machine will not get deformed after a long time of use.

It can process hard materials such as metals and stones.

Drive Motors

The tabletop CNC machine kit utilizes maintenance-free stepper motors.

Automatic Tool Calibration

Automatic tool calibration pad allows for easy and accurate "Z" zero position for single and multiple tool changes through the program.

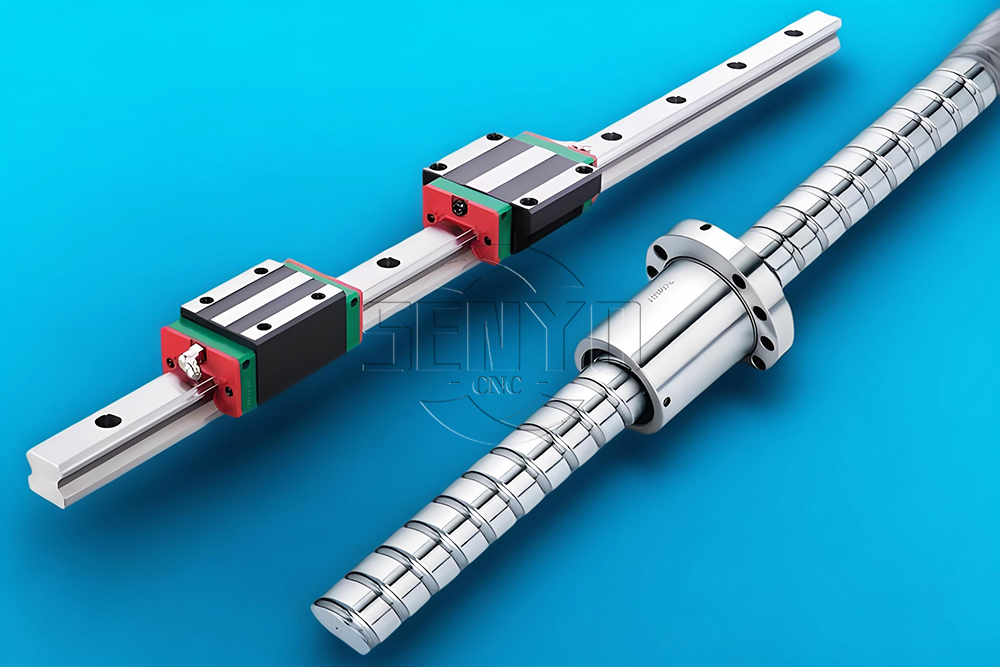

X, Y, Z Axis TBI Ballscrew Transmission

The mini CNC machine adopts Taiwan Hiwin square rail, which is more than twice as durable.

And the use of a high-quality ball screw makes it highly precise.

X, Y, Z Axis Hiwin Square Rail

The benchtop CNC machine adopts Taiwan Hiwin square rail, which is more than twice as durable.

And the use of a high-quality ball screw will make the machine with high precision.

Japan Omron Limited Sensor

There is a Japan Omron limited sensor on the X, Y, and Z axis.

The sensor will prevent the machine overtravel working.

OMRON is the best quality and with longer service life.

Dustproof On X, Z Axis

The machine has dustproof on the X, and Z axis, which will protect the dust do into the ball screw and the guide rail, to make sure the machine with long service life.

Cast iron frame and moving table

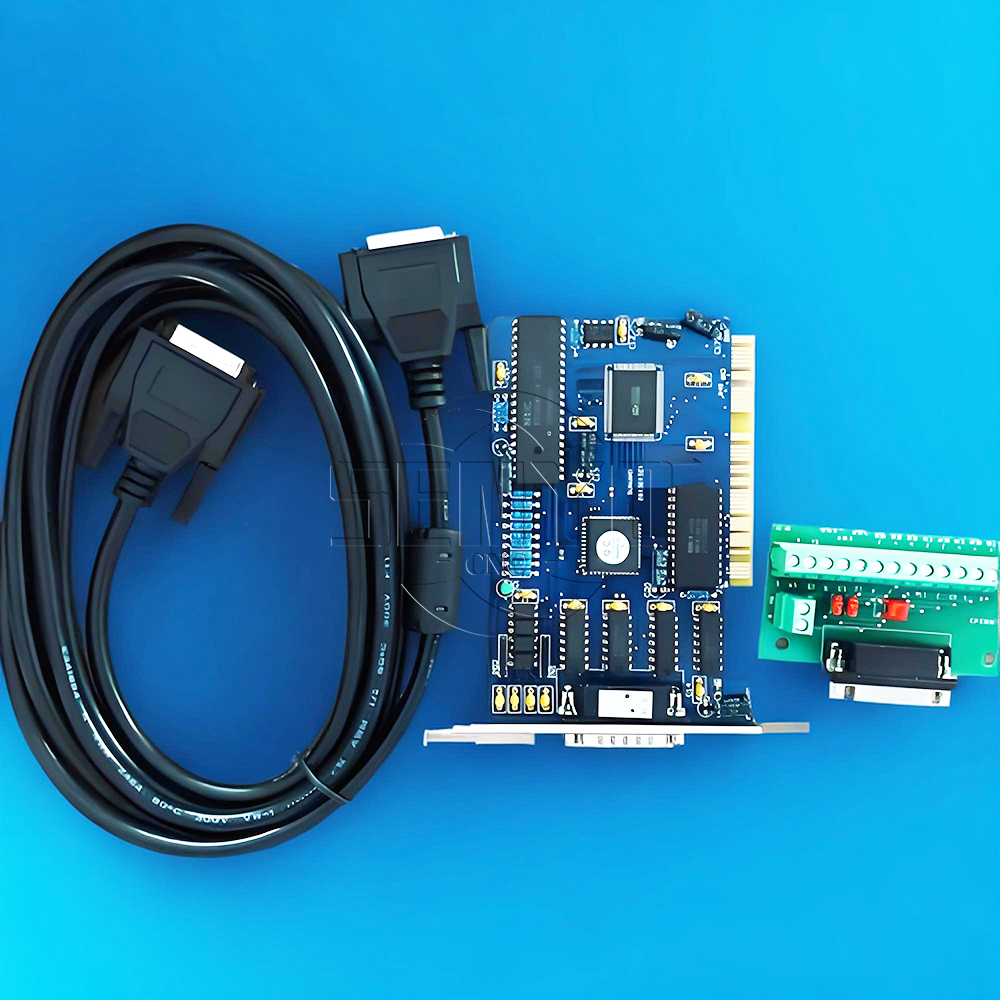

NC-studio Controller

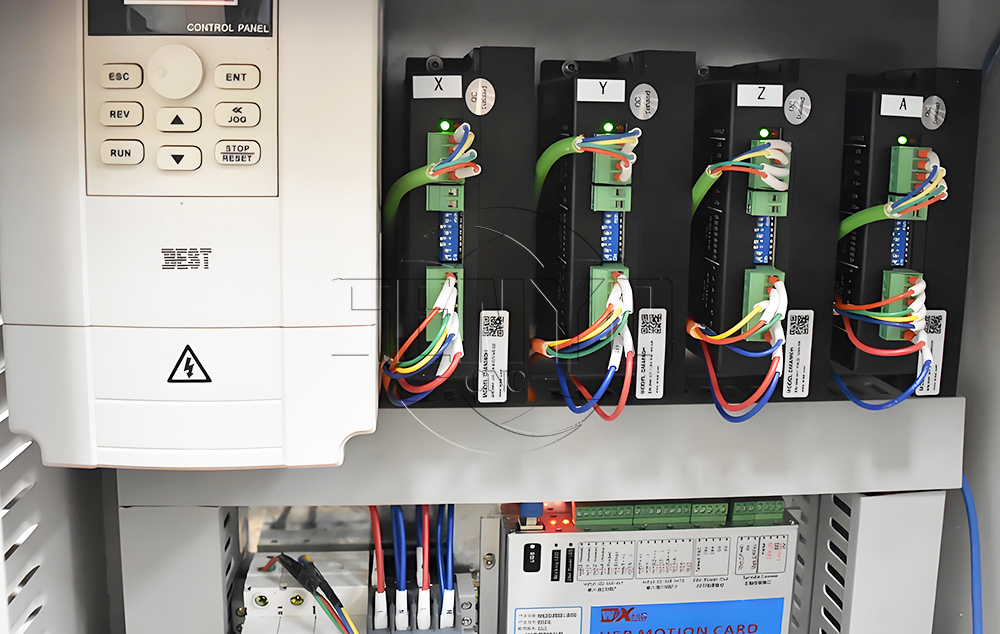

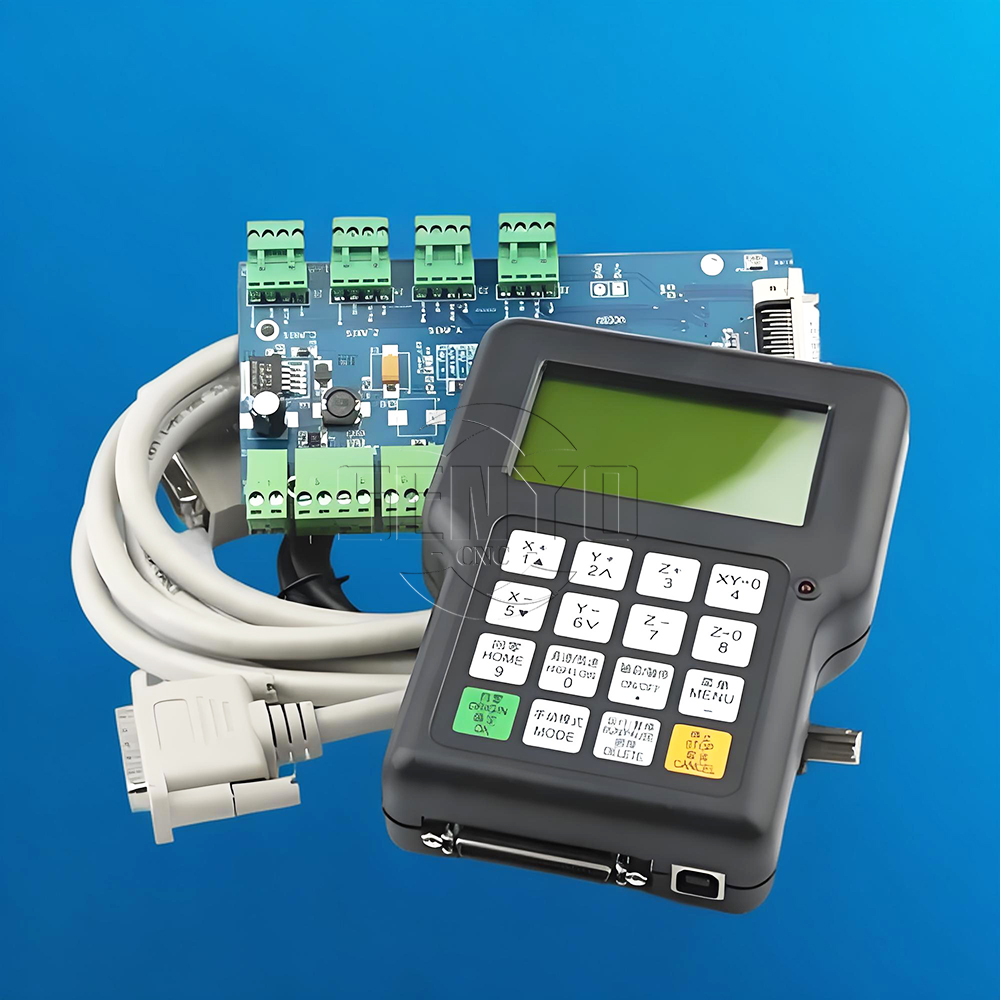

DSP Control System

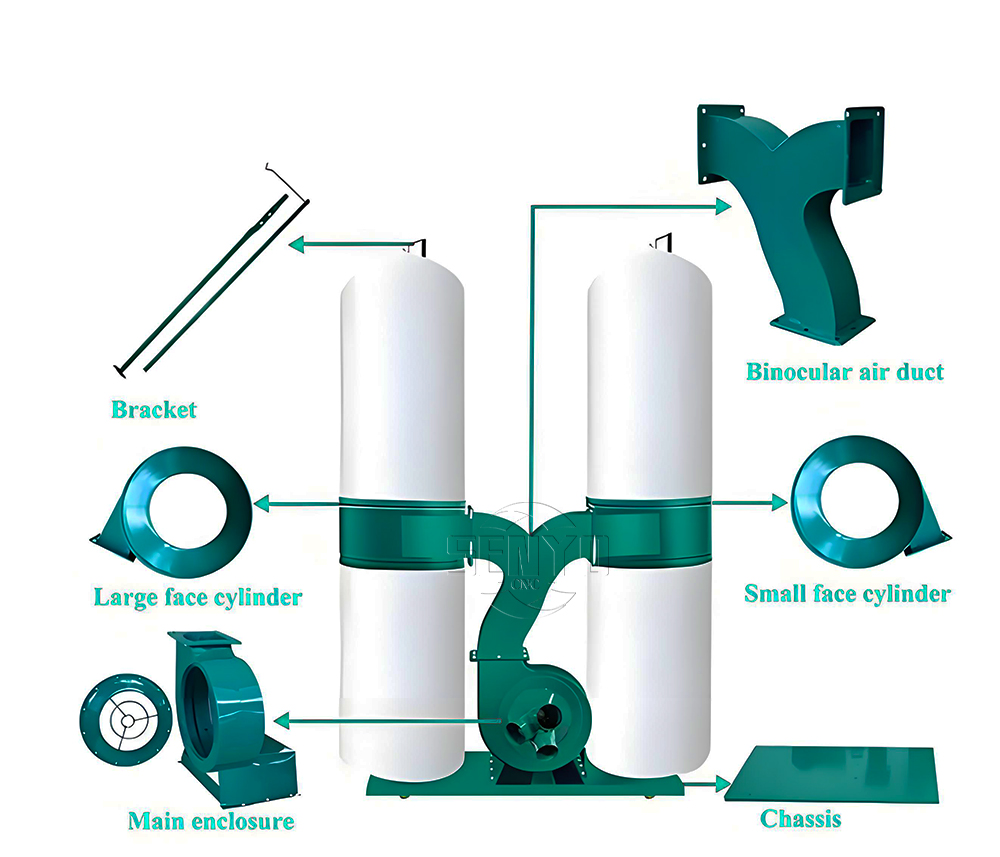

Dust Collector

We offer a powerful vacuum cleaner, to ensure a clean and tidy workshop.

Mini Desktop CNC Router Kit Technical Parameters

Mini Desktop CNC Router Applications

Using our machine to carve any projects you want to make, it will bring you a new processing experience.

After using this machine, you will find that the original carving technique can be so exquisite, and the material will become a beautiful project.

• Woodworking: Wood arts and crafts, redwood classical and antique furniture, relief carving, hollow carving,

wood carving, gifts wooden boxes, redwood jewelry boxes,

Ink-stone cutting, decorative products sculpture.

• Advertising: Sign making, logo making, custom signage, DIY signs, company plates, signs,

building models, emblems, badges, display panels, building numbers, furniture, and other decorations.plastic acrylic pcb PP sheet .

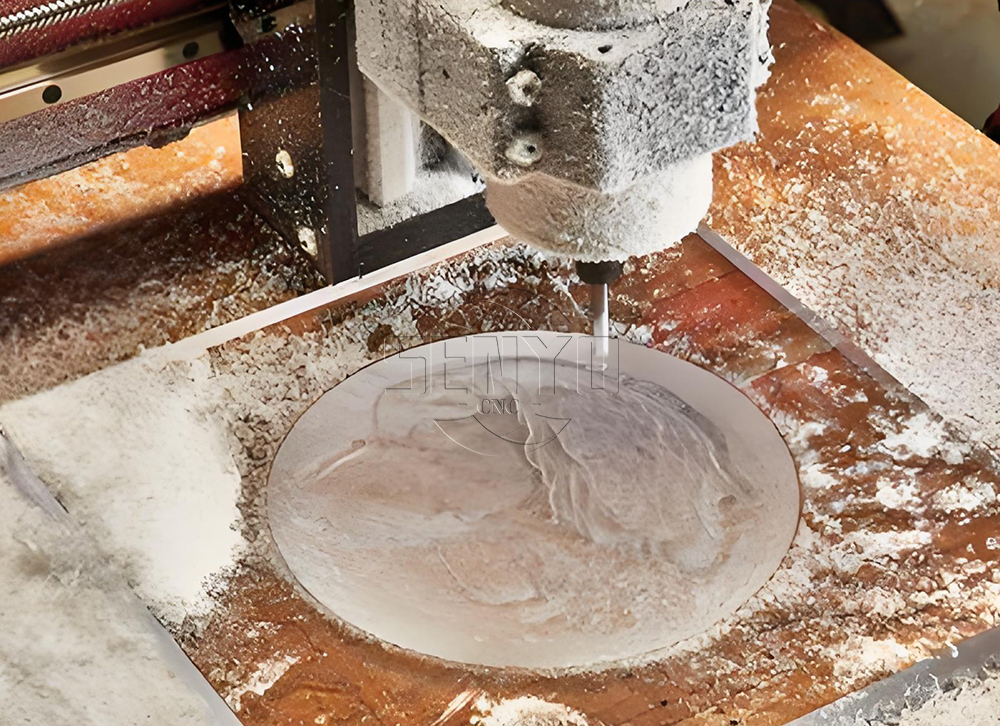

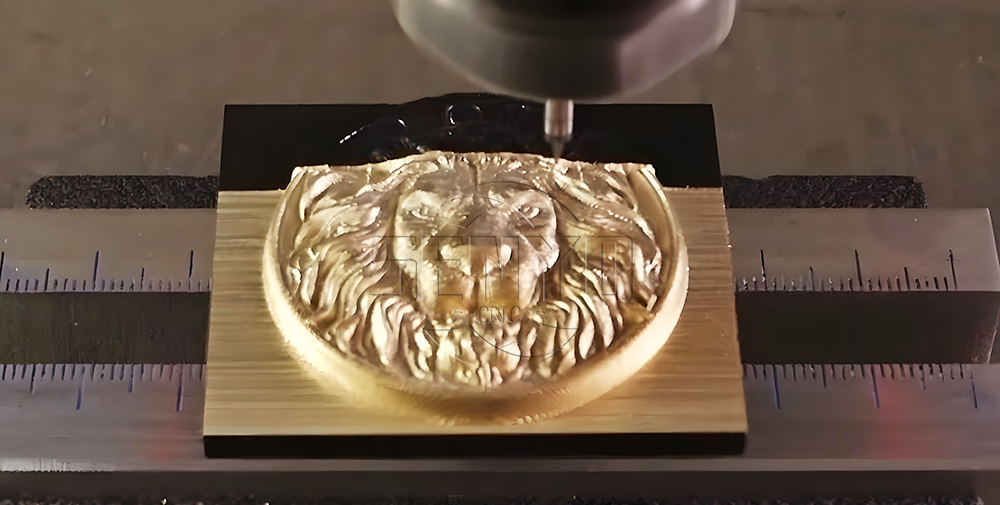

• 3D Relief Carving: It can carve the 3D relief on wood, stone, foam, and soft metals.

• Mold Making: A sculpture of aluminum, copper, brass, and other soft metal molds, sand, artificial marble,

sheeting, plastic, wooden planks, PVC pipe, and other non-metallic molds.

• Other Plans & Ideas: Portraits, calligraphy lettering, fine jewelry carving, seal carving, landscapes, basso-relieve, and other surface machining.

It is suitable for engraving, milling, and drilling compactly all sorts of materials such as steel, copper, aluminum, and plastics.
Our wood CNC milling machine can be widely applied to automotive, injection mold, ironware mold, and engrave mold industries.
Especially designed for engraving and milling molds, eyeglasses, watch, panel, badge, brand, graphics,

and words of the three-dimensional and outside surfaces sleeking of large size.

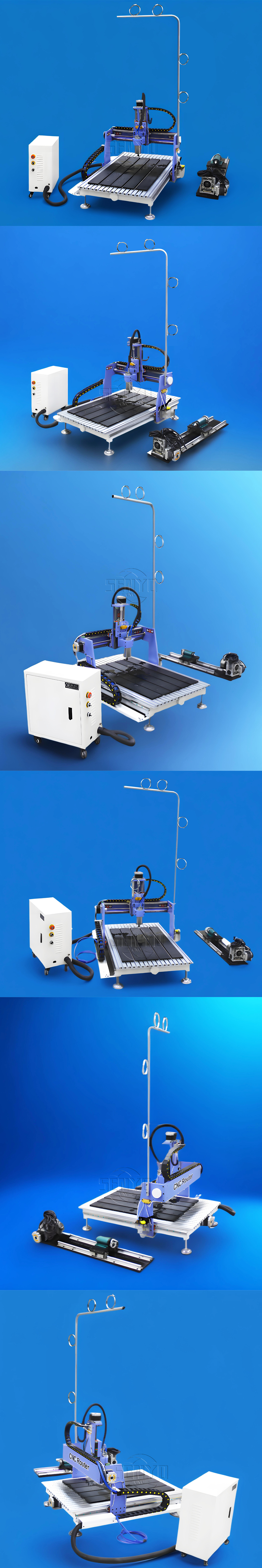

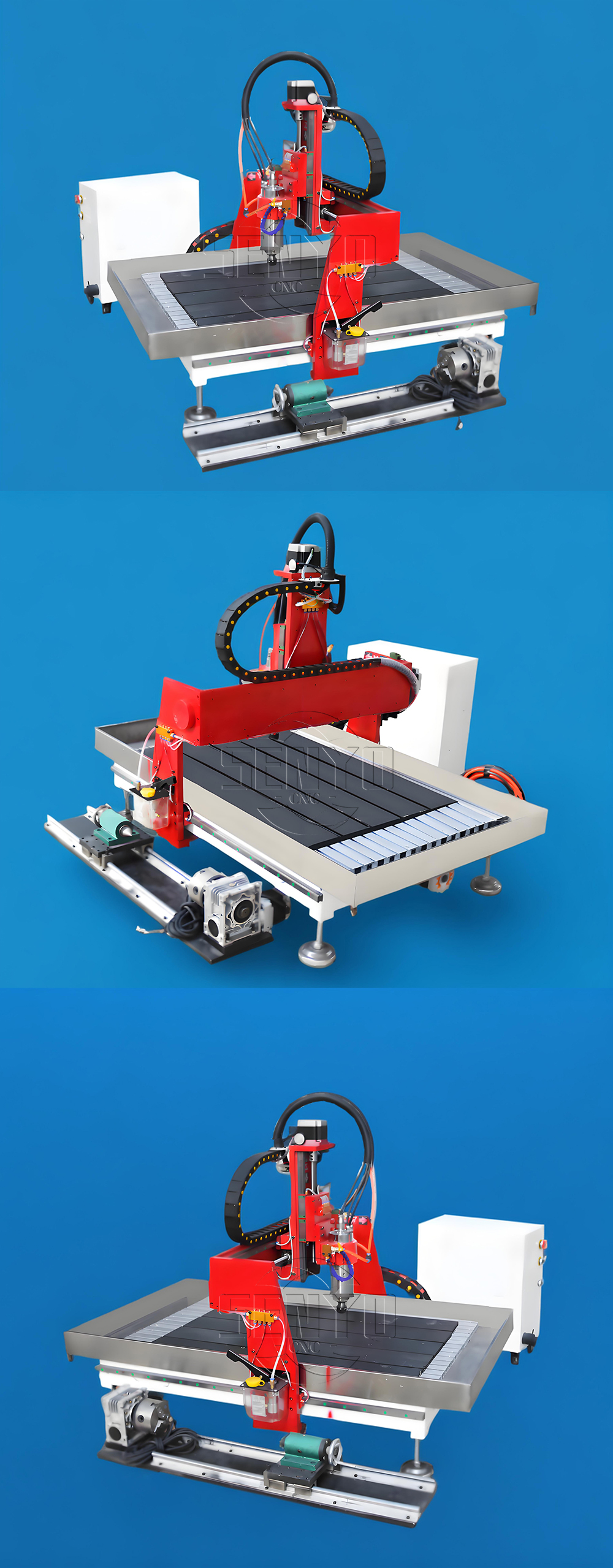

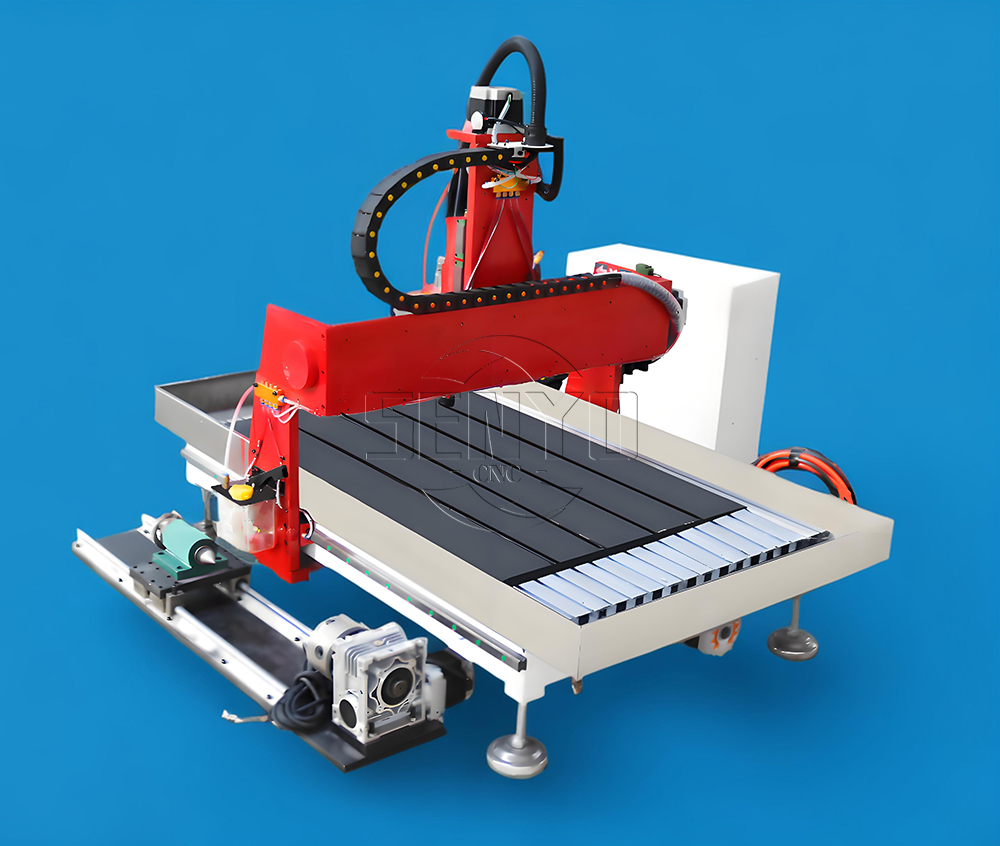

Machine Hot Sale Color design for Optional

Troubleshooting

Error 1: After opening the software, the computer prompts "Cannot open the card, query card prompt".

1. Check whether the driver of the board is installed properly, or change the board to a PCI slot.

2. Reinstall the two data cables and check if there is any broken needle.

3. Replace the board.

Error 2: Open the software prompt: Three-axis alarm, initialization error signal.

1. Check whether the two data cables of the computer and the machine are connected properly.

2. Check whether the fuse of the adapter board in the control box is burned out, and replace the fuse.

3. Check whether the power supply is normal.

Mistake 3: The routing is misplaced or the size is wrong.

1. Check whether the path of the routing software is correct or not.

2. Check the gap size of the screw rod and whether the fastening screw of the polished rod is loose.

3. Check whether the software parameters are set correctly.

Error 4: The spindle motor does not rotate or reverse.

1. Check the inverter parameter settings.

2. Check whether the signal wire of the inverter is connected reversely.

Error 5: The phenomenon of smashing the bit occurred.

1. The power of the Z-axis motor is not enough, and the coupling is loose.

2. The current of the Z-axis driver is too small, or the signal wire is connected incorrectly.

Future Trends In CNC Router Technology

Marching with the advancement of technology machine industry is evolving the most.

Integrating new features and resources makes them smart and more efficient now. CNC routers are going to lead the production of every industry.

CNC machines have improved over time. There have been several innovations in CNC router technology.

The addition of new and advanced sensor technology and improved stepper motors has enhanced the precision and accuracy of CNC routers.

Predictive maintenance through AI integration and automated tool-changing algorithms and the addition of robotic parts enriched and enhanced the efficiency of the machines.

This is highly predictable that CNC routers will achieve more advancement in the future. Let’s take a look at the possible improvement.

• IoT Integration (Internet of Things)

• Cloud Based Operation

• Regenerative System

• Eco-friendly Design

• Wearable Tech for Safety

CNC routers are about to be one of the most useful machines in the upcoming days for offering multiple benefits in the production line.

The growth of small businesses and the marketplace and the demand for custom products will increase the demand for CNC routers in the future for sure.

For Our Work Steps:

1.Before-sale,we will try to know your requirement about our cnc finer laser specification and what kind of work

you will do .then we will offer our best solution for your requirement.

2.During production: we will send photos of machines during making. so you can know more details about

the procession of making your machines.

3.Before shipping,we will take delivery photo and confirm  the specification of order to avoid the mistake.

Machine will be adjusted before it is delivered.

4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the

approximate date of arrival.

5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .

6.About teaching:  there are some manual and video about how to use machine , if you have question

about it. we will have professional technicist to help you install and teach how to use through skype ,

calling, video or mail.

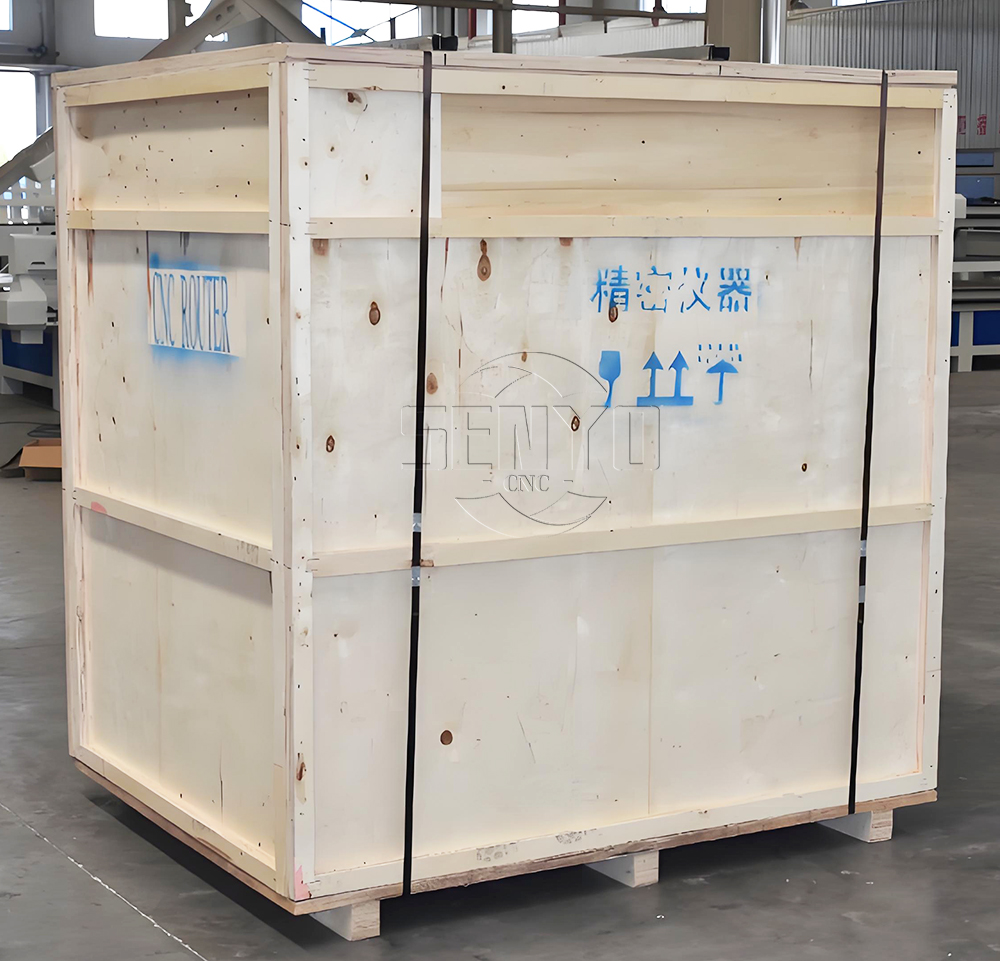

Packing & Shipping

1. Outside package: Standard plywood package.

2. Inner package:Stretchy film and plastic protective film for humidity.

3. We can package according to your requirements.

For standard machines, 7-15 working days after payment.

Service & Support

1. Our engineers available to service machinery overseas.

2. 2 years guarantee for the whole machine.

3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.

4. You will be get free training advice towards our machine in our factory.

5. If you need any component of the machine, we will provide most affordable price for you.

6. Friendly English version manual and operation video CD disk.
