Overview
Looking for a CNC machine to make custom wood signs with raised letters or graphics?
Have an idea to cut personalized metal signs with aluminum composite panel?
Need a sign making CNC machine for custom outdoor signage & exterior signs with MDF blanks?
The rotary CNC router will meet your requirements for both 2D and 3D sign making plans & projects.

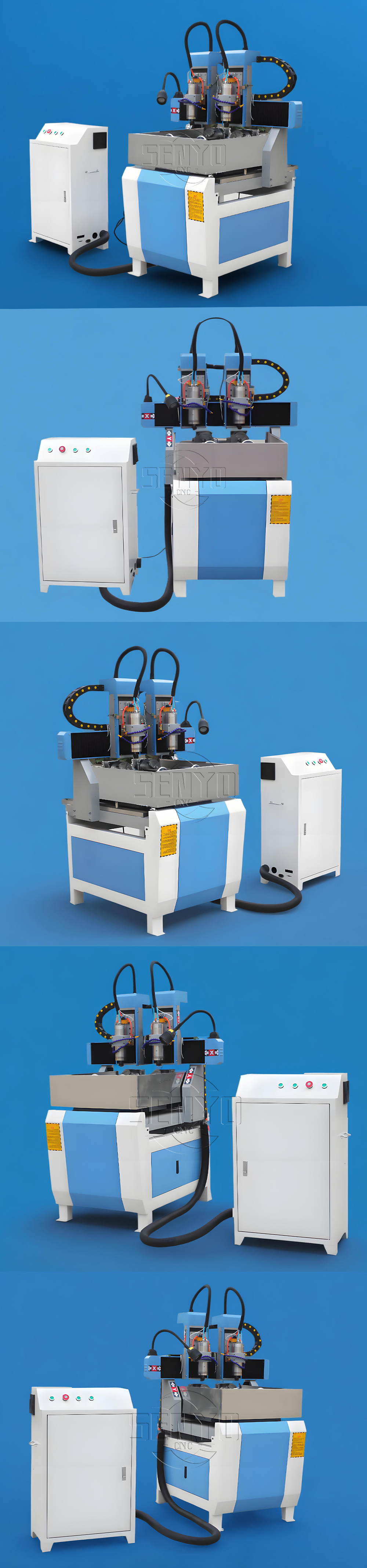

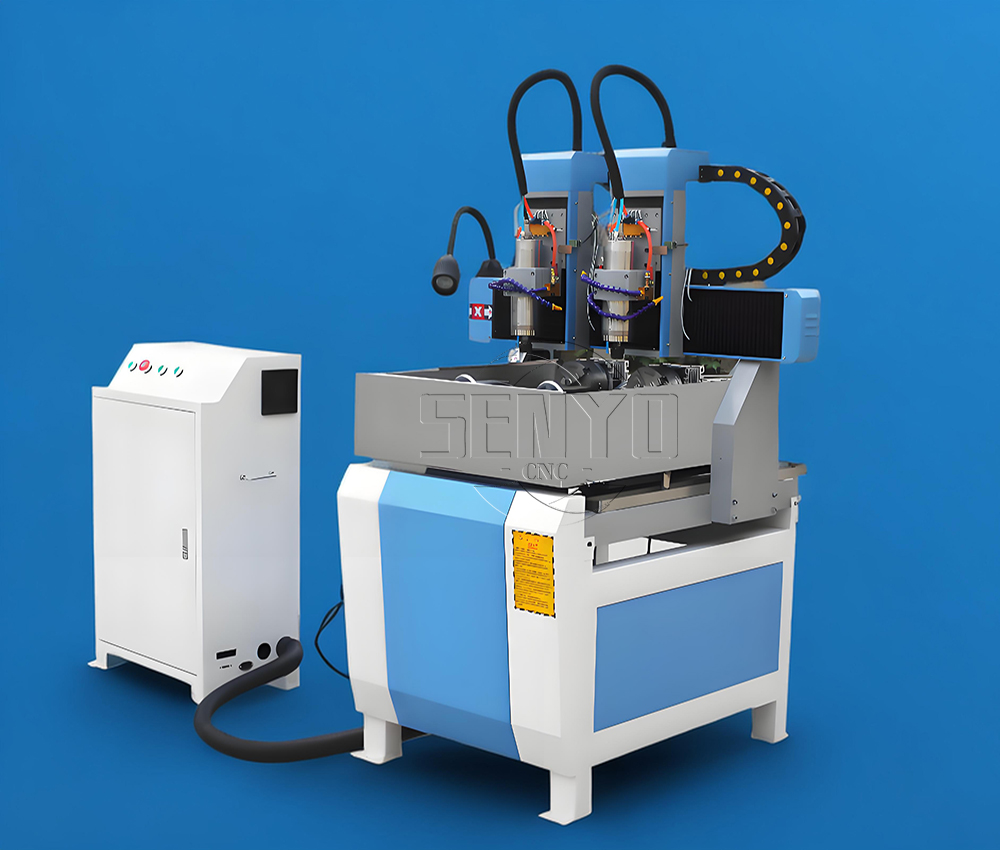

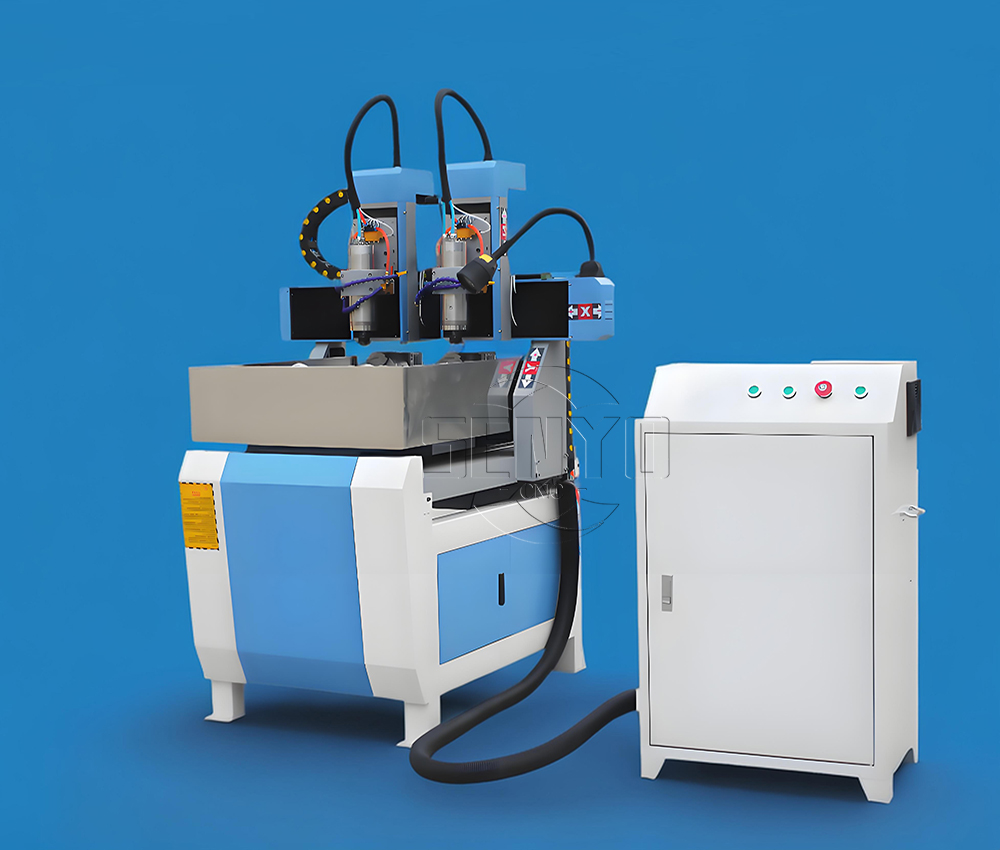

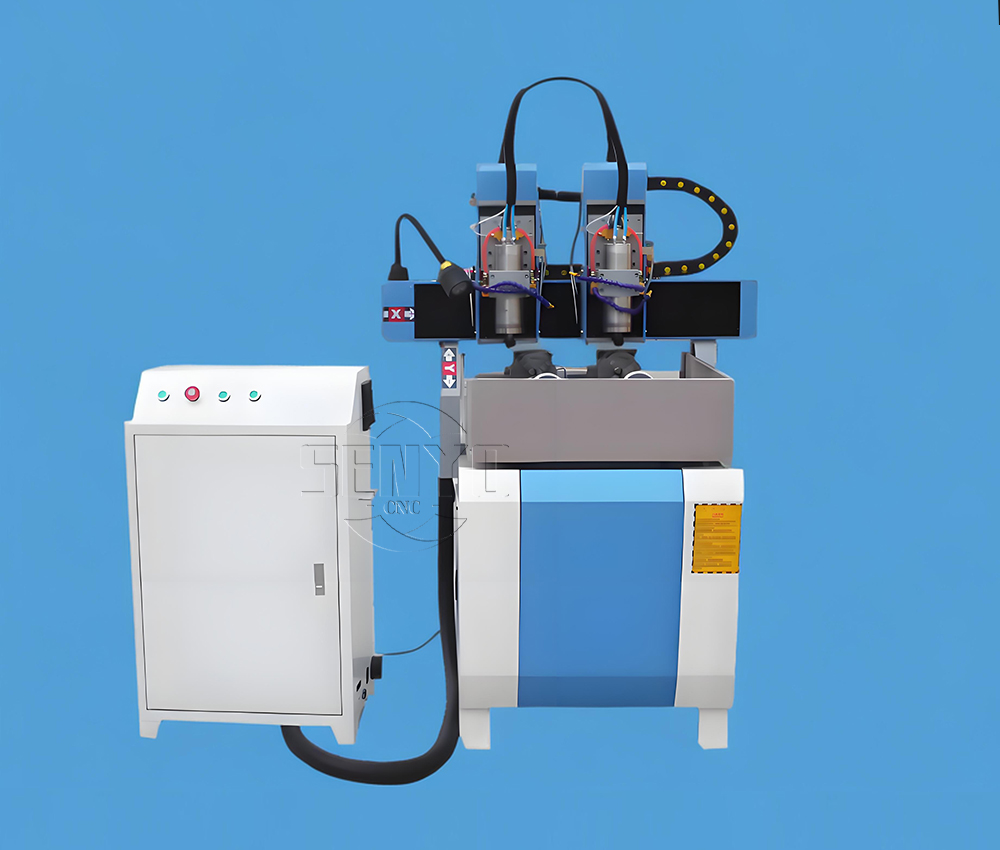

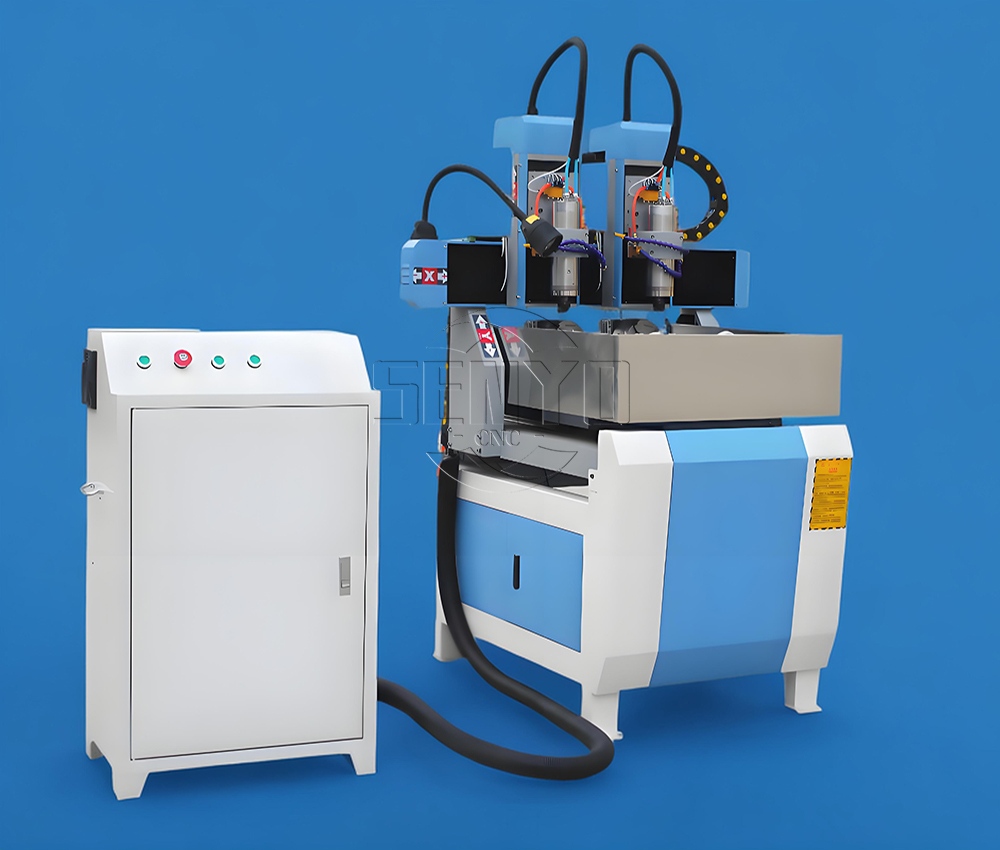

SYM6090 rotary axis CNC machine is compact in structure and small in volume.
It uses the improved CNC control system and CAM/CAM software. It is stable and reliable, and the operation becomes extremely simple.
The beginners can also learn to use it quickly. It can automatically complete fine, exquisite and accurate signage at one time.
The 4th axis CNC kit is a kind of small CNC machine which is used for small business, home business, small shop, home shop and craftsman.
DSP control system for the 4th rotary axis CNC table.
Features of 4th Rotary Axis Hobby CNC Router Kit for Sign Making with Aluminum, Wood, MDF
1. The CNC sign making machine adopts 2.2KW water cooling spindle with 24000rpm.
2. The rotary sign making CNC machine adopts PVC&T-slot working table,
holding the materials with clamps to keep stable working in high speed.
3. The 4th axis sign making CNC machine is equipped with DSP control system,
which can memorize the breakpoint. It can continue working after break-off suddenly, such as outage.
4. The rotary axis sign making CNC machine can also be equipped with 2 rotary 2 spindle.
4. The whole CNC sign making machine is welded with seamless steel, the stability is excellent, not easy to be deformed.
5. Three axis are equipped with ball screw and square linear guide way, stable working, high precision and long service life.
6. Good compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Castmate/Wentai, etc.
7. X/Y axis adopt dust proof, which will make the steady working performance of the machine for long service life.
What is the Specification of cnc router SYM60902H2R?
♦ 600x900x200mm working size
♦ 2.2kw water cooling spindleX2PCS
♦ T-slot aluminum working table
♦ HIWIN Linear guide
♦ NC studio control system
♦ Stepper motor and driver
♦ Best interver
♦ Drive System Ball screw
♦ Automatic Tool Calibration
♦ ArtCam software
♦Rotary Axis
Option:
♥ Vacuum System
♥ Dust Collector system
♥ Servo motors
♥ HSD Spindle
♥ DSP/Mach3 Controller
Details of Rotary 4th Axis CNC Router Kit for Sign Making with MDF, Wood, Aluminum
Cast iron bed
Tempering treatment is performed to effectively ensure the machine's operating accuracy.
The upper part of the bed adopts cast iron technology, and the lower part adopts full welding technology and stability

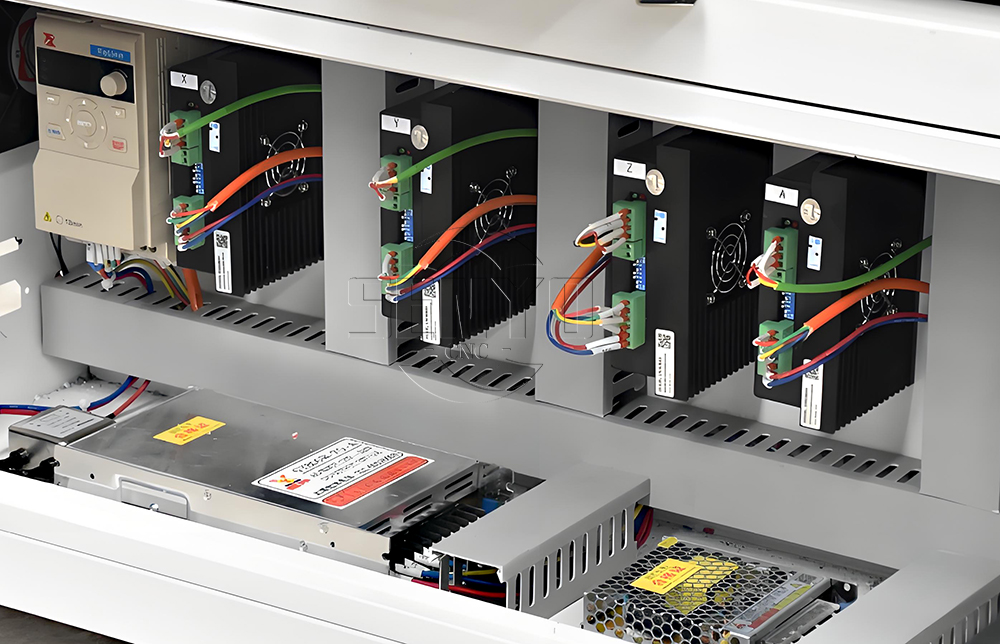

Machine use professional and Beautiful inside control box for wire connections.

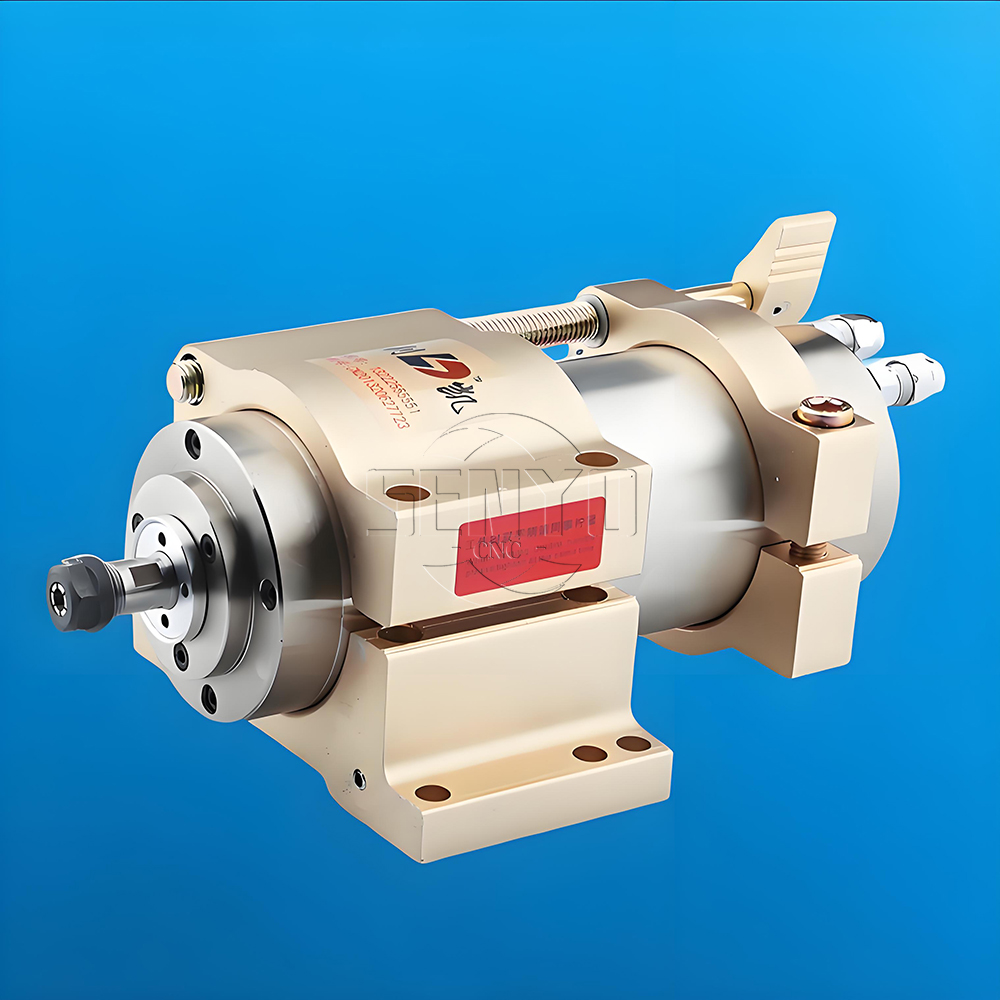

Water-cooled spindle
Water
cooling can reach 24000R/MIN, sufficient power, strong support
rigidity, good grinding accuracy. High concentricity, smooth operation .

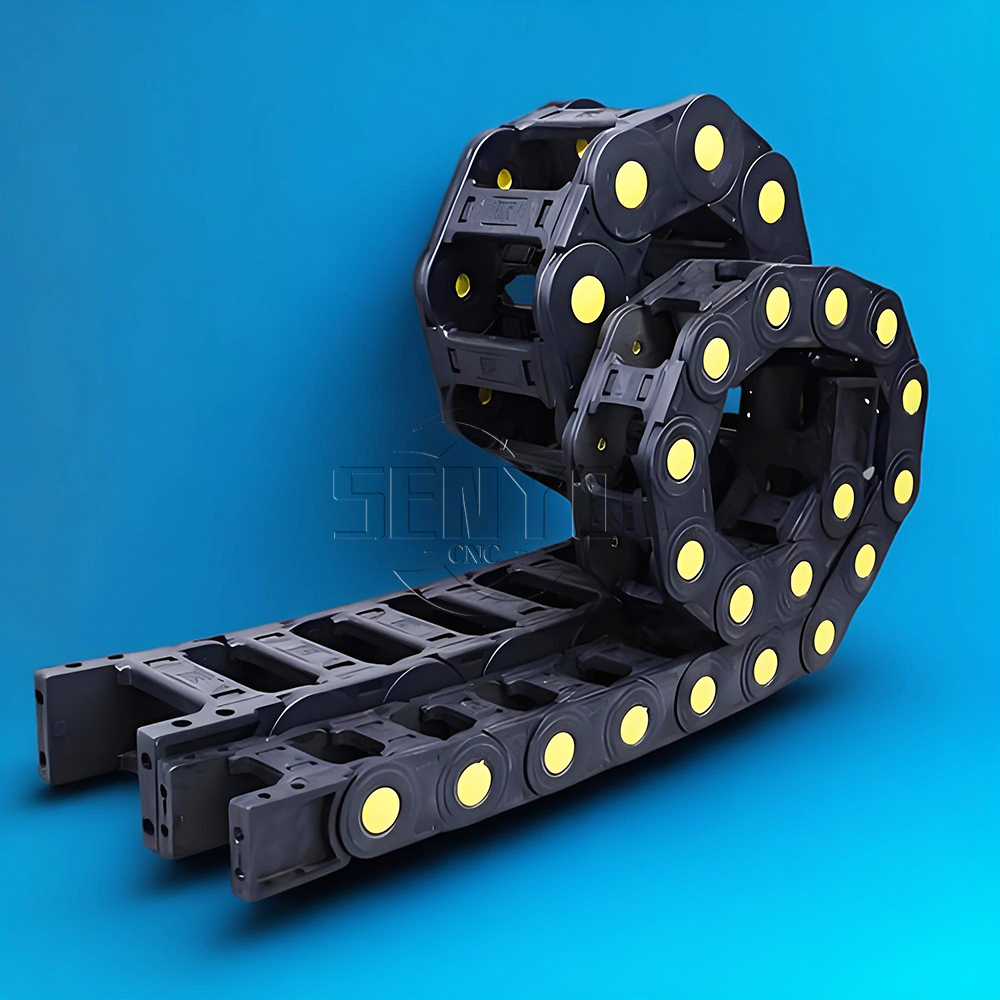

Closed dustproof drag chain
Using nylon material, it has stable structure, strong load-bearing capacity, high and low temperature resistance, and long service life.
The machine has dustproof on X Z axis, which will protect the dust do into the ball screw and the guide rail, to make sure the machine with long service life.

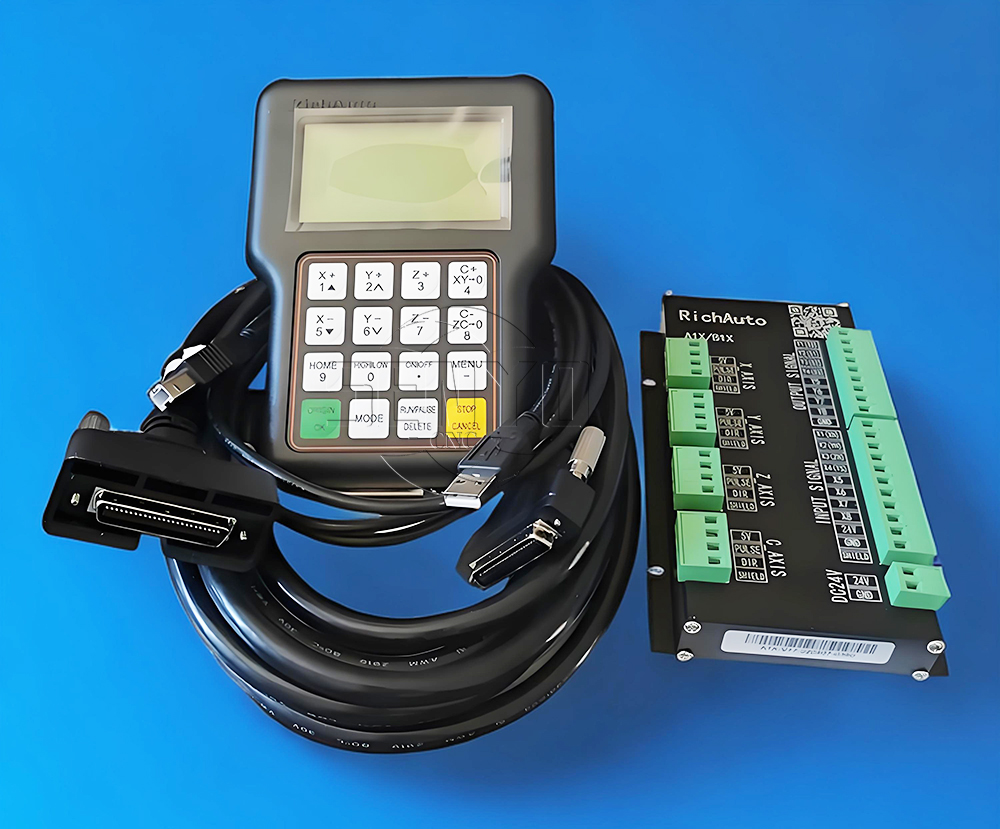

DSP turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package.
It works on most Windows PC's to control the motion of motors (stepper & servo) by processing G-Code.
While comprising many advanced features, it is the most intuitive CNC control software available.

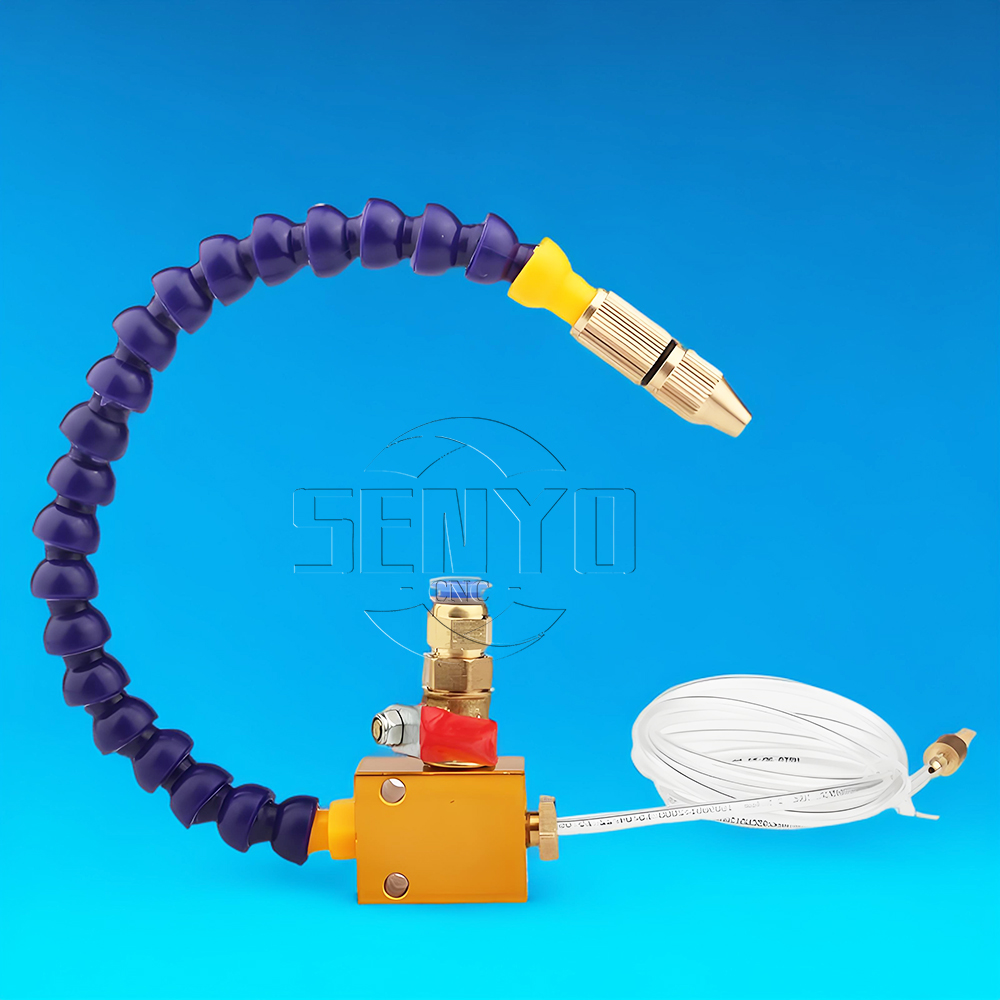

Water tube on spindle which for cooling bits , For the time machine working on stone marble aluminum brass copper materials .

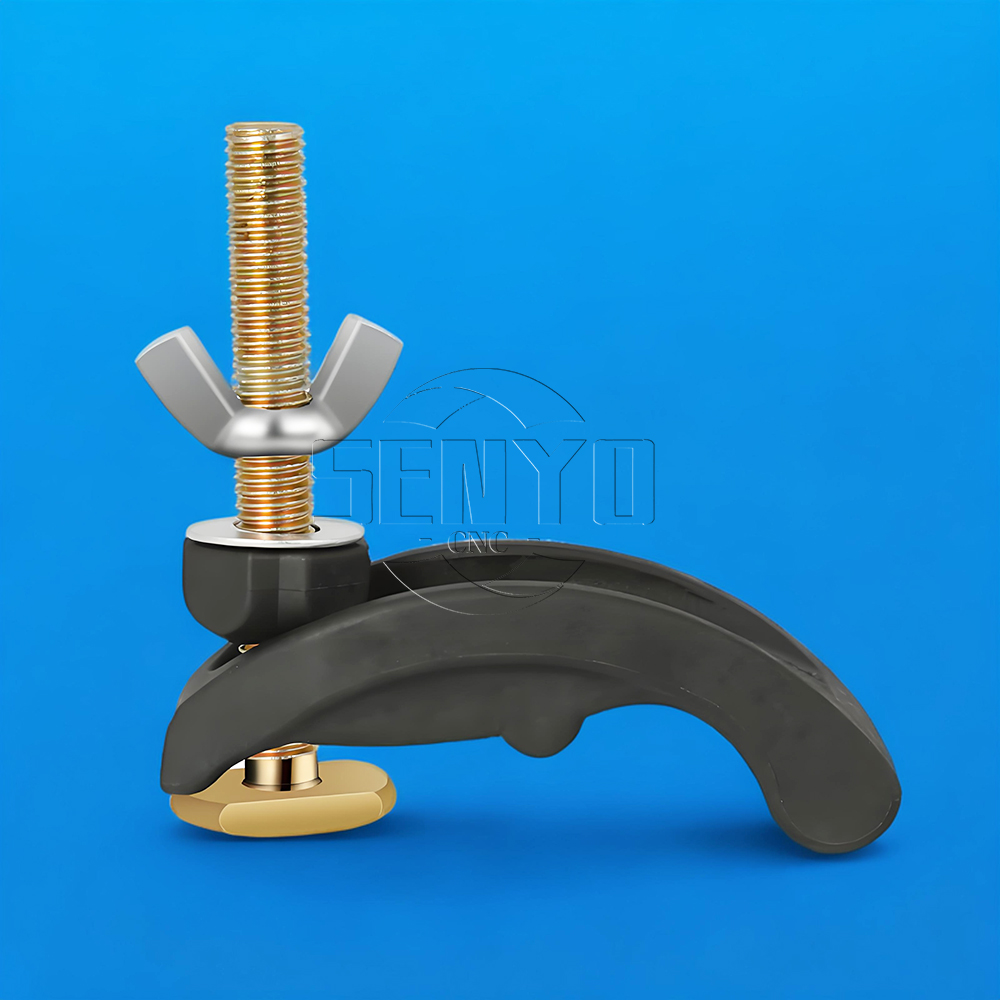

Machine with T slot worktable , with all fixture tools for your works.

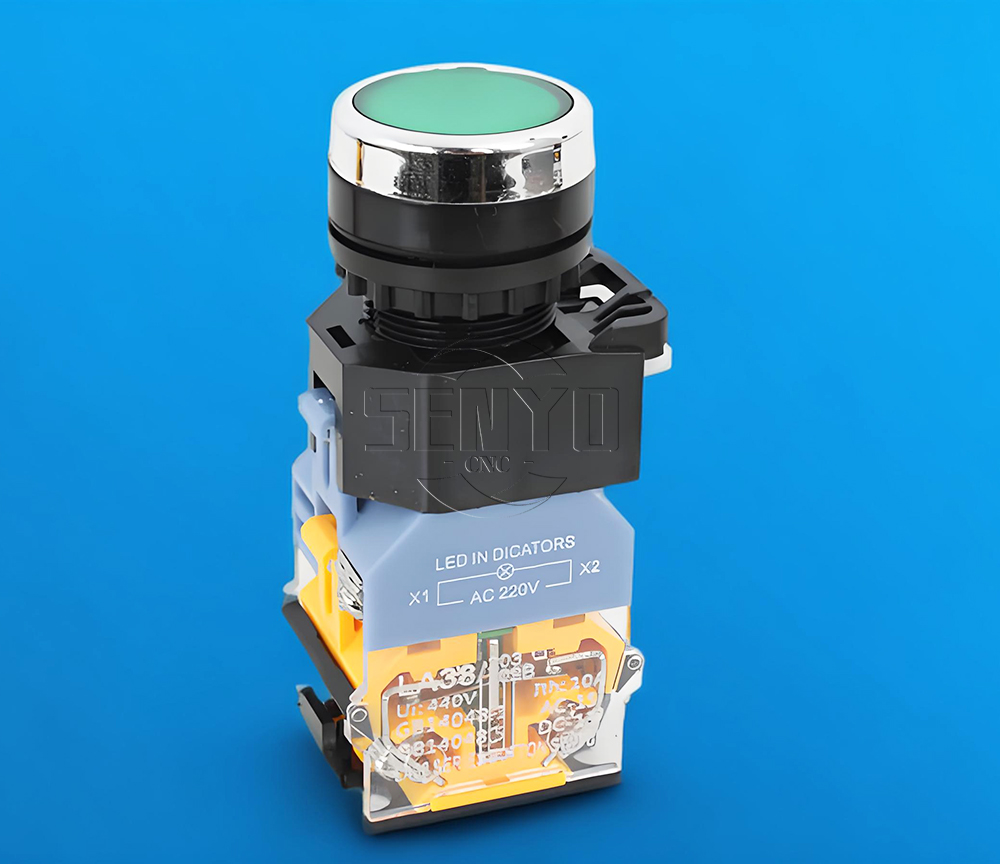

Machine electric parts use fampus brand which top quality in china .

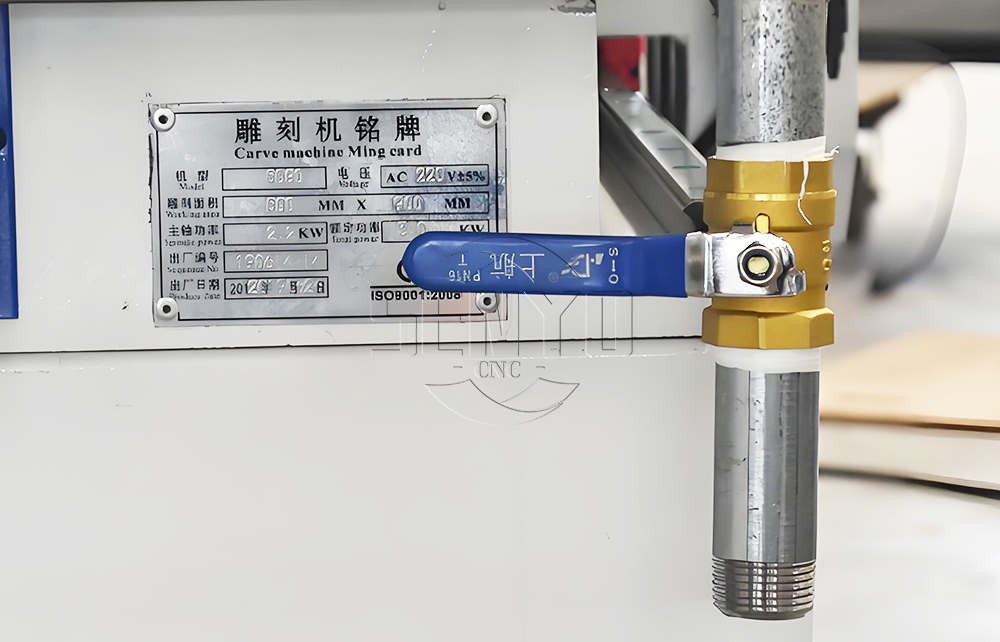

The water tank and water tube for out , heavy metal making , which is best for the alumium,copper, brass and stone work.

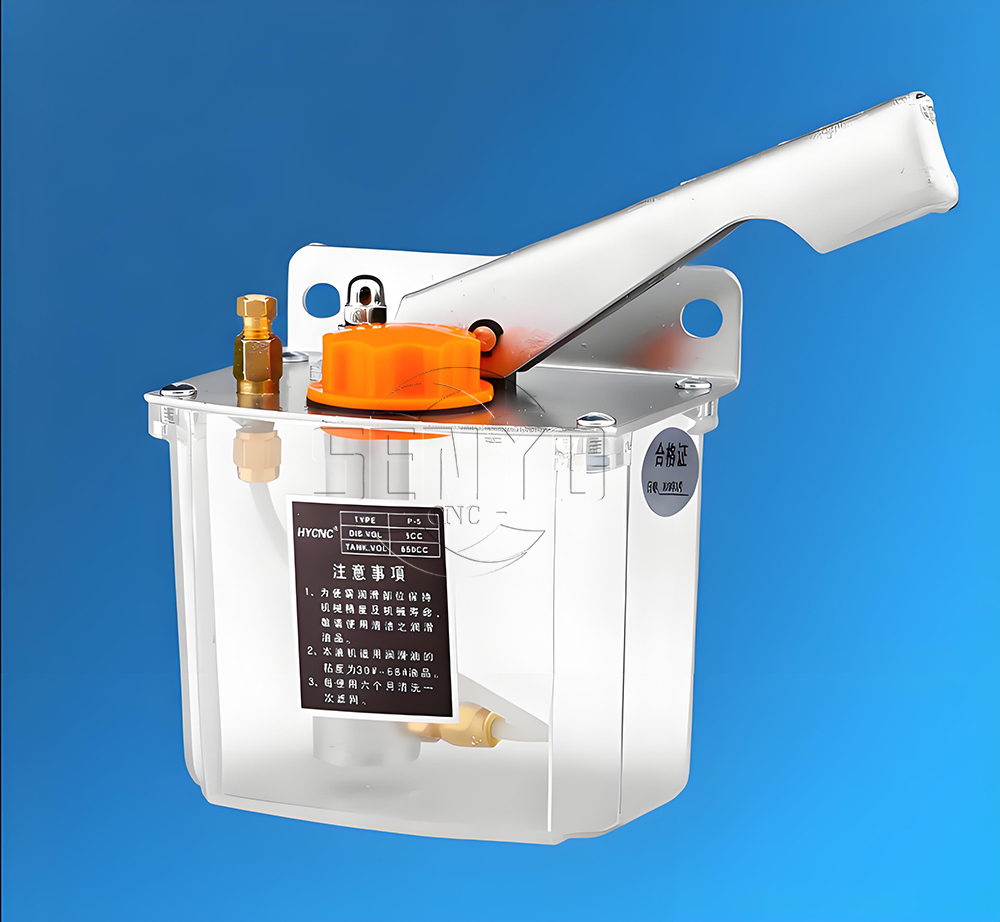

Oil lubrication, Protection rail guide and keep in best work condition.
Advantage
1. Structure: Integral cast frame, solidity and stable.
2. Accuracy: Adopt Square guid rail and imported high accuracy ball screw to ensure more stable movement and high accuracy.
3. Appearance: Aluminum decorative appearance, beautiful design and then makes the whole machine magnificently.
4. Spindle: Advanced water-cooling(air cooling spindle optional) brushless spindle, low noise, more power, long-time mass processing.
5. Design: It adopt several kinds of electrical parts with good design to minimize the failure ratio.
Multi-functions: It can support ArtCAM/ Ucancam and several kinds of CAD/CAM design software.
Technical Parameters of Rotary 4th Axis Hobby CNC Router for Sign Making with Wood, MDF, Aluminum
Brand | SENYOCNC |
Model | SYM6090 |
Working Area | 600x900x200mm |
Traveling Positioning Accuracy | ±0.03/300mm |
Repositioning Positioning Accuracy | ±0.05mm |
Lathe Structure | Welded Structure |
X/Y/Z Axis Structure | Taiwan TBI ballscrew |
Max. Speed | 15000mm/min |
Max. Working Speed | 8000mm/min |
Spindle Power Motor | 2.2KW water-cooling spindle |
Spindle Speed | 0-24000RPM |
Drive Mode | Stepper Motor |
Working Voltage | AC220V/380V, 50/60Hz |
Command | G Code, *uoo, *mmg, *plt |
Operating System | DSP (Option: Mach3) |
Interface | USB |
Flash Memory | 128M |
Collet | ER20 |
X,Y Working Delicacy | <0.01mm |
Software | Type3, Ucancam, Artcam |
Price Range | US$3,000.00 - US$4,500.00 |

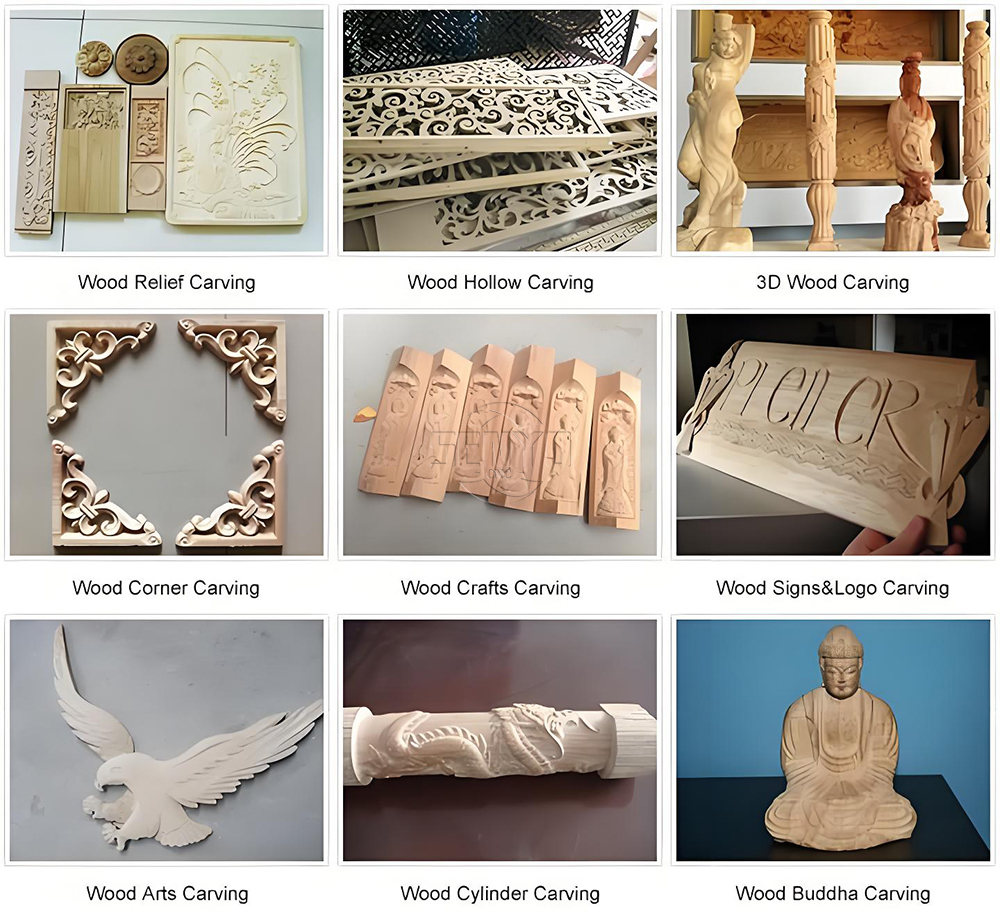

4th Rotary Axis CNC Router Machine for Sign Making Applications
A sign making CNC router has a wide range of applications as following:
Custom Signs & Signage: Wooden signs making, MDF signs making, aluminum signs making

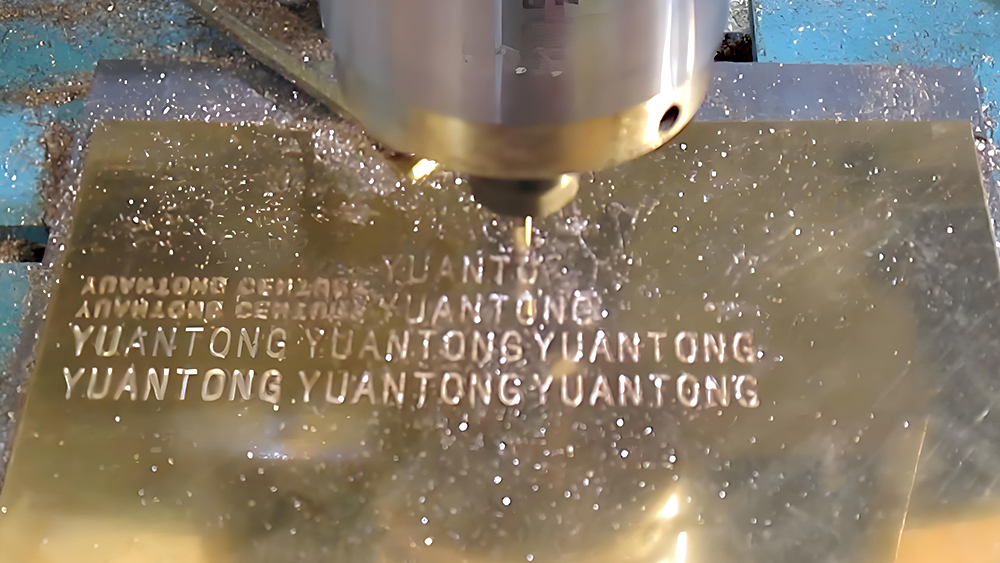

Aluminum engraving and cutting , copper , stone engraving.
stone signs making, foam signs making, plastic signs making, acrylic signs making
custom signage for indoor & outdoor use, custom signs for advertising industry, DIY signs for hobbyists.
Prototyping: Prototyping with wood, plastic, or soft metals at home or workshop.
Advertising: Signs, badges, signage, logos with wood, acrylic, two-color board, PVC, ABS board, aluminum-plastic board.

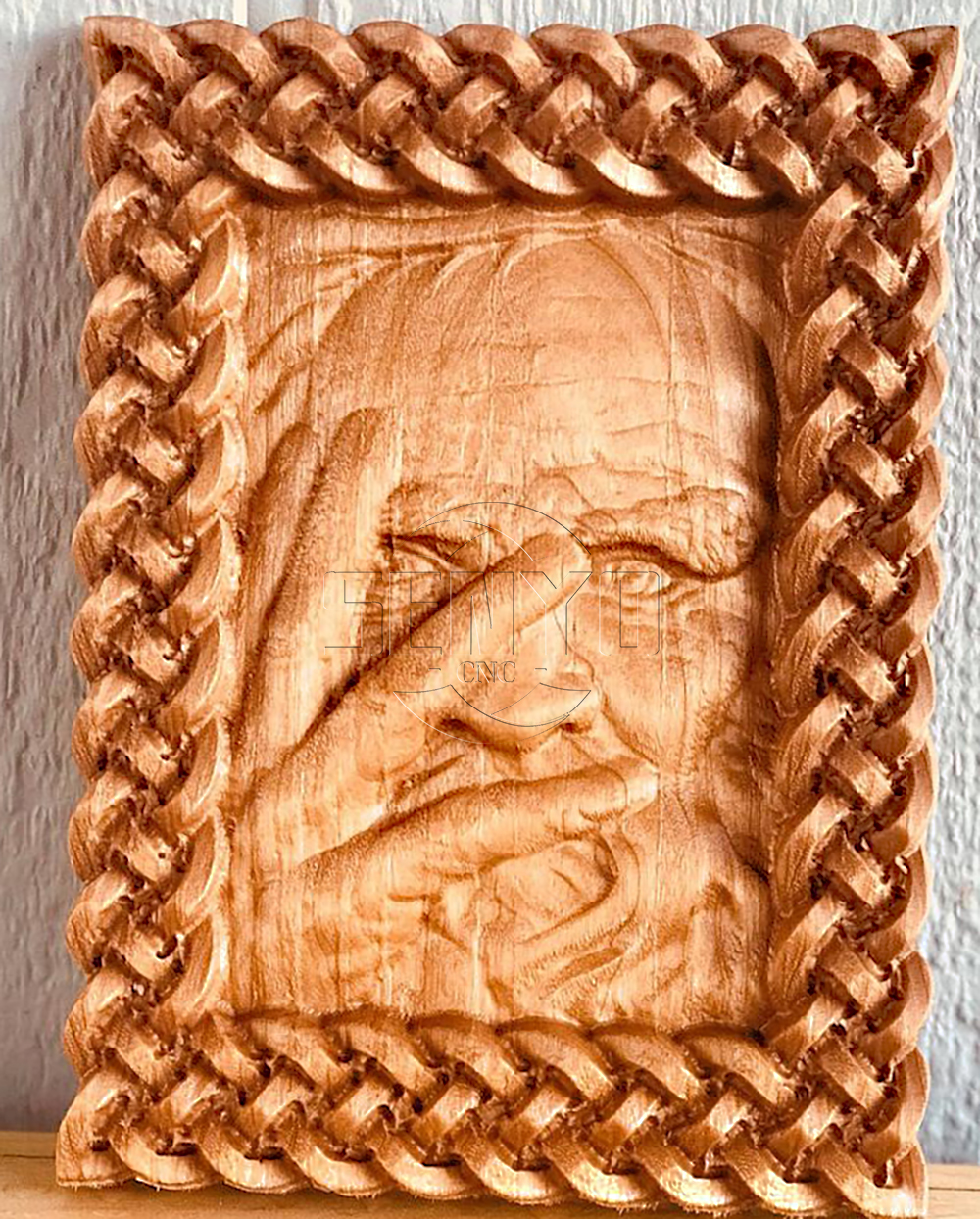

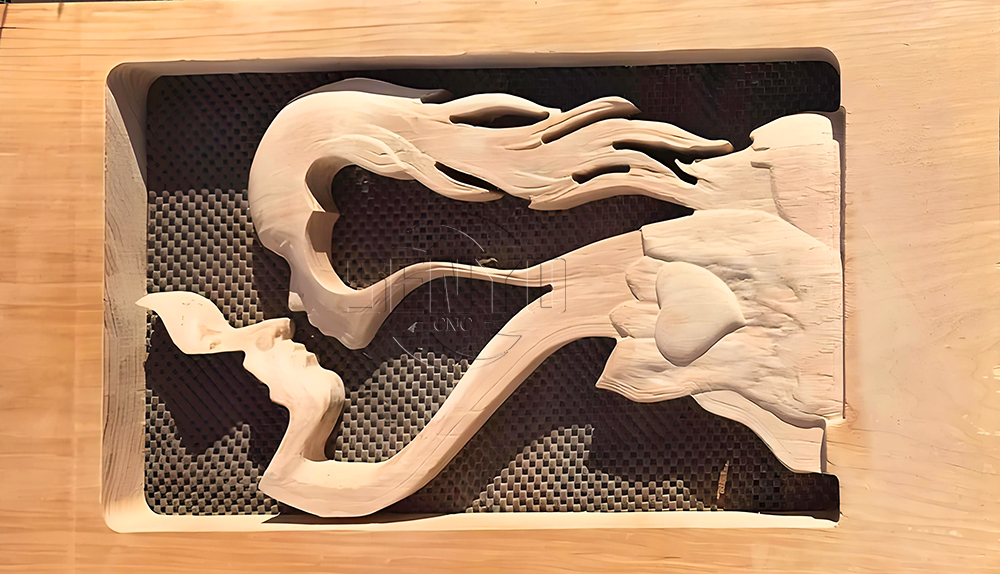

Arts & Crafts: Wood crafts, artificial stone crafts, souvenirs on the various types of texts and graphics.
Mold Making: Wooden molds, aviation wood molds, propellers, architectural model, physical model
bronzing mold, high frequency mode, micro injection mold, shoe mold, badge, embossing mold, biscuit, chocolate, candy mold.
Woodworking: Furniture decorations, musical instruments, wooden handicrafts, solid wood arts.
Application Industry
1) Wood furniture industry:Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash,
composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2) Other wood products industry: speakers, game consoles cabinets,
computer tables, sewing machine table, musical instruments, etc.
3) Decoration industry: folding screen, wave plates, large wall, advertising boards, signs and logo’s processing.
4) Board processing industry: A sculpture of copper, aluminum, iron and other metal molds,
as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
For Our Work Steps:
1.Before-sale,we will try to know your requirement about our cnc finer laser specification and what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,
calling, video or mail.

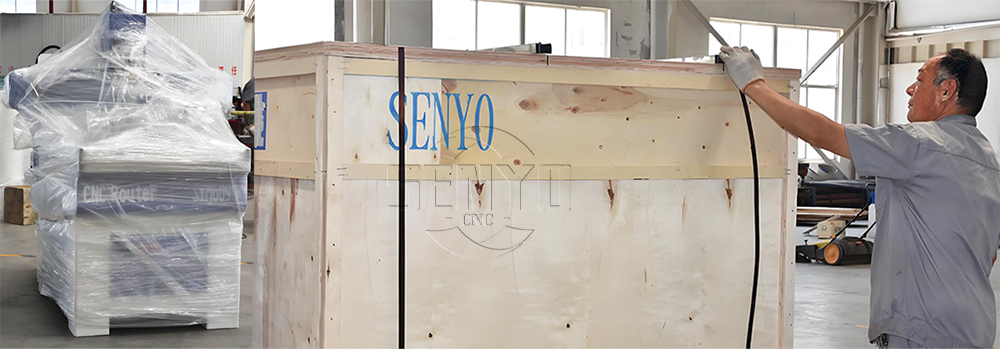

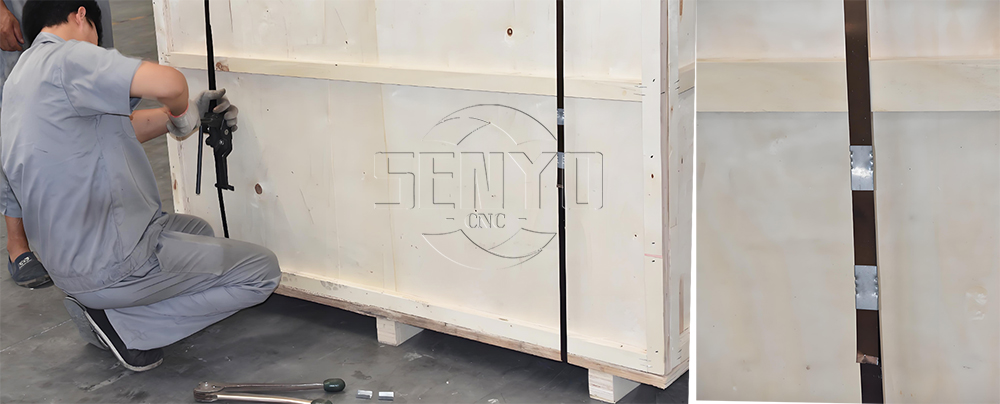

Packing & Shipping

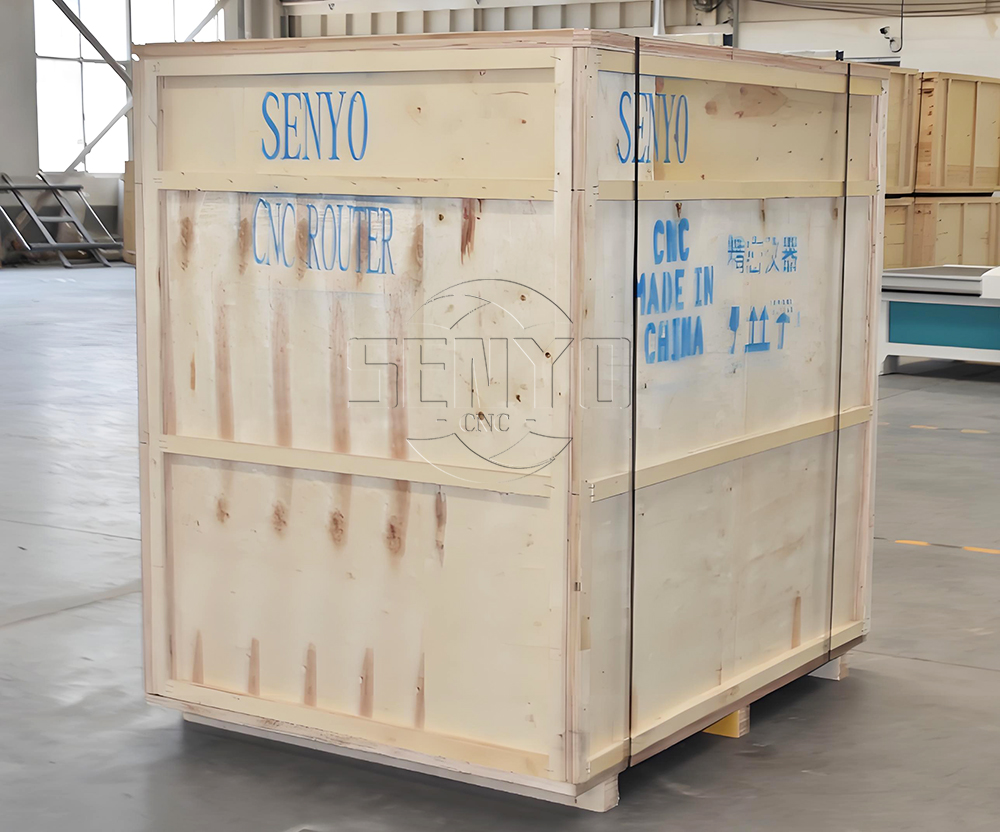

1. Outside package: Standard plywood package.
2. Inner package:Stretchy film and plastic protective film for humidity.
3. We can package according to your requirements.
For standard machines, 7-15 working days after payment.
For LCL Shipping (Less than Container Load),it is recommended to use export standard fumigation-free wooden boxes, which are
stronger and suitable for long-distance transportation.For FCL Shipping (Full Container Load).
it can be loaded directly at the factory without wooden boxes, and the maximum number of
machines can be loaded to reduce costs.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
