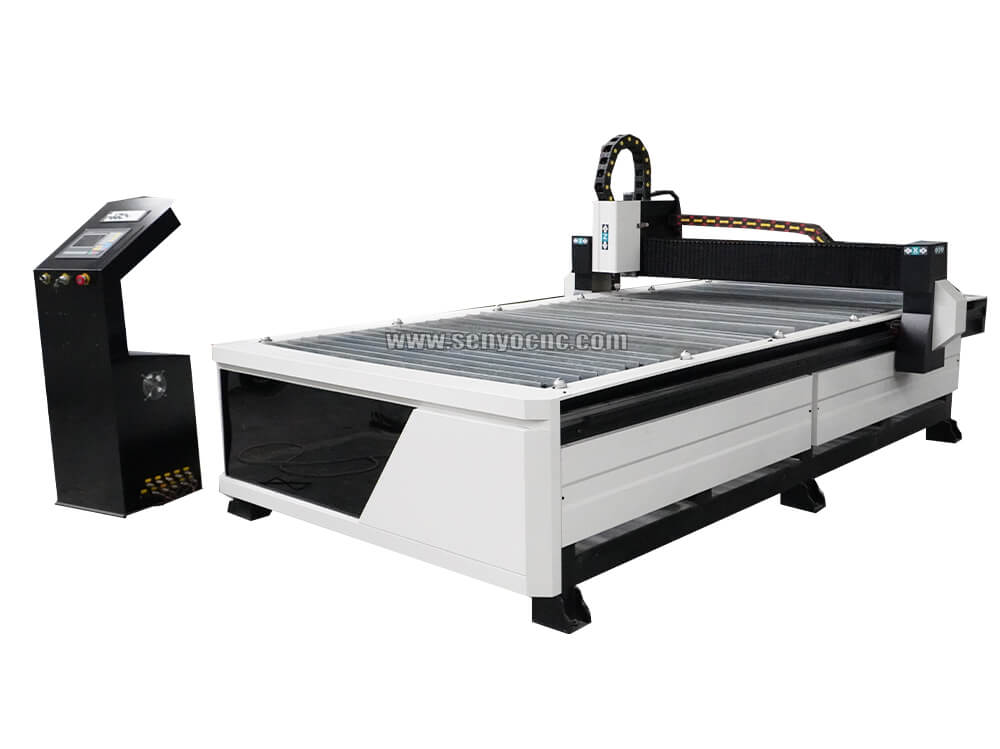

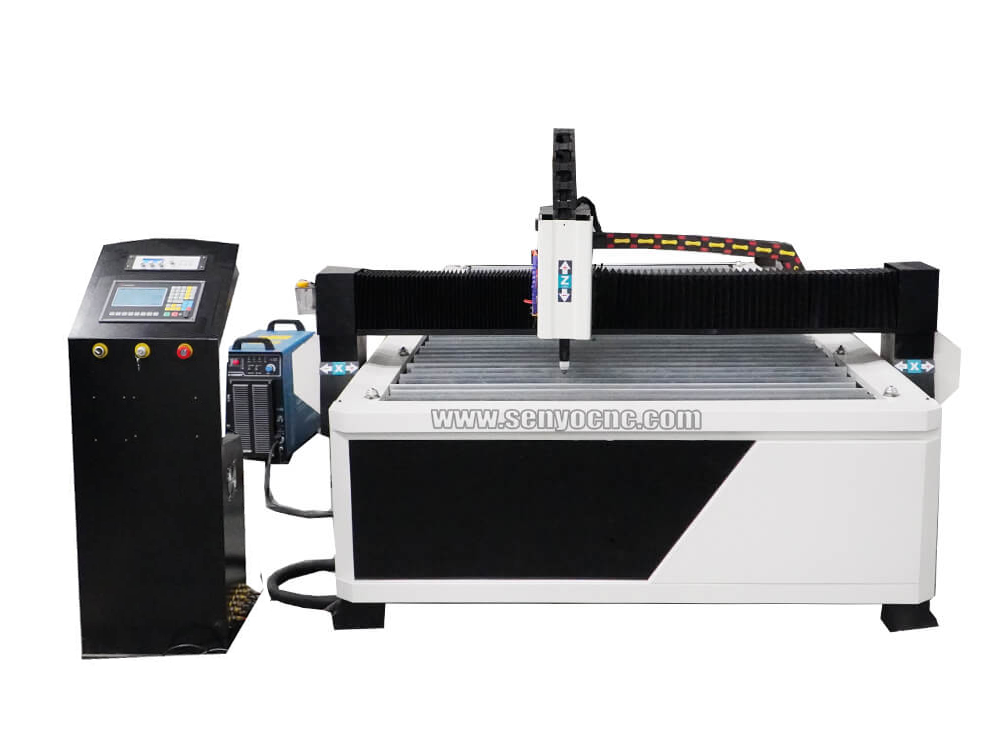

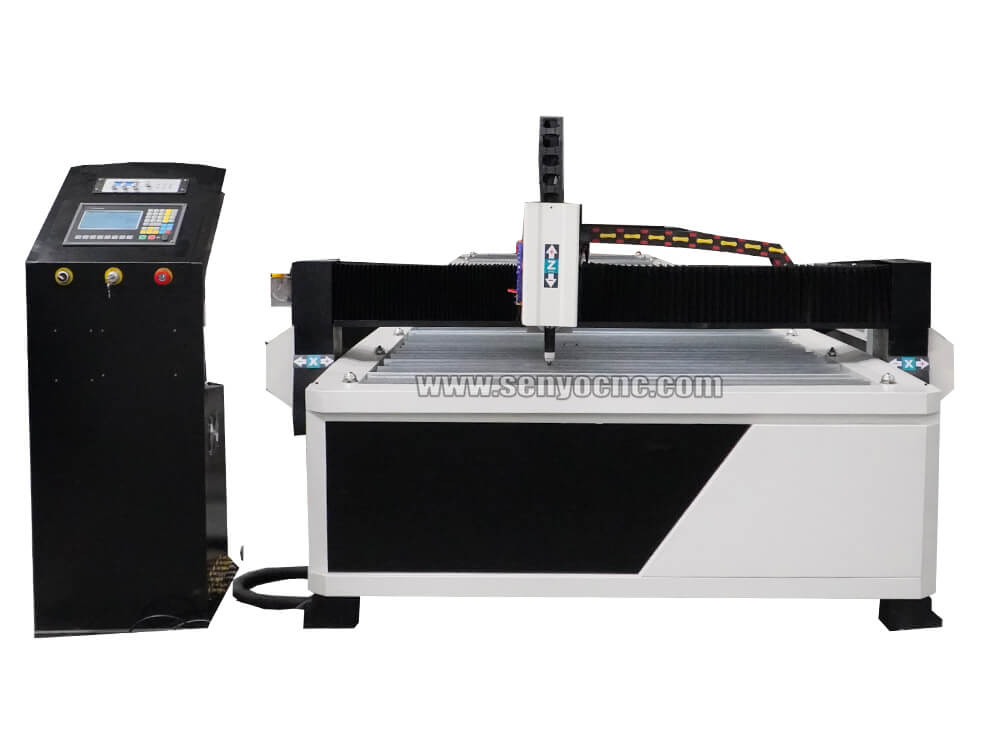

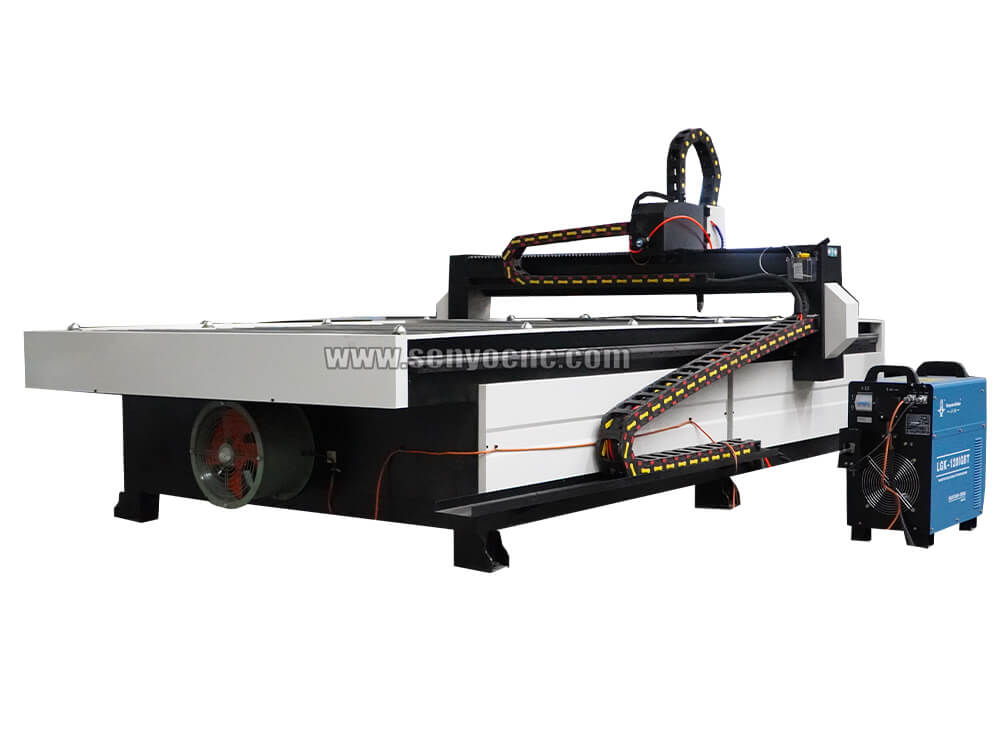

4x8 CNC plasma cutting table is an automatic power tool with CNC plasma cutting system, which is equipped with 48" x 96" table size. The best budget CNC plasma table is mainly used for full sheet metal cutting in home shop, small shop, school education, or industrial manufacturing.
Best 4x8 CNC Plasma Cutting Table Features
1. SYP1325 plasma CNC cutting machine adoptsthick square tube welded structure and square rails from Taiwan to ensure running speed and accuracy.
2. Plasma torch with water cooling system to cool the material surface quickly to avoid burr and residue.
3. Arc auto adjusting system can choose the best distance between plasma torch and working piece to ensure high accuracy cutting.
4. Plasma power supply adjusts current according to different thickness of the metal materials to ensure materials cutting without burr.
5. Starfire CNC control system, large capacity storing function, convenient to read and process.
6. FastCAM software with automatic nesting function to save materials.
7. Rotary device for metal tube cutting is optional.
Best 4x8 CNC Plasma Cutting Table Specificat
| Plasma power | Huayuan 63A100A 120A 200A power Famous brand made in china, low price, Cutting thickness 0.3-22mm |
| Controller system | Beijing Start control system, configured 7-inch high-resolution true color LCD display. can be dynamically cut graphics running track. |
| Motor | 450B stepper motors With high quality & stronger power, ensure machine work very well. |
| Driver | Leadshine 860H Drivers It can run with smaller noise, lower heating, smoother movement and have better performances at higher speed.Save human strength and save time. |

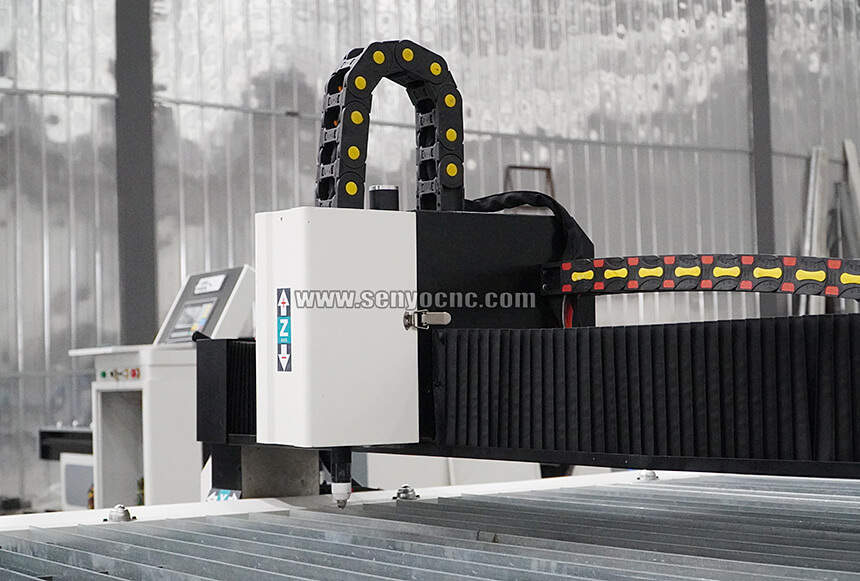

| Automatic Arc Pressure adjustable | Beijing Start Adjust the torch height during cutting. Perforated height self-positioning |
| Software | Fast Cam nesting software for machine. Using it, and finally export G code, then can be recognized by machine |

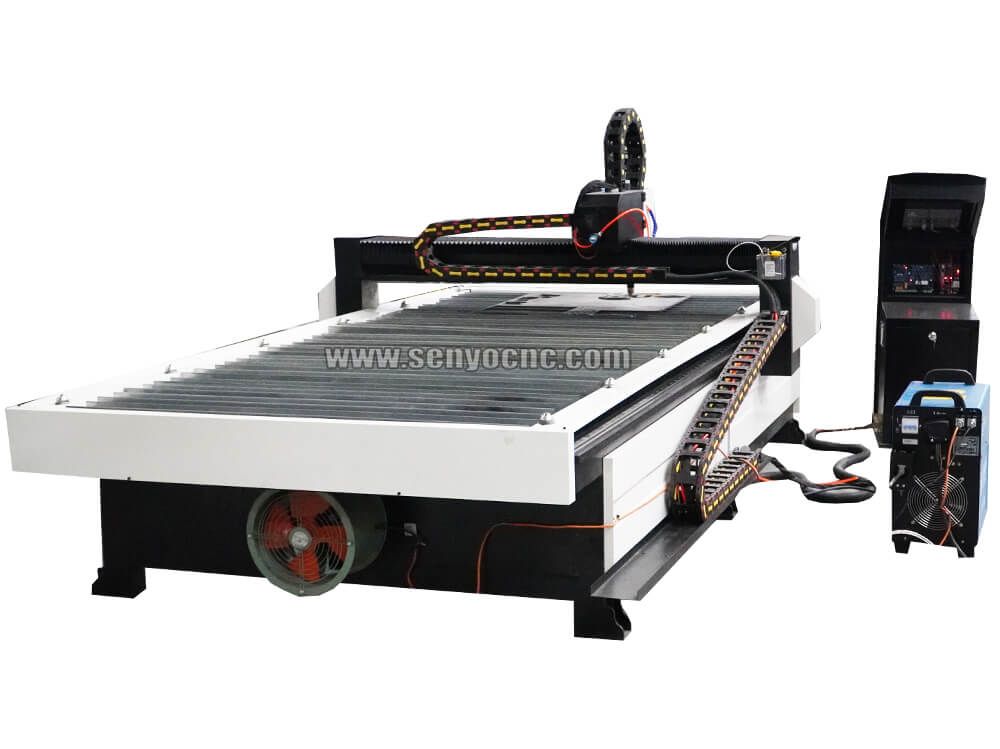

Best 4x8 CNC Plasma Cutting Table Detials
Integrating CNC technology, mechanical running, and thermal cutting technology, desktop CNC plasma cutter is an effective, precise, and reliable cutting equipment, excellent man-machine interface makes operation easy and complicated cutting of different shapes cutting possible.
Optional dust-proof work table or smoke removing device for a clean working environment.

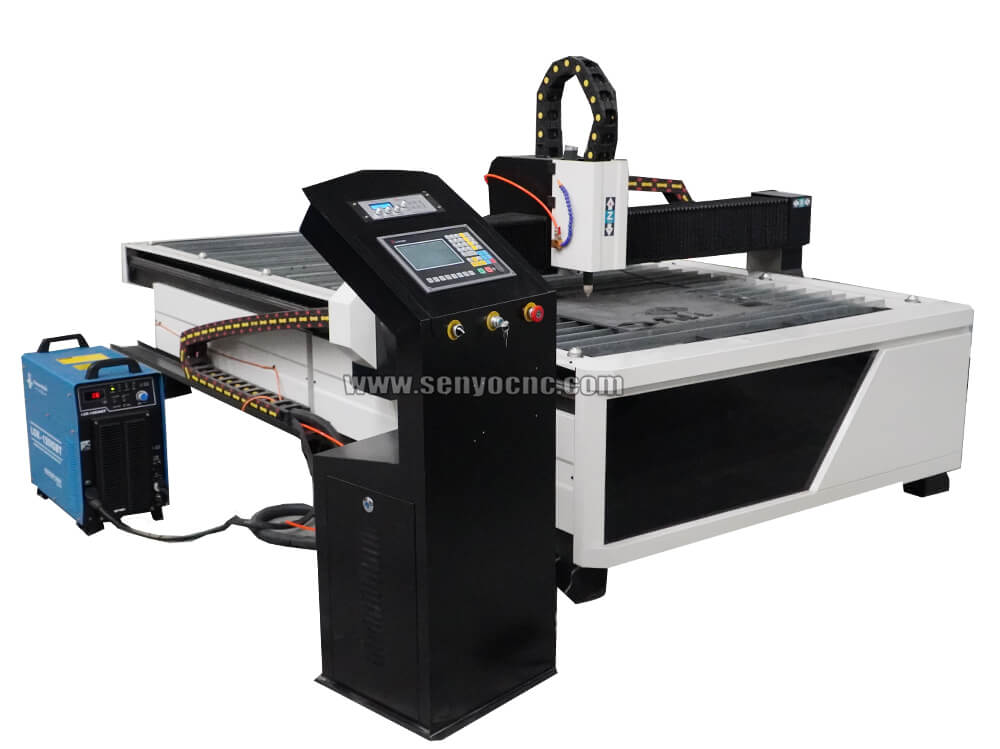

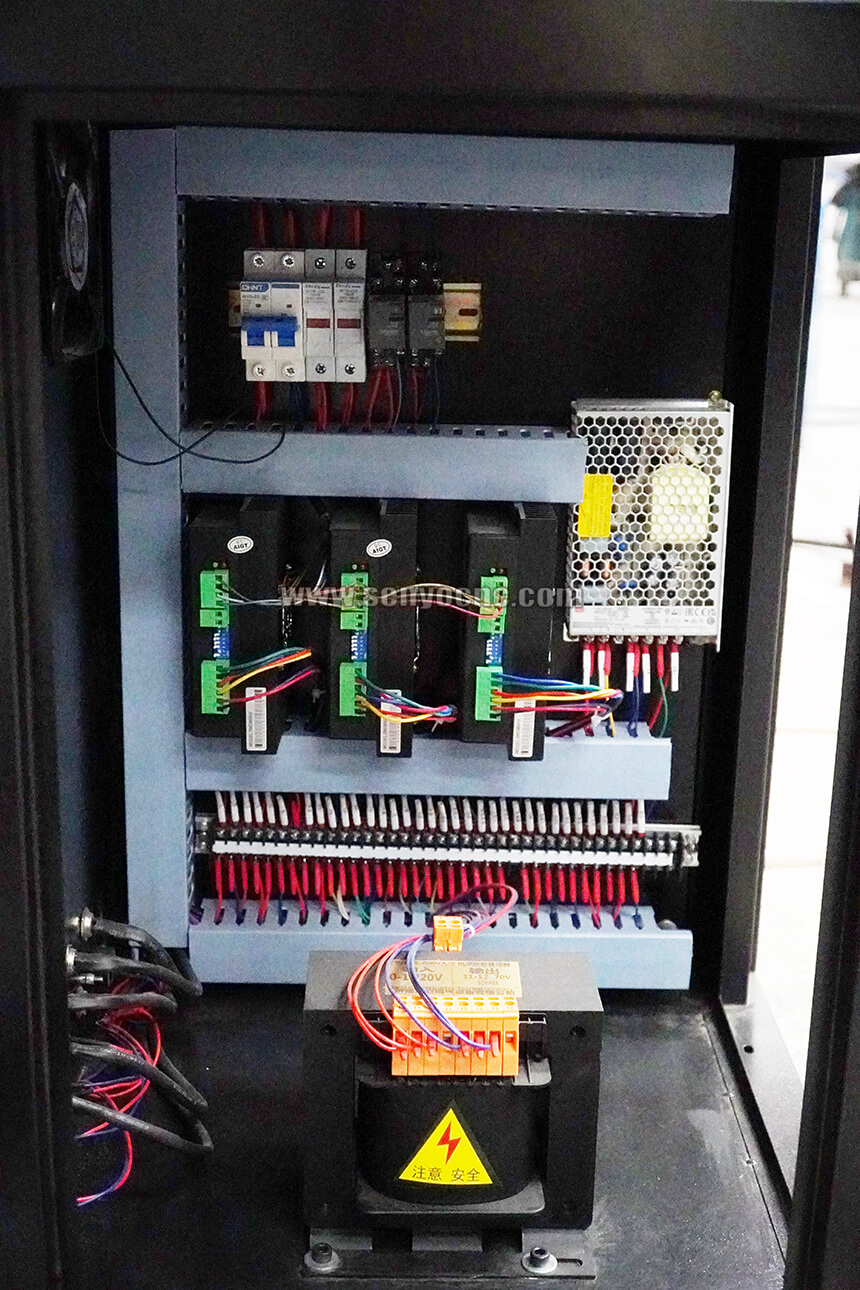

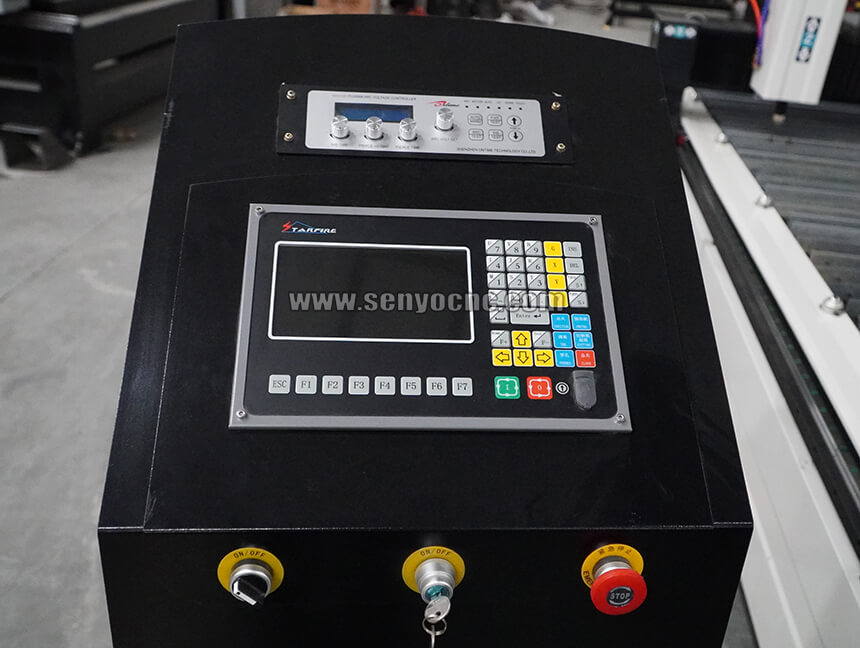

Control box
Professional Wire connection

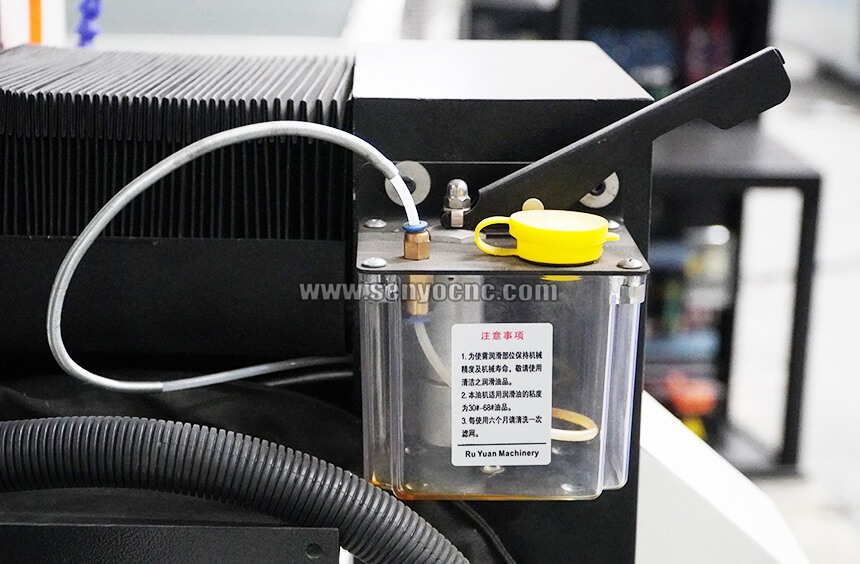

Oil Lubriation

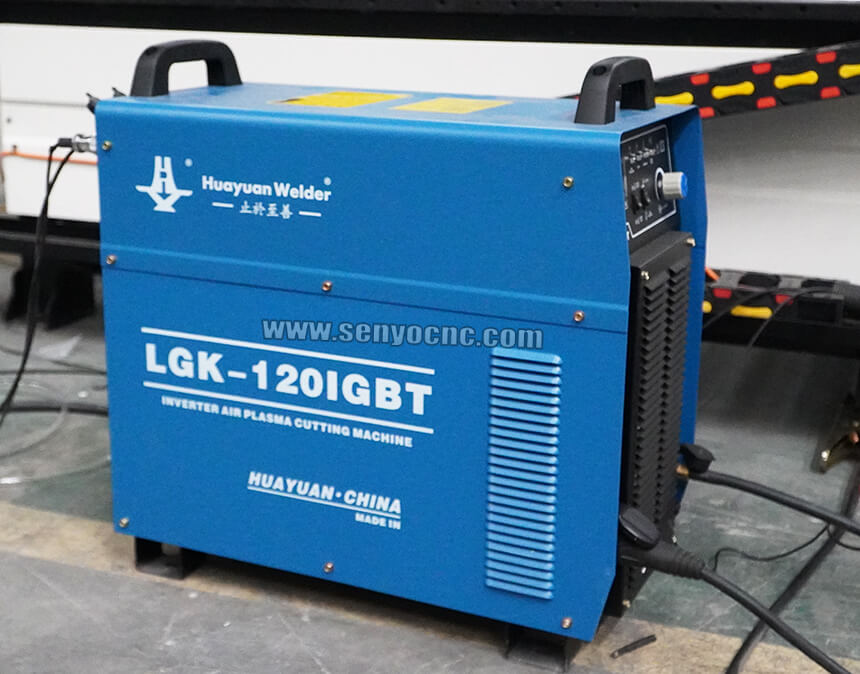

Huayuan Plasma power Supplier

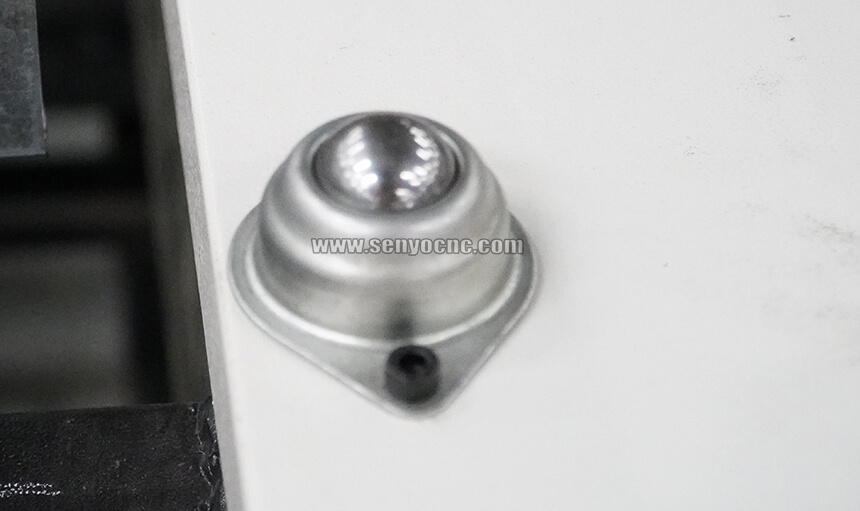

Roller for Convience uploading materials

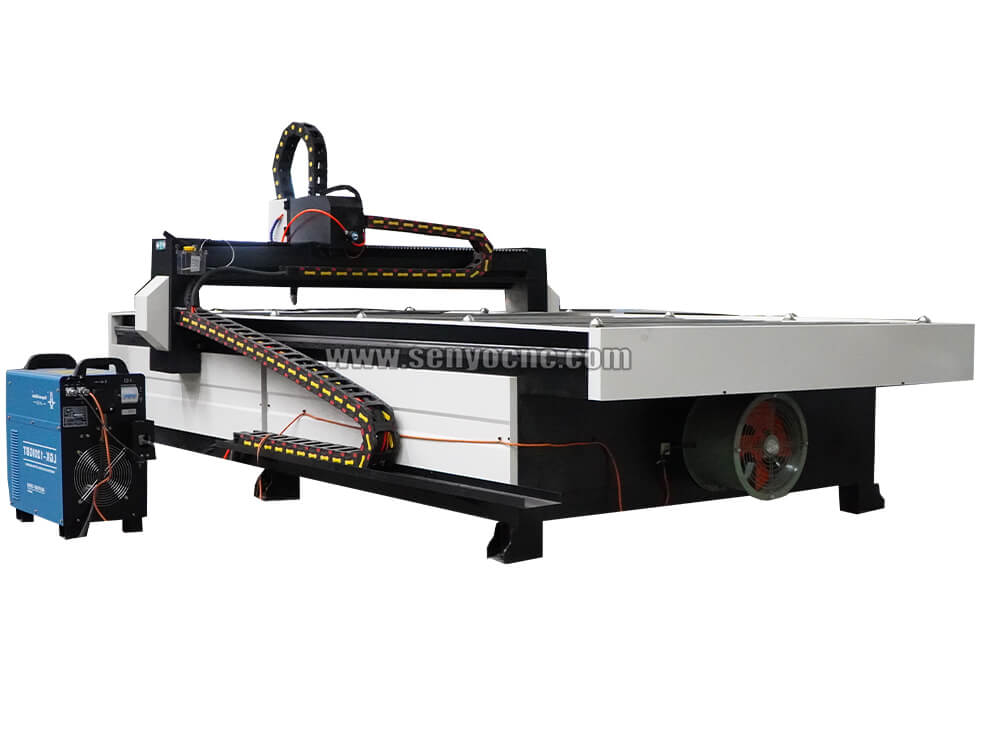

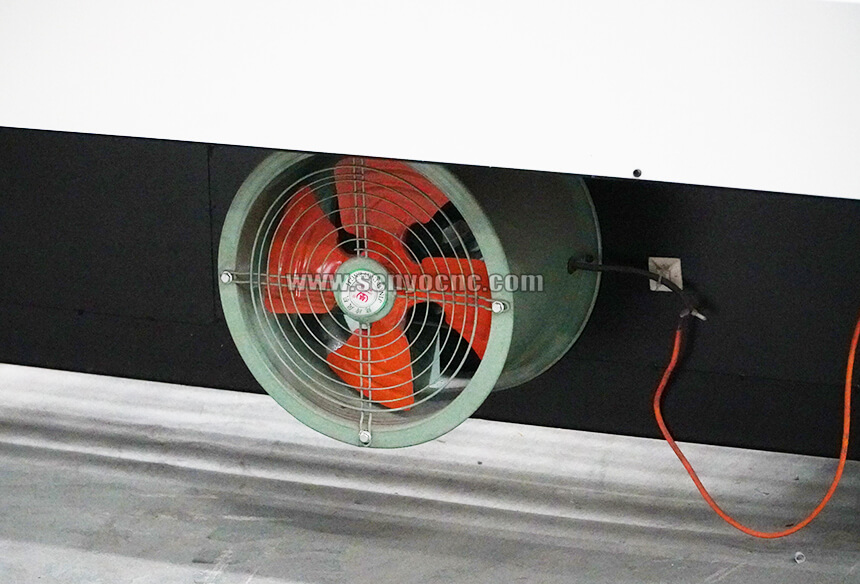

Exhaust Fan

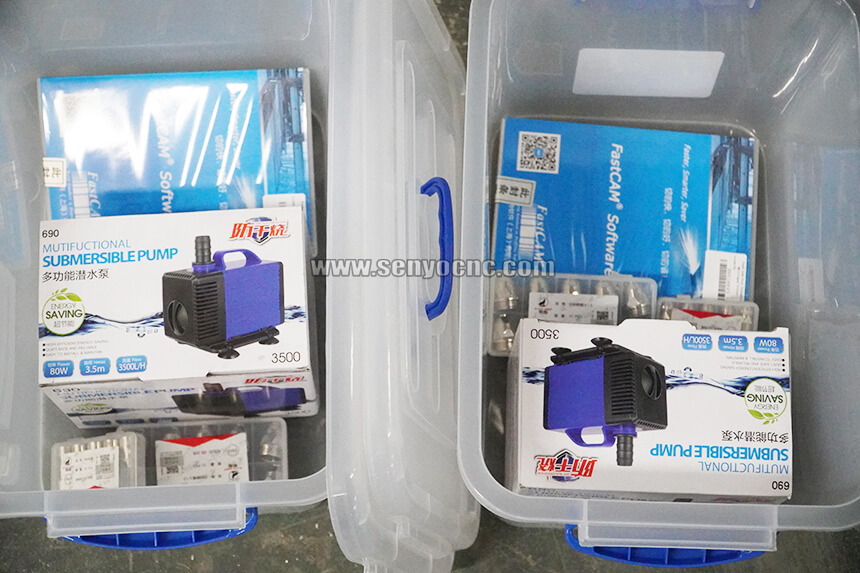

Accessories and Parts
Application Materials
Stainless steel, mild steel, brass, copper, aluminum alloy, sheet metal, spring steel, gold, silver, etc.
Application Industry
Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military-industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets,
Elevator manufacturers, Textile Machinery, Environmental protection equipment, etc.

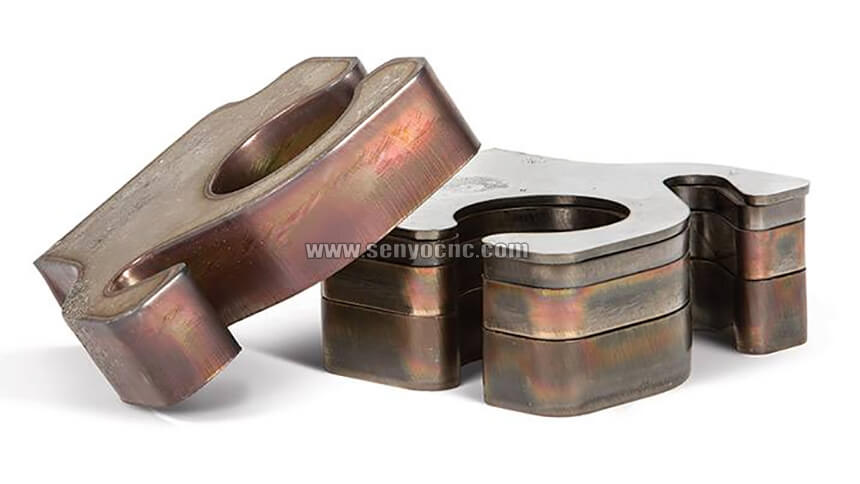

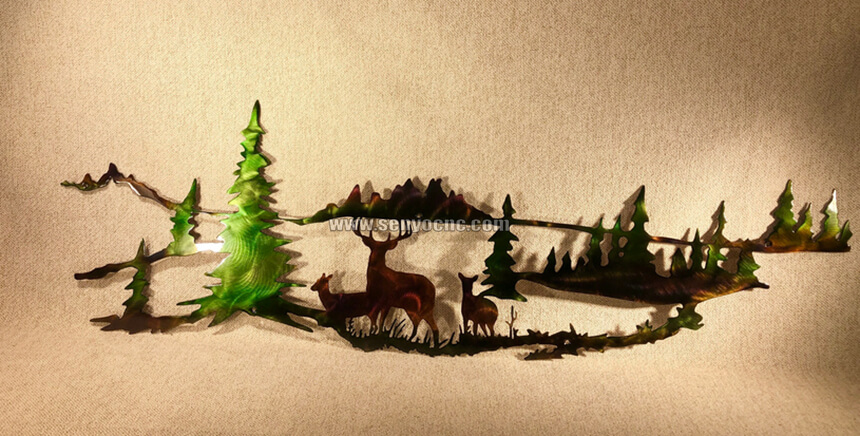

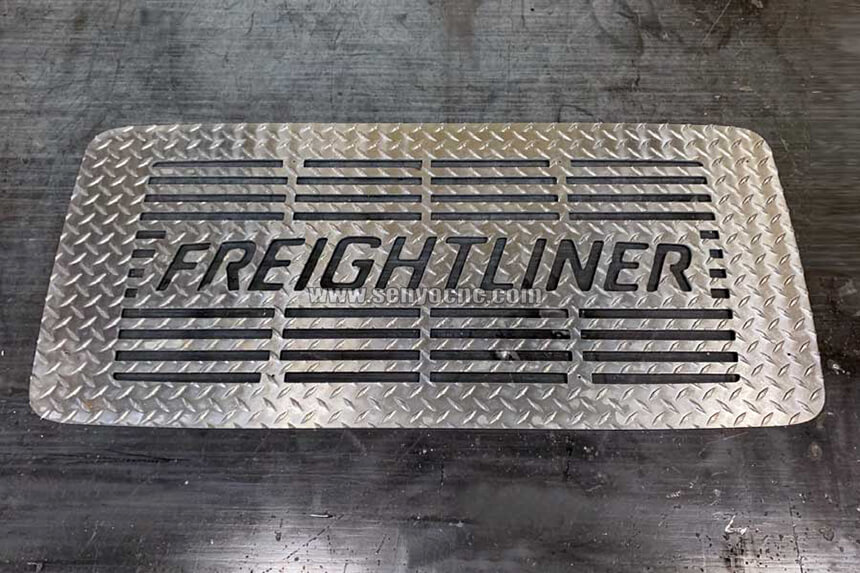

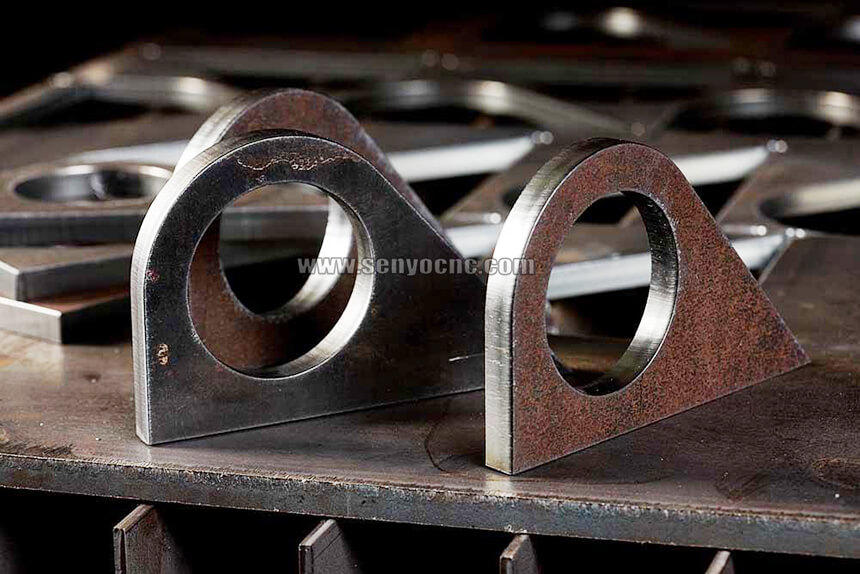

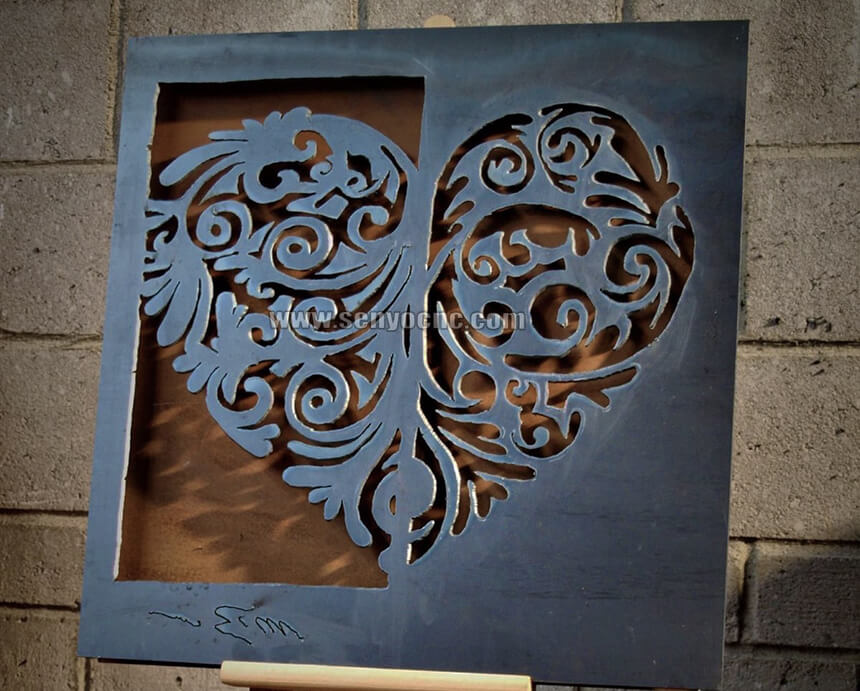

Best 4x8 CNC Plasma Cutting Table Samples
Plasma Cutting Capacity of 4x8 CNC Plasma Table cut thickness
China Huayuan Power
| USA Hyperterm Power Power supply | ||
Power supplier | Cuting thickness | Power supplier | Cutting thickness |
63A | 8mm | 45A | 8mm |
100A | 15mm | 65A | 10mm |
120A | 20mm | 85A | 12mm |
160A | 30mm | 105A | 18mm |
200A | 40mm | 125A | 25mm |
200A | 30mm | ||

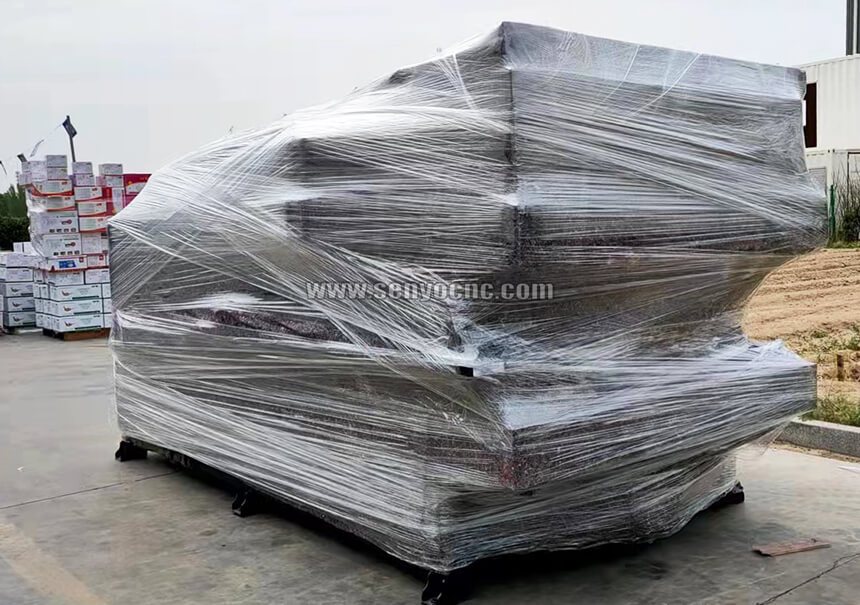

Package and Delivery for 4x8 CNC Plasma Table
We have been cooperating with several big transport agents and shipping companies for long terms, and the goods are packed with standard plywood case for export, it can be transported to you safety as soon as possible.
Shipping detail
1) CNC Router machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
3) Some extra spare parts (Pipe,limit switches etc)
Service & Support
1.Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
