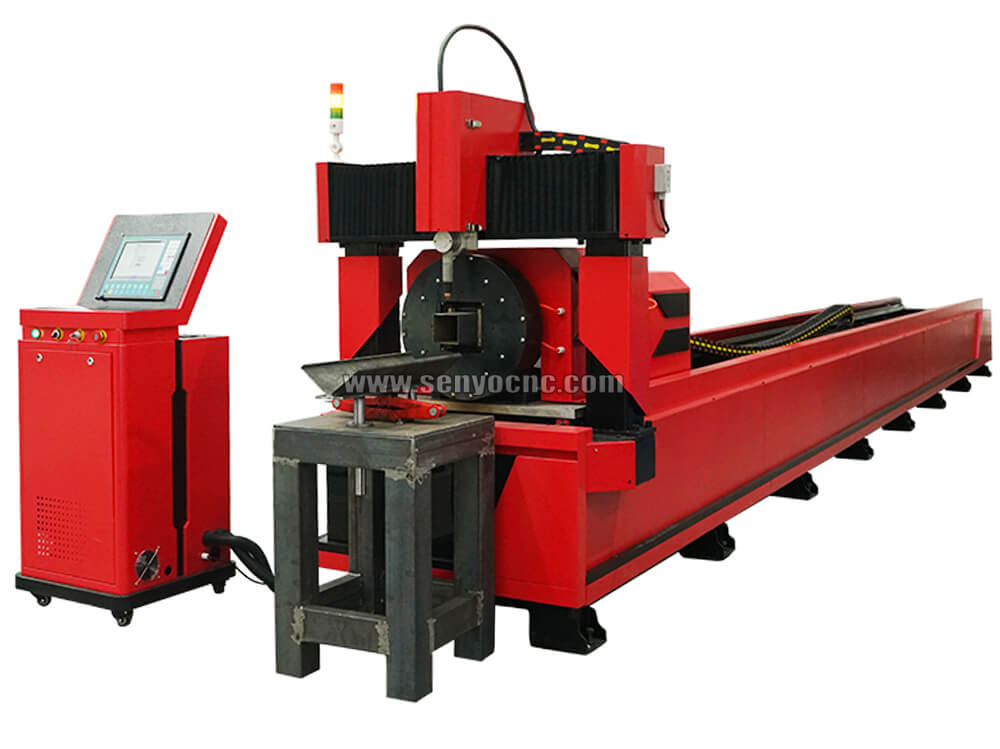

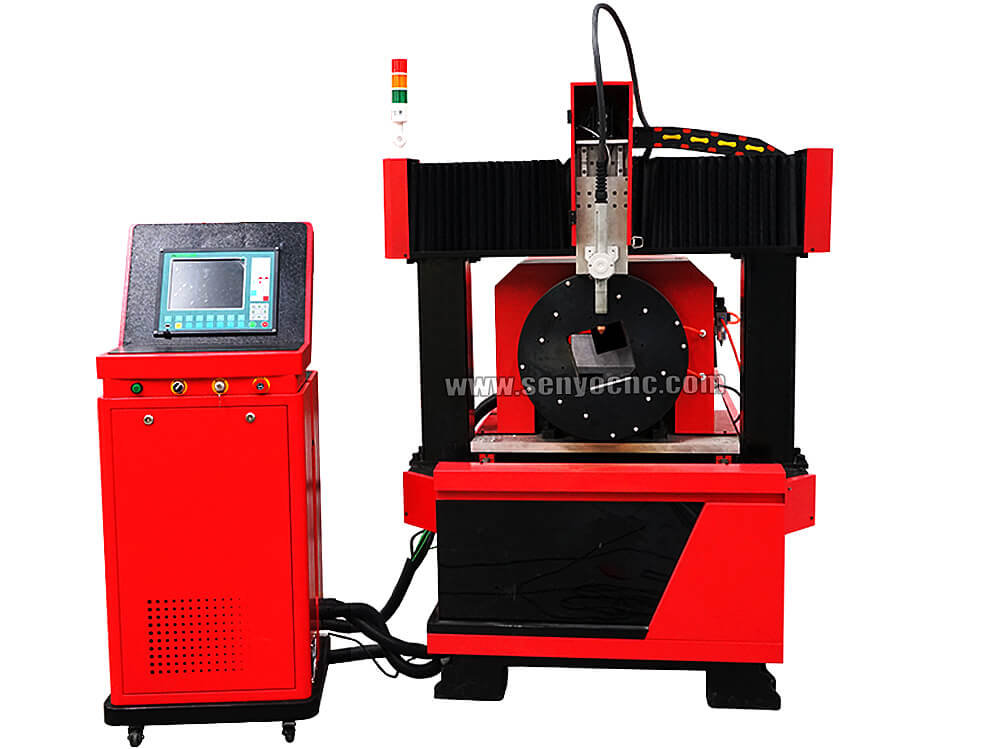

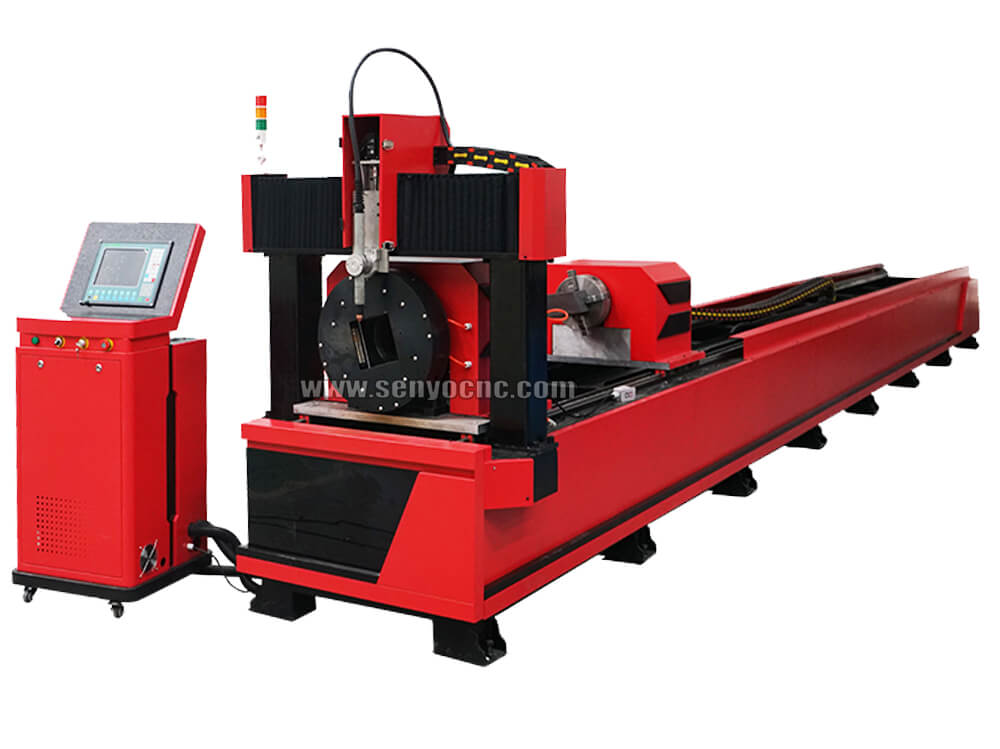

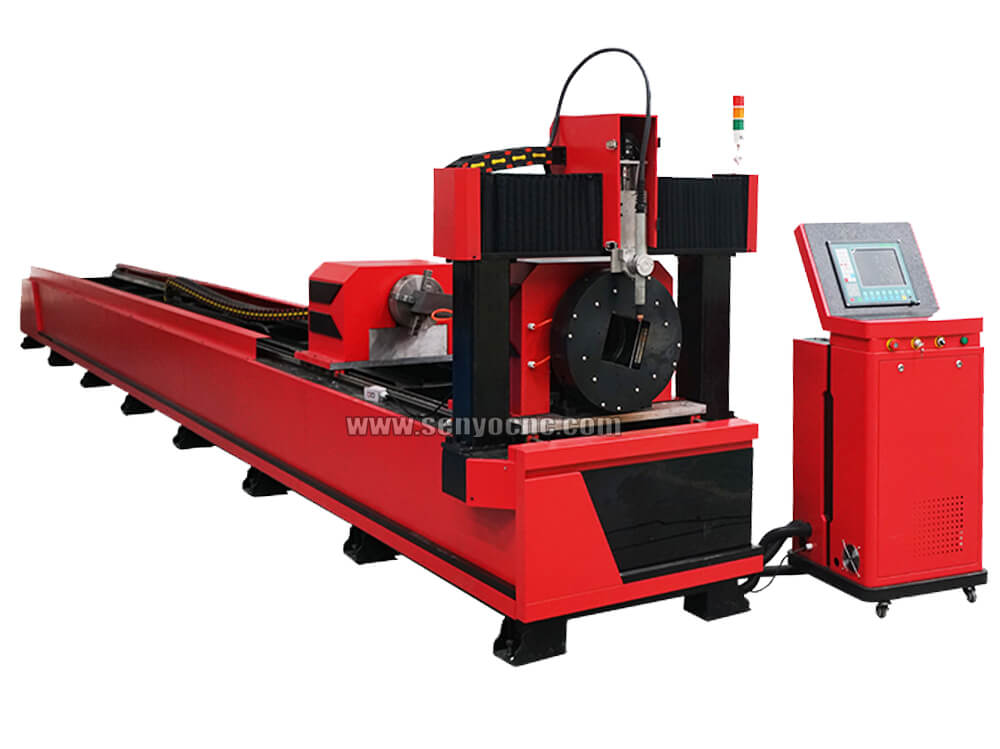

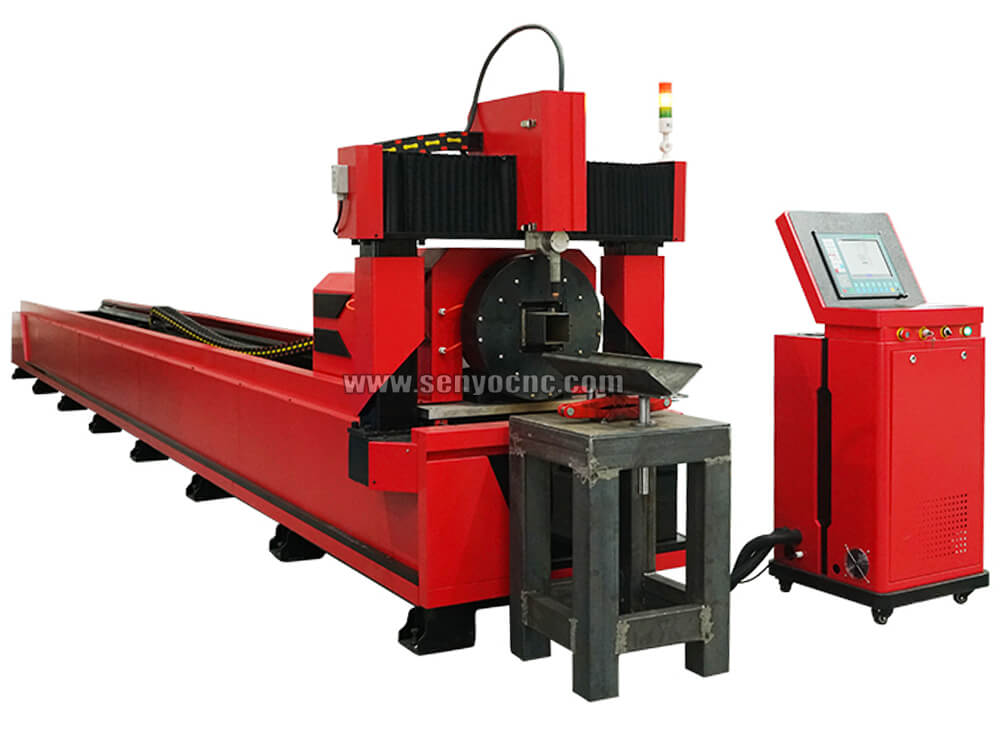

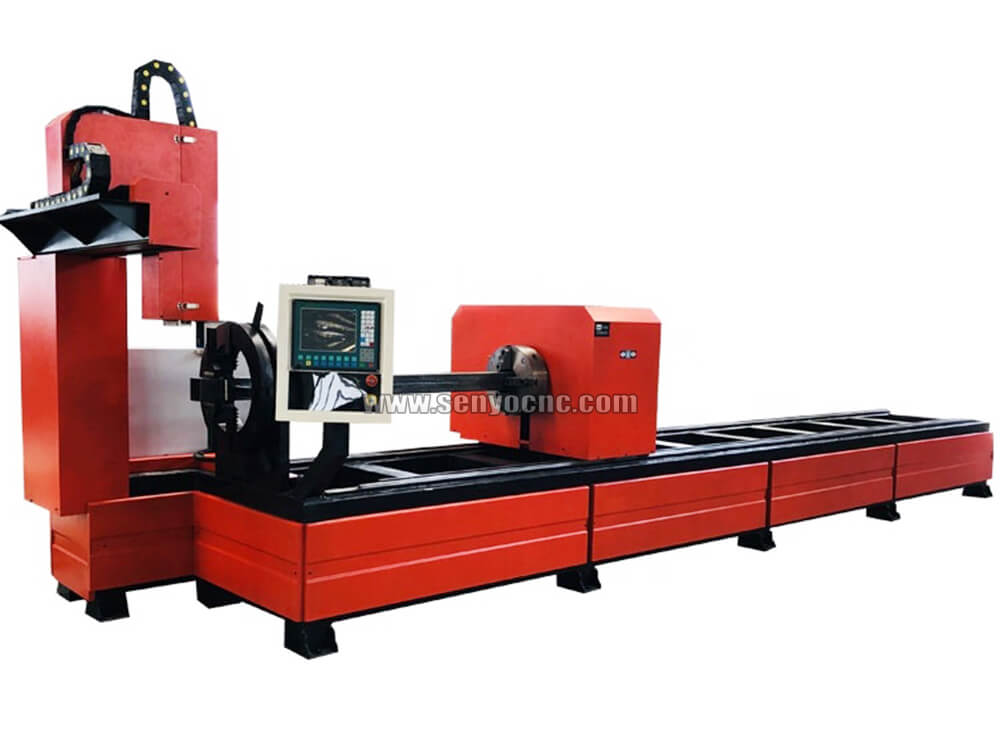

This machine is used for metal square&round tube cutting. Good man-machine control panel makes operation more convenient and simple, can cut kinds of complex shapes' metal sheet.
The CNC plasma pipe cutting machine is widely used in cutting pipeline structural parts in construction, chemical industry, shipbuilding, mechanical engineering, metallurgy, electric power, and other industries. CNC plasma pipe cutting machine is very convenient for cutting and processing such workpieces. It does not need an operator's calculation and programming. It only needs to input parameters such as pipe radius and intersecting angle of the pipeline intersecting system.
The CNC plasma pipe cutting machine can automatically cut intersecting lines, intersecting line hole, and welding groove of the pipeline. The numerical control CNC plasma pipe cutting machine adopts digital control. The number of control axes of the machine is two to six axes. Each type of machine has the functions of cutting various intersecting lines and holes, cutting fixed-angle grooves, fixed-point grooves, variable-angle grooves, non-circularity, and eccentricity compensation of pipes.
Advantages of Affordable Rotary CNC Plasma Tube Cutter for Round & Square Pipes on Sale
1. Intersection cylindrical hole cutting of different directions and diameters on main pipe for vertical intersection between
branch pipe and main pipe
2. Intersection cylindrical end cutting on brand pipe for vertical intersection between branch pipe and main pipe
3. Bevel cutting on pipe end
4. Welding elbow cutting on pipe
5. Branch pipe intersection end cutting connected with ring main pipe
6. Square hole and branch hole cutting on pipe
7. Cutting off of pipes
Specification of Affordable Rotary CNC Plasma Tube Cutter for Round & Square Pipes
Model | SYP2060 |
Working length | 6000mm |
Pipe diameter | 0-200mm |
Processing Material | Square/ Circular/Rectangular pipe |
Cutting method | Plasma |
Max travel speed | 0-50000mm/min |
Cutting speed | 0-10000 mm/min |
Running accuracy | ≤0.1mm |
Cutting thickness | According to the power supply( 0-200mm) |
Cutting gas | Air |
Gas pressure | 0.4-0.8Mpa for normal plasma power |
Drive system | Dual drive |
Motor and driver | Servo or stepper optional |
X, Y axis | High Quality Rack & Pinion and Taiwan linear rail |
Power Supply | Huayuan or Hypertherm |
Voltage | 3 phase 380v 50hz/60hz |
Arc type | Untouched Type |
THC | HYD torch height controller |
Feature of Affordable Rotary CNC Plasma Tube Cutter for Round & Square Pipes

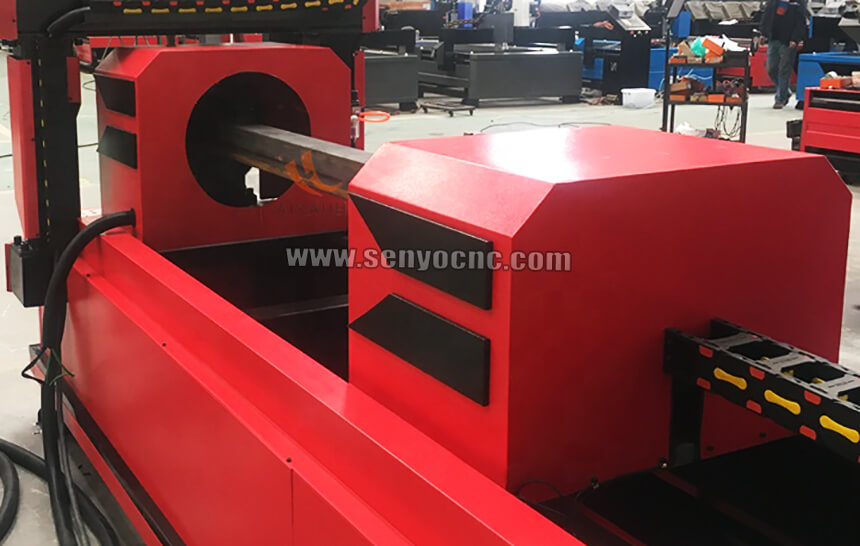

Dust Cover

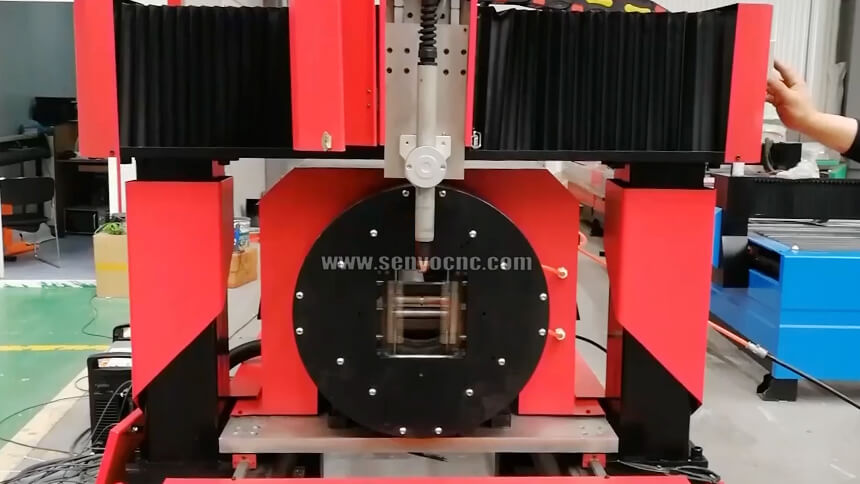

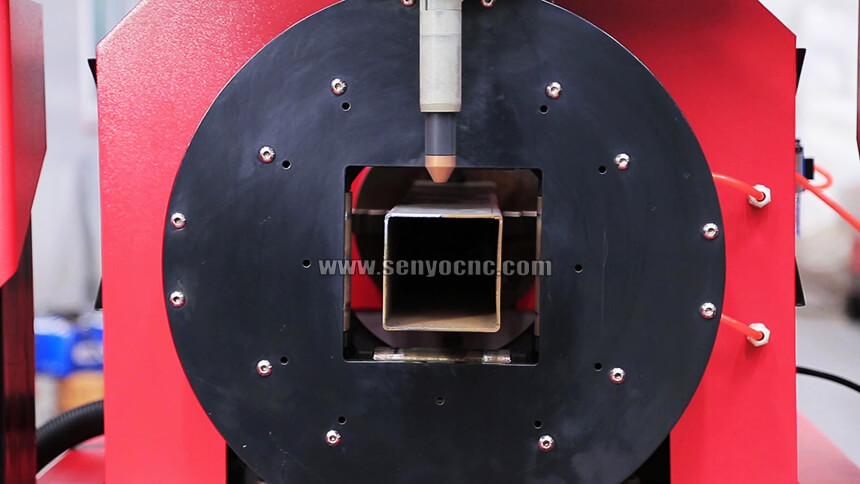

Plasma Cut torch and metal collect

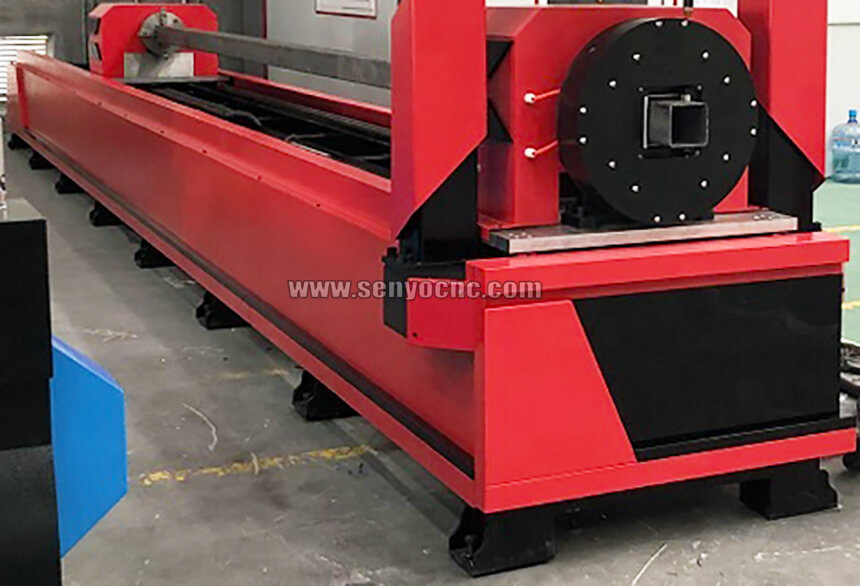

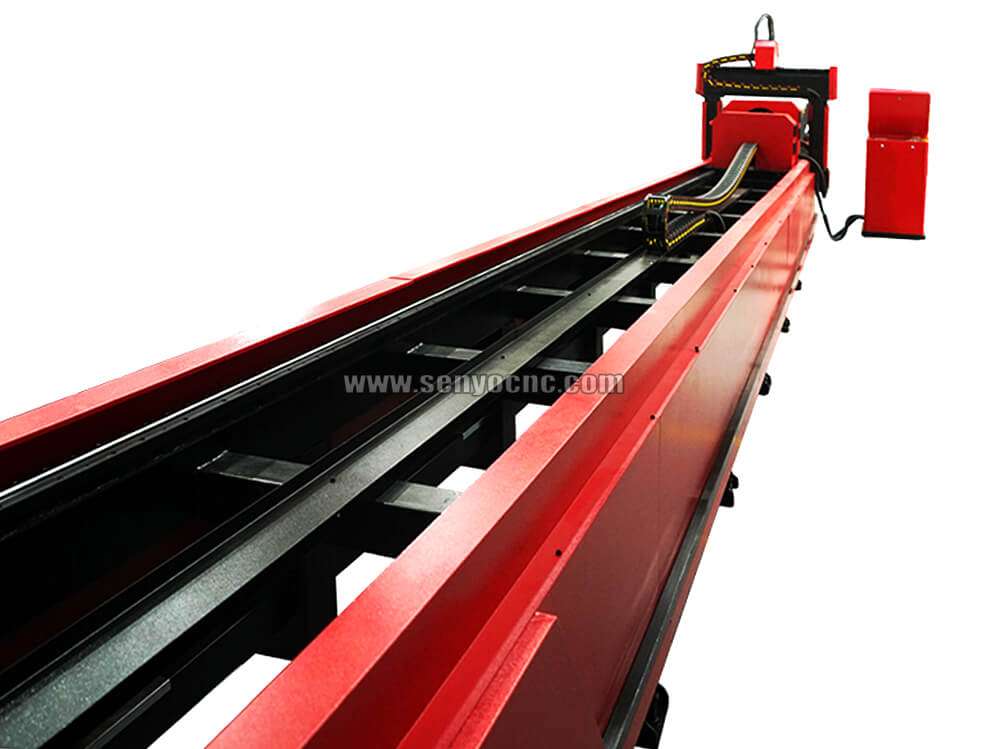

Machine Frame heavy structure
The liner rails are imported with high precision, good guide. Rack gear is manufactured by professional factory. Its surface is carbonizing and quenching.

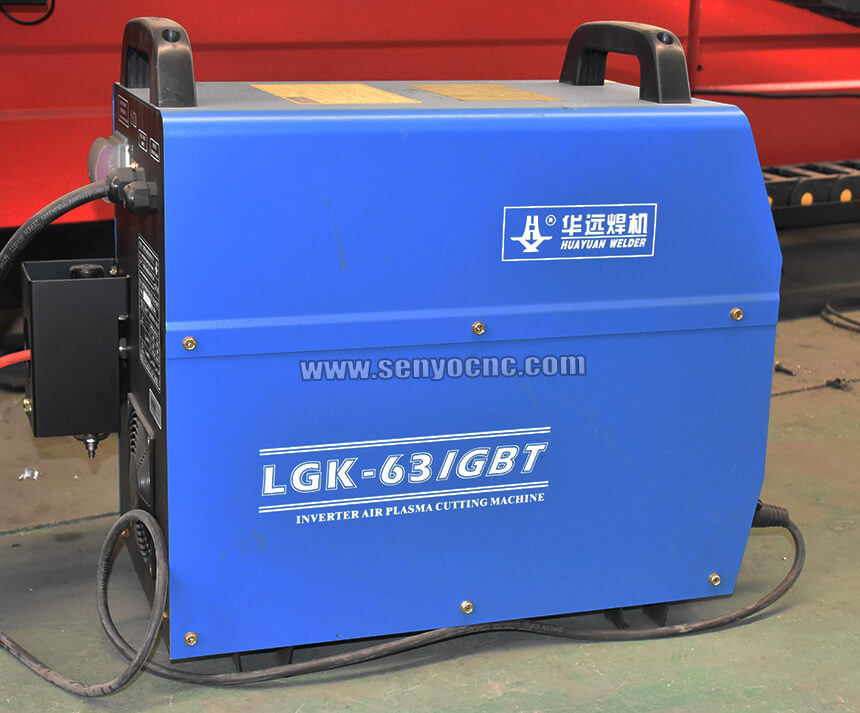

Huayuan power source , 63A 100A 120A 160A 200A choose

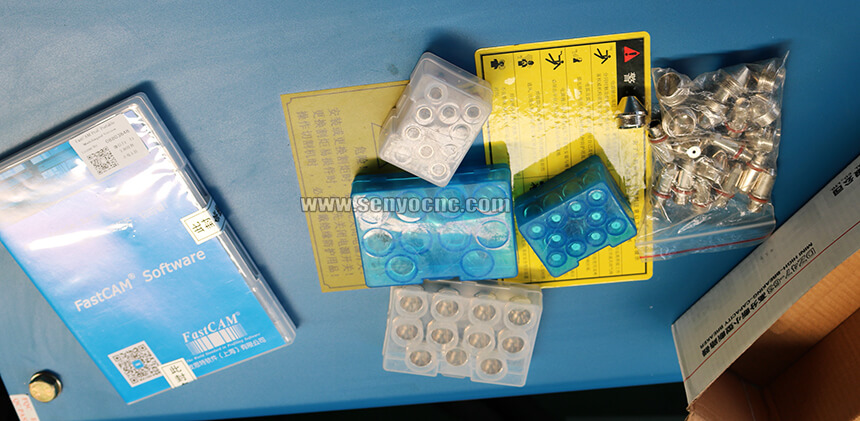

Accessories And Parts
Applicable Materials
To cut all metals, including but not limited to aluminium sheet, iron sheet, galvanized (steel) sheet, mild steel,titanium sheet. stainless steel, iron etc.
Applicable industry
Advertising industry: Advertising signs, logo making, decorative products, production of advertising and a variety of metal materials.
Mold Industry: Engraving metal molds made of copper, aluminum, iron and so on.
Metal industry: For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate, gold, silver, Titanium and other metal plate and tube.

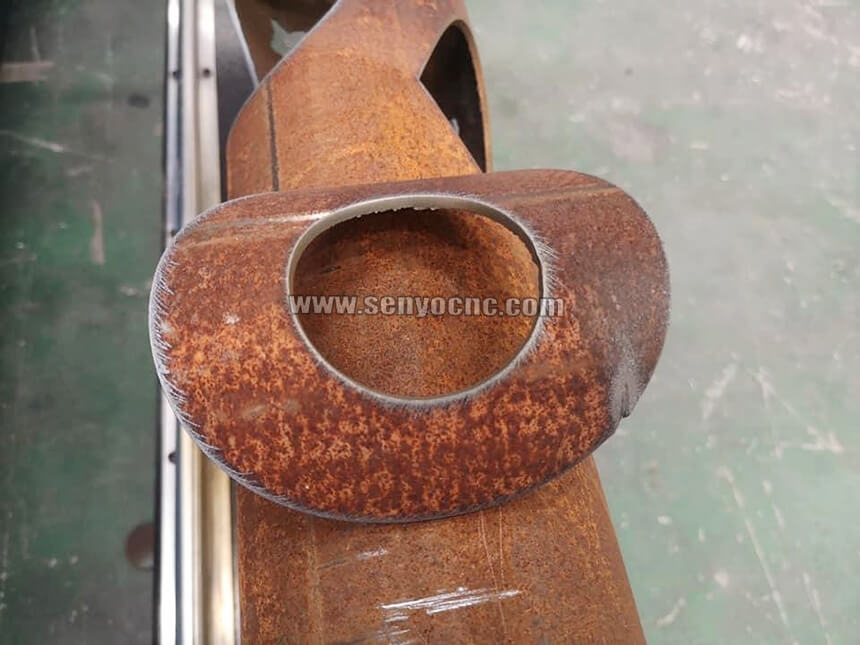

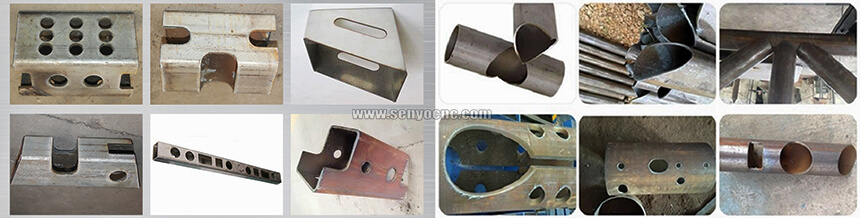

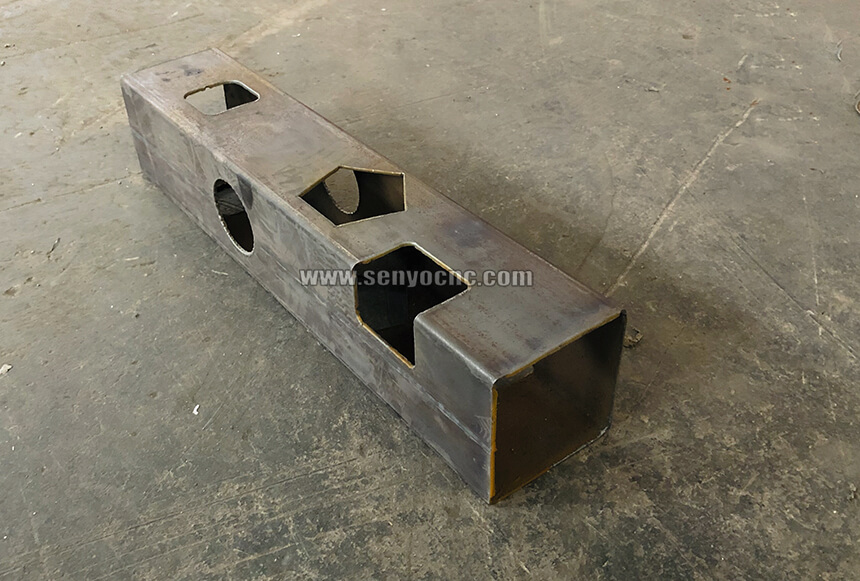

Samples of Affordable Rotary CNC Plasma Tube Cutter for Round & Square Pipes
Plasma Cutting Capacity of 4x8 CNC Plasma Table cut thickness
China Huayuan Power
| USA Hyperterm Power Power supply | ||
Power supplier | Cuting thickness | Power supplier | Cutting thickness |
63A | 8mm | 45A | 8mm |
100A | 15mm | 65A | 10mm |
120A | 20mm | 85A | 12mm |
160A | 30mm | 105A | 18mm |
200A | 40mm | 125A | 25mm |
200A | 30mm | ||
Shipping detail
1) CNC Router machine has been adjusted and test 48 hours before delivery.
2) English software, User manual and detailed installation & training video in USB
3) Some extra spare parts (Pipe,limit switches etc)
Service & Support
1.Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. You will be get free training advice towards our machine in our factory.
5. If you need any component of the machine, we will provide most affordable price for you.
6. Friendly English version manual and operation video CD disk.
International Shipping
Around the World All the CNC routers can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freigh
