Competitive Price New Design Waterjet Machine 3 axis Cutting Machine

From: 本站 Date: 23rd August 2024 Author: shengangtong Views: 347

Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine
Competitive Price New Design Waterjet Machine 3 axis Cutting Machine

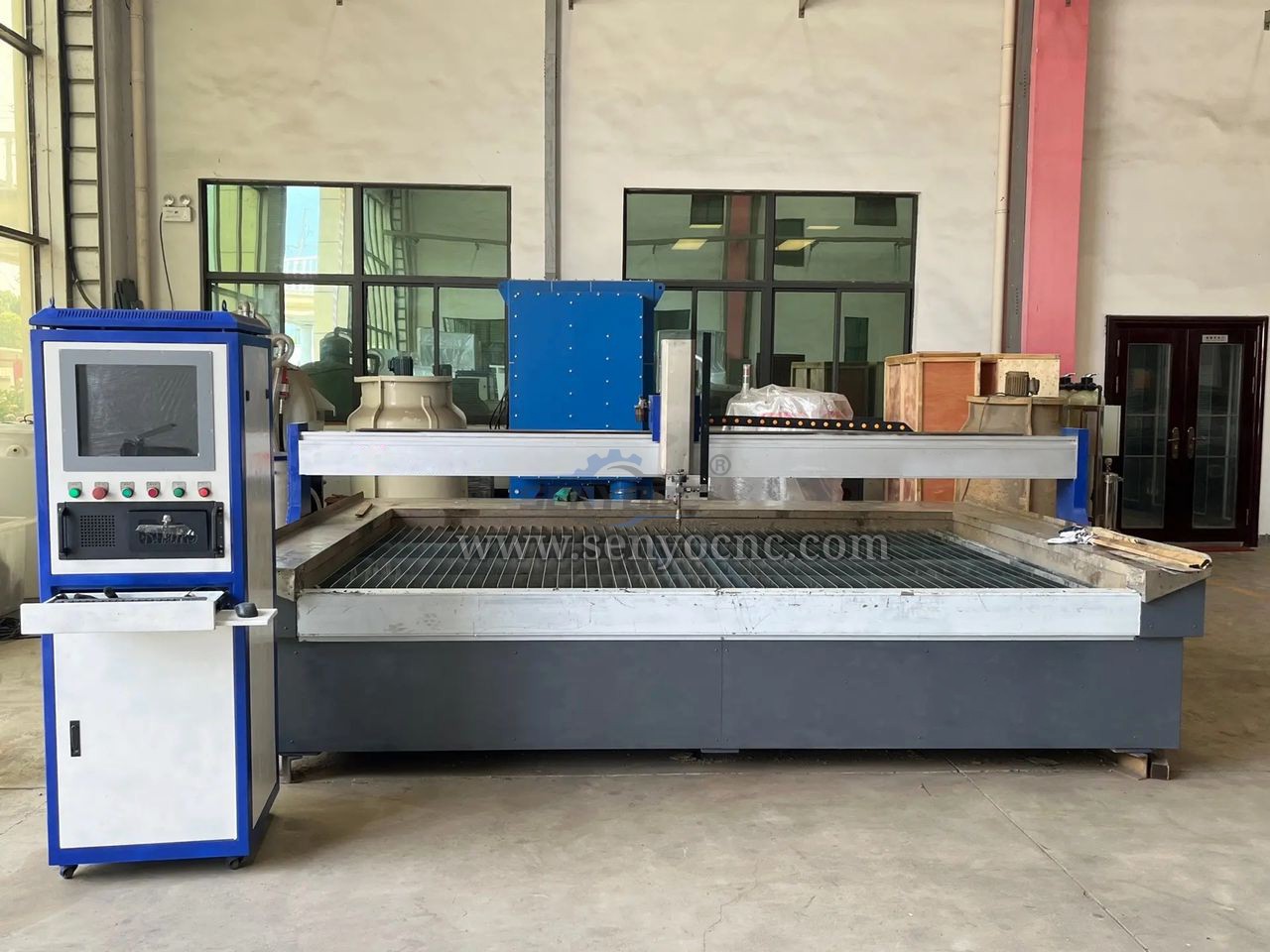

A  Set of standard waterjet cutting machine includes 4 parts.

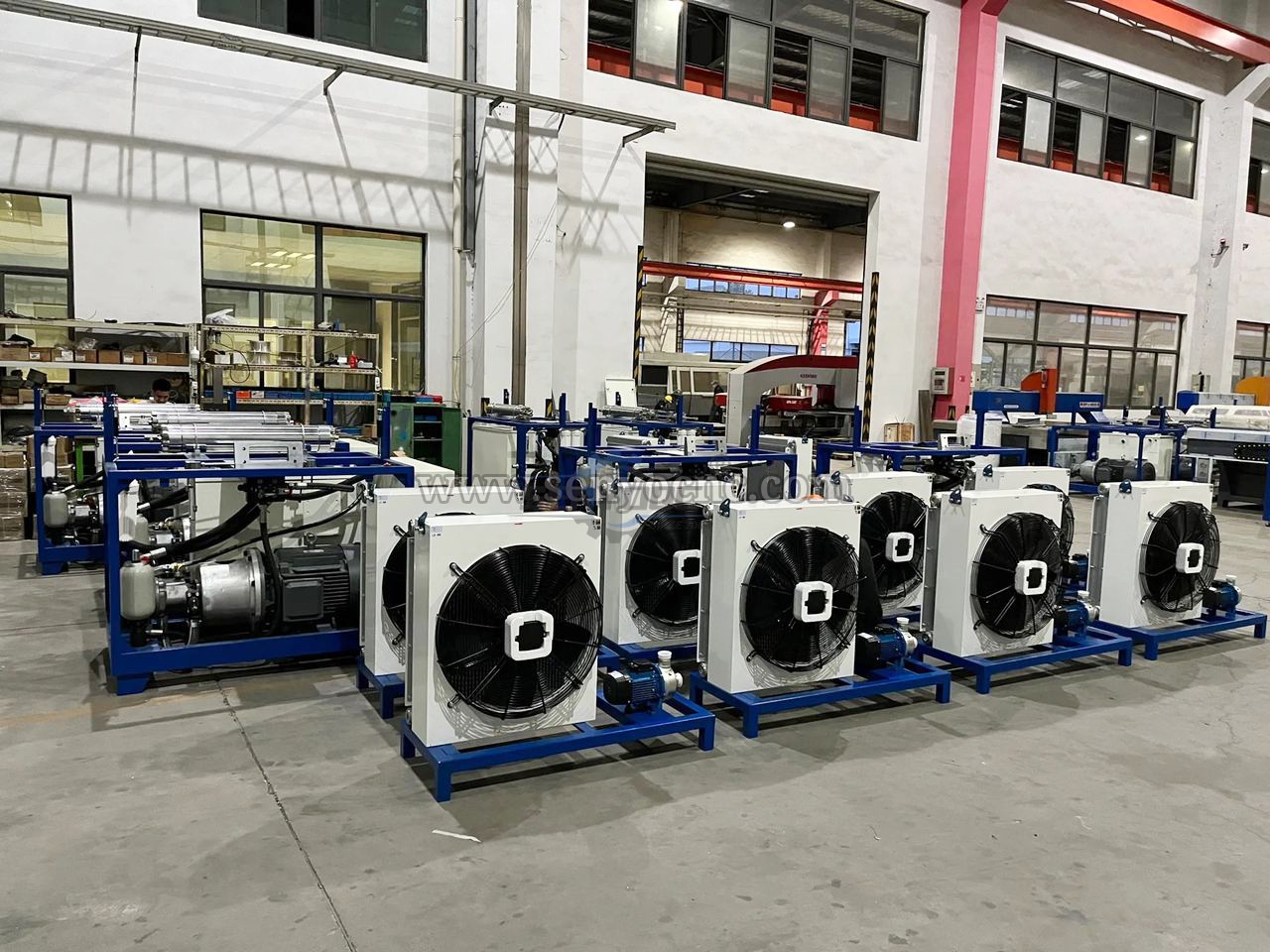

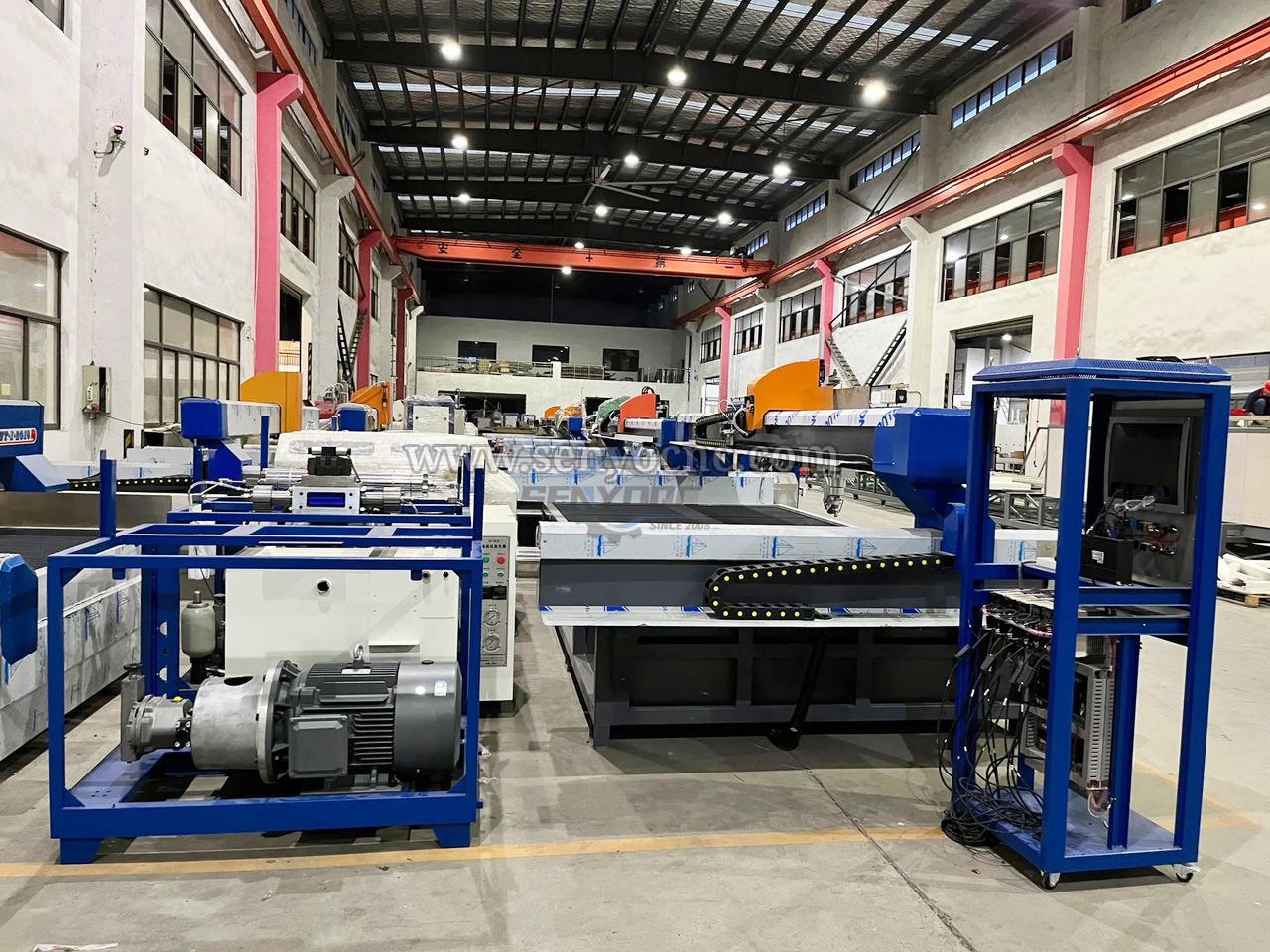

1. Intensifier Pump (It is the power source of a whole waterjet system, it determines the machine working stability and working service life)

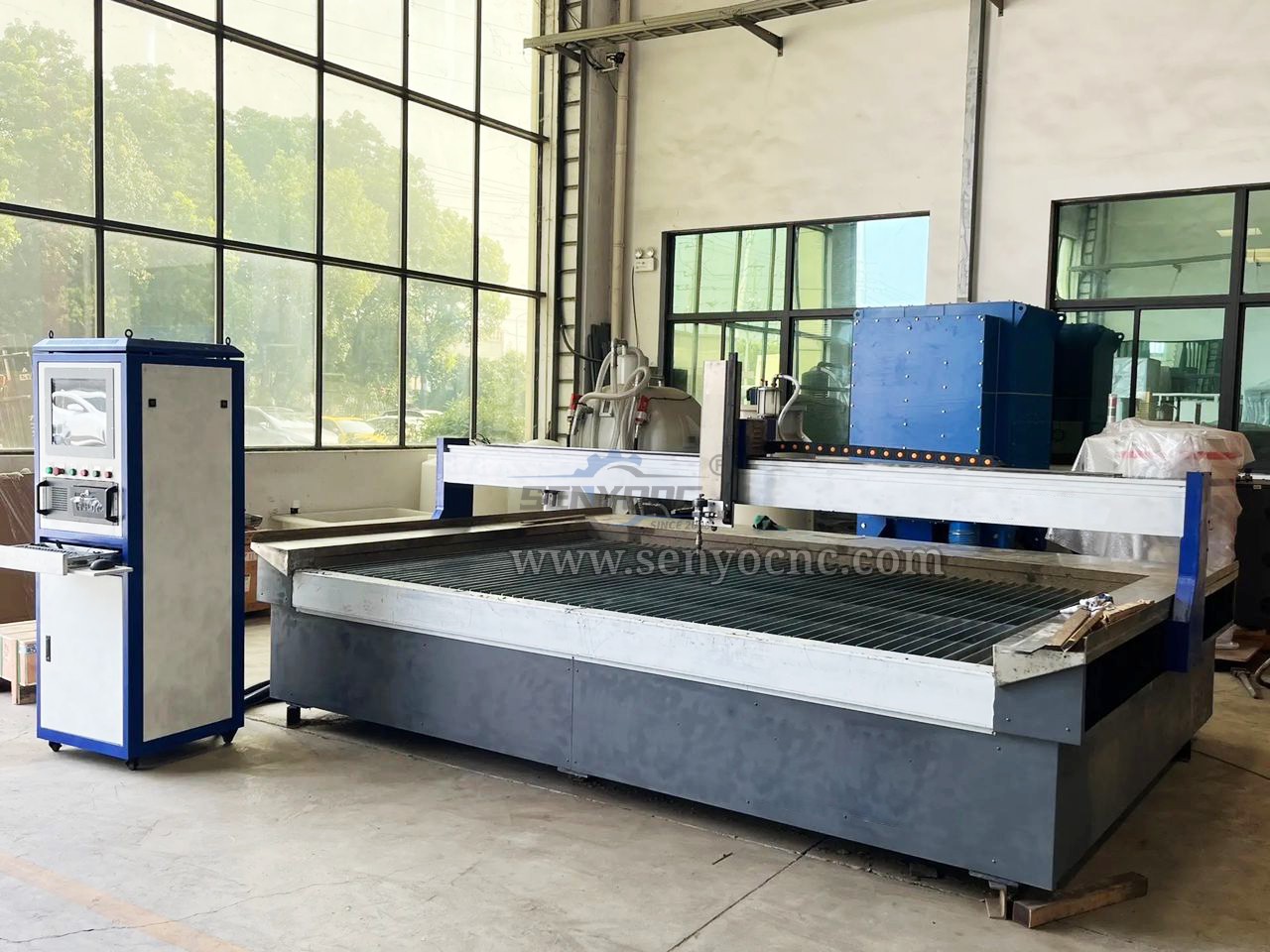

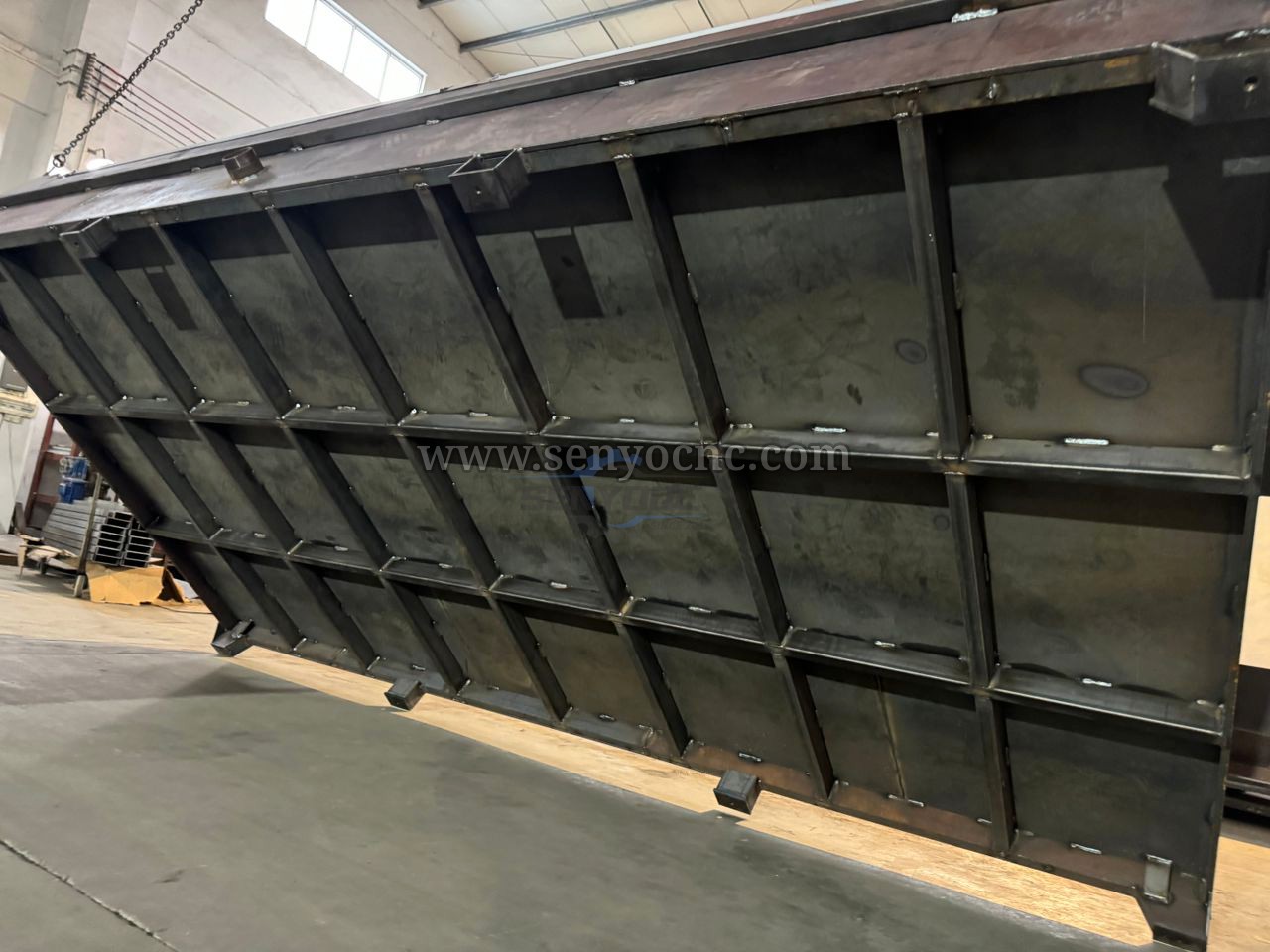

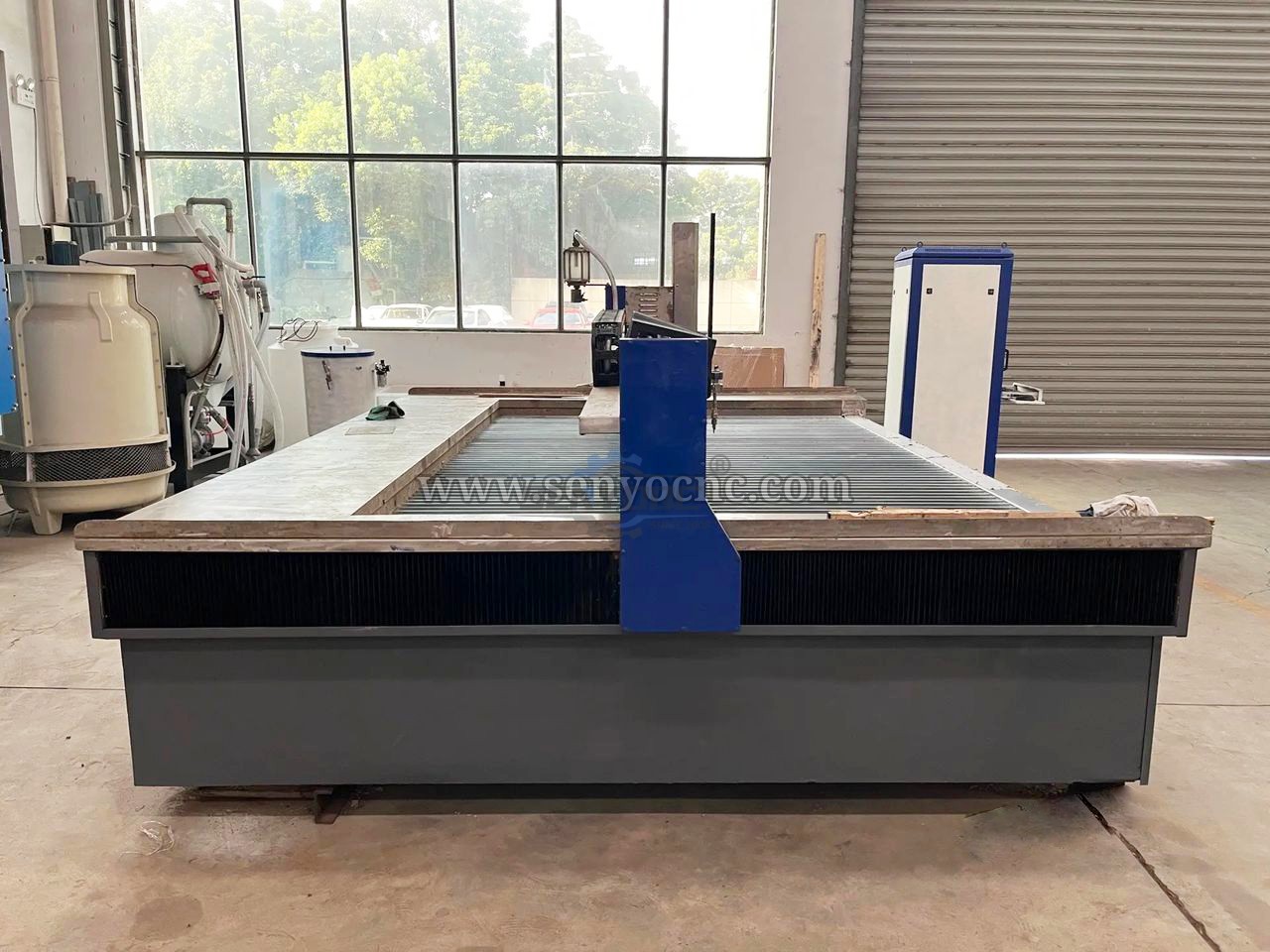

2. Cutting table

We can OEM for you according to your work piece size and we can also provide 3 axis, 5 axis cutting head

which one to choose depends on your detailed cutting requirement。


waterjet 3030 (1).jpg

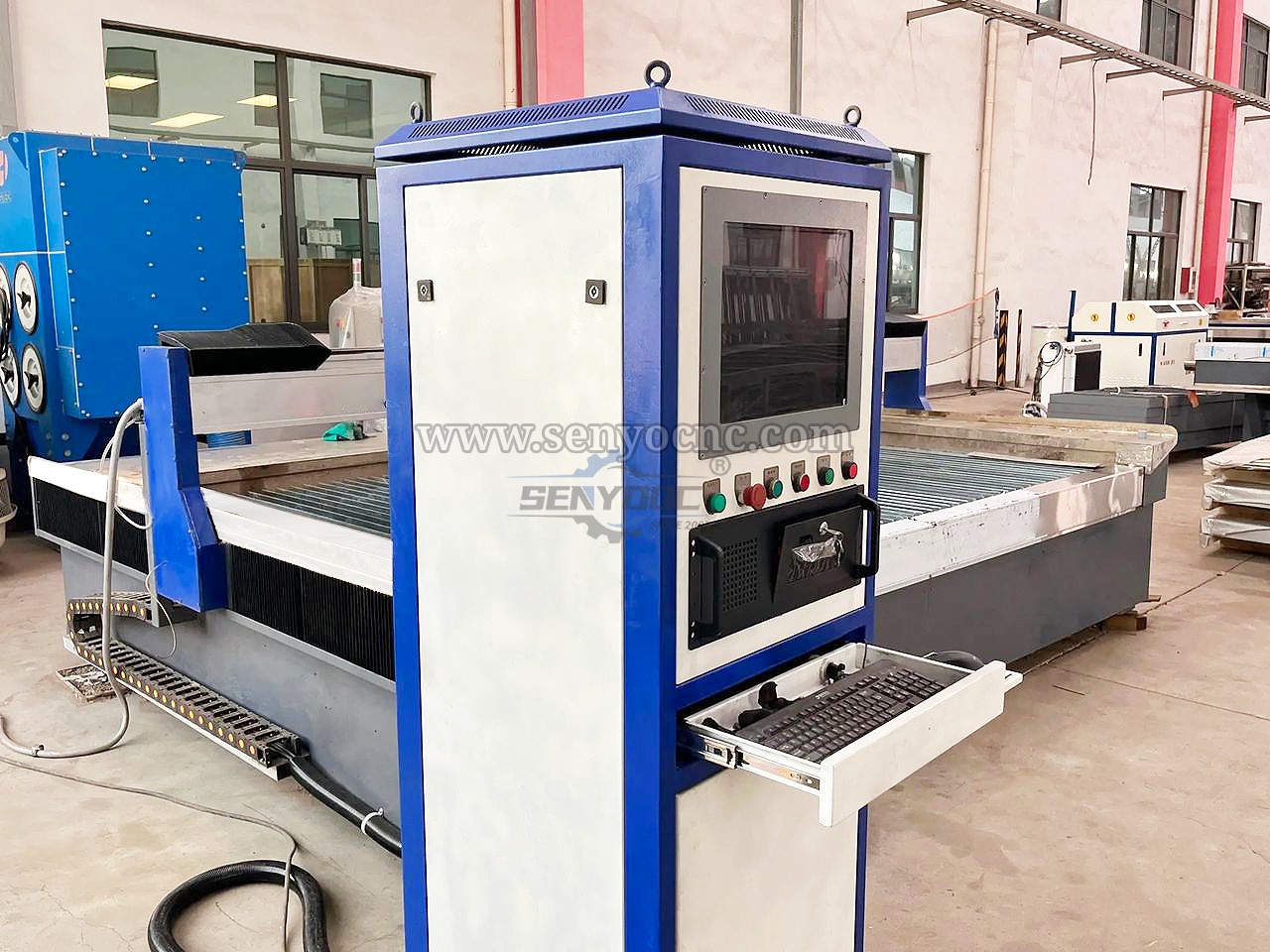

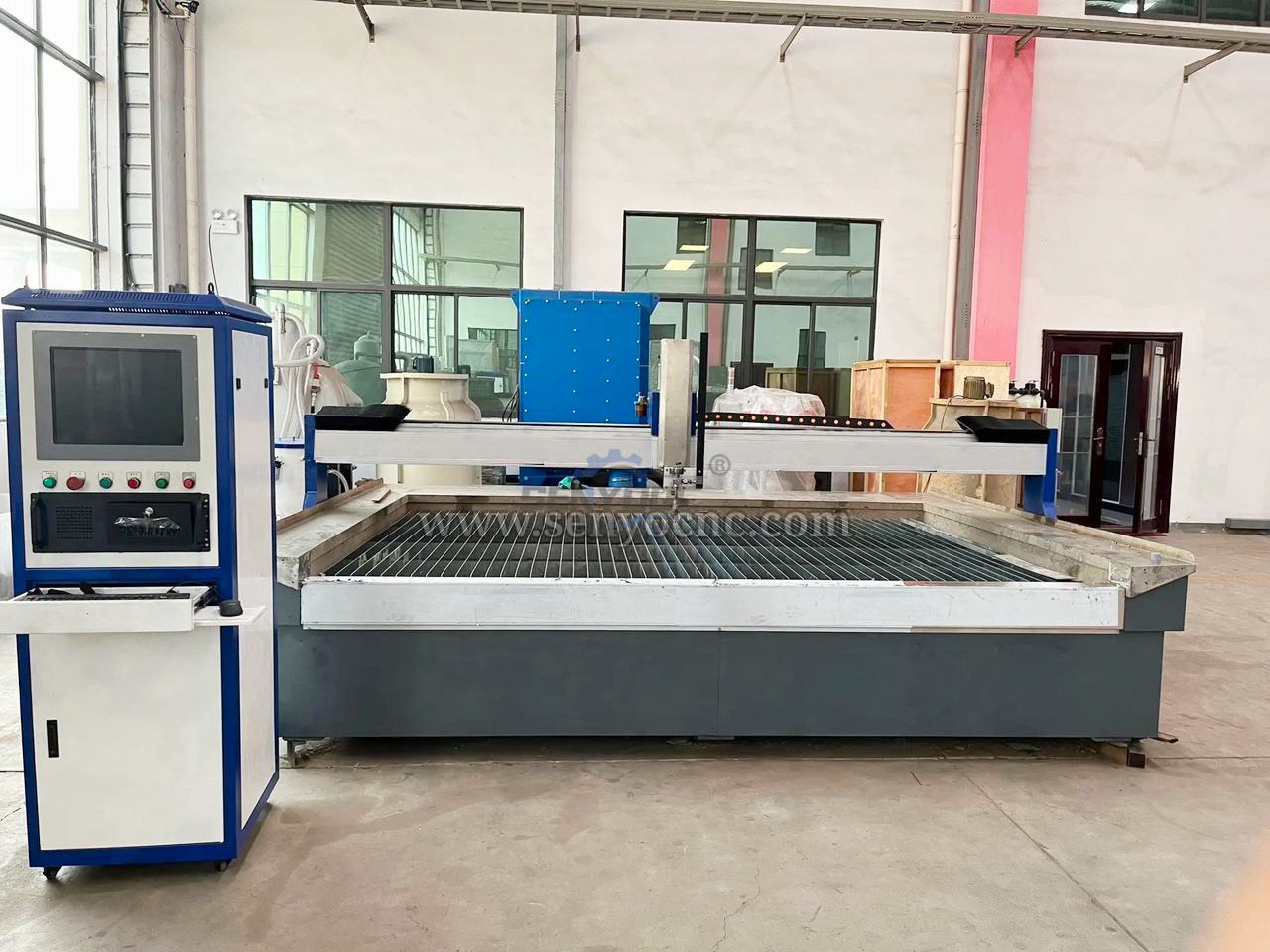

3. CNC Controller (It is the brain of a waterjet system, it control the machine to cut)

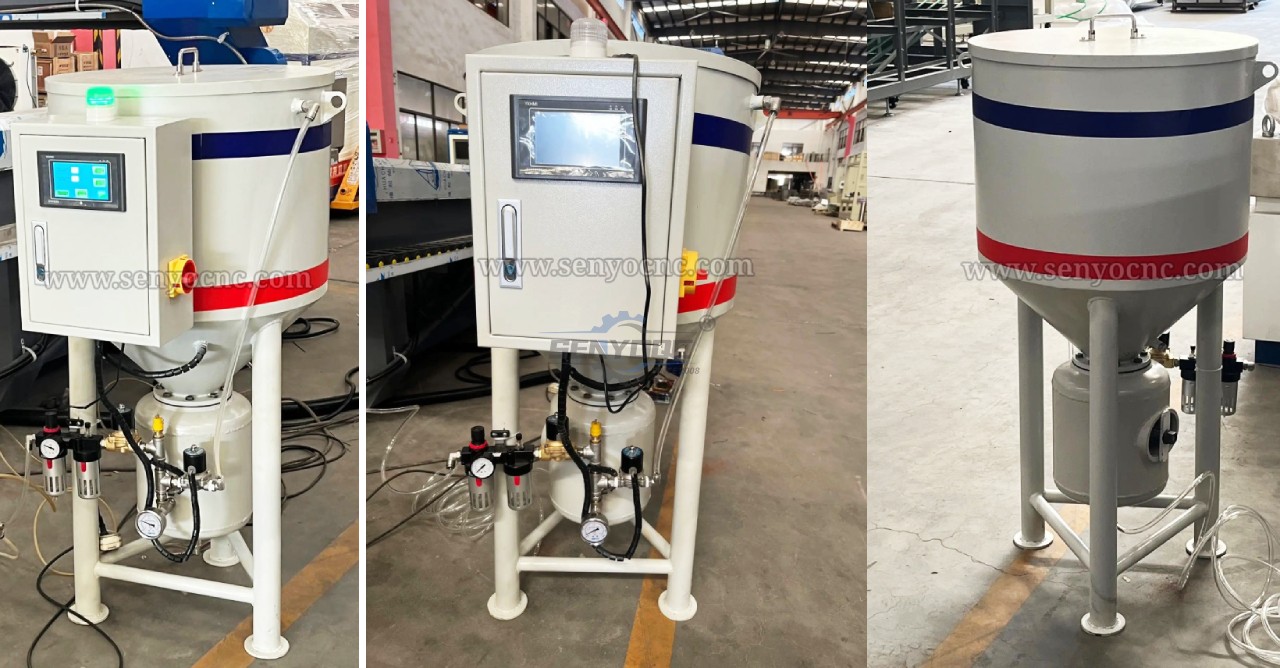

4. Auto Abrasive delivery system. (Water Jet needs to mix the abrasives to cut the hard materials, abrasives let the water more powerful)


waterjet 3030 (2).jpg


Competitive Price CNC Water Jet Mirror Cutting Machine New Design for Glass Processing Machinery


waterjet 3030 (3).jpg



Waterjet cutting is best described as a controlled, accelerated erosion process.

For this reason, a waterjet stream can cut through virtually any known material, making waterjet one of the most versatile machines available.


waterjet 3030 (11).jpg

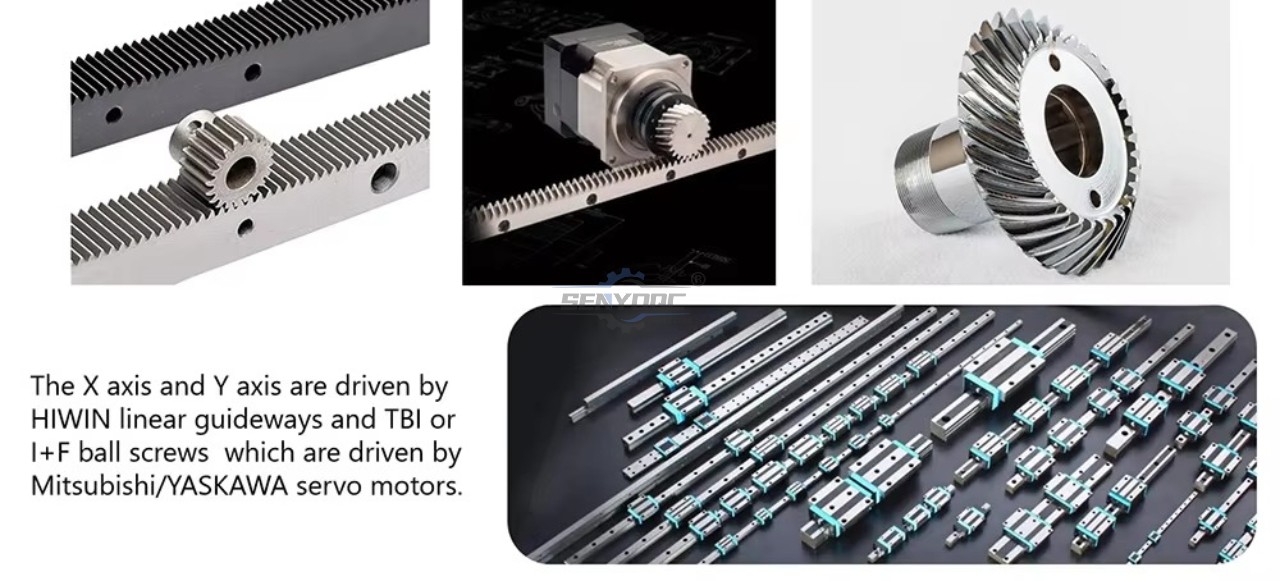

We adopt the imported component of cnc water jet mirror cutting machine like Rexroth hydraulic pump;

USA intensifier; Siemens motor; Omron PLC; Yaskawa servo drive; Yuken direction control valves etc.

The whole parts of Intensifier are assembled in USA (not just some parts),

most of the smaller parts are also imported from USA to ensure its good stability during cutting, durability and long working service life.



waterjet parts (8).jpg



Paramaters For Waterjet Cutting Machine


A water jet mirror cutting machine is made up of 4 key components, that is Intensifier pump; Cutting table; CNC controller; Auto abrasive feeder.
Intensifier PumpMax. water pressure410Mpa
Continuous working pressure360-380Mpa
Max. oil pressure20Mpa
Motor power37KW/50HP
Cutting water inlet pressure0.3Mpa
Cooling water inlet pressure0.3Mpa
Power supply380V/50HZ/3PH
Max. flow rate3.7L/Min
Oil tank volum30Gal.(114L)
Cutting TableStructural styleCantilever style
Cutting area3000x2000x150mm
Max. moving speed for X/Y-axis 6000mm/min
Max. moving speed for Z-axis1000mm/min
Load bearing500kg/ Squre meter
Control accuracy0.01mm
Cutting accuracy0.1mm
Power supply220V
Way of driveAC Servo
X/Y-axis structureAluminum structure

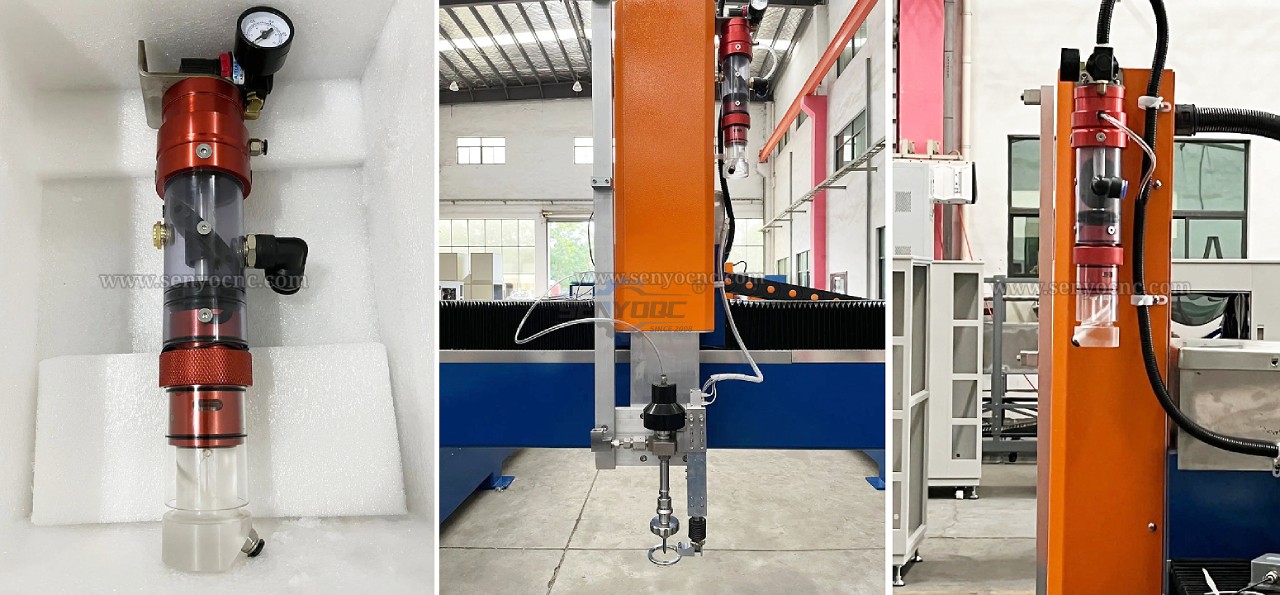

Cutting HeadMode3-axis
Max. orifice diameter0.33mm
Max. nozzle diameter1.02mm
Z-axis step motor0.9N.M
CNC Controller15 inch LCD monitor
Support DXF and NC code file
Software: Windows XP
Resistance of the shoch and electro-magnetic
                                              The key function
Forward & backward processing function Even pace control function
Small arcs speed auto processing functionCircle processing function
Partial and smooth processing modes
Abrasive FeederMax. inlet air pressure0.6Mpa
Min. inlet air flow0.028m3/min
Abrasive capacity225KG
                                                  Features
Air valve to prevent jams and breakagesSelf sealing
Auto control with CNC auxiliary functionSlightly adjust the flow



Application And Working Samples


Competitive Price CNC Water Jet Mirror Cutting Machine New Design for Glass Processing Machinery

The technology for water jet mirror cutting machine is a great method for cutting glass because

it allows for contours and shapes that cannot be achieved with other cutting machines at a reasonable cost.

From artistic tabletop inlays to detailed stained glass designs, mirrors, glass ornamentsreplacement windows for antique cars, and more,

there’s almost no glass cutting application that a water jet mirror cutting machine fromWaterjet can’t tackle.

Glass has a tendency to crack, so it is very important that the initial holes are produced with a reduced pressure.

Subsequently, the pressure must be increased to a cutting speed that is cost-effective.

For glass, ceramics and other brittle materials, you must gradually increase and reduce the cutting pressure

by means of proportional pressure control of the intensifier pump, otherwise the material would be destroyed.



Shipping & Delivery

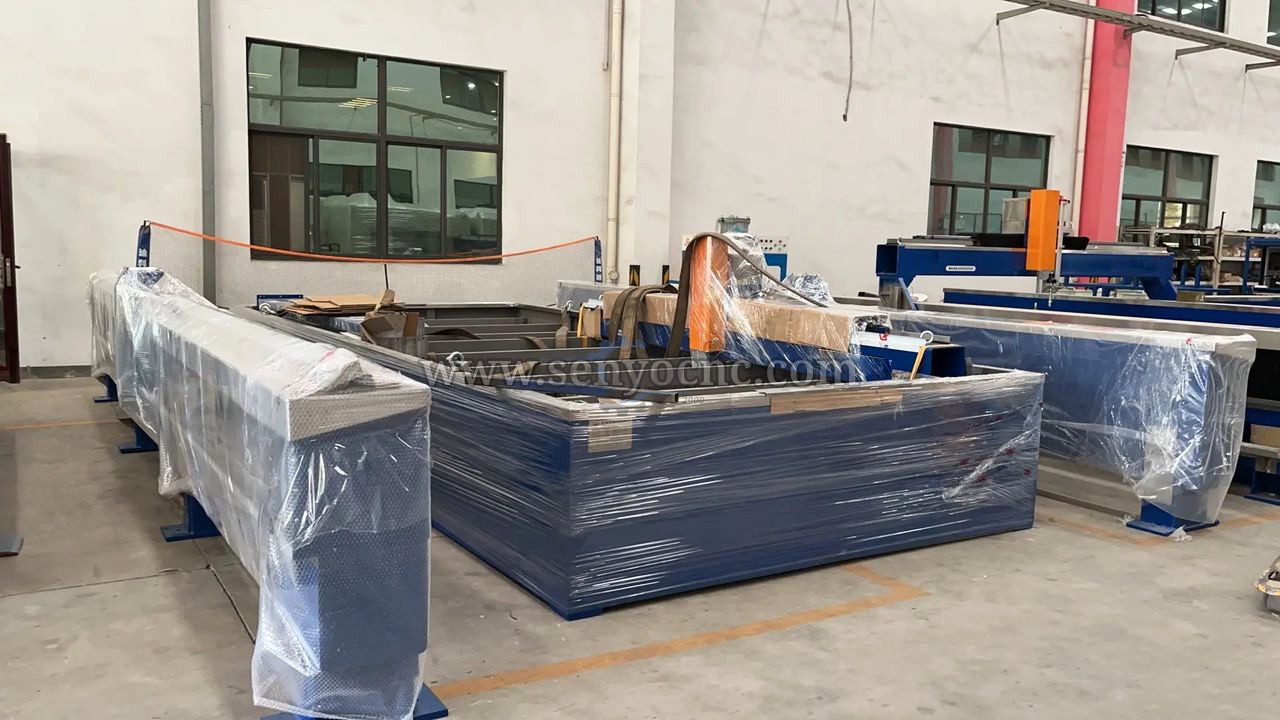

CNC water jet mirror cutting machine be packed in standard packing, suitable for long distance ocean transportation and well protected against damage, moisture, shock, rust and handling


waterjet 3030 (8).jpg

waterjet 3030 (4).jpg

waterjet 3030 (6).jpg



Introduce For Our WaterJet Machine


1. Are there special considerations for making glass parts?


Dual pressure piercing allows for piercing of glass with minimal risk of cracking.

SENYO cnc water jet mirror cutting machine could work with low-pressure piercing to slowly raise the pump pressure during the pierce to avoid a sudden shock to the material by a rapid change in pressure. Using these techniques reduces the risk of cracking, making glass cutting into a very profitable venture.



2. What kind of glass does your cnc water jet mirror cutting machine can cut?


There are plenty glass our cnc water jet mirror cutting machine can cut, such as laminated glass,bullet-proof glass , stained glass, polished glass, wired glassect.




3. What your cnc water jet mirror cutting machine's Max. cutting thickness for glass?


In theory, the thickness is up to the Z-axis travel, for common style, it is 150mm,

but in practical it is better to cut 120mm glass with good quantity and speed.



4. What are the different between water-only water jet and abrasive water jet?


"Water jet" is commonly used to reference both water-only water jet and abrasive water jet cutting.

Water-only water jets cut with ultra-high pressure water alone.

Abrasive water jets cut with an abrasive material (usually garnet) that has been added to the water stream.

Water-only water jets can cut through softer materials such as rubber and foam.

Abrasive water jets are used to cut through harder materials such as plastic, composites, stone, glass and metal.
