From: 本站 Date: 02nd January 2025 Author: SENYOCNC Views: 353
Product marking is one of the most useful and exciting applications of laser.
Along with other benefits, it has made engraving possible on rough and uneven surfaces and on different shapes.
In this article we are going to find out how to process round objects with 50w fiber laser marking machine.

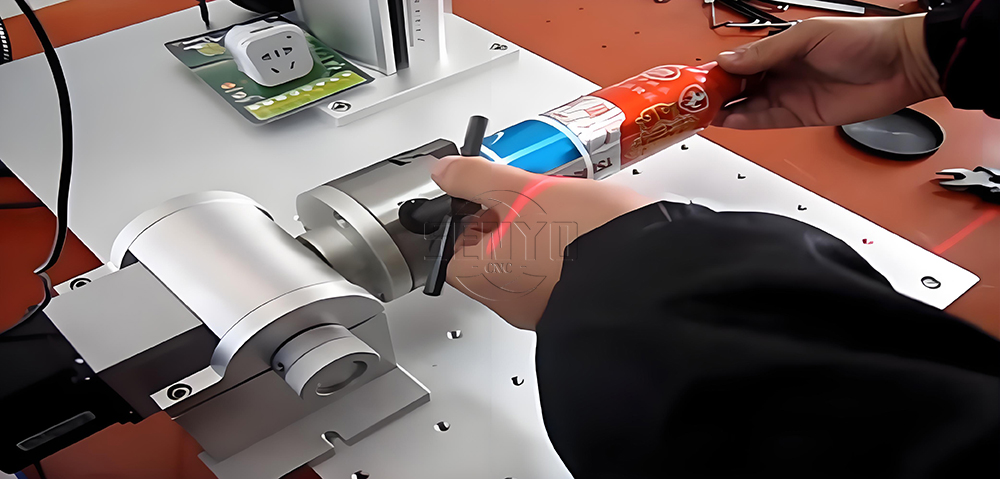

The device necessary for processing circled parts is called rotary fixture.
This is an attachment for a fiber laser marking machine that makes it possible to engrave round, conical or cylindrical objects.
How Is It Possible?
The marking head of any modern fiber laser engraver moves in X and Y directions, providing the automated work of the device.
With the rotary fixture installed, the head is not moving in Y direction.
Instead, the part itself is rotating with the speed matching the speed of fiber laser marking.
How To Engrave a Bottle?

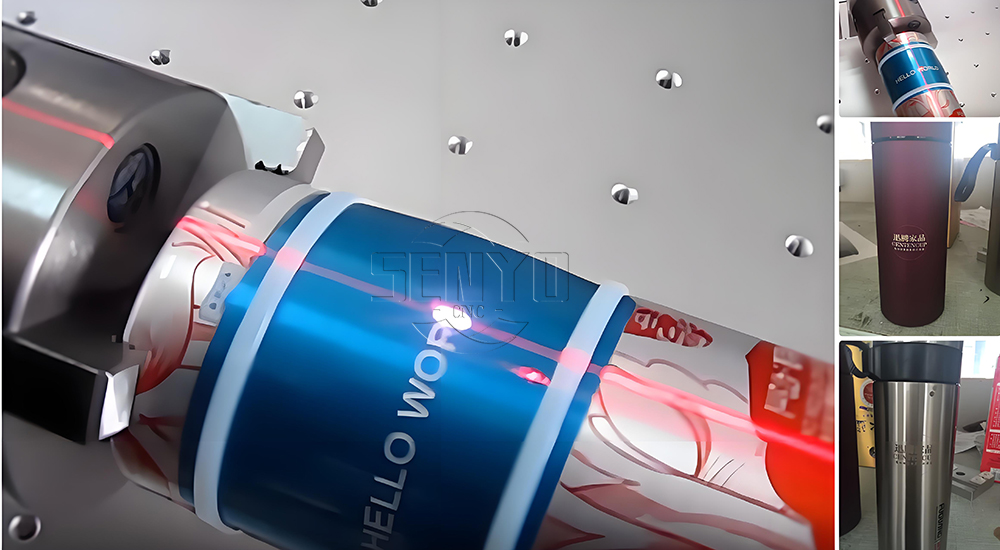

Task: As an example we are engraving a stainless steel bottle with our traditional sample phrase “Hello world”.
The 50w laser engraver is a perfect option for etching stainless steel.
Follow the steps below to cut your cup, bottle or other rounded objects with this fiber marking machine
Make sure it is well fixed. Check if the product is installed the right side up, so the text won’t be upside down.
Set the necessary height of the head. The red line and the red dot of the beam will help you. See that they overlap.
Watch the spectacular fiber laser 50w machine in action!
Enjoy the accurate and eye-catching engraving on the product!
We hope this instruction has helped you to master engraving on circled objects.
You can also try engraving more complex graphics with a rotary fixture. Please feel free to Contact us findings in comments!
