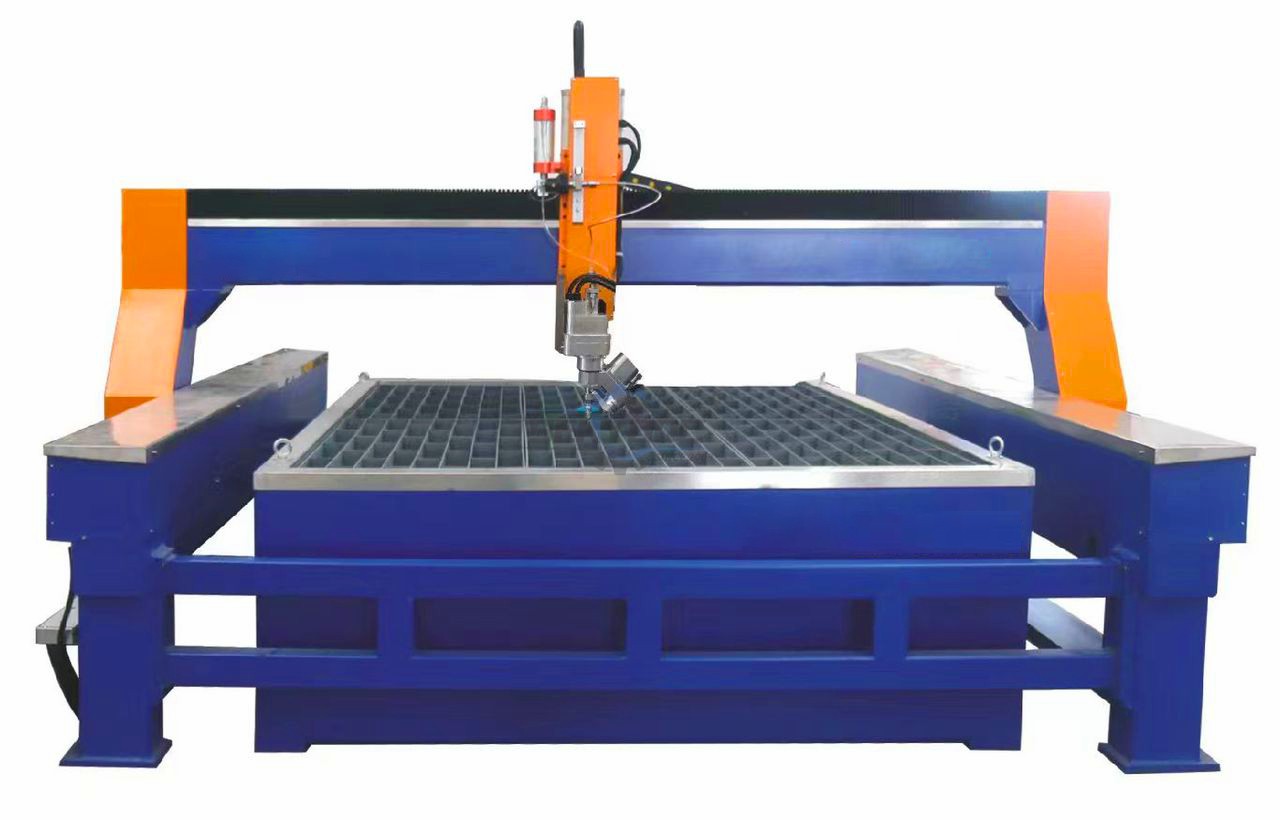

Split design Waterjet Cutting Machine 5 Axis AB best price-Waterjet cutting Machine-Jinan Senyo Machinery Co., Ltd-2025 Professional CNC Machine Manufacture and Supplier from china:Jinan Senyo Machinery Co., Ltd

1) Cut Recovery - Pick back up where Jet stopped.2) Programmable Z axis height. Z axis retracts between pierces.3) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.4) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.5) Driver system sealed against water,dust and grit. Long working life.

Product Descriptions

The line cutting accuracy is +0.1mm, angle cutting accuracy is +0.1°. Our machine is applied to cut bevel surface, straight surface, conical surface, circular surface, rotating surface, groove, chamfer, and arbitrary surface.

It is able to cut steel, stainless steel, aluminum titanium, marble, granite, ceramic, glass, rubber, foam and many other materials.

Main Features

1) Processable any curve cutting, flexible, convenient and versatile.
2) Notch is fast and smooth, no dust, no thermal deformation and no pollution.Tension-free processed parts due to minimal cutting force.

3) Narrow kerf – The amount of material removed by the water jet stream is typically about 0.5-1.0 mm wide.

Cut width optimizes material use, increasing cost effectiveness.

4) Cut Recovery - Pick back up where Jet stopped.

5) Programmable Z axis height. Z axis retracts between pierces.
6) Servo motor, linear sledge and vehicles, helical rack and pinions is used for providing a rapid and smooth axial movement.
7) High-Performance drive system, which permit high-precision production of parts as well as the highest processing speed.
8) Driver system sealed against water,dust and grit. Long working life.

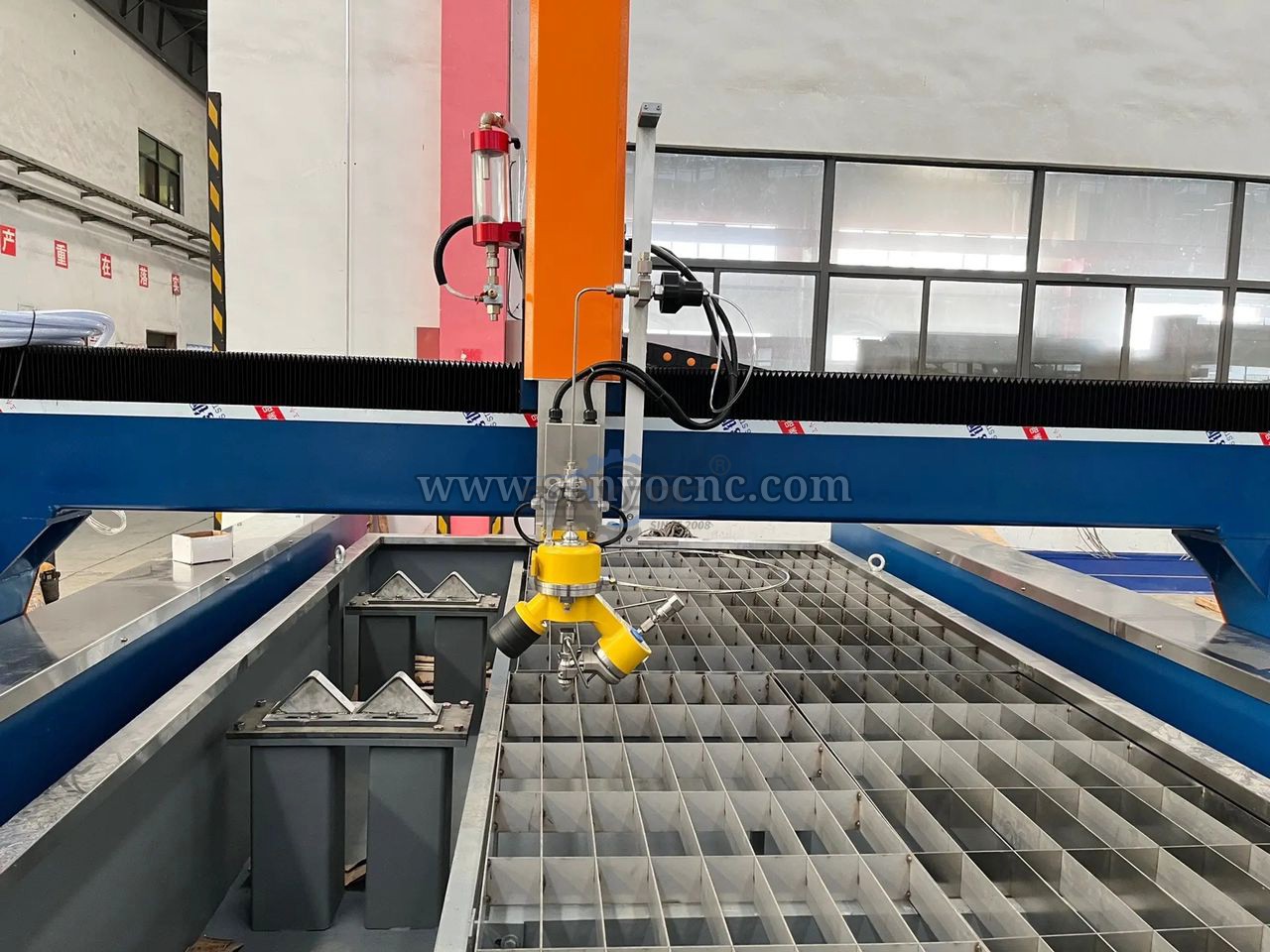

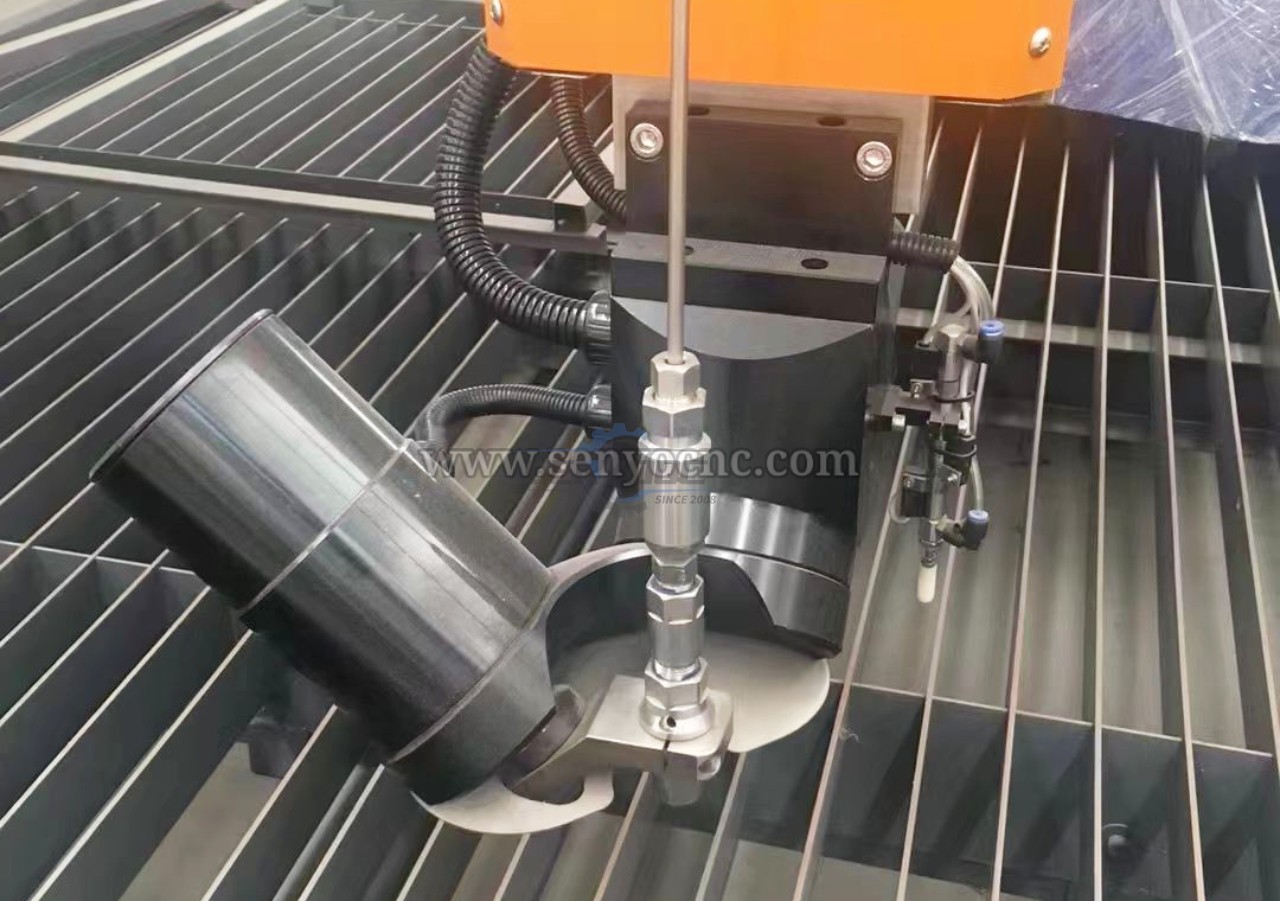

AC Design Head

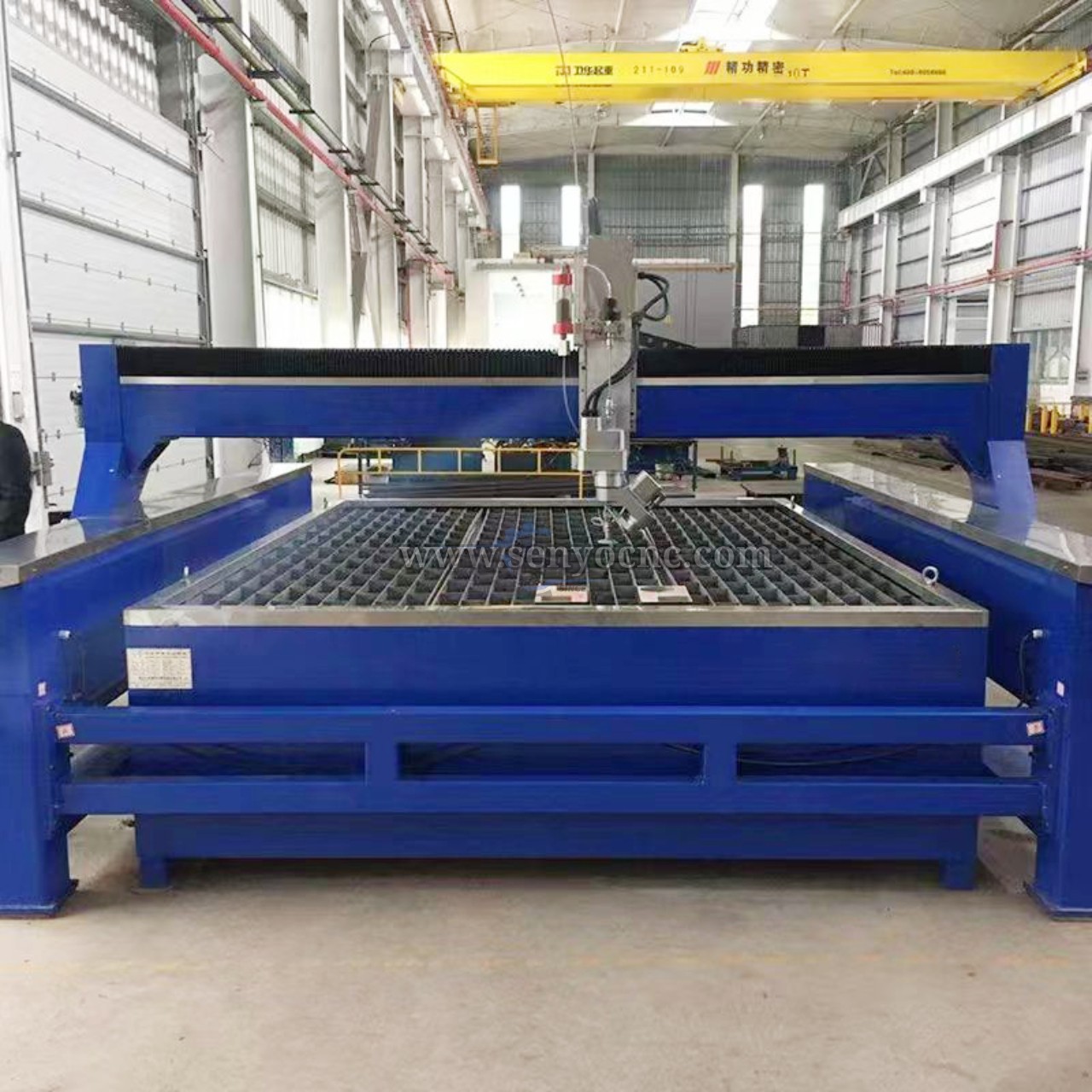

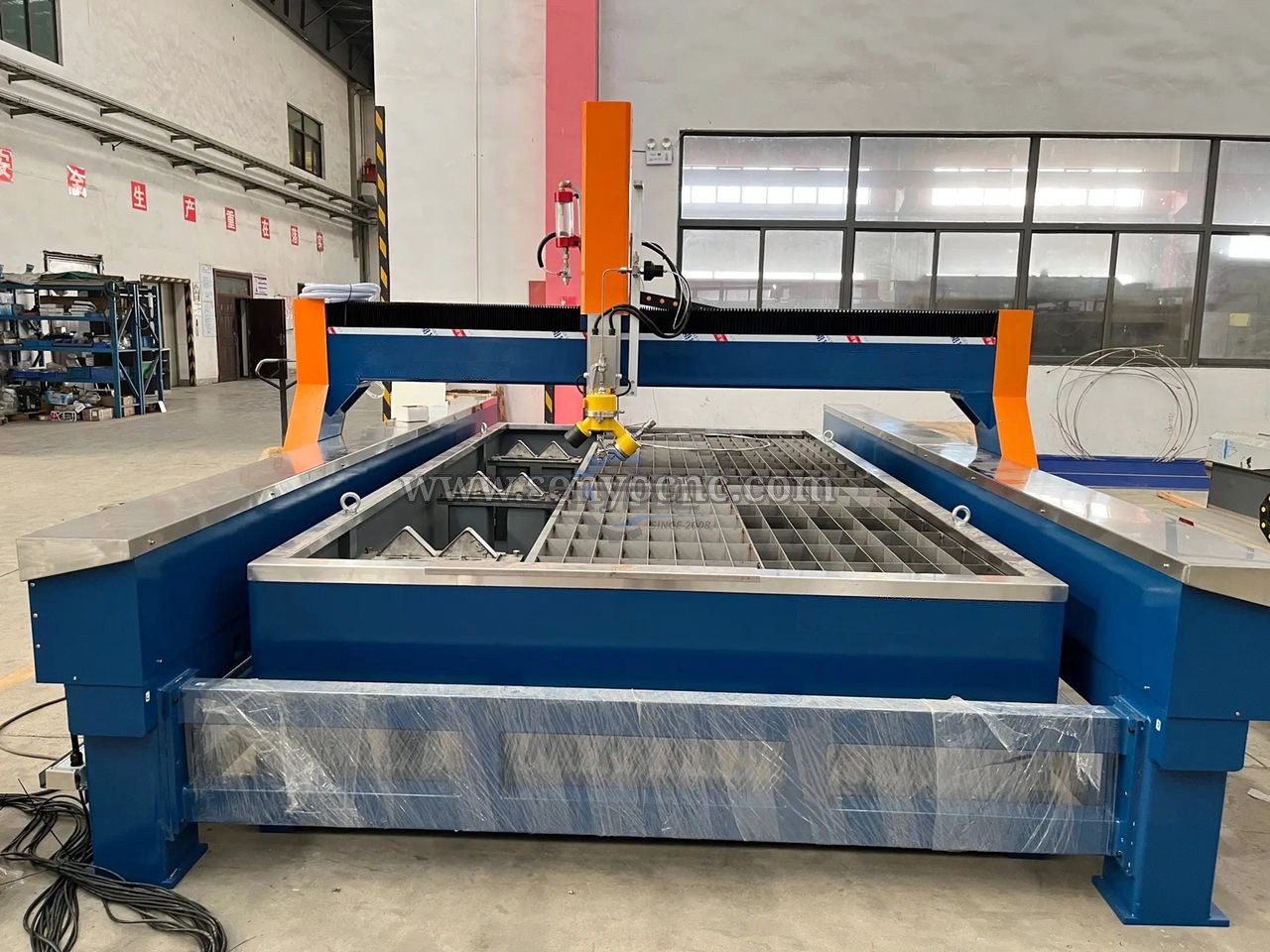

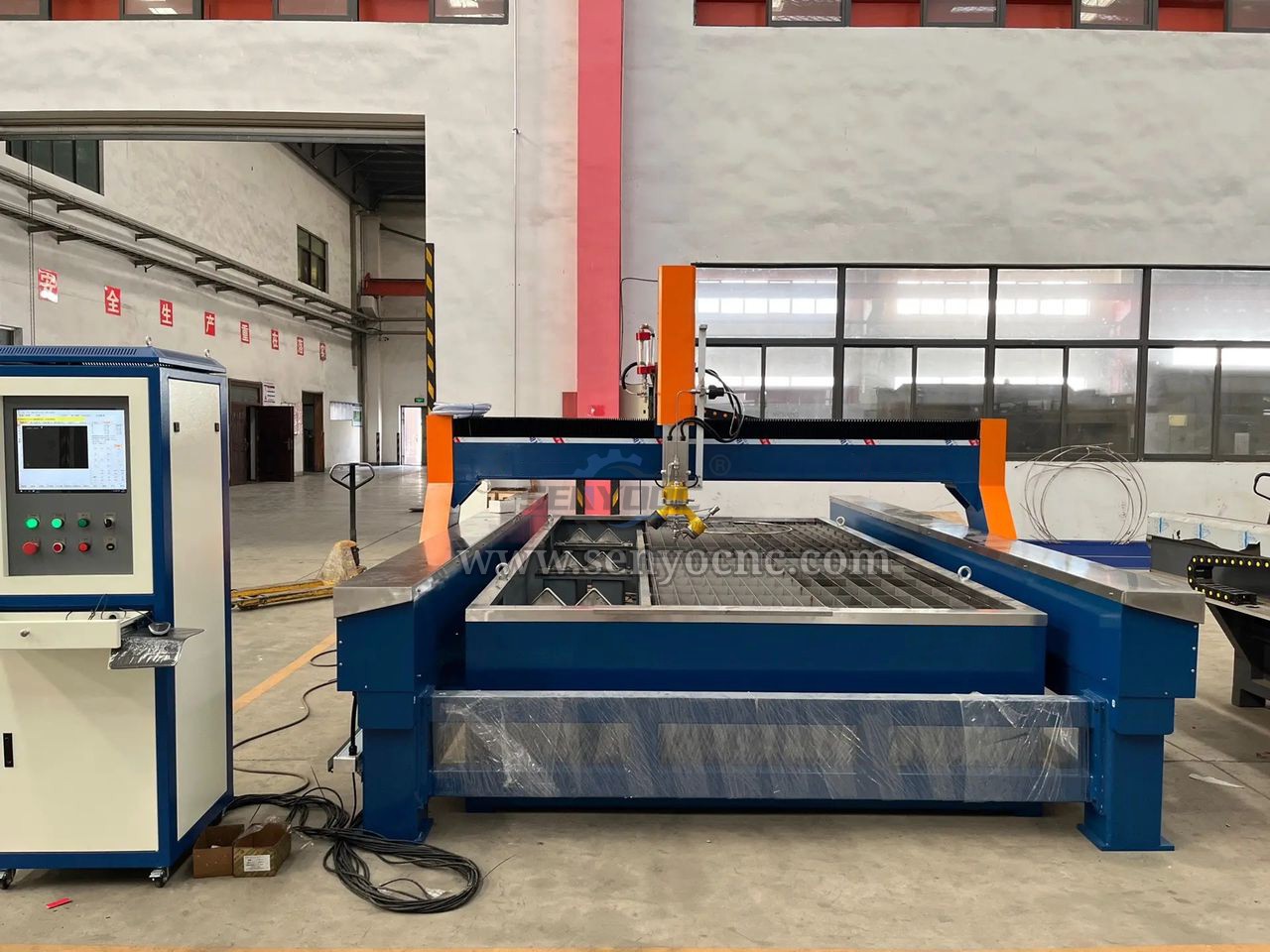

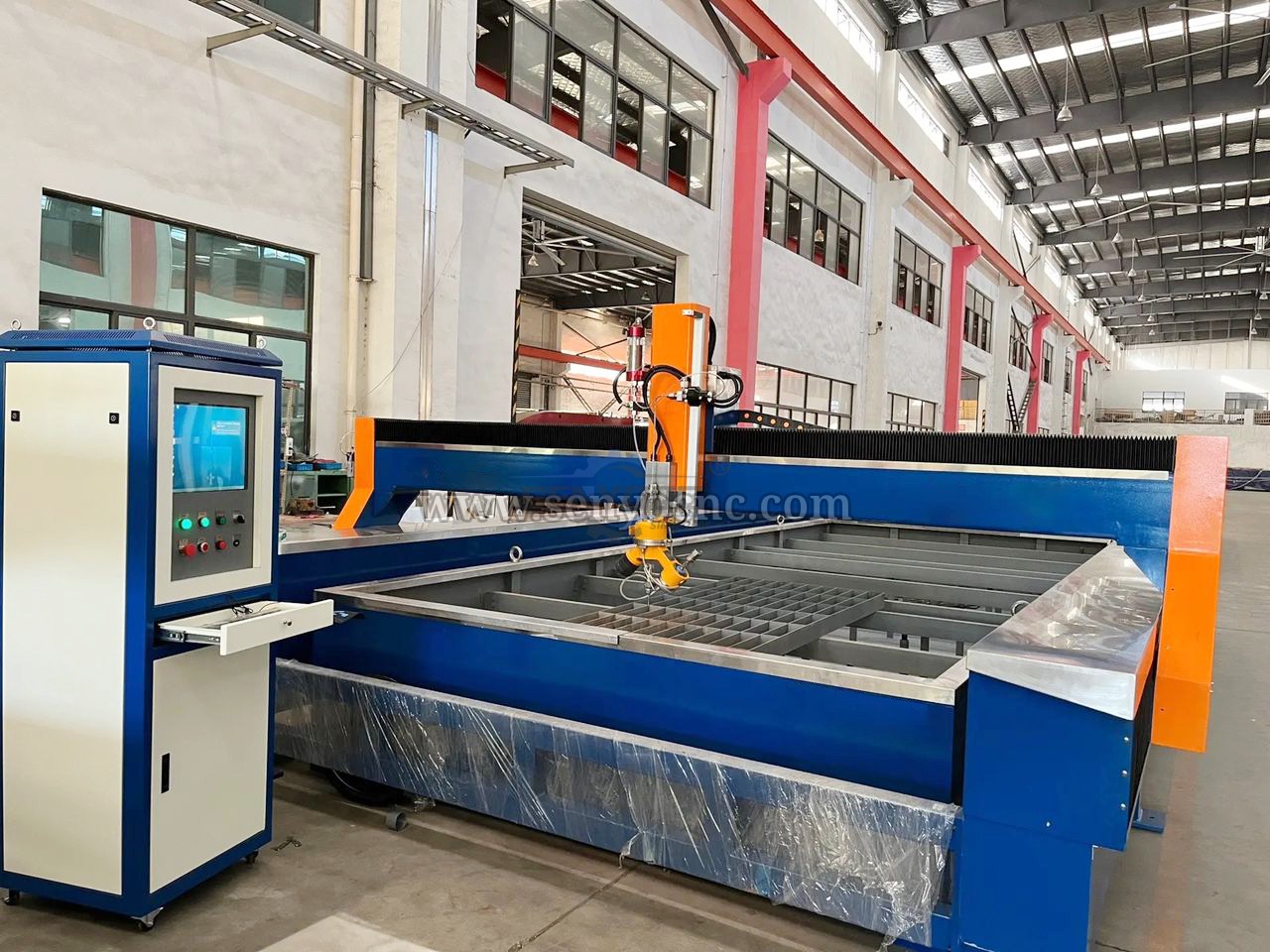

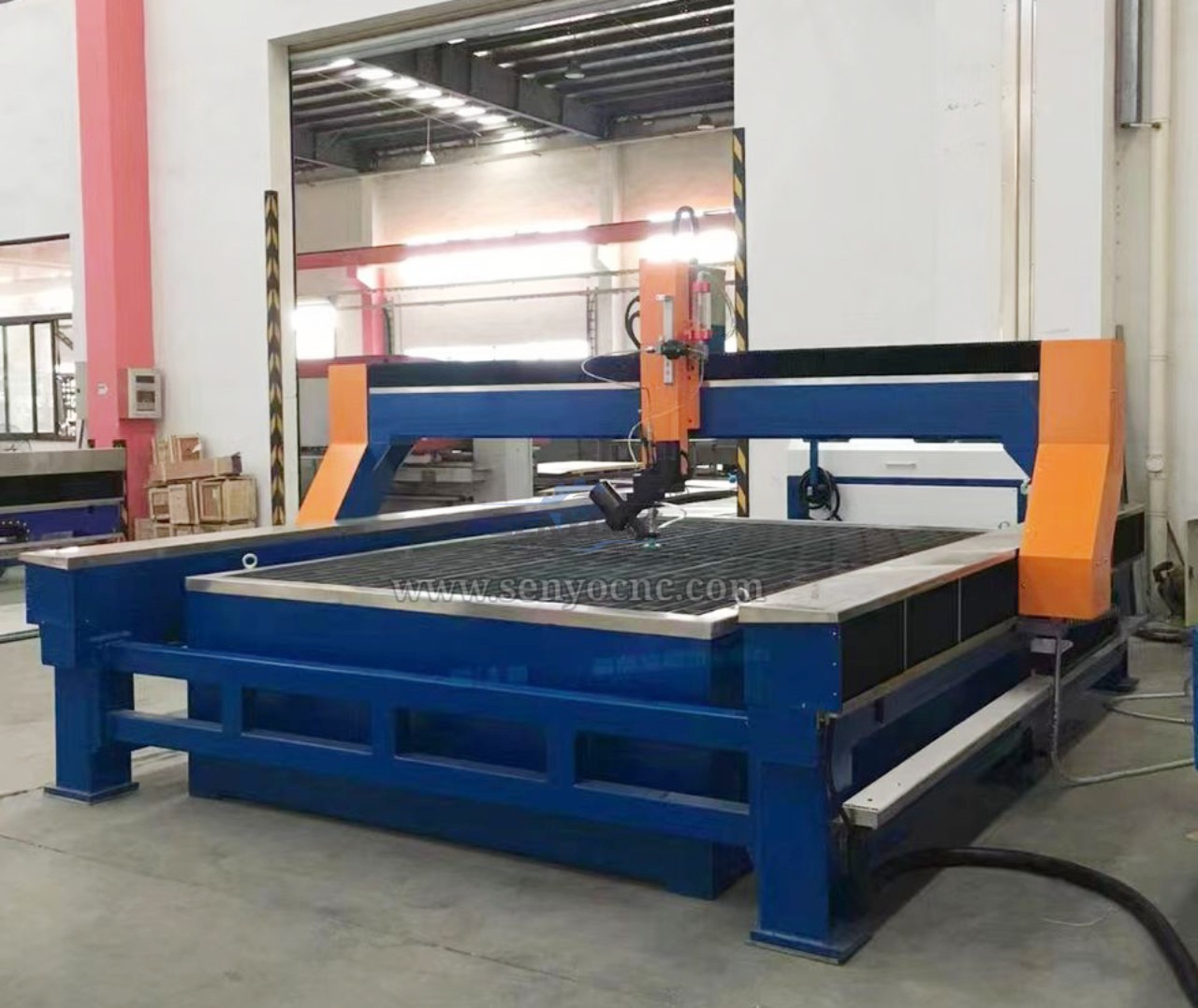

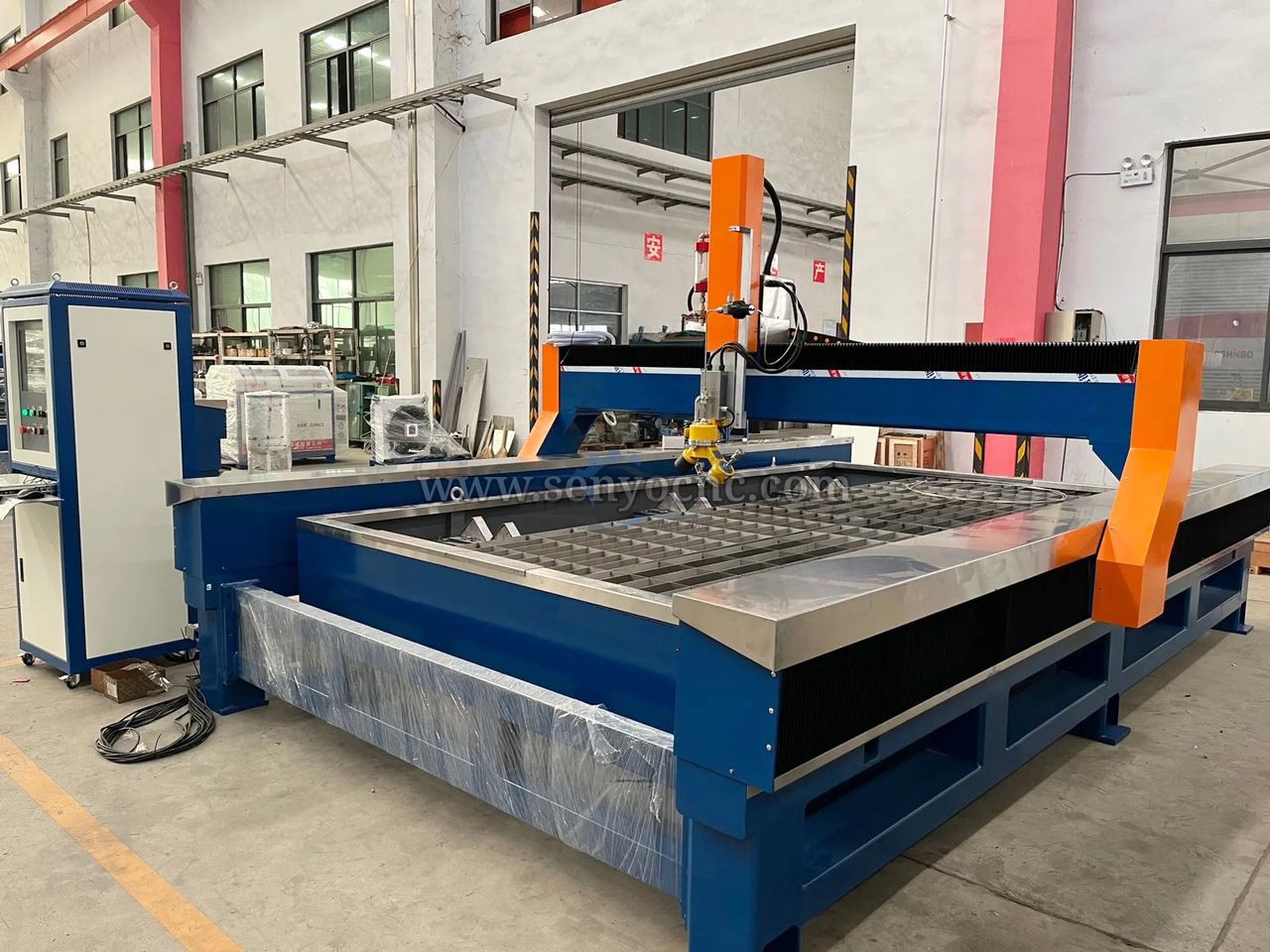

Structure features of Water Jet Cutting Table:

uperior precision and stability are guaranteed by the casting beam and base frame of Y-axis.

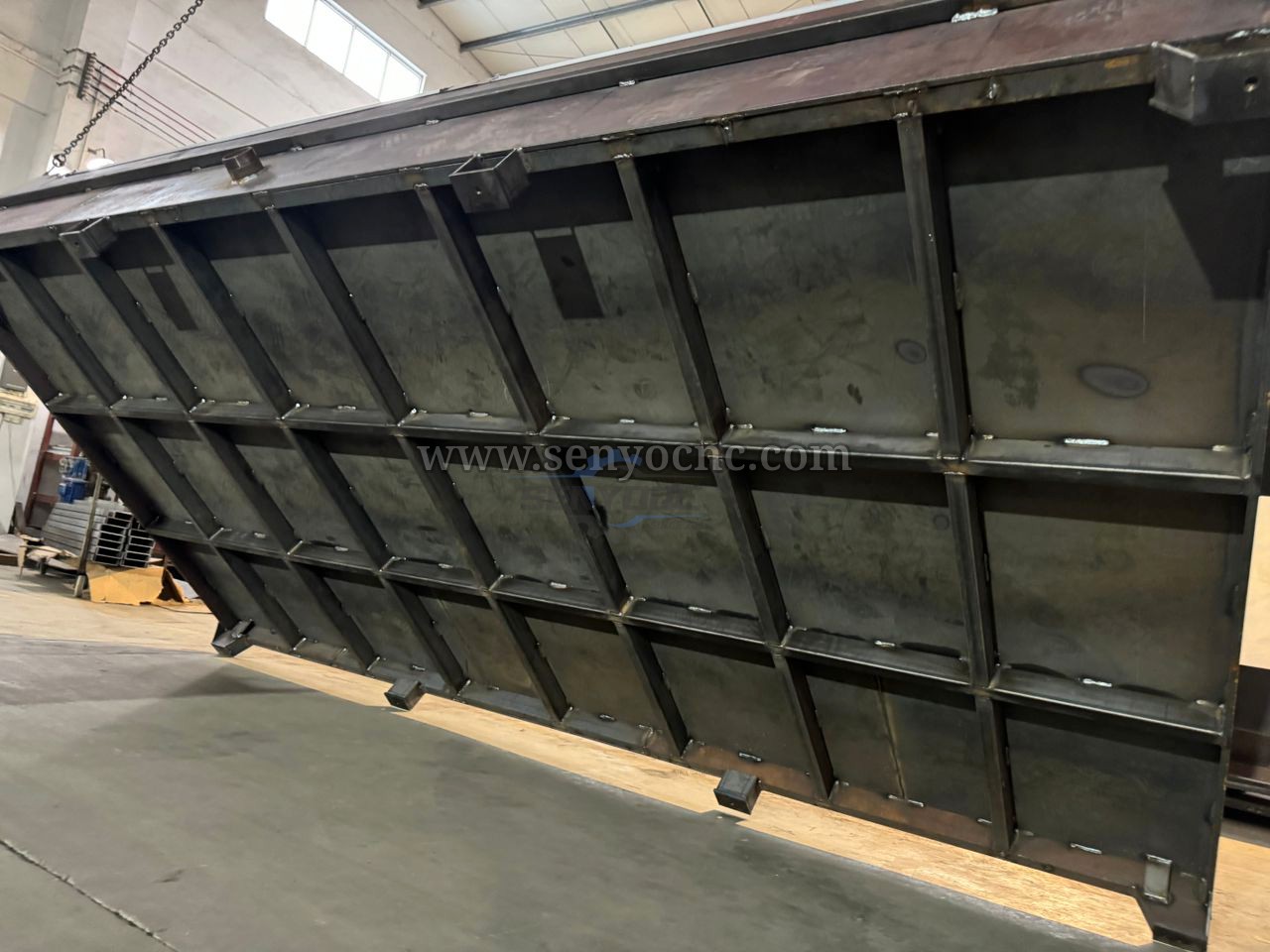

Lathe bed and water tank are detachable, which are designed to reduce the pressure from water with sands and machined parts to moving parts.
The base of Y-axis is overall manufacturing, It’s convenient for disassembly, transportation and assembly.
X-axis and Y-axis adopt high-precision ball screw and guide linear rail.
The size of cutting table can be customized, such as3000x2000mm,3000mm*8000mm, 3500mm*7000mm, 2000mm*12000mm,4000mm*12000mm.

Water Jet Cutting Machine Parameter
Parameters		Unit	SYSD 1010	SYSD 2015	SYSD 3015	SYSD 3020	SYSD 2060
Efficient Cutting Area		mm	1000×1000	2000×1500	3000×1500	3000×2000	2000×6000
Axis Travel	X	mm	1000	2000	3000	3000	2000
	Y	mm	1000	1500	1500	2000	6000
	Z	mm	150-180	150-180	150-180	150-180	150-180
X axis and Y axis adopt HIWIN or I+F ball screw and guideway;The servo motor to drive we adopt MITSUBISHI or Yaskawa
Cutting Accuracy		mm	±0.1
Positioning Accuracy		mm	±0.025
X,Y Dry-run Speed		m/min	0-15 (if need 30m/min speed,we can do as request )
Cutting Speed		m/min	as to detail material and thickness

Parts Detials

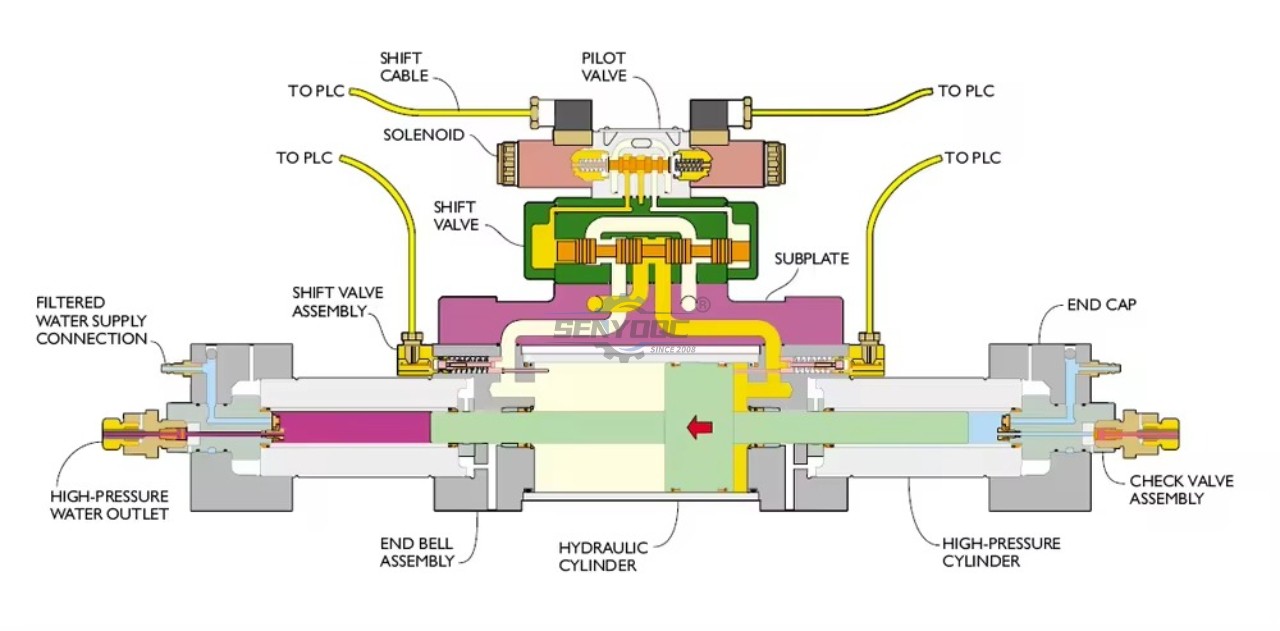

Driving System

Adopt imported core parts, durable and safe, pressurize water and continuously output water, so as to convert into supersonic water jet at cutting head.

Maximum output pressure up to 4137bar(60000psi)400MPa, Sustainable cutting pressure up to 380MPa.

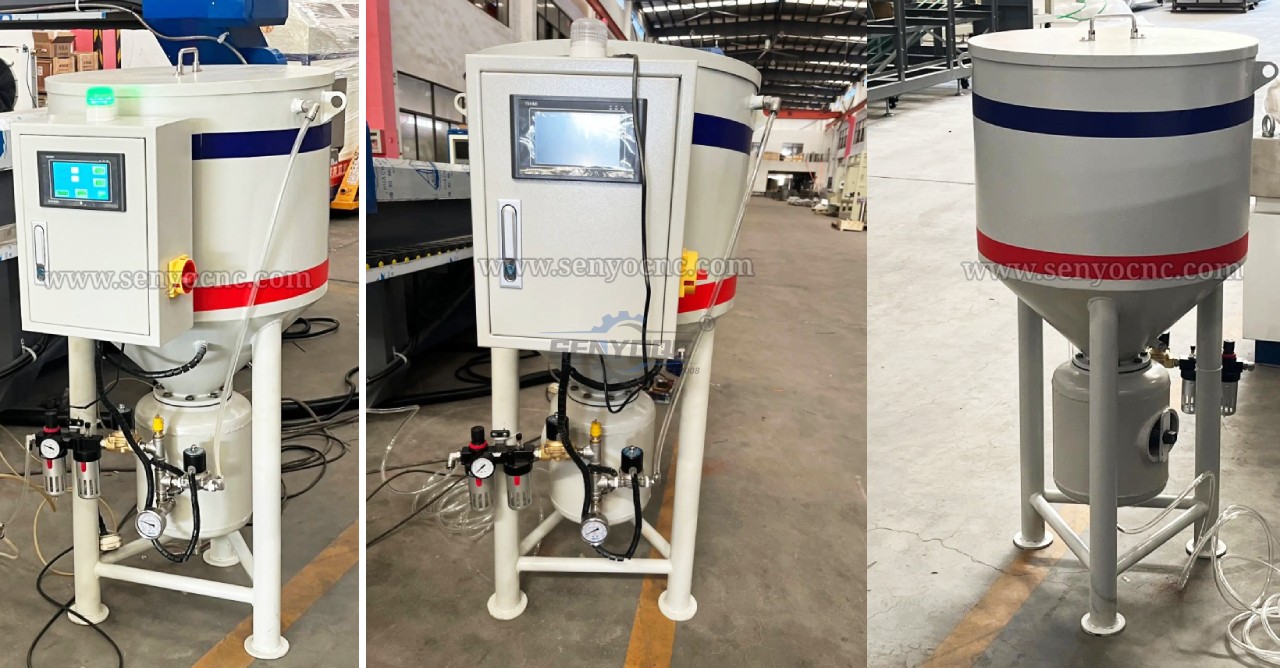

Auto Abrasive Delivery System

Transfers the abrasive to the abrasive regulator.

Air valve to prevent jams and breakages
Auto control with CNC auxiliary function
Self sealing
Slightly adjust the flow.

Oil Cooled Chiller

A less mantained, more stable and better working chiller.

It cool and guarantee the hydraulic system can be used in a stable
circular manner at 42-45°C，while at 55-57°C if by water chiller.

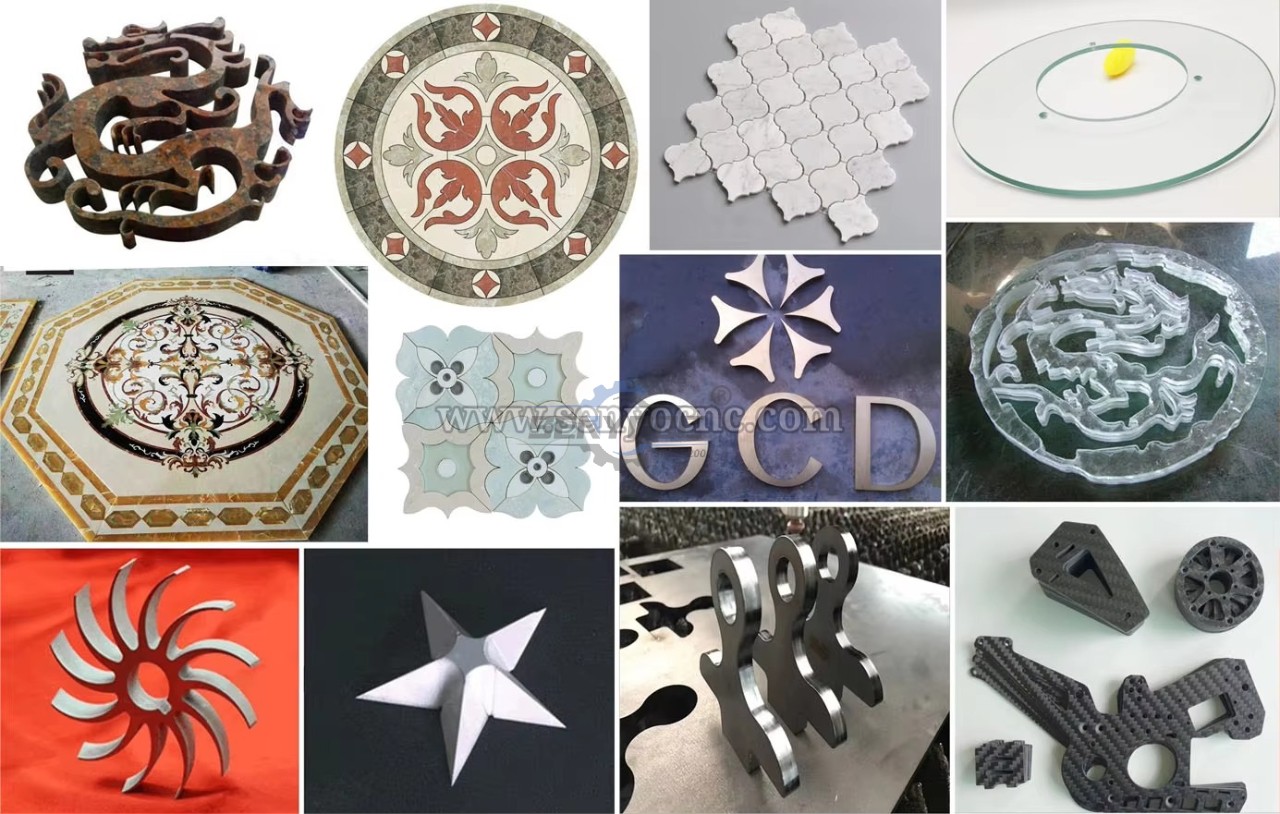

Application

* Stone/Ceramic industries such as used for countertops, art puzzles, flooring Inlays and mosaics.

* Glass industry , such as bathroom glass, shop window glass, automotive glass and appliance glass.

* Metal industries such as Decoration, decoration in the stainless steel and other metal cutting process, equipment cover cutting, Cutting of metal parts.

* Gasket Cutting

* Foam Product Cutting.

Introduce For Our WaterJet Machine

1. Are there special considerations for making glass parts?

Dual pressure piercing allows for piercing of glass with minimal risk of cracking.

SENYO cnc water jet mirror cutting machine could work with low-pressure piercing to slowly raise the pump pressure during the pierce to avoid a sudden shock to the material by a rapid change in pressure. Using these techniques reduces the risk of cracking, making glass cutting into a very profitable venture.

2. What kind of glass does your cnc water jet mirror cutting machine can cut?

There are plenty glass our cnc water jet mirror cutting machine can cut, such as laminated glass,bullet-proof glass , stained glass, polished glass, wired glassect.

3. What your cnc water jet mirror cutting machine's Max. cutting thickness for glass?

In theory, the thickness is up to the Z-axis travel, for common style, it is 150mm,

but in practical it is better to cut 120mm glass with good quantity and speed.

4. What are the different between water-only water jet and abrasive water jet?

"Water jet" is commonly used to reference both water-only water jet and abrasive water jet cutting.

Water-only water jets cut with ultra-high pressure water alone.

Abrasive water jets cut with an abrasive material (usually garnet) that has been added to the water stream.

Water-only water jets can cut through softer materials such as rubber and foam.

Abrasive water jets are used to cut through harder materials such as plastic, composites, stone, glass and metal.

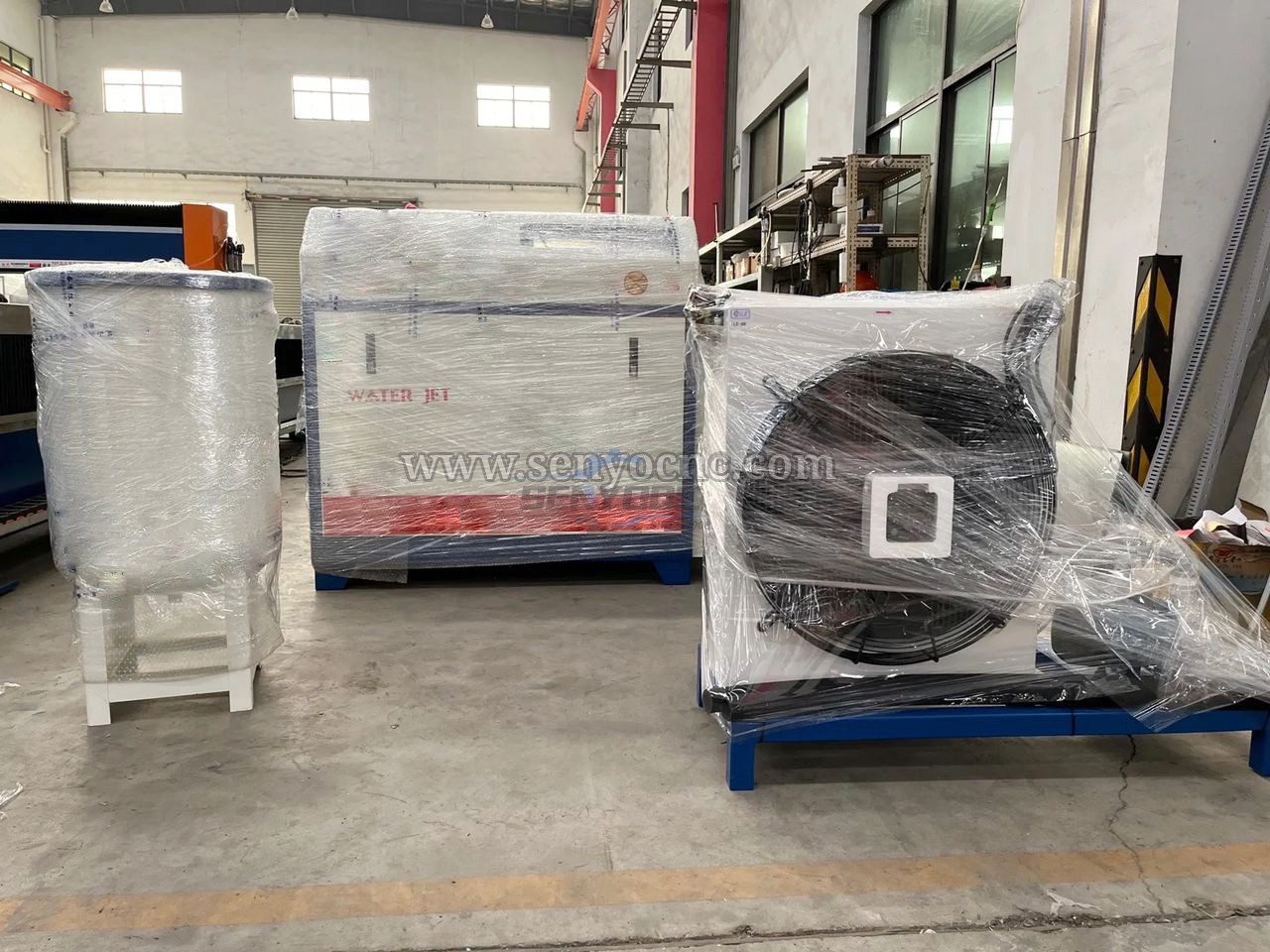

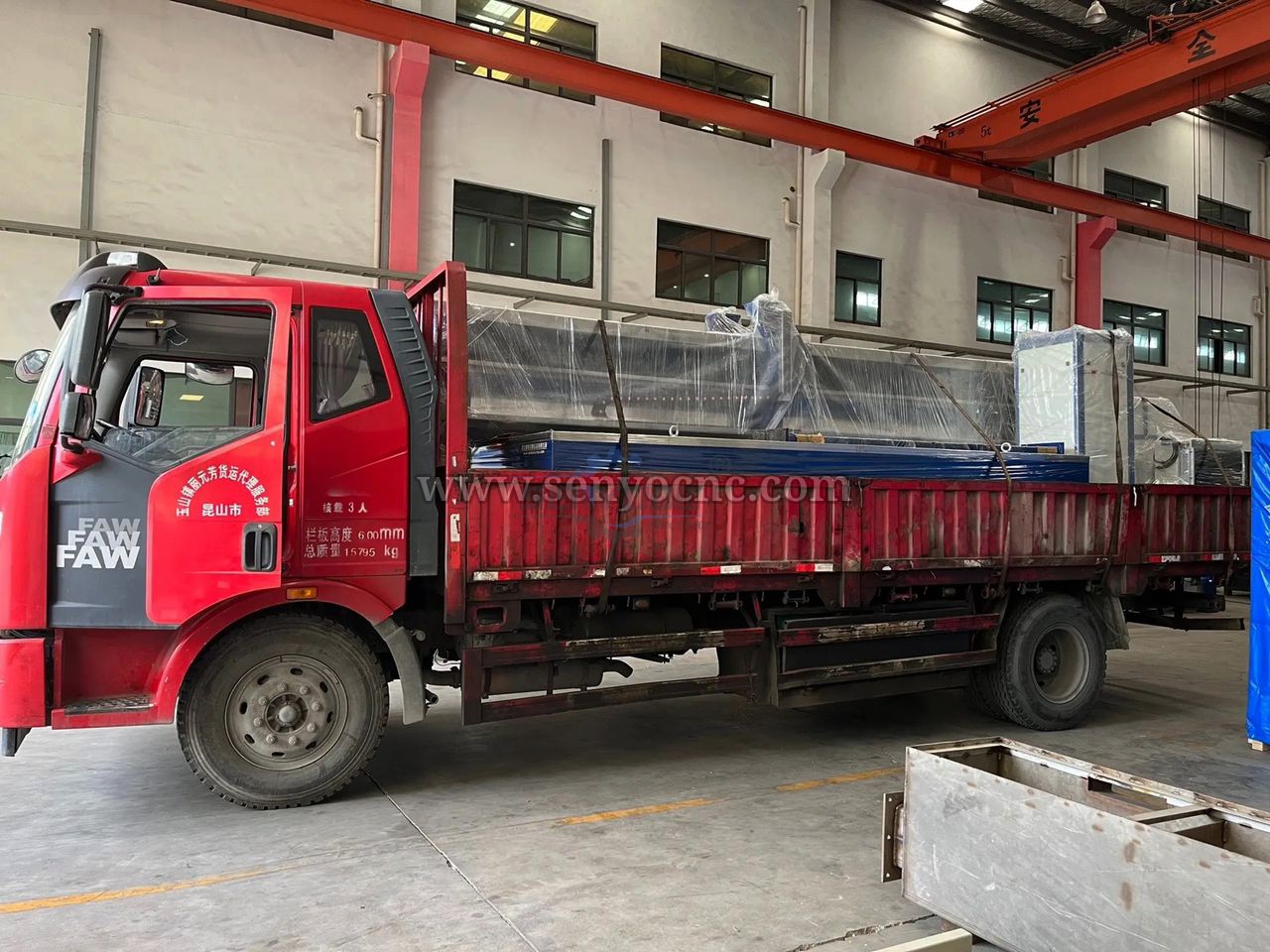

International Shipping
