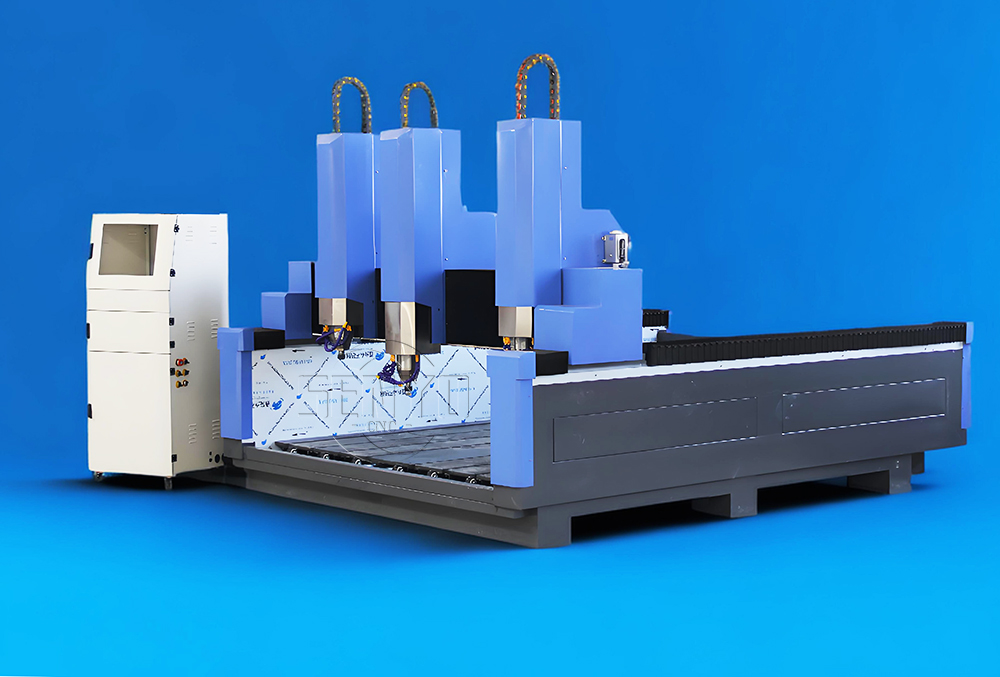

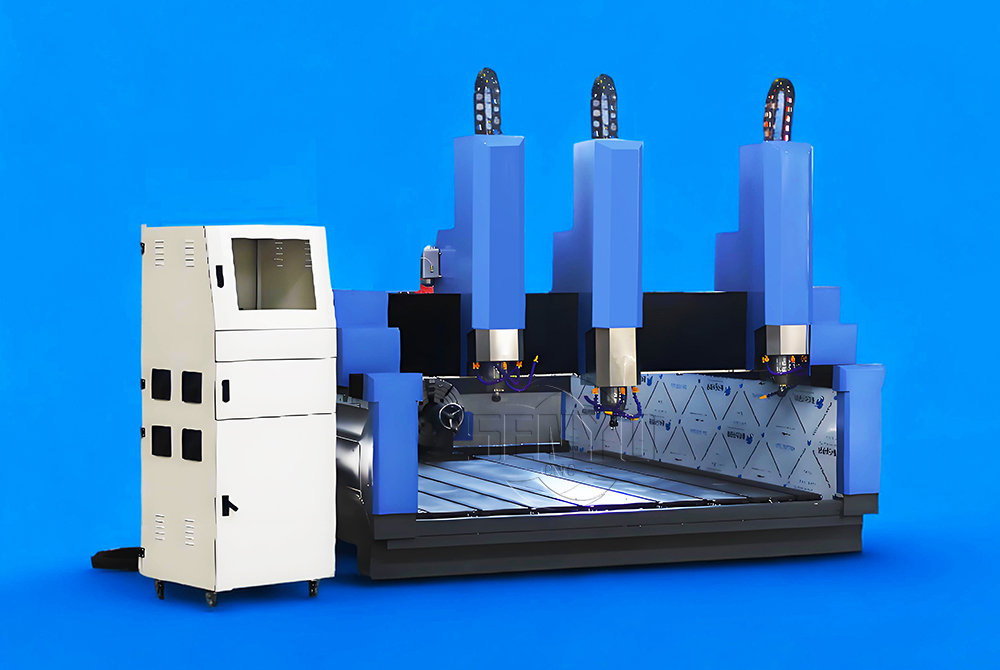

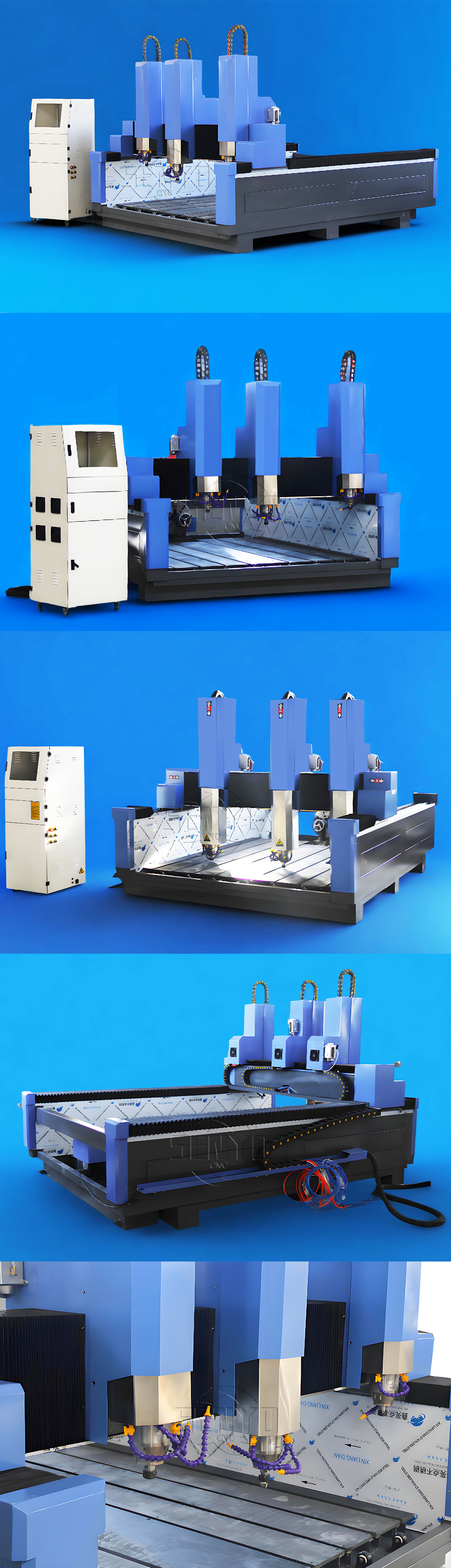

The best cost-effective 3 head stone CNC machine, this stone CNC machine come standard with 3 pcs of 5.5kw high frequency water cooling spindle, This granite engraving machine is more efficient than ordinary machines.
The stone CNC router machine can perform 3D relief carving on most stones, As well as line carving, chamfering, drilling 2D carving and other processing methods.
If you are interested in this 3 heads granite router machine, please contact us and we will provide you with The latest price.
Machine Features
1. Stone CNC router machine adopts a thick-walled all-steel structure design. After welding and tempering aging treatment, it has strong rigidity, strong strength and stable rotation, so that it will not be deformed or shaken during long-term high-speed operation.
2. Gantry type movement, fixed work surface, can process the material on the work surface at will;
3. The countertop adopts T slot worktable with PVC Materials.
4. A professional equipment with high comprehensive cost performance, suitable for medium and large furniture wooden door enterprises, Suitable for batch, all-weather work, standard 4.5KW air-cooled high-power electric spindle, Original high-precision imported bearings, greatly extending service life .
5. Adopt Taiwan high-precision, zero-clearance square weighted sliding linear guide pair. The rack system is a high-precision special craft rack, which runs smoothly and has high precision; and the Y axis adopts bilateral drive, fast speed, high efficiency, and load-bearing capacity. Large, heavy cutting can be performed.
Stone CNC Machine Parts Detials

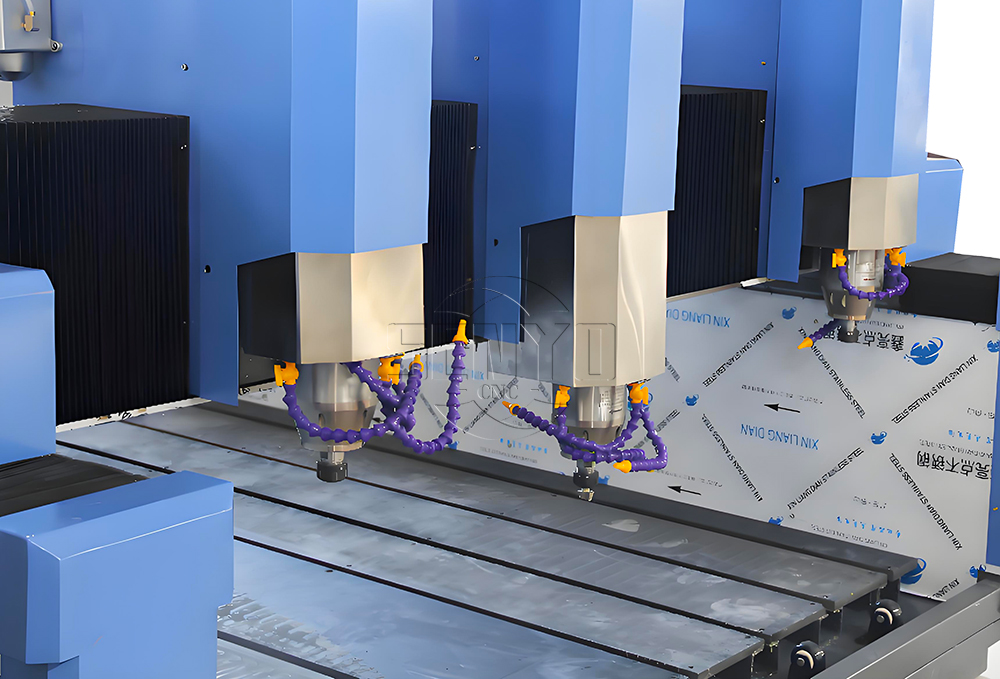

3pcs 5.5KW High Frequency Water Cooling SpindleThe CNC granite engraving machine have 3 heads so the doubule heads comes standard with 5.5kw high-frequency water cooling spindle and you can also select 7.5KW spindle. This high-quality precision spindle requires no maintenance, so it can work for a long time and it does not produce noise.The3-head granite engraving machine can complete the engraving of two products at the same time, or engrave one product with two spindles at the same time.Stable, Stronger Structure of CNC Granite Router Machine.Our stone CNC machine adopts T-type heavy duty Machine structure, it has good weight bearing capacity and not easy to deformation. This stone cutting machine can bearing more than 2000kgs materials. So you can process stone with confidence without worrying about safety issues.Feeding roller + Thick Aluminum & Hard PVC T-Slot Table + Stainless Steel Water tank

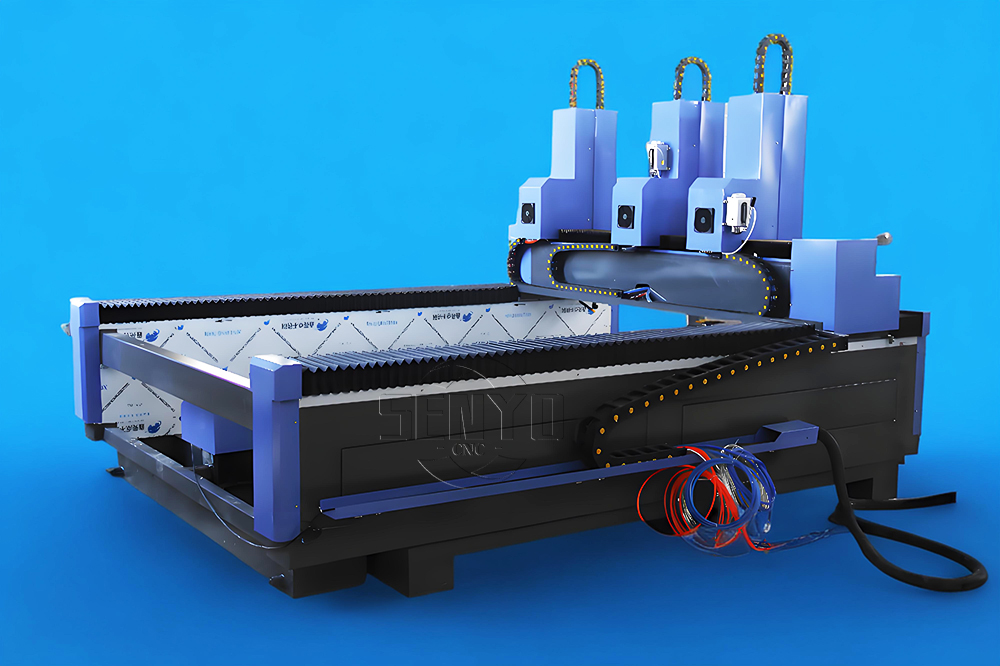

Heavy Duty Gantry
The gantry of Stone CNC machine is constructed of tubular steel, and reinforcement ribs are welded to each column of the gantry. In this way, Our CNC granite router machine not only can ensure the stability of the gantry,Also can load a variety of driver components, such as belts, and wiring harnesses, motors, bearings, etc.

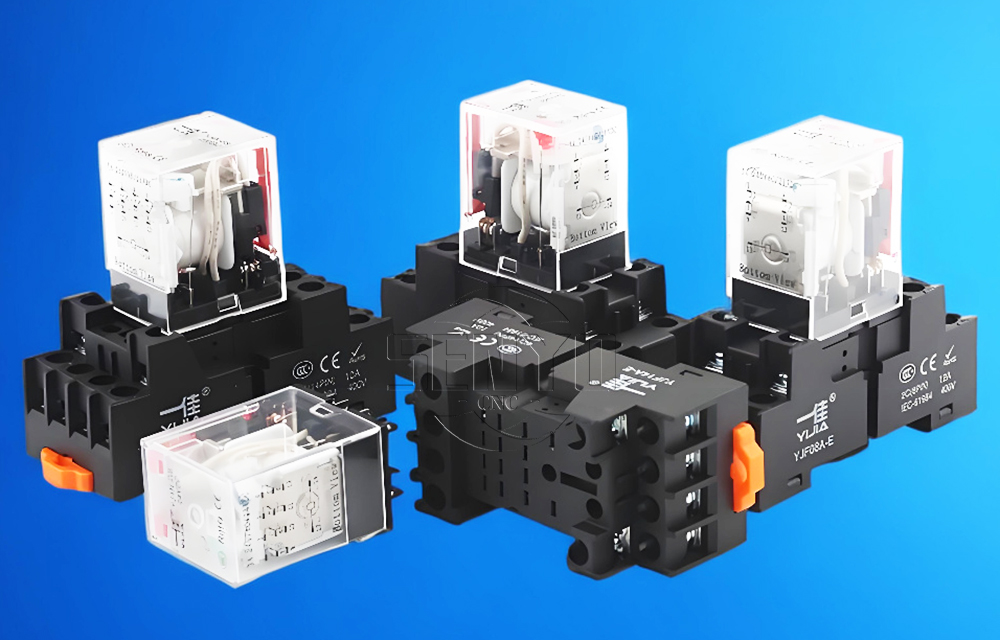

Machine use best electric parts in china.

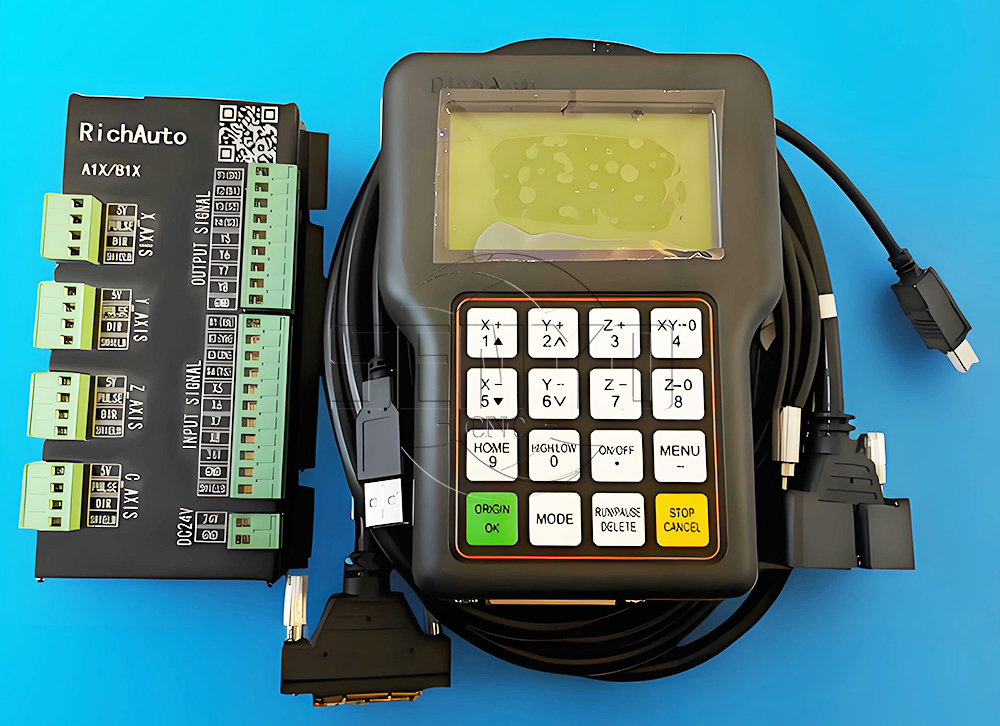

DSP Hand Controller
This is Rich Auto DSP A18 hand-held Controller.it supports offline operation and easy to use. Compared with the Mach 3 Controller, it is no need to connect with a PC during the machine working.And It is easily operate and learned,
Especially for the freshman. It has many advantages such as 16-button handheld operation, easy to train and operate,8 pairs of I/O ports can be customized,Support G code, PLT, DXF format files generated by various CAD/CAM software,
Support remote maintenance and system upgrade,Multilingual display, can be switched freely and many other functions.

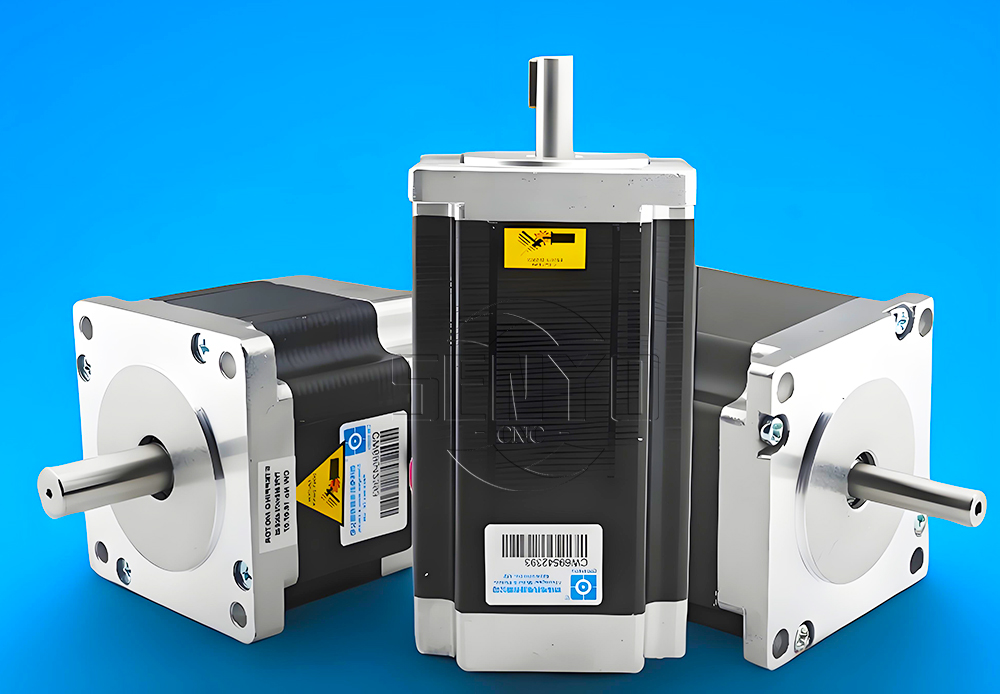

Drive Motors
This
CNC stone granite engraving machine uses brushless micro-stepper
motors. This kind of motor is not only powerful and it does not require
regular maintenance, it can continue to provide power.And you can
maintain the CNC router machine when the machine is free.Thereby
improving work efficiency of the Stone CNC machine .Powerful Drive Motors and Spindles of Stone Cutting MachineThe CNC granite engraving machine utilizes brushless microstepper motors.
These motors have strong performance, no maintenance, and can work for a long time. And in order to extend the service life of the machine, we chose a water-cooled spindle to process products.This spindle has low noise and high cutting accuracy, and can complete most of the processing methods.

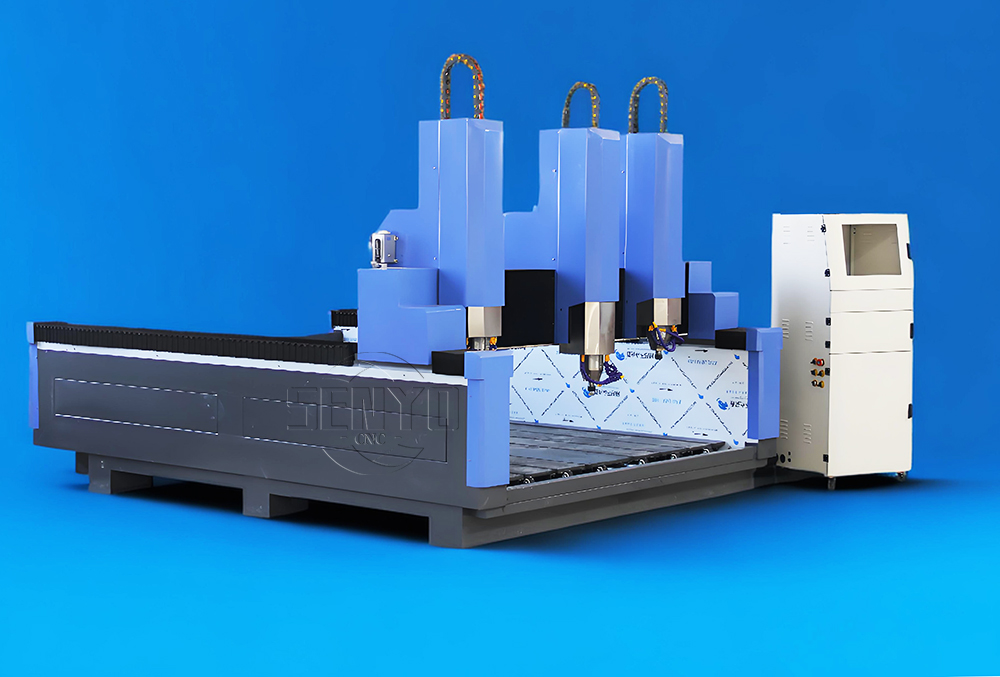

Base Frame
The base frame of the Stone CNC machine is made of heavy-duty tubular steel.So it is enough strong to process the hard stone material.
While
ensuring the base frame is firm, It can withstand the pressure through
precision machining and welding. Evenly dividing, not only improves the
stability of the chassis but also extends the service life of the CNC
stone carving machine.

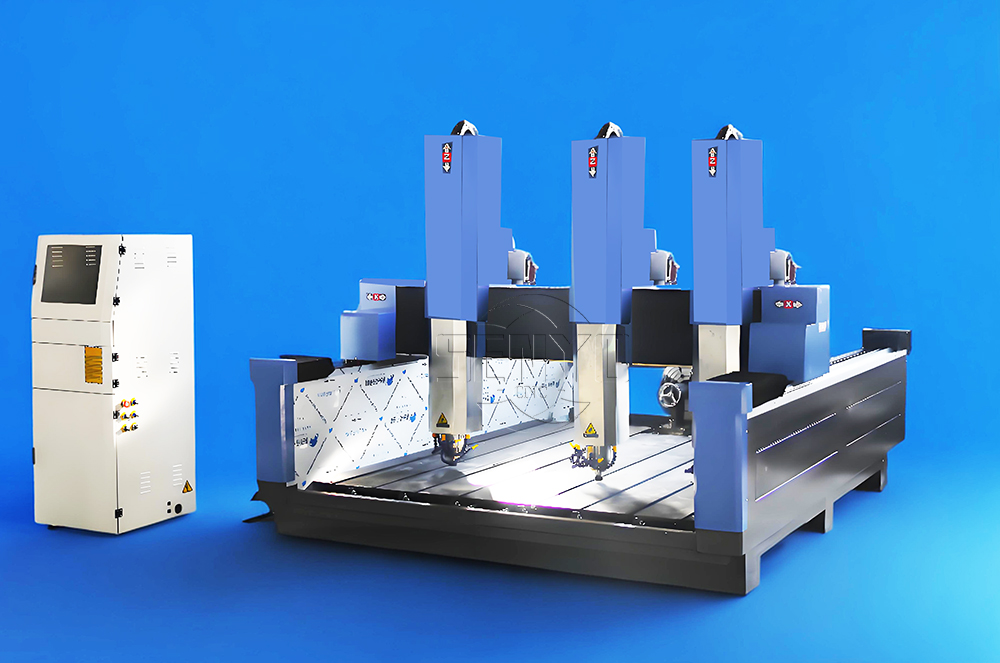

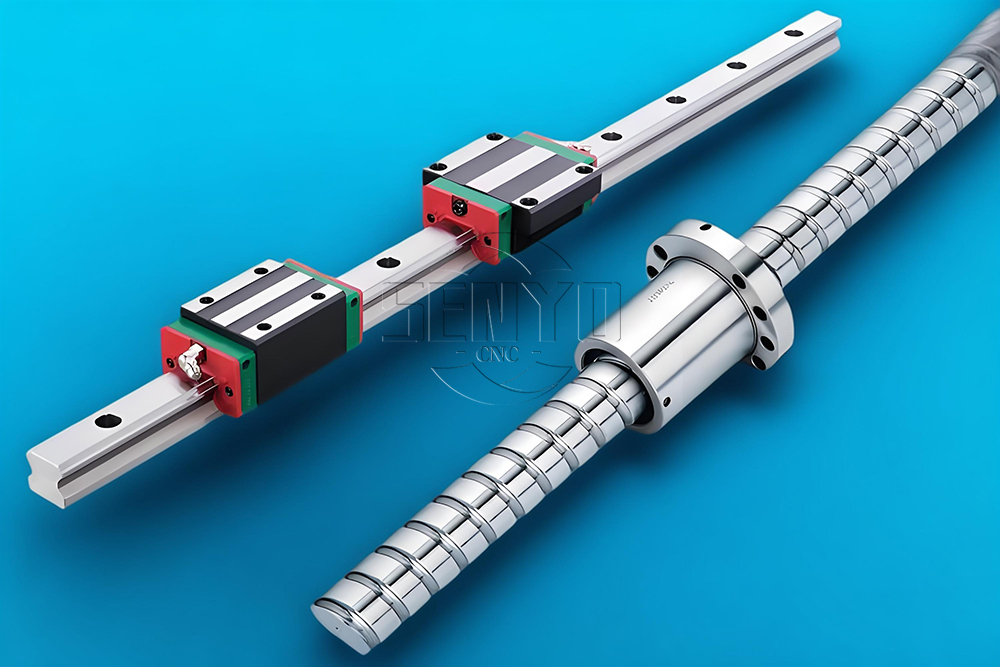

Z Axis High Precision TBI ballscrew, Machine
use Hiwin Rail guide.The CNC granite engraving machine uses precision
helical gear racks on the Z Axis . The rack is installed upside down to
prevent dust and debris from accumulating in the drive system. The
precision gearbox is directly coupled to the stepper motor and pinion.
This makes the cutting precision of this stone CNC machine is higher and
it runs smoother.
Applicable materials for The Stone CNC cutting router
1. Marble: Among personalized carvings, marble is the most ideal raw material of choice. Whether it is dark black, jet black, dark green, rose or gray, it gives people a very elegant beauty. Therefore, on the basis of having many traditional products.It has recently developed to use laser technology to engrave photos, images and texts, which is quite popular.
2. Granite: The texture is very hard, wear-resistant and durable, and is widely used in prizes, souvenirs and construction. Granite belongs to the limestone system. Its obvious characteristic is that it has spots, the color and luster give people the appearance of “salt and pepper”, and some also have the texture of marble. Granite can accept various polishing and finishing treatments. In view of the many colors of granite, especially black and white granite is often used to engrave text, images, etc. the carved products have a strong visual effect and are very eye-catching.
3. Artificial marble: Artificial marble is made of natural marble or granite crushed stone as filler, cement, gypsum and unsaturated polyester resin as adhesive, and it is made after stirring, forming, grinding and polishing. Artificial stone has the following characteristics: light weight, high strength, corrosion resistance, pollution resistance, convenient construction, and its carved patterns can be controlled by humans. It is an ideal decorative material for modern buildings.
Project Show

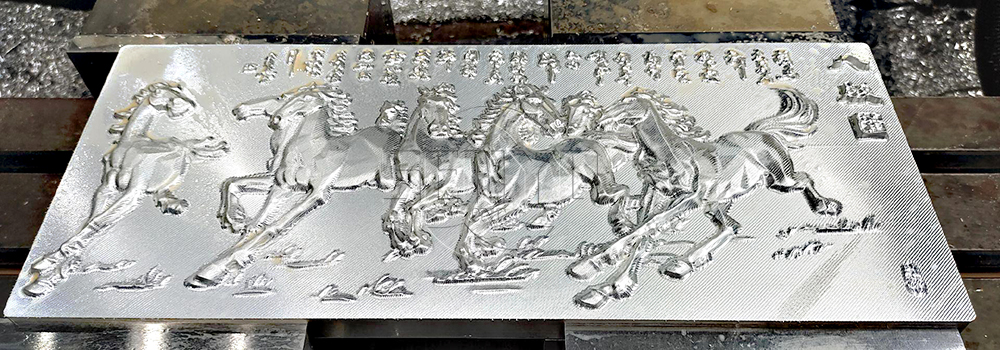

Aluminum Engraving & Cutting
Wood Engraving & Cutting

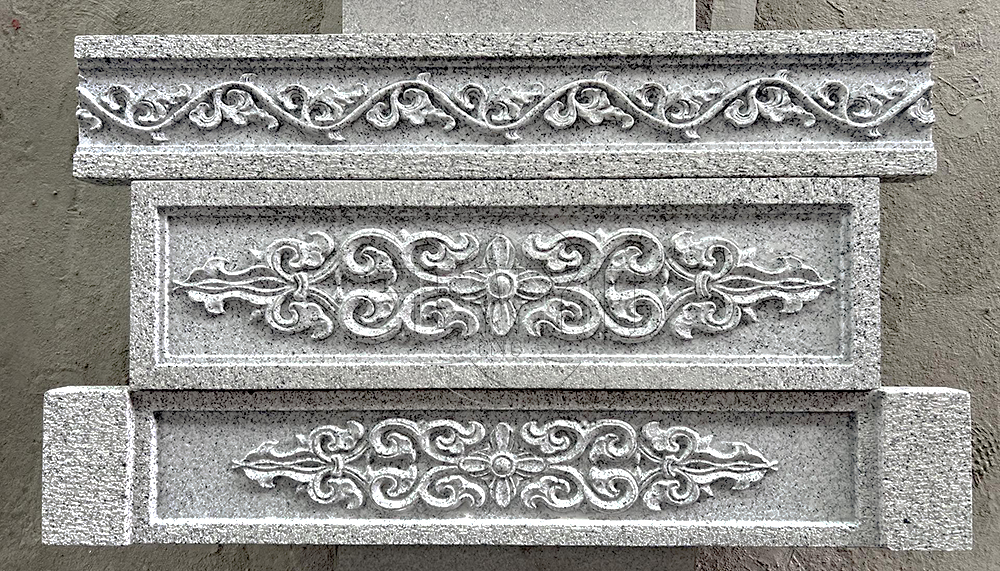

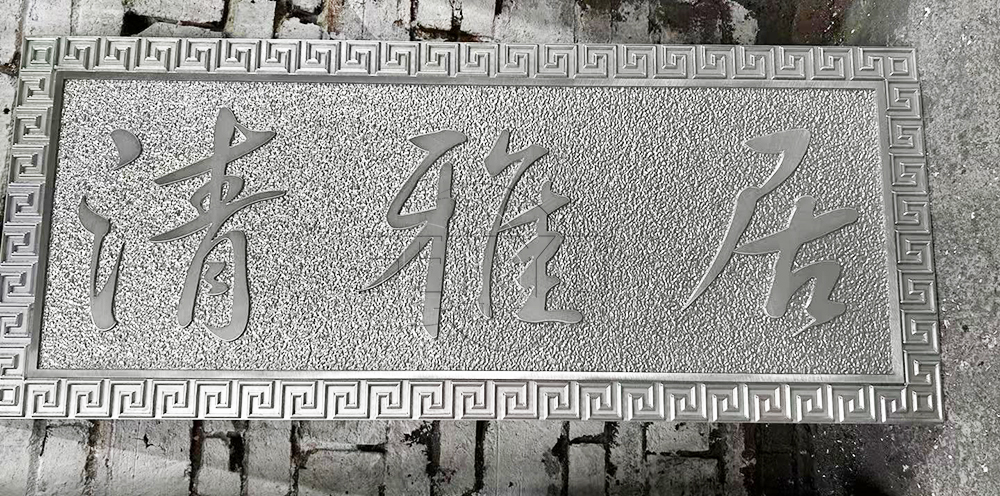

Stone engraving 2d 3d
Techology Paramaters
Model | SYS1530-3 |
Working Area | 1500*3000*500mm |
CNC Control System | Richauto A11 + Ruida Control System |
Spindle | 5.5kw Water Cooling Spindle ( 0-24000rpm ) |
Motor and Driver | China Leadshine Stepper Motor and Driver |
Inverter | China Fuling Lnverter |
Table Surface | T-Slot with PVC table + Water Tank |
Bed Structure | Heavy Duty 10mm Steel Machine Bed; 10-12mm Moving Steel Gantry |
Lubrication System | Manual Lubrication System |
Transmission | X,Y axis: rack and pinion transmission; Z axis: Taiwan TBI ball screw |
Electric Parts | French Schneider Electrical Components |
Others Parts | Japan Omron Llimited Switch, Automatic Tools Sensor |
Software | Artcam / Ucancam / Aspire / Fushion360 etc |
Working Voltage | 380V or 220V /3 Phase/1 Phase |
Optional | Mach3 PC Control System |
Leadshine / Delta / Yaskawa Servo Motor and Driver | |
4th Axis Rotary device Diameter 100mm/200mm/300mm |
Stone CNC Machine Application Industry | Glass Industry | |
Stone Industry | ||
Stone monument Industry | ||
Stone Decoration Industry | ||
Stone Art Industry | ||
Ceramic Industry | ||
Tombstone | ||
Material that can be cut by Stone CNC router | Stone | Marble |
Granite | Blue Stone | |
Sandstone | Tombstone | |
Artificial Stone | Other | |
For Our Work Steps
1.Before-sale,we will try to know your requirement what kind of work
you will do .then we will offer our best solution for your requirement.
2.During production: we will send photos of machines during making. so you can know more details about
the procession of making your machines.
3.Before shipping,we will take delivery photo and confirm the specification of order to avoid the mistake.
Machine will be adjusted before it is delivered.
4.After shipping: we will sent out the documents for your customs clearance ASAP . and check the
approximate date of arrival.
5.After arrival: we will confirm with you if machine is in good condition.and see if any spare parts missing .
6.About teaching: there are some manual and video about how to use machine , if you have question
about it. we will have professional technicist to help you install and teach how to use through skype ,calling,or mail.
Packing & Shipping
The machine is packed with great care and tough material.
The machine is packed with cling films first and then film bags.
The machine is packed with wooden case which is reinforced with the iron bar on the top and bottom.
With this kind of package, all our laser machine can protect well during long trip by sea or by train.
Service & Support
1. Our engineers available to service machinery overseas.
2. 2 years guarantee for the whole machine.
3. Technical support by calling, mail, whatsapp and skype. If you have any problems, we will help you to solve it within 12 hours.
4. If you need any component of the machine, we will provide most affordable price for you.
5. Friendly English version manual and operation video CD disk.
